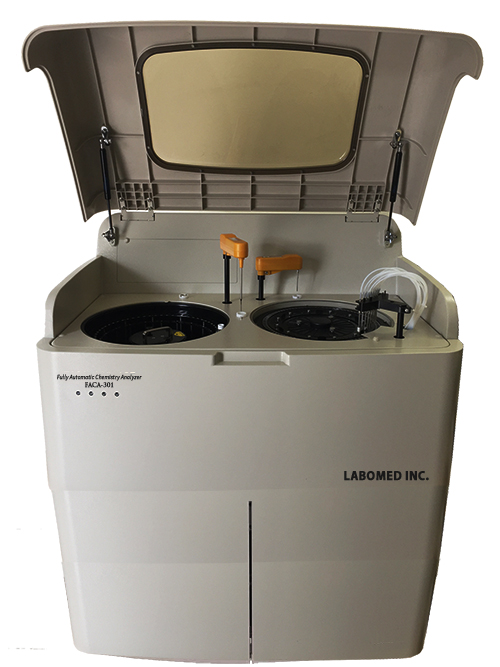

Fully Automatic Biochemistry Analyzer
FACA-301
Labomed introduces an automatic biochemistry analyzer with varying testing capacities.
There are two different systems:
FACA-301-ISE |
420 tests/hr |
True Random Access |
FACA-301 |
300 tests/hr |
True Random Access |
Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity
and is FDA Licensed.
Features
- Each set of FACA will come with one video to train in the installation, operation, and maintenance of the biochemistry analyzer.
- Random access and direct reading system
- Automatic washing system for both sample and reagent probe
- Liquid level detection and collision protection for both sample and reagent probe
- Reliable cooling system for reagent chamber - Peltier pad
- Powerful reaction cuvette washing system
- User-friendly interface
- Cuvette Washing Station - 8 channels automatic washing station, 1 for detergent wash (connect deteregnt bottle), 2-6 channels wash by water, 7 channel for first empty, 8 channel for final empty
- LIS software optional - must be purchased separately
- Water consumption: <10 L/hr
- Dry incubation temperature control: ±1.0°
- Reads serum and urine samples
- Absorbance alert provided when the Absorbance is abnormal
- ISE module and barcode scanner (optional)
- Works with Windows XP and Windows 7.
- Enzyme Kinetic GPT GOT tests.
- QC control function, based on Levy-Jennings chart analysis
- This instrument is open system and can use any common brand reagents.
- All FACA Fully Automatic Biochemistry Analyzers have 2 different sample plates:
- Standard sample plate for use with serum cup (serum order)
- Test tube sample plate for use with 13x75 - 13x100mm test tubes (that is optional)
Accessories
Item |
Specification |
Quantity |
Reagent bottle 1 |
40ml |
50Pcs |
Reagent bottle 2 with holder |
15ml |
15Pcs |
Reaction cuvette |
|
80pcs |
Serum Cup |
|
1000pcs |
Tube |
|
1 set |
Fuse(4A/8A) |
|
4 sets |
Lamp(13.8V/50W) |
|
1Pc |
Power cable |
|
1Pc |
Com Cable |
|
1Pc |
User manual |
|
1 |
Operation software |
|
1 |
Tool |
|
1 set |
Sensor |
|
1Pc |
Detect Probe, |
|
1Pc |
Sample Probe |
|
1Pc |
Ground Cable |
|
1Pc |
|
Top
of the Page
Technical Specifications
Test Tubes:
- Can use test tubes 13x75mm
Testing List
FACA 301 will measure the following elements at blood test:
T. BILI |
Total Bilirubin |
LgA |
|
APOB-IB |
Apolipoprotein-B |
D. BILI |
Direct Bilirubin |
CHO |
Chinese Hamster Ovary |
APOB |
Apolipoprotein-B |
TP |
Total Protein |
TG |
Thyroglobulin |
CK-MB |
Creatine Kinase-MB |
ALB |
Albumin |
CK |
Creatinine Kinase |
ASO |
Antibody Streptolysin O |
Lactic Acid |
Lactic Acid |
LDH |
Lactate Dihydrogenase |
CO2 |
Carbon Dioxide |
LP (a) |
Lipoprotein A |
UA |
Urinalysis |
LOL-C |
|
CHE |
Cholinesterase |
GLU |
Glucose |
HS-CRP |
High Sensitivity C-Reactive Protein |
Fe |
Iron |
TBA |
Total Bile Acids |
C4 |
Complement Component 4 |
LgM |
|
Zn |
Zinc |
CHE |
Acetylcholinesterase |
R-GT/GGT |
Reflocheck Glucose/
Gamma Glutamyl Transferase |
Ca |
Calcium |
Mg |
Magnesium |
ALP/AKP |
Alkaline Phosphatase |
CL |
Chlorine |
AFU |
Alpha-L-Fucosidase |
UREA |
Urea |
P |
Phosphorus |
FMN |
Flavin Mono Nucleotide |
CREA |
Creatinine |
C |
Carbon |
HDL-C |
High Density Lipoprotein-C |
ALT/GPT |
Alanine Aminotransferase/
Glutamate Pyruvate Transaminase |
A-HBDH |
alpha-hydroxy butyrate dehydrogenase |
PA |
|
AST/GOT |
Aspartate Aminotransferase/
Serum glutamic-oxaloacetic transaminase |
AMY |
Amylase |
LgC |
|
LA |
|
ADA |
Adenosine Deaminase |
and drug toxicity |
|
Cu |
Copper |
C3 |
Complement Component 3 |
HbA1c |
Glycated Hemoglobin |
Test for the Following Diagnostics
|
Liver |
ALT |
ALP |
GGT |
TP |
Alb |
TBIL |
DBIL |
|
|
|
Heart |
LDH |
CK |
CK-MB |
AST |
a-HBDH |
|
|
|
|
|
Lipids |
CHO |
TG |
HDL_C |
LDL_C |
|
|
|
|
|
|
Lipoproteins |
Apo A1 |
Apo B |
Lp (a) |
|
|
|
|
|
|
|
Kidney |
BUN |
CRE |
UA |
CK |
|
|
|
|
|
|
Ion |
Na |
Mg |
Ca |
K |
P |
Cl |
|
|
|
|
Other |
CO2-CP |
AMS |
LIP |
GLU |
IgA |
IgG |
IgM |
C3 |
C4 |
CRP |
