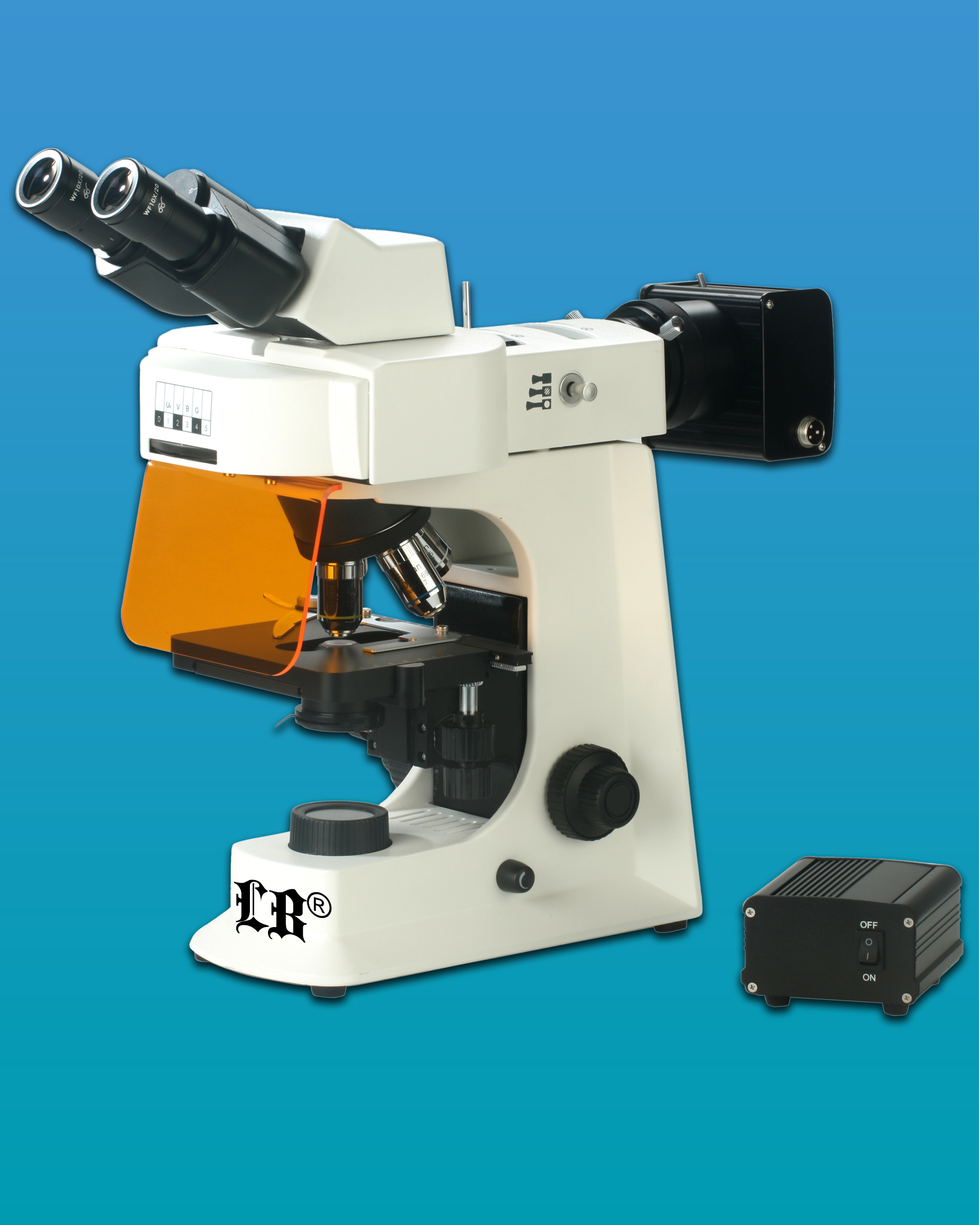

LB-263 Biological Binocular Flourescent Microscope With LED Illumination and
Infinite Optical
System (Infinity Color Corrected)
LB-263 Biological Binocular Flourescent Microscope With LED Illumination and Infinite Optical
System (Infinity Color Corrected) has an infinite optical system. The microscope is using LED illumination as the light source; the life span of the LED lamp (more than 50000 hours) is much longer than mercury lamp.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- Excellent fluorescent image with infinite optical system.
- LED illumination with 50,000 hours life span.
- No need for cooling system and protection device due to LED cold light source.
- 465-476nm excited wavelength with high SNR.
- Convenient to use, no need warm-up.
|
Top
of the Page
Technical Specifications
Applications
LB-263 Biological Binocular Flourescent Microscope With LED Illumination and Infinite Optical
System (Infinity Color Corrected) are used to study the absorbing, transportation, chemicals distribution and positioning in cells. They are widely used in disease examinations, immune diagnosis and life science areas.
Optical System |
Infinite optical system |
Viewing Head |
Seidentopf Binocular viewing head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75 mm. |
Eyepiece |
WF 10X/20 with diopter adjustment
WF 16X/13 (optional) |
Objective |
Infinite E-Plan Achromatic objectives 4X, 10X, 40X, 100x (OIL) |
Nosepiece |
Backward Quadruple Nosepiece
Backward Quintuple Nosepiece (optional) |
Focusing |
Coaxial coarse and Fine focusing knobs,
Travel range: 26mm, scale: 2um |
Stage |
Stage size 145X140mm, Cross Travel 76X52mm, Two slide holder |
Condenser |
Abbe condenser NA 1.25 with Iris Diaphragm |
Illumination |
6V/20W Halogen lamp, Brightness adjustable
3W LED illumination, Brightness adjustable (optional) |
Reflected Light Source |
|
Excitation |
Dichroic
Mirror |
Barrier
Filter |
Blue excitation |
BP460~490 |
DM505 |
BA515 |
|
Green excitation |
BP510~550 |
DM570 |
BA590 |
|
Lamp |
3W LED lamp (465-476nm) |
Immersion Oil |
Flourescent free oil |
Package: |
42cmx28cmx45cm, 40cmx20cmx40cm, 12Kg |
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
|
