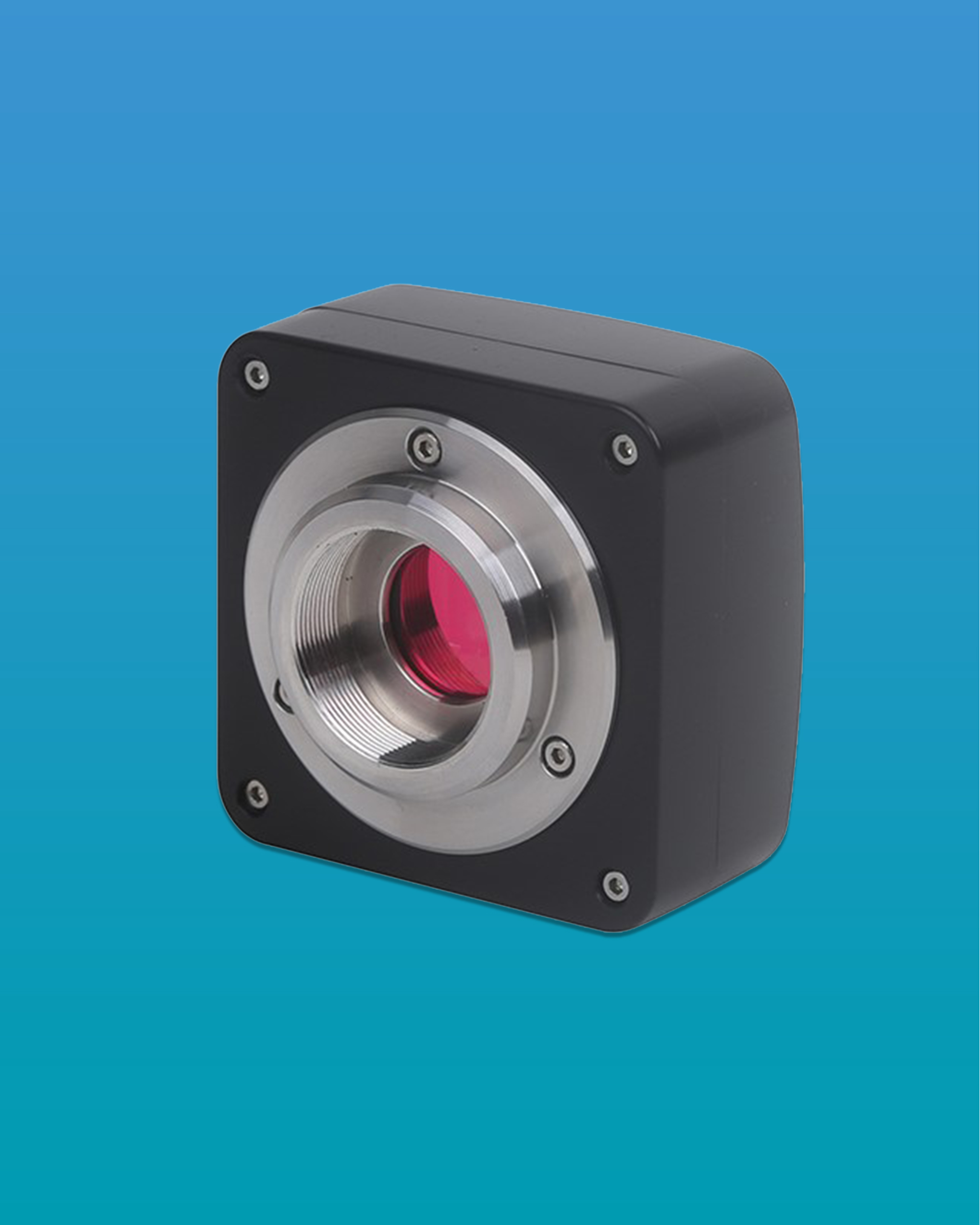

LC-37 - 5.1MP USB2.0 CMOS Microscope Digital Camera
LC-37 - 5.1MP USB2.0 CMOS Microscope Digital Camera adopts ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.
LC-37 - 5.1MP USB2.0 CMOS Microscope Digital Camera hardware resolution is 5.1MP and comes with the zinc aluminum alloy compact housing.
LC-37 - 5.1MP USB2.0 CMOS Microscope Digital Camera comes with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The LC-37 - 5.1MP USB2.0 CMOS Microscope Digital Camera can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Top
of the Page
Features
The basic features of LC-37 cameras are as follows:
1. Standard C-Mount with Aptina CMOS sensor;
2. With hardware resolution is 5.1M;
3. Durable zinc aluminum alloy housing;
4. USB2.0 interface ensuring high speed data transmission;
5. Ultra-FineTM color engine with perfect color reproduction capability;
6. With advanced video & image processing application ImageView;
7. Providing Windows/Linux/Mac OS multiple platforms SDK;
8. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Technical Specifications
Model |
LC-37 |
Sensor & Size(mm) |
5.1M/MT9P001© 1/2.5“ (5.7x4.28) |
Pixel(μm) |
2.2x2.2 |
G Responsivity |
0.53 V/lux-sec |
Dynamic range |
66.5dB |
SNRmax |
40.5dB |
FPS/Resolution |
5@2592x1944
18@1280x960
60@640x480 |
Binning |
1x1, 2x2, 4x4 |
Exposure |
0.294ms~2000ms |
|
|
Other Specification for LC-37 |
Spectral Range |
380-650nm (with IR-cut Filter) |
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
Operating Environment |
|
Operating Temperature (in Centigrade) |
-10~ 50 |
Storage Temperature (in Centigrade) |
-20~ 60 |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
Software Environment |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) |
OSx(Mac OS X) |
Linux |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory:2GB or More |
Dimension
The LC-37 - 5.1MP USB2.0 CMOS Microscope Digital Camera body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information
Standard Camera Packing List |
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
B |
Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) |
C |
LC-37 USB2.0 C-mount CMOS camera |
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
E |
CD (Driver & utilities software, Ø12cm) |
Optional Accessory |
F |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
(Please choose 1 of them for your microscope) |
C-mount to Dia.31.75mm eyepiece tube |
(Please choose 1 of them for your telescope) |
G |
Fixed lens adapter |
C-mount to Dia.23.2mm eyepiece tube |
(Please choose 1 of them for your microscope) |
C-mount to Dia.31.75mm eyepiece tube |
(Please choose 1 of them for your telescope) |
Note: For F and G optional items, please specify your camera type (C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; |
H |
108015(Dia.23.2mm to 30.0mm Ring)/adapter rings for 30mm eyepiece tube |
I |
108016(Dia.23.2mm to 30.5mm Ring)/ adapter rings for 30.5mm eyepiece tube |
J |
108017(Dia.23.2mm to 31.75mm Ring)/ adapter rings for 31.75mm eyepiece tube |
K |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
106012/TS-M2(X,Y=0.01mm/100Div.); |
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
Extension
Extension |
Picture |
C-mount Camera |
|
Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging; |
Microscope Camera |
|
