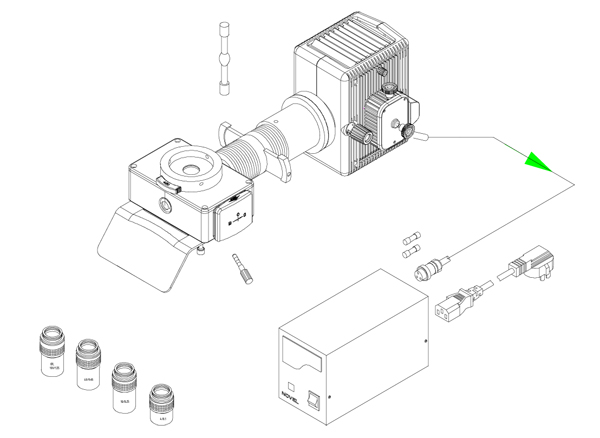

Epi-Fluorescent Attachment YX-2
The Epi-Fluorescent Attachment is designed to attach to certain Fluorescent microscopes in the Labomed product line, including the LB-233.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
Features
- B and G Exciting Light Filter Systems
- 100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
- Protection Barrier to Resist the Ultraviolet Light
- Power Supplier NFP-1, AC Input 220V/110V (Interchangeable), Digital Display and Timer
- Fluorescence-Free Objectives 4x, 10x, 40x, 100x
- Achromatic Optics System
- Mercury Lamp Housing 100W
- Mercury Burner GCQ100
Technical Specifications
Epi-Fluorescent Illumination |
B Exciting Light Filter System
G Exciting Light Filter Systems |
Illumination |
100WHBO Ultra Hi-Voltage Spherical Mercury Lamp |
Protection Barrier |
Barrier to Resist the Ultraviolet Light |
Power |
Power Supplier NFP-1, AC Input 220V/110V (Interchangeable), Digital Display and Timer |
Objective |
Fluorescence-Free Objectives 4x, 10x, 40x, 100x |
Immersion Oil |
Fluorescence-Free Oil |
Vertical Illumination |
Achromatic Optics System
B Exciting Light Filter System
G Exciting Light Filter Systems |
Mercury Lamp Housing |
Mercury Lamp Housing 100W
Mercury Burner GCQ100 |
|
Top
of the Page
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
