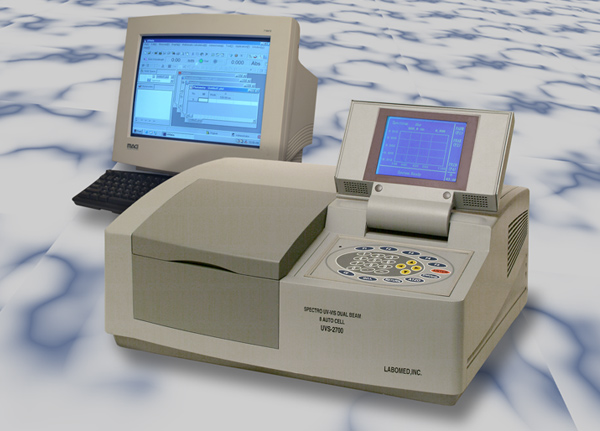

Spectro UV-VIS Dual Beam PC
Scanning Spectrophotometer
UV-VIS Split Beam 8 Auto Cell
Model UVD-2800






Spectro UV-Vis Split Beam PC (Model UVS-2800) is a precise scanning spectrophotometer with a new design of an eight (8) automatic microprocessor with 2 row cell holder for precision testing and noiseless movement. This Split Beam Spectro has a variable bandwidth ranging from 0.5, 1.0, 2.0 and 5.0 nm. and a dual detector, which in turn makes it an extremely accurate system.  This spectrophotometer has a large LCD display, which can function independently, or, in the alternative it can be linked to a computer and a printer.  With the RS-232C, the port, and the included software, the instrument can be linked to a computer, which is compatible with Windows Platforms, and a printer to display the photometric and spectral data on the PC monitor.


Spectro UV-Vis Split Beam PC (Model UVS-2800) offers high performance, ease of use and reliability, which can be used in various applications. Spectrophotometer Model UVS-2800 can be used extensively for qualitative and quantitative analysis in such fields as pharmaceutical laboratory, agricultural laboratory, research industry, inspection, clinical analysis, petrochemistry laboratory, chemistry and biochemistry laboratories, DNA/RNA analysis as well as in quality control departments, i.e. environmental control, water management, and food processing.
Spectro UV-Vis Split Beam PC (Model UVS-2800) is also capable of performing kinetic test through the use of an optional Peltier Constant Temperature System.  Additionally, this instrument can analyze flow through liquid with the use of the optional Sipper Flow through System.  Further, this spectrophotometer is capable of performing DNA/RNA measurement and printing its result through the use of an external HP 600/800 series printer.
Labomed, Inc. is certified by
ISO 9001-2000, has CE Conformity and is FDA Licensed.
Spectro UV-Vis Split Beam PC (Model UVS-2800) with variable bandwidth of 0.5, to 5.0 nm   is a high-performance, reliable, and exceptional value instrument
which is the hallmark of Labomed UV-Vis spectrophotometers.
There are 2 models of Spectro UV-VIS Double PC 8 Auto Cell available to the public:
1) Spectro UV-Vis Split Beam PC (UVS-2700) has fixed bandwidth of 2 nm.
2) Spectro UV-Vis Split Beam PC (UVS-2800) has variable bandwidth of 0.5 to 5.0 nm



Features

Top of the Page

  • Baseline Stability: The Split-beam monitoring ratio system enhances baseline stability.

    Excellent Resolution: The big-caliber light path enhances the instrument’s energy, reduces its noise and raises its resolution performance.

    Automatic successive measurement: The automatic eight-cell sample holder offers the automatic measurement of eight samples in succession. So it can bring about one-touch measurement of the solution of seven samples and a blank.

    User-friendly light source: The socket deuterium lamps and tungsten lamps facilitate light source replacement, simplify maintenance and reduce operation error.

    Convenient Display: The large backlit LCD screen displays both photometric values and spectral curves.

    Full use of Computer Technology: Being computer controlled with RS-232 interface and working on the Windows platform with the UV/Win application software, presents to the fullest of the fascination of modern computer technology.

    The key components: adopts from the world famous manufacturer, such as deuterium lamp, silicon photodiode and holographic grating, which ensures the stabilization and credibility of the Instrument for extended life.

    Computer System is optional (NOT INCLUDED).


  • Functions

  • Photometric Measurement: Rapid and accurate measurements of transmittance and absorbance for samples and selected wavelength are available.
    - This module allows successive and automatic calibration and measurement of up to seven samples with the built-in 8-cell sample holder.
    - Direct concentration results can be produced by simply entering the K-factor.
    - Printout of Measured data with sample numbers in a tabular format.    Spectrum Scan: Spectra of samples on any range between 1100nm ~ 190 nm can be measured with real time visual display of spectral curves on the large LCD screen.
    - Such operating parameters can be selected, as photometric mode, wavelength range, ordinate range, sampling interval and scanning speed.
    - Picking out and printout of peaks and valleys for spectral curves.
    - Printout of spectral curves to a printer with A4 paper.    Quantitative Measurement: Use a calibration curve to determine the concentration of unknowns at the user-selected wavelength.
    - The regression of calibration curve can be made with up to 8 standards and the linear correlation coefficients be offered.
    - The plot of a calibration curve is displayed on the large LCD screen.
    - Instant concentration results can be produced by simply entering K-factors.
    - Successive and automatic calibration and concentration measurement up to seven samples are available by the built-in 8 cell sample holder.
    - Printout of the table of measured concentrations and K-factors of a calibration curve.

  • Windows Software: Such operations as photometry measurement, spectrum measurement, quantitation measurement and kinetic measurement are offered in the UV-Win Windows application.
    - Up to 10 Spectra and time-course curves can be measured and recalled in memory with data-handling of arithmetic calculation, logarithmic calculation, reciprocal calculation, smooth, derivative (1t-4th), Abs to/from %T conversion and peak pick.
    - Up to 24 standards can be entered and measured for fitting of calibration curve with order of 1st – 4th.
    - With the Windows clipboard, the measured data and graphics can be copied to other applications software for reports.

Software Specifications

MONOPROCESSOR BUILT- IN APPLICATION

  • Photometric Measurement: Measuring transmittance or absorbance at the current wavelength together with K factor calculations..

  • Spectrum Scan: Carrying out scanning of transmittance or absorbance on the selected wavelength range together with peak-pick module.

  • Quantitative Determination: Regression of standard curves and direct determination concentration of samples.

    PC WINDOWS APPLICATION SOFTWARE (RS-232 INTERFACE)
  • Photometric Measurement: Measuring the photometric values at 1-10 wavelenghts together with mathematical calculations according to entered quotations.
  • Spectrum Scan: Producing Wavelenght scans within the operating parameters on samples together with powerful data handling facilities.
  • Quantitative Determination: Determination of unknown concentration with methods of 1-3 wavelength quantitation, together with fitting of calibration curve of 1st ~ 4th order.
  • Kinetics: Recording curves of changing photometric values of samples against timecourse at the selected wavelengths together with powerful data handling facilities.
  • Output: With the Windows clipboard, the measured data and graphics can be copied to other applications software for reports.



Included Accessories

Top of the Page

  • 8 Auto Cell Holder

    8 Optical Glass Cells 10mm.

    2 Quartz Cells 10mm.

    1 Dust cover

    1 Instruction manual

    1 Power cable

    1 PC cable

    1 Software CD for Windows 98/2000/XP

    1 Software Operation Manual

    1 Spare Tungsten Halogen Lamp

    1 Block Light Cell

    1 Extra fuse

Optional Accessories

  • Set of 2 performance testing filters (1 "E filter" for photometric accuracy test
    and 1 didymium filter for wavelength accuracy test)

  • Peltier constant temperature system (15 - 55ºC) Spec.: Spectro
    UV-Vis Dual Beam PC)

  • Sipper flow through system (Peristaltic pump and flowcell). Specify: Spectro
    UV-Vis Dual Beam PC)

  • Large Cell Holder

Top of the Page

Technical Specifications

Top of the Page
|
1) Optical System: Dual Beam
- Wavelength range: 190 nm – 1100 nm
- Spectral bandwidth: 2,0 nm(UVS-2700) and 0,5-1,0-2,0 and 5,0 nm.(UVS-2800)
- Stray Light: <0.2%T (220 nm, Nal; 340 NaNo2), >=2.0Abs (KCI, 200nm)
- Wavelength accuracy: ¡À0.3nm
- Wavelength Reproducibility: 0.2 nm
2) Photometric System: The split-beam monitoring ratio system.
- Optical System: The crossed monochromator with the high-resolution, diffraction holographic grating.
- Photometric Method: Transmittance, absorbance, energy and concentration
- Photometric Range: -0.3~3.0 Abs
- Photometric Accuracy: ¡À0.002Abs (0~0.5A)
¡À0.004Abs (0.5~1A)
¡À0.3%T (0~100%T)
- Photometric Reproducibility: 0.001Abs (0~0.5A)
0.002Abs (0.5~1A)
0.15%T (0~100%T)
- Baseline flatness: ¡À0.002 Abs (190-1100nm)
- Baseline stability: 0.001Abs/h (500nm, 0Abs 2nm Spectral Bandwidht, 2Hr. warm-up)
-Scanning Speed: 1400nm/min.
-Interface Card: RS-232
-Detector: Dual Silicon photodiodes
-Photometric Display: -9999 ---- 9999
-Photometric Noise: ¡À0.001Abs (500nm, 0Abs 2nm Spectral Bandwidth).
-Slew rate of wavelenght: 3600nm/min.
3) DNA/RNA Measurement:
- Results Printout. Printing of measured data by using HP Deskjet 600/800 series (optional)
4) Mainframe: Compact and standalone spectrophotometer mainframe
- Light Source: Socket Deuterium Lamp and Socket Tungsten Halogen Lamp.
- Detector: Dual Silicon photodiodes
- Sample Chamber: Automatic eight-cell sample holder.
- Size: 22x16x10”
- Weight: 55 Lb.
