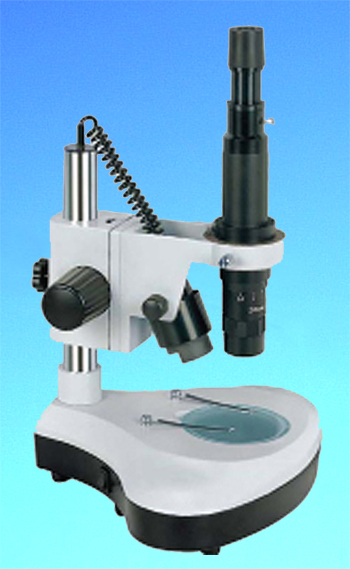

LB-101 Monocular Zoom Microscope
PDF Brochure - Page 1
PDF Brochure - Page 2
LB-101 Monocular Zoom Microscope is a precise optical system providing high resolution, sharp and strong stereoscopic images. 7×-45× zoom images can be observed by easily operation. It is a very good microscope and can be used in semi-conductor and integrated circuit board inspection and measurement. It is also can be used in educational demonstrations and agriculture research areas.
Monocular Zoom Body LB-100 can also be flexibly equipped with a frame to work with a semi-conductor and integrate circuit board production line. With a microscope digital eyepiece LB-131, it turns into a digital microscope. It then can be connected to a PC to analyze the object.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
Infinite and high quality zoom optical system 1:6.5.
Integration structure design makes it occupy less working space.
High-resolution camera, USB2.0 output.
A wide range of accessories to be equipped with the microscope for multi-purpose.
Digital camera connected to computer to achieve analysis function.
Wider viewing field (eye survey up to 85mm).
Higher magnification (up to 400X with 15”monitor).
|
Top
of the Page
Technical Specifications
Application
LB-101 Monocular Zoom Microscopes are widely used in educational demonstration, agriculture research, semi-conductor and integrated circuit inspection and so on.
Eyepiece: |
Eyepiece WF10x |
Zoom Ratio: |
Zoom Ratio: 1﹕6.5(0.7×-4.5×) |
Total Magnification: |
7×-45× |
Working Distance: |
90mm |
Stand Focusing Range: |
55mm |
Stand Clips: |
Φ90mm Frosted Glass or Black/ White Plate & Clips |
Illumination: |
Reflect Illumination, 6V/15W Halogen Lamp with Reflector |
Bottom Illumination |
6V/20W Halogen Lamp |
Video System |
C Mount |
|
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
