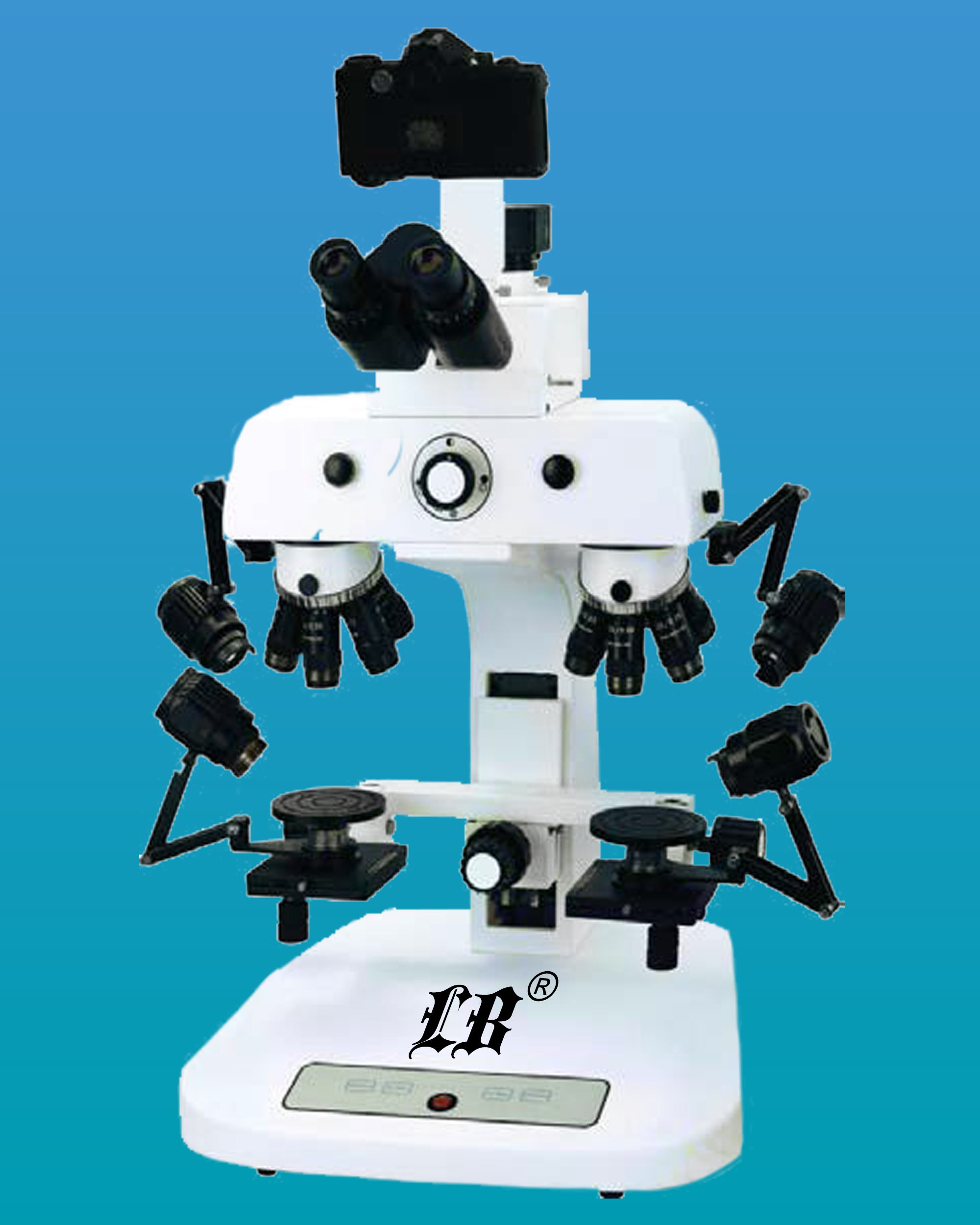

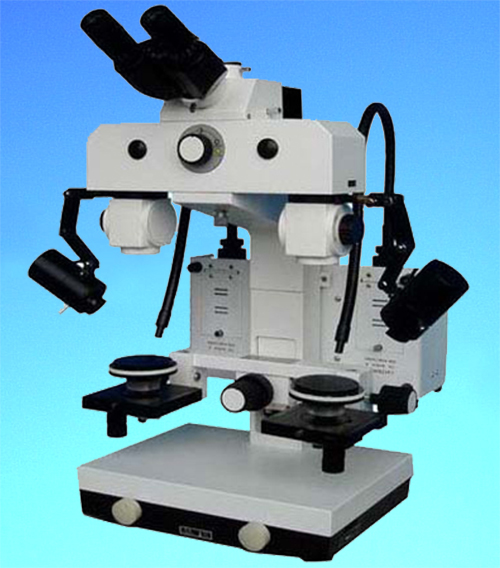

LB-1010 Comparison Microscope

View Brochure by Flipbook

PDF Brochure - Page 1

PDF Brochure - Page 2

PDF Brochure - Page 3

LB-1010 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using
field cutting, jointing and overlapping methods, two (or more two) objects can be compared together.

LB-1010 has clear image, high resolution, and can identify tiny differences between objects accurately. It is
basically used for forensic science and police departments.

LB-1010 has excellent optical performance and complete comparison function, it is suitable for various
comparison demands, so it has a very wide range of applications.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
  • With sextuple nosepiece, comes with 0.5×,  1×,  1.5×,  2×,  4×,  6×  objectives, nosepiece has stop clicks, comfortable to change the objectives.
  • Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-62mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° - 60 °.
  • Two stages can be adjusted horizontally at the same time, moving range: 0-62mm.
  • Coarse lifting range of 0 - 62mm.
  • Equipped with 12V/50W air-cooled lamps, large power LED lamps, light intensity is adjustable.
  • Polarizing attachment, used to eliminate stray and glare light. (optional)
  • Coaxial illumination device, used for observation of deep hole, small hole and smooth surface. (optional)
  • With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
  • With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.

Top of the Page

Applications

LB-1010 Comparison Microscope is the ideal device for Public Security Bureaus, procuratorates, courts and their colleges to compare and identify the bullet, tool marks, fingerprints, seals, text, signatures, drawings, and bank notes. It also can be applied to electronic, biochemical, agriculture, archaeology, banking, Customs and industries or sectors who have the requirements to detect or identify objects.

Technical Specifications

Total Optical
Magnification

5×~120×

Viewing Head

Seidentopf Trinocular Head, Inclined at 45°, Interpupilary Distance 55-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 22, diopter adjustment

Wide Field Eyepiece WF20×/ 12, diopter adjustment

Field of View

Φ2mm~Φ60mm

Comparison
Mode

Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation

Objective

0.5×, 1×, 1.5×, 2×, 4×, 6×

Nosepiece

Sextuple nosepiece

Stage

Manually operate stage, moving range: X-62mm, Y-62mm, Z-62mm

Two stage horizontal moving range: 62mm, The coarse vertical lifting range: 62mm

Illumination

High power LED illumination, brightness and angle adjustable

Side illumination, 12V/50W air cooled reflecting lamps

Polarizing attachment (optional)

Coaxial illumination device (optional)

Attachment

Photo attachment for DSLR digital camera (Nikon, Canon)

Video Adapter

C-mount for digital cameras


Eyepieces and Objective Parameters



Objective

Magnification/FOV(mm)

Working Distance (mm)

10× Eyepiece

20× Eyepiece

0.5×

5×/Φ60

10×/Φ24

143

10×/Φ21

20×/Φ12



102

1.5×

15×/Φ15

30×/Φ8

20×/Φ11

40×/Φ6

40×/Φ6

80×/Φ3

60×/Φ3.9

120×/Φ2

Dimension: 39(L) ×38(W) ×70(H)cm

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
