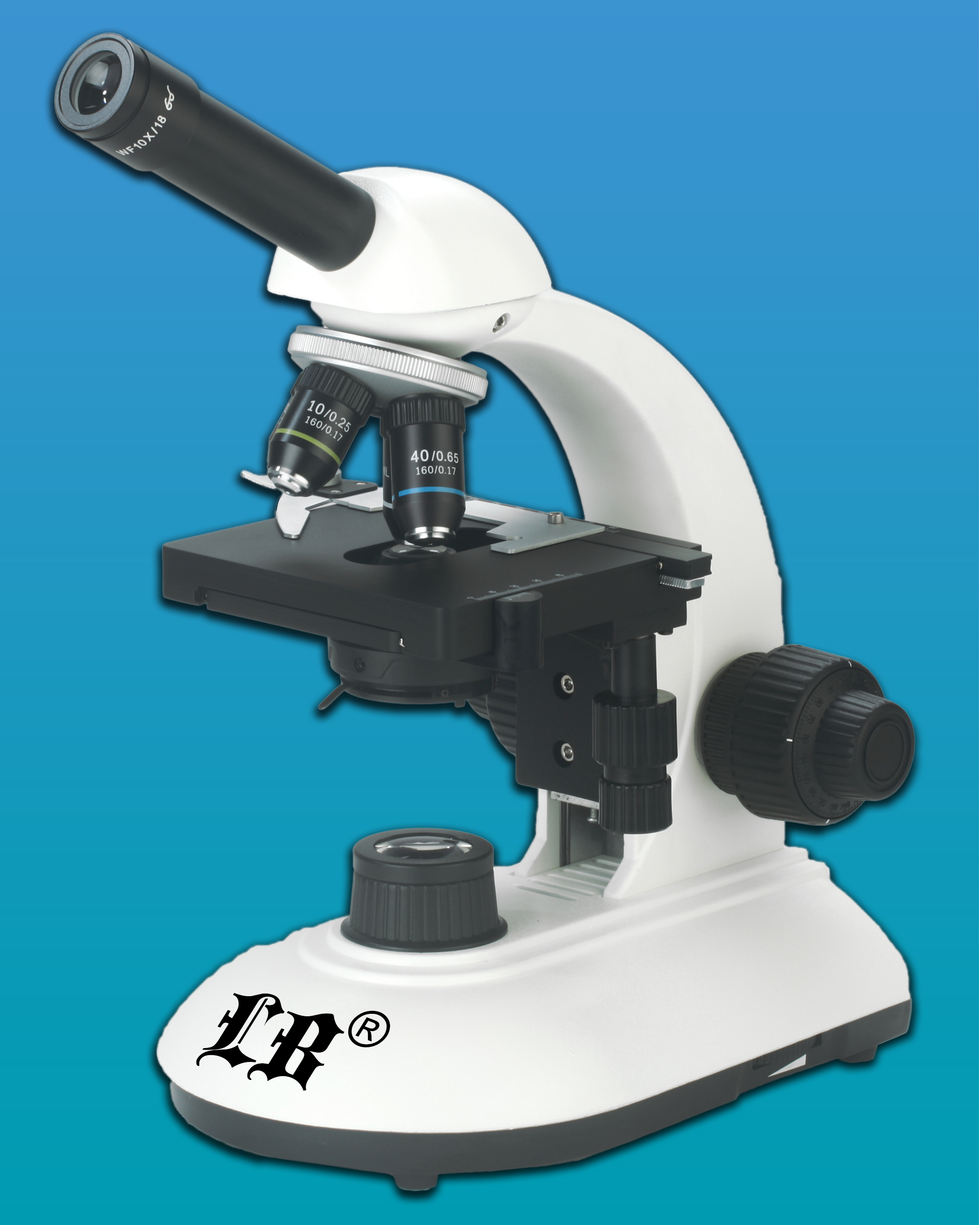

LB-117 Biological Monocular Microscope With Wide Field, Quadruple Nosepiece And Plan Achromatic Objectives

LB-117 Biological Monocular Microscope with Wide Field, Quadruple Nosepiece and Plan Achromatic Objectives is an ergonomic and economical Monocular microscope with Plan Achromatic objectives, Quadruple nosepiece and LED illumination system.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • More comfortable and reliable operation with modern design.
  • Affordable price with reliable performance, long working life.

Top of the Page

Technical Specifications

Applications

These microscopes are economical microscope with all the basic features for educational use in elementary and high school.

Optical System

Finite Optical System

Viewing Head

Monocular Viewing Head, Inclined at 30°, 360° Rotatable

Eyepiece

WF10×/18mm

Objectives

PLAN Achromatic objectives 4X, 10X, 40X, 100X

Nosepiece

Quadruple Nosepiece

Stage

Stage size 115x125mm, Moving range: 50x70mm

Condenser

Abbe NA 1.25 with Iris Diaphragm

Illumination

LED illumination/ Halogen lamp 6V 20W (Optional)

Fuse Spare fuse 2pcs

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
