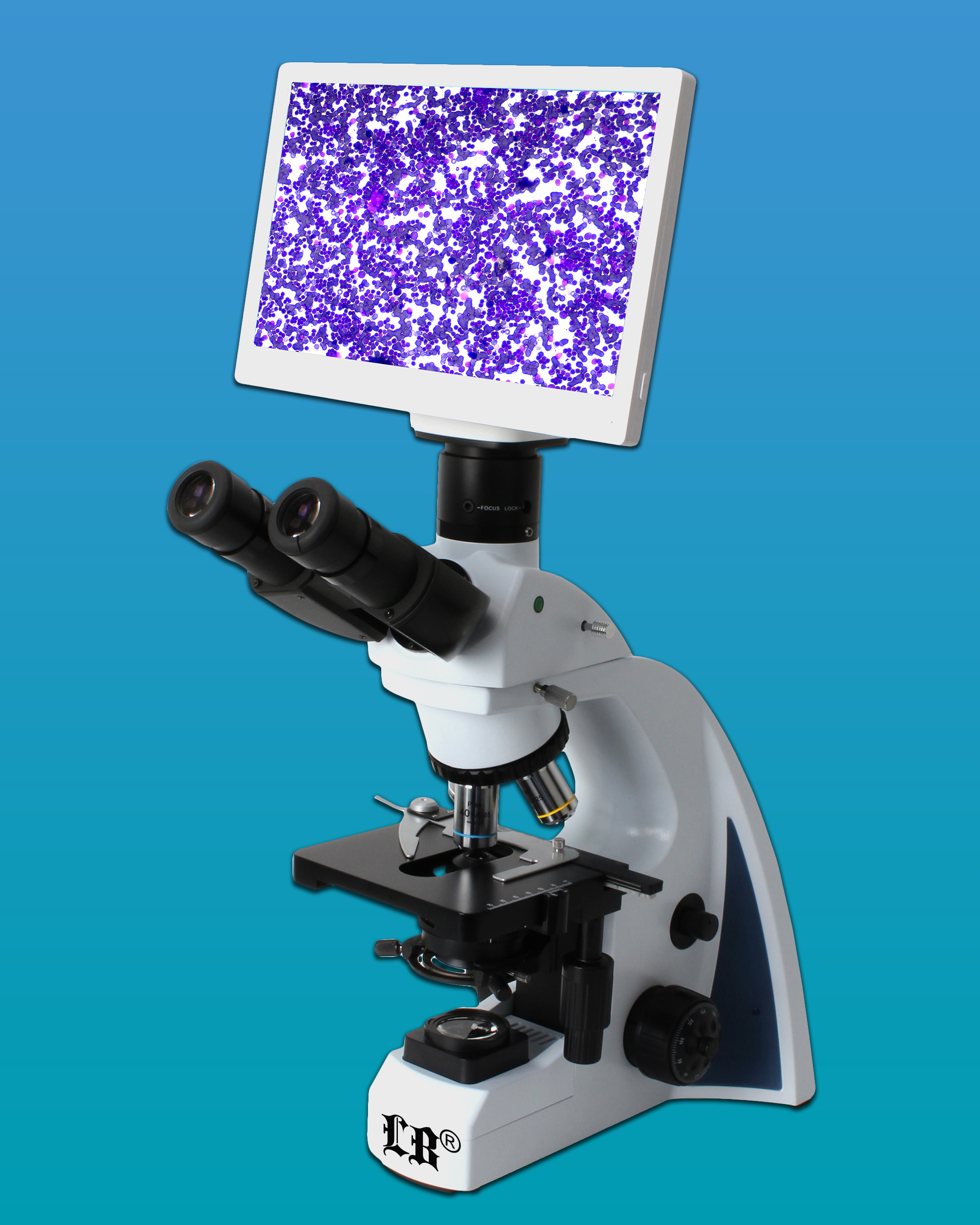

LB-1280 LCD Digital Microscope
with Infinite Optical System

LB-1280 Compound LCD Digital Microscope (2.0MP) with Extra Wide Field and Infinite Semi-Plan Optical System (Infinity Color Corrected System) is a wholly new generation microscope system that has an embedded system. With a 8.4” TFT screen, it works like a computer. You can take photos, take videos and take measurement on the machine. With W-LAN and LAN function, you can directly connect the microscope into the internet. Then you can transfer the images and videos to remote places. With a friendly man-machine interface, powerful processing function (real-time preview, dynamic calibrating and measuring), multiple peripheral interfaces, easy to operate and comfortable mechanical design, it is your best assistant in teaching, electronic inspection, biological and medical research!

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • The LB-1280 LCD digital microscope is a new generation microscope that with an embedded operation system WinCE 5.0, it can link mouse or keyboard, just like a micro computer.
  • It supports 100M Ethernet network, WI-FI wireless network and can communicate with a remote PC.
  • With 8.4 Inch TFT touching screen, friendly man-machine interface, multiple peripheral interfaces and powerful processing function, make it very easy to operate.
  • It can be widely used in various optical micro fields, such as teaching, biological and medical researching, electronic components inspection and so on.

Top of the Page

Technical Specifications

Applications

With LCD Screen and data remote transfer function, this wonderful LCD digital microscope can be used in high level laboratories and universities for teaching, biological and medical research, it also can be used for electronics, circuit board and other industrial inspection.

Digital part

2.0 Megapixels CMOS Sensor

W-LAN and LAN function

Viewing Head

Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 18

Objective

Infinite Semi-Plan Achromatic Objective 4×、10×、40×、100×

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Condenser

Sliding-in centerable condenser NA12.5

Illumination

LED Illumination, Adjustable Brightness
6V/ 20W Halogen Lamp Illumination, Adjustable Brightness (optional)

LCD Screen

8.4 Inch TFT Touching screen

Output

USB2.0、AV and VGA Output,100M Ethernet interface

System

Windows CE 5.0, compact embedded operating system

Software

NMS(microscope software) & NMS Client(computer software) with measurement function and reticle ruler

SD Card

Expandable to Max 2GB Kinston SD Card (optional)

Network With Wi-Fi function connection



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
