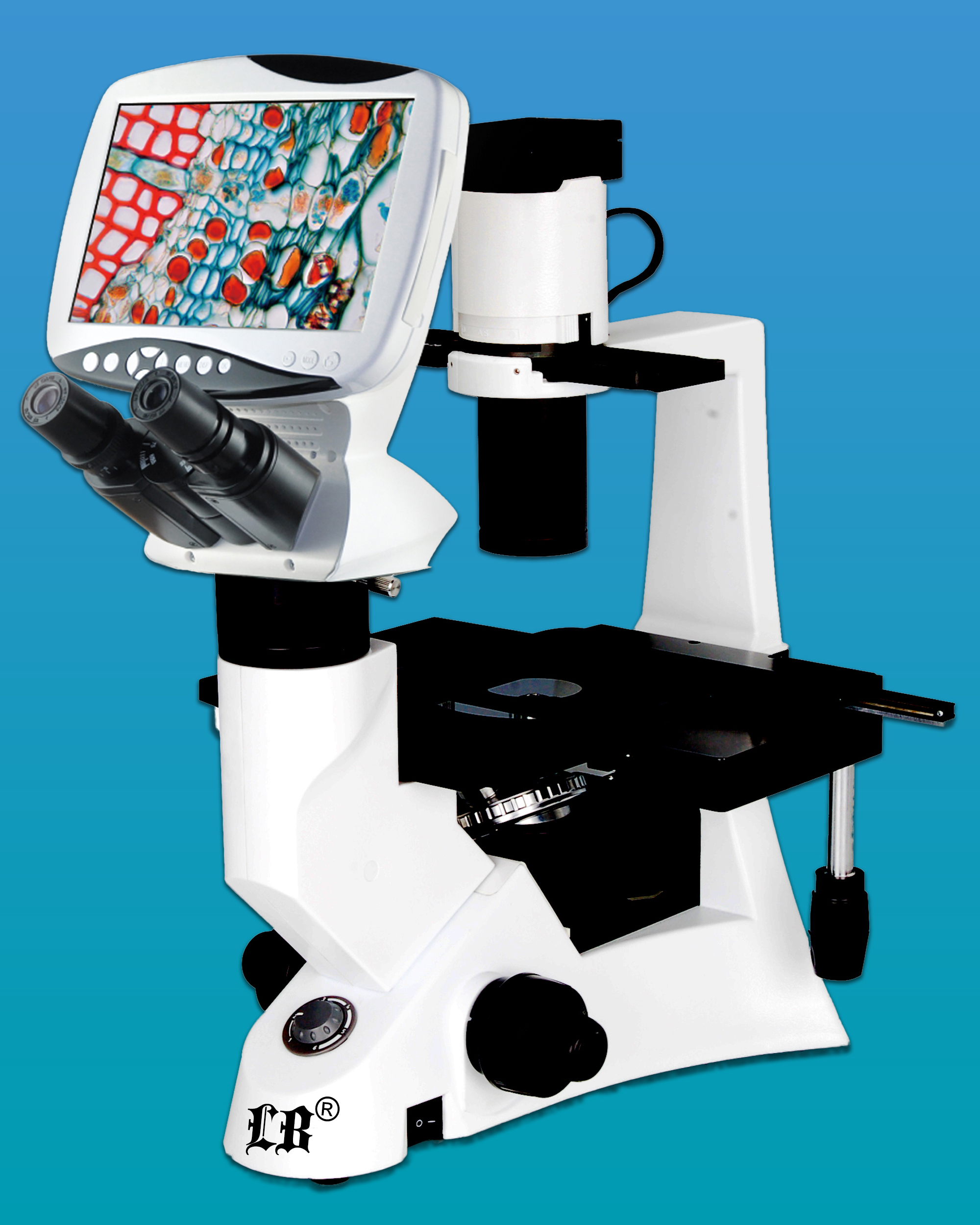

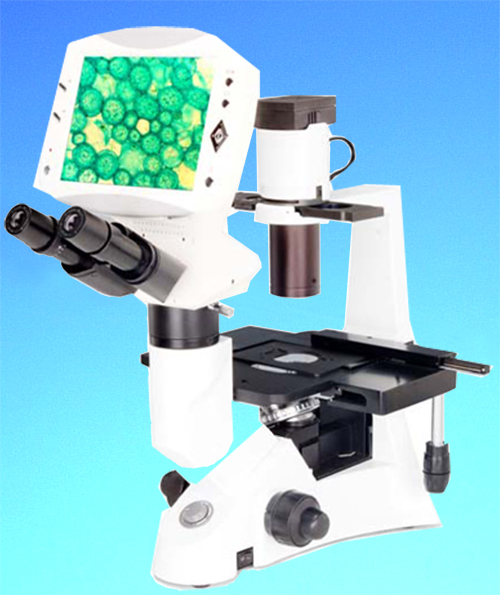

LB-1290 Compound Digital LCD Inverted Biological Microscope with Infinite Optical System

LB-1290 Compound Digital LCD Inverted Biological Microscope (5.0MP) with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) has renovated the traditional way of microscopic observation and adopted a modern way of digital imaging. Our LCD Microscope can be used with both traditional eyepieces and an 8 inch LCD Screen for easy and comfortable viewing for yourself and to share with others.

This patented microscope not only features high resolution of LCD display to generate genuine photo and video, but also features for quick and easy snapshots or short videos. This product integrates magnification, digital enlarge, imaging, display, capture photo and video, printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable. All of which achieve a more convenient and effective breakthrough.

The LWD infinitive plan objectives make the viewing field flatter and brighter. With the contrast sharper, observing living cells is easier. It is available to observe low contrast or transparent specimens used by the pre-centerable phase annulus. It is convenient and is especially suitable for Viewing Incubating Cell Tissue.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Built-in 5 million-pixel digital camera, image data can be easily retained without external computers and other equipment, they can improve the efficiency of research and analysis.
  • 9-inch digital LCD screen, high definition and bright colors, easy for people to share.
  • Large storage capacity, with SD card, print pictures instantly without being connected to PC.
  • Two kinds of observation modes, binocular eyepiece and LCD screen, which can meet different needs. Combine the compound microscope, digital camera and LCD together.
  • Very good structure, easy for operation and professional for special use.

Top of the Page

Technical Specifications

Applications

LB-1290 Compound Digital LCD Inverted Biological Microscope (5.0MP) with Infinite Optical System is used by the medical and health units, universities, research institutes for the study of micro-organisms, cells, bacteria, tissue culture, suspended solids, sediments and other observations. It can continuously observe the growing and dividing process of cells and bacteria in the culture medium. It can also film and photograph the process. LB-1290 has very wide application in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Digital Parts

Sensor

1/2.5 inch 5.0 Megapixel CMOS image sensor

Photo Resolution

12.0 Megapixel

Video Resolution

1080P/30fps

LCD Screen

9 inches HD LCD screen, Resolution is 1280 x 800

Data Output

USB2.0, HDMI

Digital Zoom 8x

Storage

SD Card

Exposure Mode

Auto/Manual

White Balance

Auto/Manual

Date Mode Year, Month, Day, Hour, Minute
Crossing Line Black, White, Red, Blue, Green

Optical Parts

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective

LWD Infinite Plan Objective

4×/ 0.1,WD 18mm

40×/ 0.6,WD 2.6mm

Infinite Plan Phase Objective

PH10×/ 0.25,WD 10 mm

PH20×/ 0.4,WD 5.1mm

Nosepiece

Quintuple Nosepiece

Condenser

ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)

Annulus

10×-20×、40× Phase Annulus Plate (Fixed)

Stage

Plain Stage 160×250mm,

Glass Insert

Auxiliary Stages 70×180mm

Focusing

Coaxial Coarse and Fine Adjustment, Vertical Objective Movement; Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Illumination

Halogen Lamp 6V/ 30W

Filter

Diameter 45mm, Blue, Green and Ground Glass

Optional Parts (must be ordered separately)

Objective

LWD Infinite Plan Objective

10×/ 0.25, WD 10mm

20×/ 0.4, WD 5.1mm

Infinite Plan Phase Objective

PH40×/ 0.65, WD 0.35mm

Centering

Centering Telescope (Φ30MM)

Phase Annulus

10×-20×、40× Phase Annulus Plate (Adjustable)

Stage

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Range 120×78mm

Terasaki Holder

Φ38mm Petri Dish Holder

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
