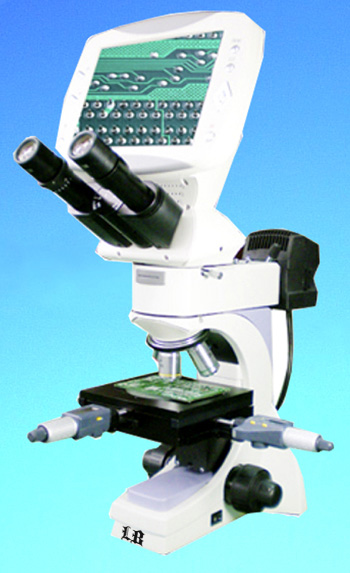

LB-1601 Compound Digital LCD Metallurgical Measuring Microscope with Infinity Optical System (5.0MP)

LB-1601 Compound Digital LCD Metallurgical Measuring Microscope with Wide Field and Infinity Plan Optical System (Infinity Color Corrected System) (5.0MP) consists of a metallurgical microscope, a high definition LCD screen, a 5 Megapixel camera and a measuring stage. This microscope is designed to observe surfaces of opaque object. It is very professional and easy to operate. This is also an ideal optical instrument for micro observation and measuring in metallographic structure and surface morphology.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Special designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people.
  • 5 Megapixels with real time imaging display, images and video recording and re-playing function.
  • X/Y digital micrometer and moving stage for accurate measuring.
  • 12V DC power supply, safety and reliability of low voltage (Input Voltage 90-240V).
  • USB Cable for transferring data to a PC.
  • SD Card slot for storage, printing, optional SD cards (Maximal Storage Capacity is 4G).
  • Multi-function top LED ring illuminating system, four-region can be controlled separately.

Top of the Page

Technical Specifications

Applications

With the X/Y digital micrometer and moving measuring stage, LB-1601 Compound Digital LCD Metallurgical Measuring Microscope with Infinity Optical System (5.0MP) is suitable for research in metallographic, mineralogy, precision engineering, etc.

Digital Parts

Resolution

5Megapixel

Maximal Resolution

12MP

Photo Resolution

2560×1920∽1600×1200

Video Resolution

640×480

Sensor Size

1/2.5 Inches

LCD Screen

9" TFT Screen, Resolution is 800 X 600

Video Output

AV Output (NTSC/PAL)

Data Output

USB2.0

Menu Language

English

Storage

SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute

Optical Parts

Viewing Head

Compensation Free Binocular Head, 30° Inclined , Interpupillary Distance 55-75mm



Eyepiece

Wide Field Eyepiece WF10X/18

Objective

Infinity Plan Achromatic

4×/0.1/∞/- WD25.4mm

10×/0.25/∞/- WD11.0mm

20×/0.40/∞/- WD6.0mm

40×/0.60/∞/0 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm

Focusing System

Coaxial Coarse/Fine Focus System

Illumination

Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness
Adjustable

Filter

Blue, Green, Yellow & Ground Glass

X-Y Axis Moving Survey Range

30X30mm

Minimum Measuring Reading

0.001mm

Measurement Accuracy

<7um

Optional Parts (must be ordered separately)

Eyepiece

WF8×/18

WF10×/18 with 0.1mm Micrometer & Cross Hair

WF12.5×/15

Objective

Infinity Plan Achromatic

40×/0.65/∞/- WD0.78mm

50×/0.75/∞/- WD0.32mm

80×/0.90/∞/- WD0.2mm

100×/0.90/∞/0 WD0.7mm

Illumination

Diascopic Illumination, 6V/20W Halogen Lamp, Brightness

Adjustable

Simple Polarization Attachment

Polarization Set



Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
