Labomed Inc.

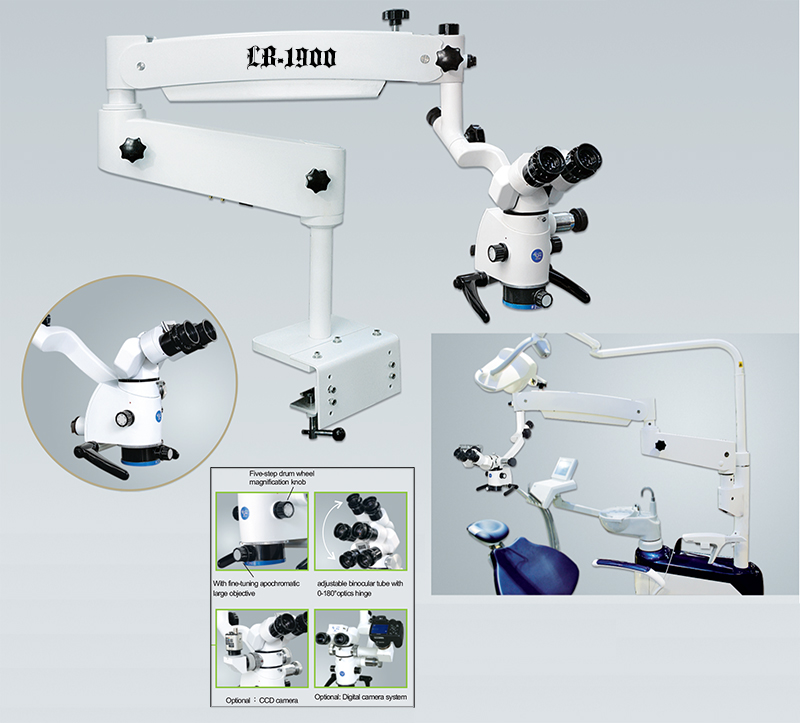

LB-1900 Dental Microscope

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Simple damping-conditioning system (120° balancing arm)
    The primary mirror can be easily maintaned at any location with the movement.
  • The adjustable binocular tube with 180° optics hinges
    In a different position you can maintain an upright sitting position to gain maxium comfort.
  • A fine-tuning large objective lens and large vari-focus lens with 120mm lengthened working distance.
    Allows you to easily get clear images, automatically adjust the working distance, while being easy to focus.
  • Bright and clear, strong stereoscopic impression optical system
    Allows you to get the best images while improving your working efficiency.
  • Expanding application:
    Optional: built-in or video output with all digital SLR cameras, video cameras, using a digital camera wireless foot control, and wireless HD video transmission system.

Top of the Page

Technical Specifications



  • THIS MICROSCOPE CAN BE INSTALLED ON A TABLE, DENTAL UNIT AND WALL.
  • Binocular tube: adjustable binocular tube with 0-180°optics hinge.
  • Binocular tube foci: F=170mm
  • PD adjuster, the range is: 50mm~80mm
  • The diameter of field of view: Φ66mm~Φ10.4mm
  • Eyepiece: 12.5X / 18B
  • The adjustable range of visual degree: ±6D
  • Five-step drum wheel magnification zoom system: Magnification 3.4x, 5.1x, 8.3x, 13.5x, 20.5x
  • With fine-tuning apochromatic large objective: working distance: 250mm, the range is 20mm. Adjustable double handlebar
  • LED illumination, object plane illuminance (F=250). The maximun illuminance≥30000~60000lx, adjustable brightness,with automatic power-off switch.
  • Diameter of illuminating light spot (F=250): Φ85mm
  • Filter adjuster: yellow, green and heat filter.
  • Table frame: including big cross arm (510mm), small cross arm (620mm), tabletop fixture and so on, the spread length of total arm:
  • 1350mm, height: 1750mm, the range of up-down≥350mm
  • 120°balancing arm with damping: freely rotate to any position with damping.

Optional Accessories
(must be ordered separately)

Optional parts:

  • CCD 1/2 inch optics interface
  • Digital camera interface
  • Video camera interface
  • Beam splitter: 5:5 or 2:8
  • Built-in SD or HD CCD camera system
  • Wireless video
  • Wireless remote control photograph
  • Display
  • Large zoom objective: 200mm~320mm



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
