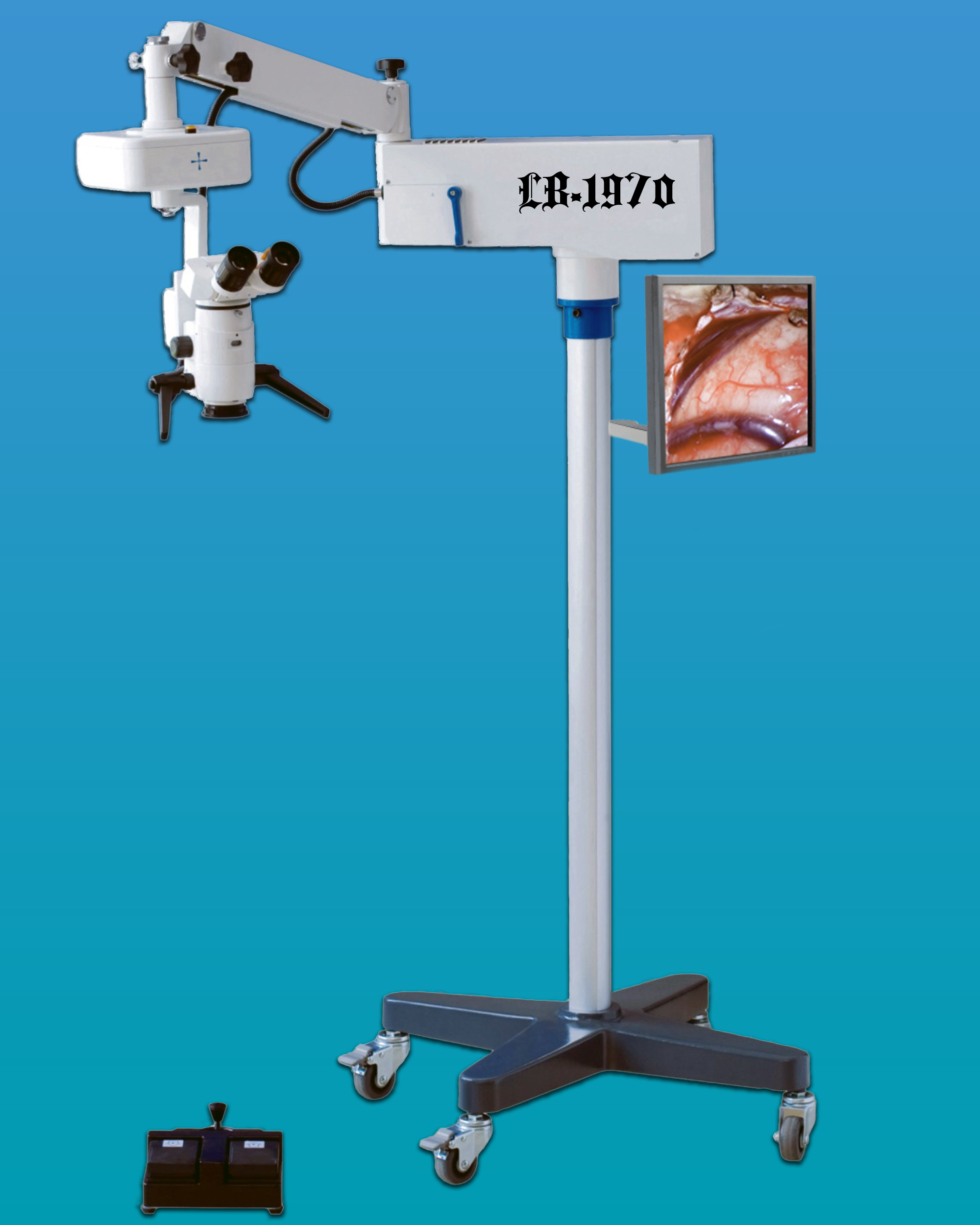

LB-1970 Binocular Operational Microscope for ENT, Orthopedic,

Ophthalmology and Gynecology (Microsurgery)

LB-1970 Binocular Operational Microscope for ENT, Orthopedic, Ophthalmology and Gynecology (Microsurgery) adopts wholly new optical system, with clear image and wide view field, it is mainly used for operations and fine examinations of ophthalmology, gynecology, ENT and so on.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • ZOOM magnification system, 4×~24× zoom magnification, horizontal movement of foot control and fine focusing.
  • Compact structure and complete functions.
  • Germany imported Schott optics ensure the sharp image and even field of view.
  • Cold light source fiber illumination does no harm to tissues.

Top of the Page

Specifications

APPLICATION

It is compact and with complete functions, it is mainly applied in clinic, hospitals and mobile hospitals for operations and examinations of ophthalmology, gynecology, ENT and so on.

Eyepiece Magnification

12.5×/16B

Diopter Adjustment

±6D

Pupil Distance

50mm~75mm

Visual Angle of Eyepiece

30°~90°(Eyepiece moving between 0°~180°is optional )

Magnifications for Main Microscope
(Diameter of Field)

4×~24×(41.5mm~7.5mm)

Objective Lens

f=200(f=175/250/300 is optional)

Maximal Resolution

119LP/mm

Working Distance

190mm

Illumination Source

15V/150W, Medical Cold-reflection Halogen Bulb

Illumination Type

6°+0° Coaxial Illumination

Coaxial Illumination

≥40,000lx

Filters

Orange filter(cobalt filter is optional)

Reaching Radius of Arm

1020mm

Adjustable Vertical Range

250mm

Fine Focusuing Range and Speed

30mm, ≤2mm/s

Speed for X-Y and Range

50mm×50mm,≤2mm/s

Input Voltage

AC220V±22v/ 50Hz±1Hz, AC110V±11v / 60Hz±1Hz

Power

200VA

Fuse

T2AL 250V (51S-040H), T4AL 125V (51S-080L)

Electrical Safety Standard

Executive Standard:GB9706.1-2007, Class I

Packing Volume

0.418m, 2cartons

Total Weight

87kg
