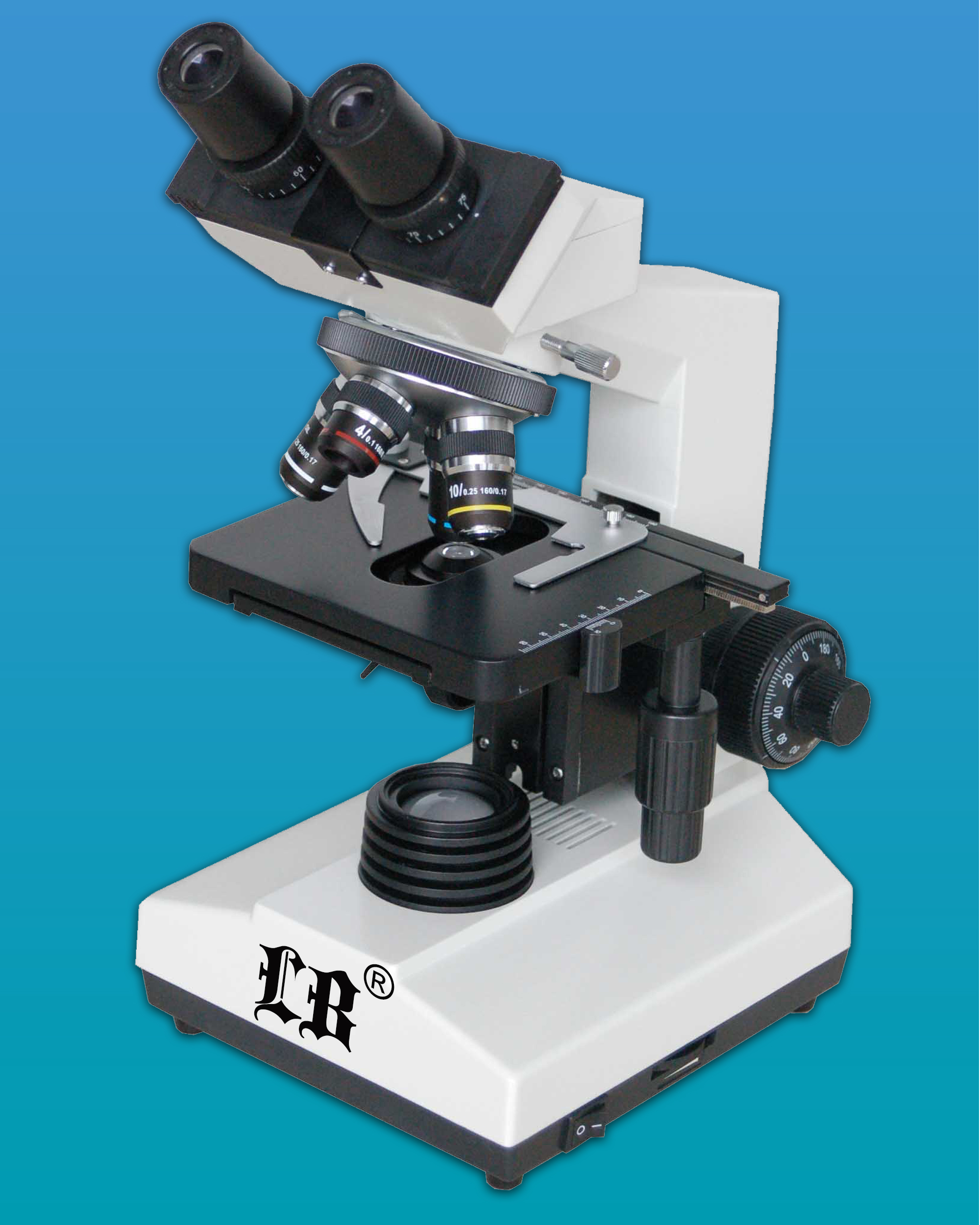

LB-200 Binocular Biological Microscope with Finite Semi-Plan
Achromatic Objectives and Extra Wide Field (Anti-Fungus)

LB-200 Binocular Biological Microscope with Finite Semi-Plan Achromatic Objectives and Extra Wide Field (Anti-Fungus) are microscopes with precision machining equipment and advanced alignment technology.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Built-in transmitted illumination System LED
  • Frame should have end opening, Stage Focusing Lock
  • Stage height movement coarse and fine Focusing on both sides of frame
  • Fixed quadruple nosepiece
  • Abbe type with aperture iris diaphragm NA:1.25
  • Finite Semi-Plan Achromatic objectives(anti-fungus)
  • Extra Wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and Interpupillary Adjustable

Top of the Page

Technical Specifications

Applications

This binocular microscope is an ideal instrument for the biological, histological, and pathological fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Eyepiece

Wide Field Eyepiece WF10×/ 18 with diopter adjustment

Nosepiece

Quadruple Nosepiece

Objective

Finite Semi-Plan Achromatic Objective 4×, 10×, 40×, 100×

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination 3W
6V 20W Halogen light, Brightness Adjustable (optional)

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

Dust cover, green filter, immersion oil and user manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
