Labomed Inc.

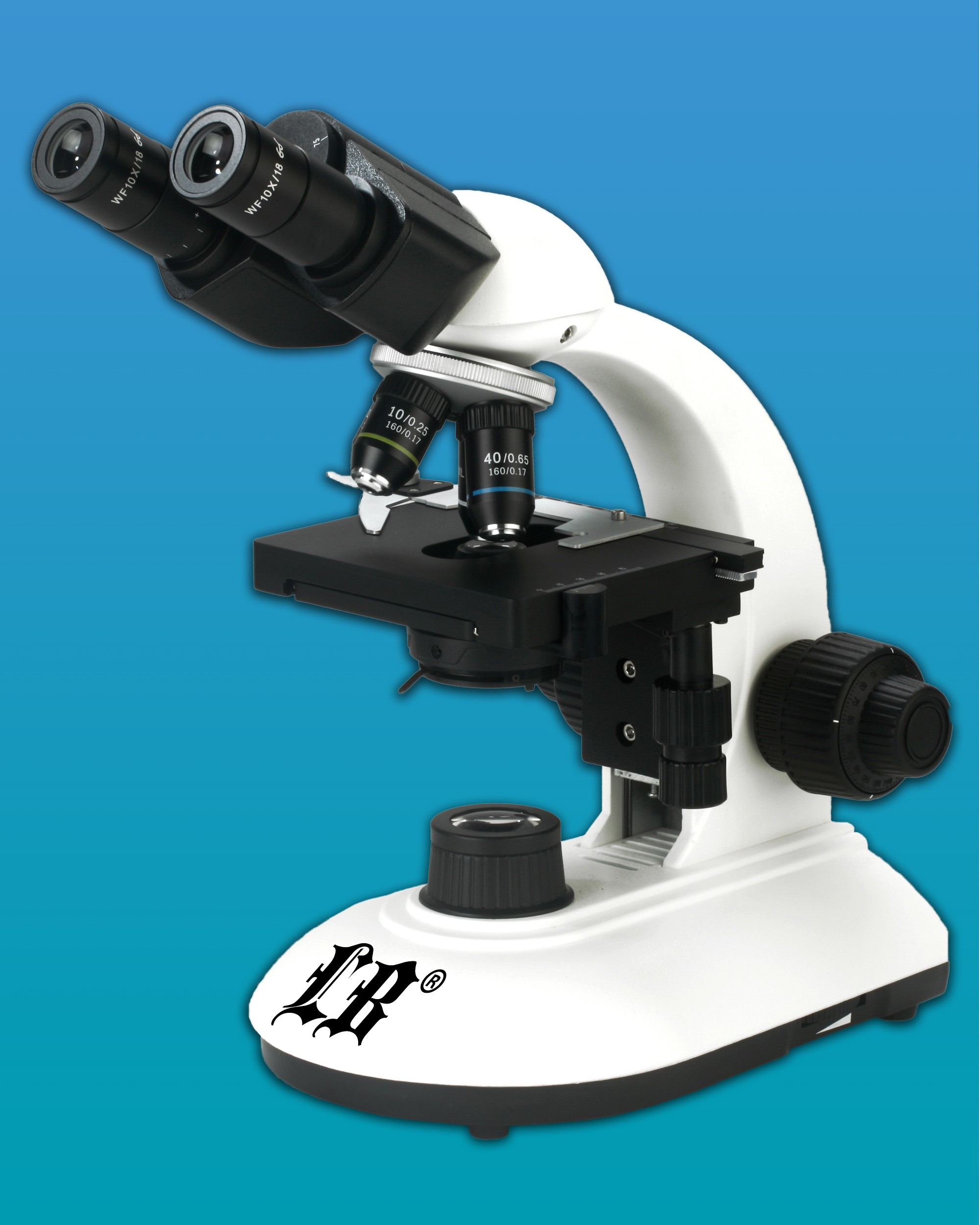

LB-201 Binocular Biological Microscope with Finite
Optical System, Achromatic Objectives and LED Illumination

LB-201 Binocular Biological Microscope with Finite Optical System, Achromatic Objectives and LED illumination

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Affordable  price.
  • Built-in LED illumination.
  • Light weight
  • New shape design

Top of the Page

Technical Specifications

Applications

It can be used in  medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Optical System

Finite Optical System

Viewing Head

Seidentopf Binocular head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75mm

Eyepiece

WF10×/18mm

Objectives

Achromatic objectives 4x/0.10, 10x/0.25,
40x/0.65, 100x/ 1.65 (oil)

Nosepiece

Quadruple Nosepiece

Stage

115x125mm/ moving range: 50x70mm

Condenser

Abbe NA 1.25 with Iris Diaphragm

Illumination

LED illumination/ Halogen lamp 6V 20W (Optional)

Fuse Spare fuse 2pcs

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
