Labomed Inc.

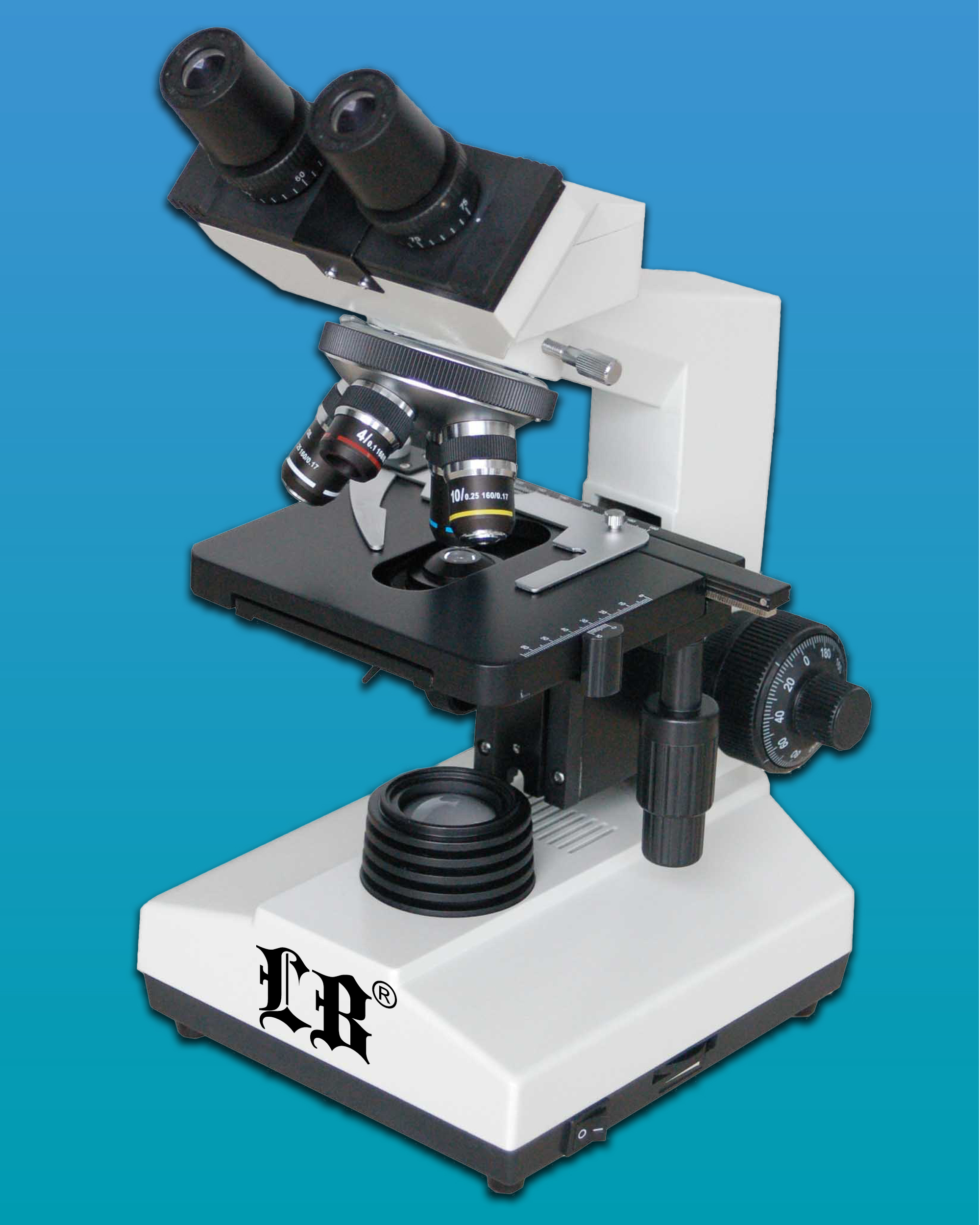

LB-240 Binocular Biological Microscope with
Plan Objectives (Anti-Fungus)

LB-240 Binocular Biological Microscope with Plan Objectives (Anti-Fungus) With precision machining equipment, and advanced alignment technology, LB-240 binocular microscope is an excellent biological microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Built-in transmitted illumination System LED
  • Frame should have end opening, Stage Focusing Lock
  • Stage height movement coarse and fine Focusing on both sides of frame
  • Quadruple nosepiece
  • Abbe type with aperture iris diaphragm NA:1.25
  • Plan Achromatic objectives (anti-fungus)
  • Extra Wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and Interpupillary Adjustable
  • Abbe NA 1.25 Condenser with Iris Diaphragm & Filter
  • Handle for easy carrying
  • Lamp Replacement by Direct Removal of Housing
  • Advanced design of mechanical stage structure prevents the scratches of users.

Top of the Page

Technical Specifications

Applications

LB-240 Binocular Biological Microscope with Plan Objectives (Anti-Fungus) is an ideal instrument for the biological, histological, and pathological fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head:

Sliding Binocular head, Inclined at 45°, 360° Rotatable, 55-75mm Interpupillary Distance. Anti-Fungus.

Eyepiece:

Wide Field Eyepiece WF 10×/18

Nosepiece:

Quadruple Nosepiece

Objective:

Plan Achromatic Objectives 4x, 10x, 40x, 100x

Total Magnification: With 10x eyepiece: 40x, 100x, 400x, 1000x

Stage:

Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Focus:

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm

Condenser:

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination:

LED Illumination 3W (or)
Halogen Lamp 6V/20W (optional), Brightness Adjustable

Body/Power: Body with firm backing of aluminum and a built-in power supply 110-230V
Supplied With: Dust cover, green filter, immersion oil, plan concave mirror

Dimensions & G.W.:

33cm x 28cm x 44cm, 9 kg

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
