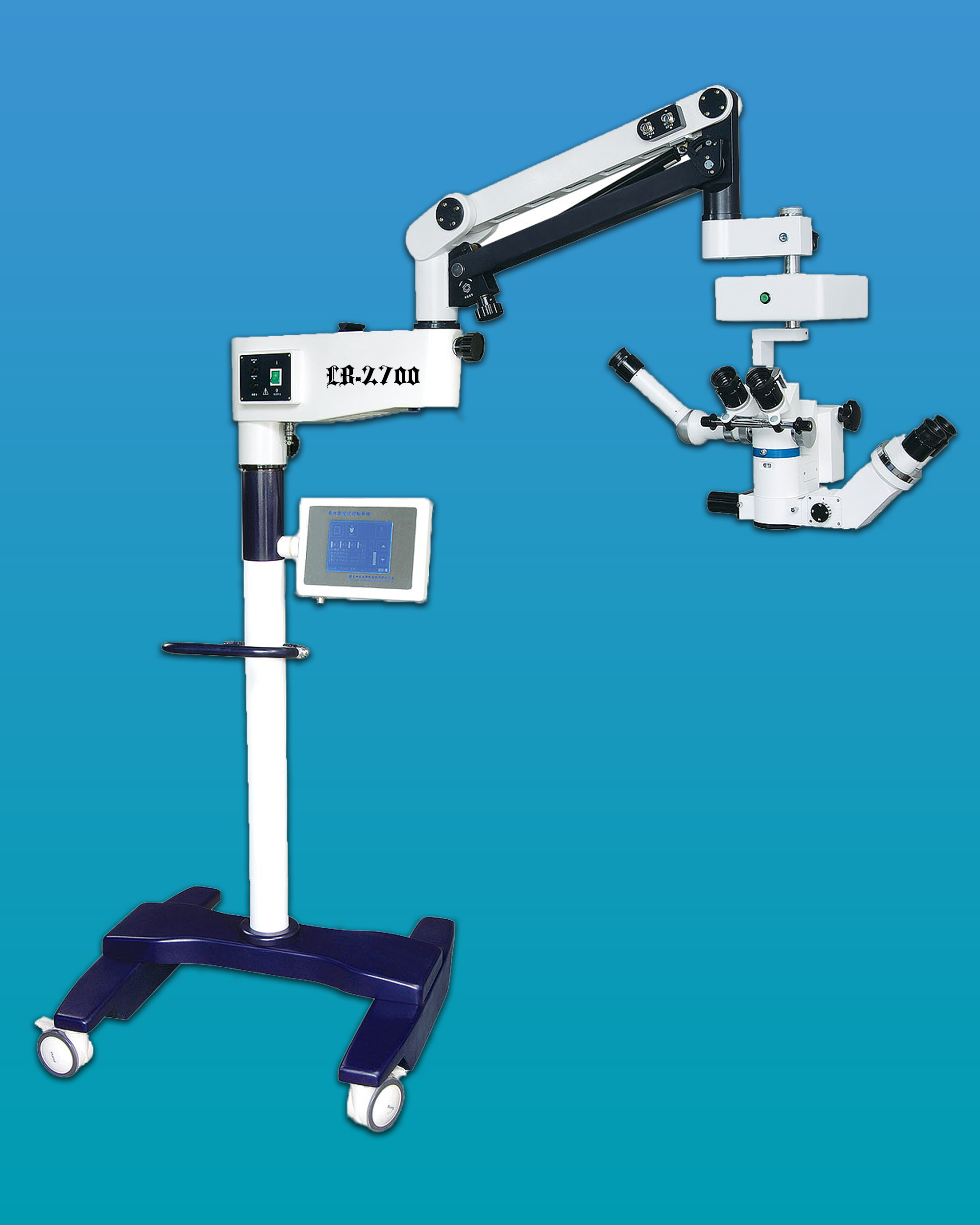

LB-2700 Binocular Latest Surgical Microscope with Assistant Scopes for Ophthalmic and General Surgery
LB-2700 Binocular Latest Surgical Microscope with Assistant Scopes for Ophthalmic and General Surgery is our latest researched product for ophthalmic surgery. Equipped with advanced motorized continuous zoom, the instrument can meet he needs of stepless magnification during the operation. The assistant scopes have tree ranges of magnification, and can be turned round the main scopes within 180 and be fixed at any angle.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- The main and assistant scopes share the construction of same light route, and zero degree between them.
- Light systems is equipped with retina protection device, red reflex intensifier, filter of infrared.
- It adopts 28 inclined illumination device which can be used for slit illumination ,slit can revolve round the optical axis within 360.
- The main scopes adopts motorized continuous zoom system ,with the magnification adjustable from 5xto 25x,and the instrument enjoys a clear image, a sharp stereoscopic perception and remarkable width of field.
- The assistant scopes possess the step magnification of 4x, 10x, 16x, by hand wheel. Also, it can revolve round the main scopes within 180 and fixed at any angle.
- X-y system with push button, and the moving range of x-y: 40mm
- Equipped with motorized bending or lifting adjustment construction, it is convenient for doctor to operate the instrument.
- The instrument adopts spring counter balance at every fixed point .the performance is easy and flexible, but stable and reliable.
Top
of the Page
Specifications
Application
LB-2700 Binocular Latest Surgical Microscope with Assistant Scopes for Ophthalmic and General Surgery camera and presenting facilities are useful for teaching and storing information, and video system is option to customers. This is the most advanced operation microscope for ophthalmology in domestic markets, and can meet all kinds of ophthalmic surgery.
| LB-2700 |
Specification |
| Magnification of main scopes: |
5x-25x |
| Visual field of main scopes: |
42.5-8.5mm |
| Magnification of assistant scopes: |
6x,10x,16x |
| Visual field of assistant scopes: |
35mm,21mm,17mm |
| Range of stand’s vertical up-down: |
500mm |
| The fine a adjustable focusing range: |
50mm |
| Range of ocular distance: |
55-72mm |
| The max. stretching length of stand’s horizontal arm: |
1030mm |
| The swing angle of carries arm: |
240 |
| Power source: |
ac220+/-5%50hz or ac110 +/-5%50hz |
Package Information
| Model |
G.W. (kg) |
Net Weight (kg) |
Package Size (mm) |
Volume (m3) |
| LB-2700 |
215 |
142 |
980 x 800 x 1880 |
1.47 |
|
