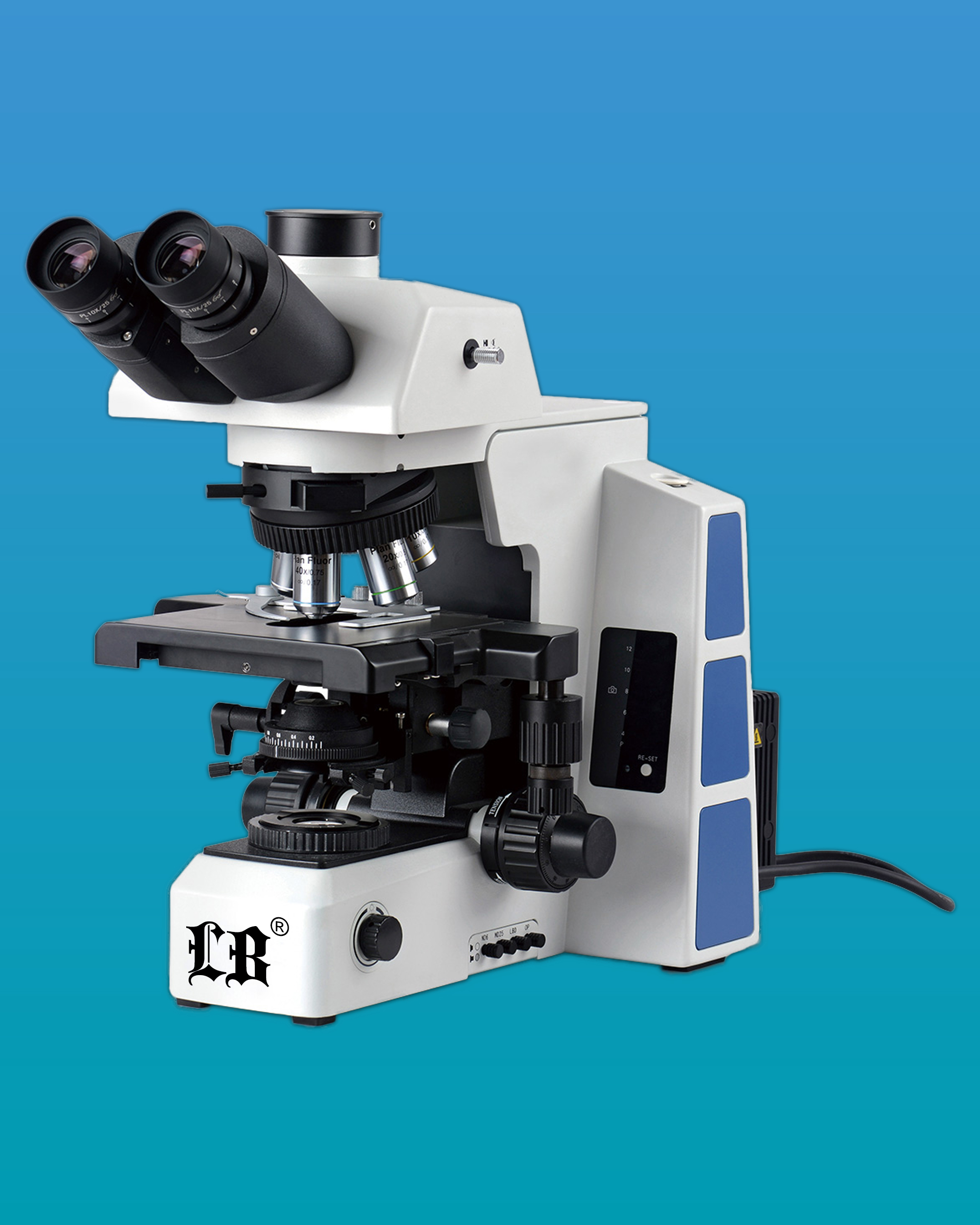

LB-284 Advanced Research Trinocular Biological Microscope
with Plan Semi-Apochromatic Fluorescent Objectives

After years of research and development in optical technology field, LB-284 Advanced Research Trinocular Biological Microscope with Plan Semi-Achromatic Fluorescent Objectives is designed to present a safe, comfortable and efficiency observation experience for users. With perfectly performed structure, high-definition optical image and simple operating system, LB-284 Advanced Research Trinocular Biological Microscope with Plan Semi-Achromatic Fluorescent Objectives realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features



1. High eye point wide field plan eyepiece.
The eyepiece field of view has been upgraded from traditional 22mm to 25mm and 26.5mm, to provide a more flat field of view and to improve working efficiency. With a wider diopter adjustment range and foldable rubber eye guard.

2. Viewing head with multi-splitting ratio.
The viewing head is designed of multiple options for splitting ratio.
(1) Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100 is standard. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time.
(2) Trinocular head with erected image, splitting ratio Binocular:Trinocular=100:0 or 0:100 is optional. The moving direction of samples is the same as observed.

3. Large size rackless stage for both hands.
Large stage with adjustment in either hand In order to correct the hidden danger of horizon guide rail, the stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the reliability and performance of the stage.

The handle of the stage can be set at each side based on users’ preference. The X, Y biaxial adjustment are designed with low position for comfortable operation.

Two slices can be hold on the stage by using damping-type double clips, easy for comparative study. Moving range: 80mm X55mm; precision: 0.1mm. Processed with special craft, the surface of the stage is anti-corrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.

4. Modular frame, improve the system compatibility.
With modularization design, separated cross arm and main body, improves the system compatibility of biological and fluorescence frame.

5. Highly sensitive coaxial coarse and fine adjustment system.
Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is 25mm and fine precision is 1μm. Not only accurately focus, but also precision measurement is available.



Top of the Page

Technical Specifications

Applications

LB-284 Advanced Research Trinocular Biological Microscope with Plan Semi-Apochromatic Fluorescent Objectivesis an ideal instrument for the biological, histological, pathological, bacteriology, immunization, and pharmacy fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Optical System:

Infinite color corrected optical system

Viewing Head:

Seidentopf trinocular head(Inverted image), 30° inclined, interpupillary distance: 50mm-76mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100

Eyepiece:

High eyepoint wide field plan eyepiece PL10X25mm, diopter adjustable

Objective:

Plan semi-apochromatic fluorescent objective 4X/0.13(infinity), WD=18.5mm
Plan semi-apochromatic fluorescent objective 10X/0.30(infinity), WD=10.6mm
Plan semi-apochromatic fluorescent objective 20X/0.50(infinity), WD=2.33mm
Plan semi-apochromatic fluorescent objective 40X/0.75(infinity), WD=0.6mm
Plan semi-apochromatic fluorescent objective 100X/1.30(infinity), WD=0.21mm

Nosepiece
(with DIC slot):

Backward Sextuple Nosepiece

Frame:

Biological frame (transmitted), low-position coaxial coarse and fine adjustment, coarse adjustment distance: 25mm; fine precision: 0.001mm. With coarse adjustment stop and tightness adjustment.
Built-in 100-240V_AC50/60Hz wide voltage transformer, intensity adjustable by digital set and reset; built-in transmitted filters LBD/ND6/ND25)

Stage: Double layers mechanical stage, size: 187mm X168mm; moving range: 80mm X55mm; precision: 0.1mm; two-way linear drive, tension adjustable
Condenser:

Swing-out type achromatic condenser (N.A.0.9)

Transmitted Illumination:

12V/100W halogen lamp house for transmitted light, center pre-set, intensity adjustable





ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
