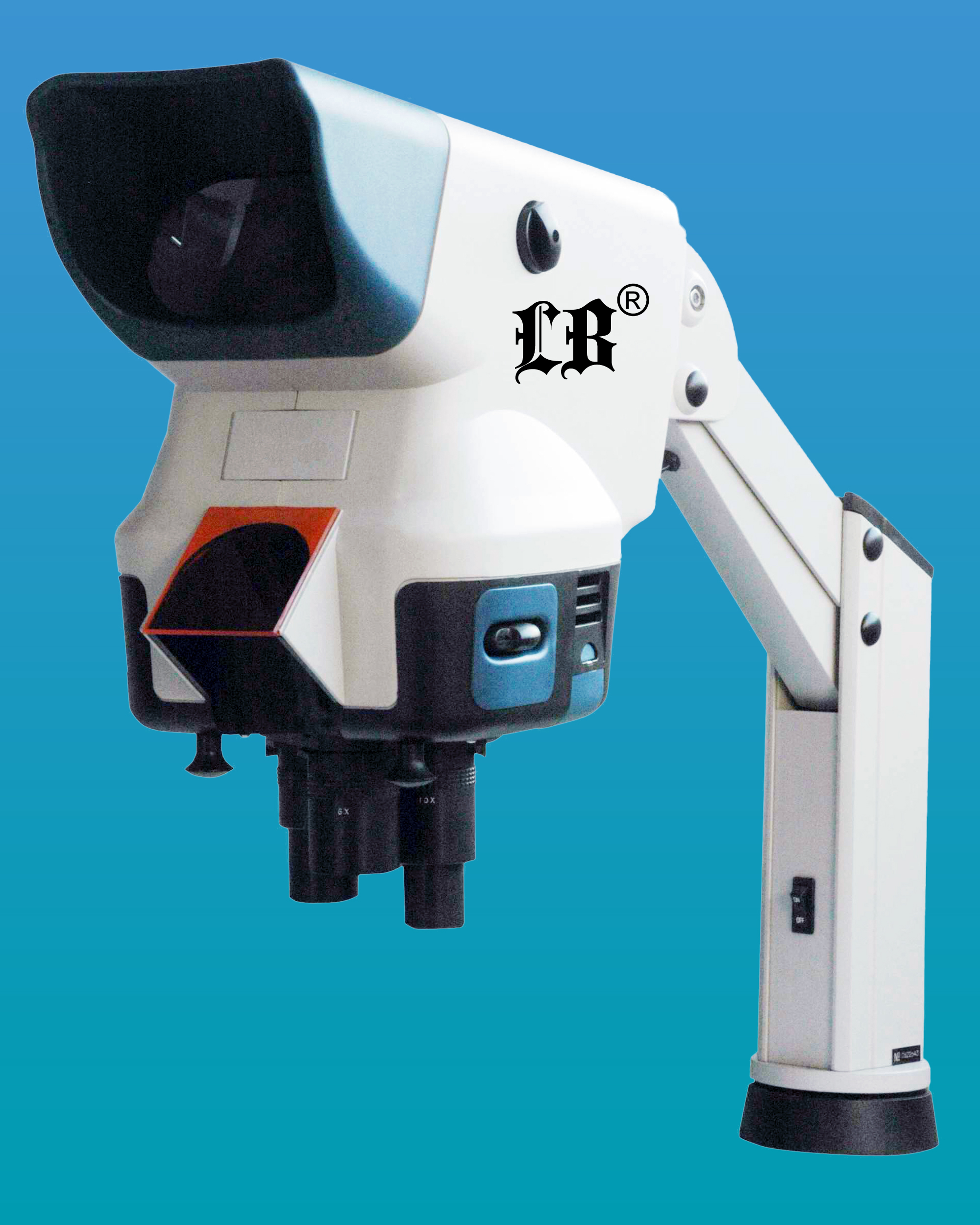

LB-372 Wide Field Digital Zoom Stereo Microscope with Universal Stand

The LB-372 Wide Field Digital Zoom Stereo Microscope with Universal Stand features a large viewing field without an eyepiece. Users can see sharp and stereoscopic images from the lens in microscope head. Built-in LED illumination provides bright and even light for comfortable viewing, brightness can be adjusted with the external power box. The microscopes are easy to operate and widely applied to biological dissection, electronics producing and inspection, minerals, historical relic restoration. etc.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • With high quality optical components, providing sharp and high contrast image at super-long working distance, super-large viewing field, large depth of focus, reduce the fatigue and improve the working efficiency.
  • With LED light, Providing even illumination and life expectancy can reach 60000 hours.
  • Various objectives are available, 2×, 4×, 6× objectives are standard, 8×, 10×, 15× and 6×SL objectives are optional. The objectives can be conveniently changed.

Top of the Page

Technical Specifications

Applications

The LB-372 Wide Field Digital Zoom Stereo Microscope with Universal Stand is of great value in a variety of applications such as education, biological dissection and industrial areas. The are mainly used for circuit board inspection and repair,  surface mount, electronics inspection, coin collecting, gemology and gemstone identification, engraving, repair and inspection of small parts. They are mainly used for following areas:

  • Electronics: PCB board assembling, inspection, repair and weld.
  • Precision project & Plastic: QC, Micro-welding, Micro-machining, Injecting.
  • Medical & Dentistry Equipment Manufacturing: precise manufacture and assembling, Fine Dressing, Color Matching, inspection and repair.
  • Biological and medical: specimen-making, dissecting, Dyeing, Microscopy.
  • Public Security System: Trace comparison, stamp and signature identification, bank note and other note identification and evidence analysis.

Viewing Head

2× high quality optical head without eyepieces

Objective

2×, WD: 208mm, FOV: 68mm

4×, WD: 98mm, FOV: 34mm

6×, WD: 80mm, FOV: 22.7mm

8×, WD: 58mm, FOV: 17mm (optional)

10×, WD: 46mm, FOV: 13.6mm (optional)

15×, WD: 50mm, FOV: 9.1mm (optional)

6×SL (Super Long working distance), WD: 115mm, FOV: 22.7mm (optional)

Total magnification

4×-12×

Illumination

3W built-in LED illumination with external control box

Stand

Universal stand can be fixed on table

Focus

Focus with handle on head

Top of the Page



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
