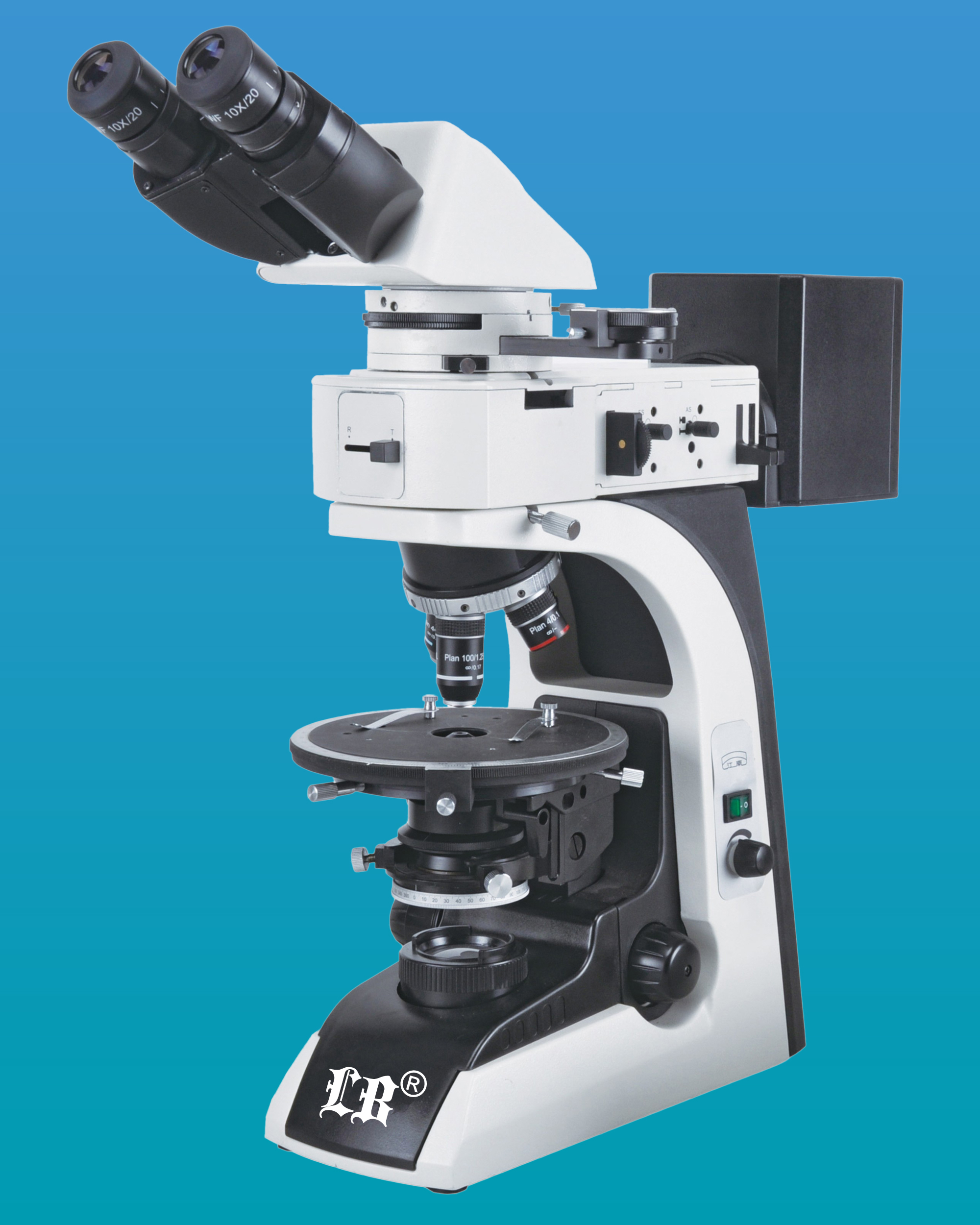

LB-572 Polarizing Photo Microscope Binocular Transmission and Reflection System

LB-572 Polarizing Photo Microscope Binocular Transmission and Reflection System with Infinite Plan Optical System (Infinity Color Corrected System) are specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors. They are also used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry more and more. The LB-572 polarizing microscope features a highly robust construction and first class optics designed to provide a long life and excellent quality images. The microscopes can be used for Single polarization, orthogonal polarization and conoscopic observation. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Excellent Infinite Optical System
  • Widely used in geology, Mineralogy, Fossil fuel exploration
  • Single polarization, orthogonal polarization or conoscopic observation is available.

Top of the Page

Technical Specifications

Applications

With the features of easy operation, complete functions and economy, LB-572 Polarizing Photo Microscope Binocular Transmission and Reflection System are an ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. It is also widely used in academic demonstration and scientific research area.

Technical Specifications

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Viewing Head, inclined at 30°, 360° Rotatable

Eyepiece

WF10×/ 20 with scale of Crosshair

WF10×/ 20 with Graticule

WF10×/ 20

Infinite strain free plan achromatic objective

Reflected/transmitted objective: 4×, 10×

Transmitted objective: 20×, 40×, 60×

Nosepiece

Backward quadruple nosepiece, center adjustable

Epi-Illumination

12V/50W halogen lamp, brightness adjustable; variable aperture diaphragm / field diaphragm

Analyzer

Rotatable analyzer with gradation 0°-360°

Bertrand Lens

Bertrand lens, sliding in/out of optical path

Optical Compensator

λ Slip (first class red), 1/ 4λ Slip, Quartz wedge

Revolving
Round Stage

Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale

Condenser

NA 0.9 Abbe Condenser with Iris Diaphragm & Filter

Focusing

Coaxial Coarse & Fine Adjustment, Range 24mm, Fine Division 0.002mm

Polarizer

360°Rotatable

Transmitted Illumination

12V/ 30W Halogen Lamp, Brightness Adjustable

Accessories

Mechanical stage moving rang 30x40mm
Micrometer
Color correction filter

Mechanical Stage

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
