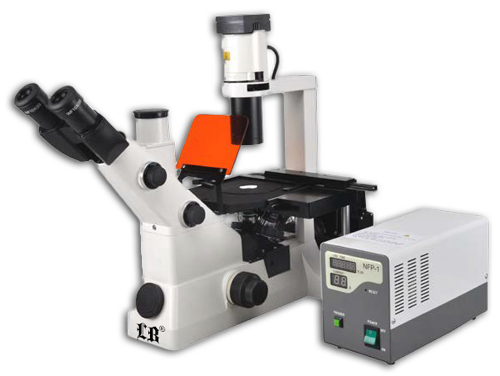

LB-705 Trinocular Inverted Flourescent Biological
Microscope with Wide Field and Infinite Optical System
LB-705 Inverted Fluorescent
Biological Microscope uses mercury lamp as the
light source, objects which are radiated then fluoresce, and
then the shape of an object and its location can be observed
under the microscope. The LB-705 Inverted Fluorescent
Biological Microscope is specifically designed for
the observation of cell culture. Excellent high resolution
objectives provide high quality fluorescent images. Infinite
Optical System gives excellent Optical performance. This
microscope can be your best assistant in laboratory research.
Labomed
Inc. is certified by ISO 9001, CE Conformity and is FDA
Licensed.
Features
- Perfect image with infinite optical
system.
- High resolution fluorescent objectives
are optional for excellent fluorescent images.
- Advanced and precision lamp housing
reduces the light leak.
- Reliable power supply with digital
display and timer.
- Innovative structure and sharp Image is
perfect for viewing cell tissue.
|
Top
of the Page
Technical
Specifications
Applications
LB-705 Inverted Fluorescent
Biological Microscope is specifically designed
for the observation of cell culture. It is widely used in
universities, hospitals and life science labs for disease
examination, immune diagnosis and scientific research.
LB-705 Inverted Fluorescent Biological Microscope
can scan living and dead cells at the same time.
| Model |
LB-705 |
| Optical System |
Infinite Optical System |
| Viewing Head |
Seidentopf Trinocular Viewing Head,
Inclined at 45°, 360° Rotatable, Interpupillary
Distance 48-75mm |
| Eyepiece |
Wide Field Eyepiece WF10×/ 20mm,
Eyepiece Tube Diameter 30mm |
| Objective |
LWD(Long Working Distance) Infinite Plan
Achromatic Objective 4×/0.1, W.D.= 22mm |
| LWD(Long Working Distance)
Infinite Plan Achromatic Phase Objective |
10×/ 0.25, W.D.= 6mm |
| 20×/ 0.4, W.D.= 3.1mm |
| 40×/ 0.55, W.D.= 2.2mm |
| Nosepiece |
Backward Quintuple Nosepiece |
| Condenser |
ELWD(Extra Long Working Distance) Condenser
NA 0.3, LWD 72mm (Without Condenser 150mm) |
| Telescope |
Centering Telescope (Φ30mm) |
| Phase Annular |
10×, 20×, 40× Phase
Annular Plate(Center Adjustable) |
| |
Plain Stage 230×170mm |
| |
Glass Insert Plate |
| |
Attachable Mechanical Stage, X,Y Coaxial
Control, Moving Rang 80mm×120mm |
| |
Auxiliary Stages 70mm×180mm |
| Stage |
Terasaki Holder |
| |
Petri Dish Holder Φ38mm |
| |
Petri Dish Holder Φ54mm |
| |
Coaxial Coarse and Fine Adjustment, Fine
Division 0.002mm, Moving Range up 4.5mm, down |
| Focusing |
4.5mm |
| Transmitted Illumination |
Halogen Lamp 6V/30W, Brightness Adjustable |
| Reflected Light Source |
|
Excitation |
Dichroic Mirror |
Barrier Filter |
| Blue excitation |
BP460～490 |
DM500 |
BA520 |
| Green excitation |
BP480～550 |
DM570 |
BA590 |
| Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury
Lamp |
| Protection barrier |
Barrier to Resist the Ultraviolet Light |
| Power Supplier |
Power Supplier NFP-1, 220V/ 110V
interchangeable, Digital Display |
| Immersion Oil |
Fluorescent Free Oil |
| Centering Target |
|
| Filter |
Blue, Green and Ground Glass, Diameter 45mm |
| Accessories |
0.5× C-mount (Used to directly
connect a C-mount digital camera to the microscope) |
| Package |
2 cartons/set, 36*61*62cm, 18kg;
38*45*26cm, 6kg |
Sample
Images
ALL
ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
