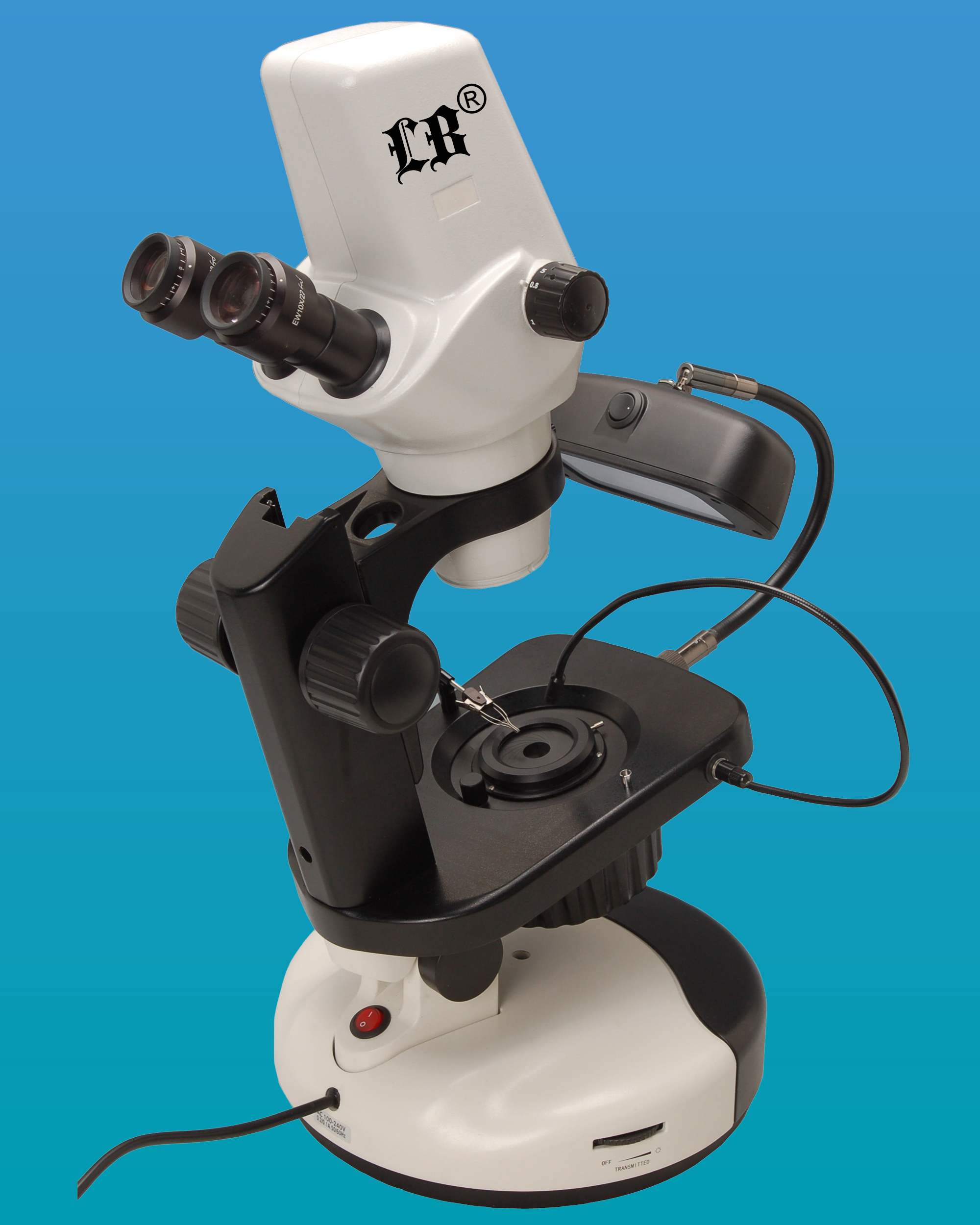

LB-867 Binocular Digital Stereo Zoom Gemological Microscope with Extra Wide Field, 3.2MP Digital Camera, LED, Halogen and Fluorescent Illumination

LB-867 Binocular Digital Stereo Zoom Gemological Microscope with Extra Wide Field, 3.2MP Digital Camera, LED, Halogen and Fluorescent Illumination is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. LB-867 Binocular Digital Stereo Zoom Gemological Microscope with Extra Wide Field, 3.2MP Digital Camera, LED, Halogen and Fluorescent Illuminationis especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the sample.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • The excellent design can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

Top of the Page

Technical Specifications

Applications

LB-867 Binocular Digital Stereo Zoom Gemological Microscope with Extra Wide Field, 3.2MP Digital Camera, LED, Halogen and Fluorescent Illumination is usually used to inspect the authenticity of gemstones and in the design, creation, and repair of jewelry. It can be used for inspecting diamonds, emeralds, rubies, and all other types of precious stones.

Stereo Zoom Body

Zoom ratio 0.8×-5×, zoom ratio 1:6.3, working distance 115mm

Eyepiece

Extra wide field eyepiece WF15×/16 with diopter adjustment

Binocular Digital Head

Built-in 3.2MP (2048*1536) digital camera. USB2.0 output. Digital Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm

Bright & Dark Field Illumination

Iris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable

Illumination

7W Fluorescent lamp (6000K)

LED Point Light

6V/20W Halogen illumination, lamp can be changed

Focusing

Focusing range: 100mm, it is suitable for observing different size gem and sample

Gem Clamp

High quality steel clamp is perfect to hold the gem for observation from all directions

Stage

At both side, there are two gem clamp fixing holds for you to choose

Stand

0-38°Rotatable, so the height and angle of eyepiece can be adjusted, easy to operate

Base 0-325° Rotatable

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
