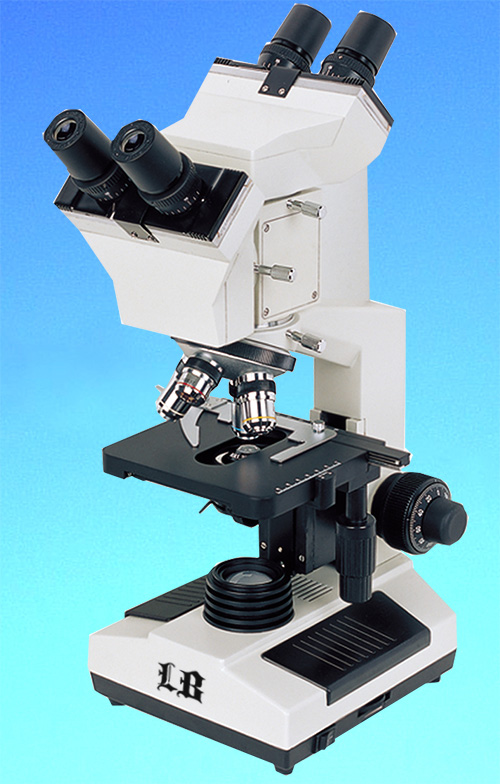

LB-931 Multi-Head Dual View (Front and Back) Microscope

(Anti-Fungus)

LB-931 Multi-Head Dual View (Front and Back) Microscopes (Anti-Fungus) are equipped with multi-heads for more persons observing at the same time. The optical system is high quality and reliable.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • Users friendly and comfortable operation with ergonomic design.

Top of the Page

Technical Specifications

Applications

LB-931 Multi-Head Dual View (Front and Back) Microscopes (Anti-Fungus) are mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

Viewing Head

Sliding Binocular Head, inclined at 45°

Eyepiece

Wide Field Eyepiece WF10×

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Condenser

Abbe Condenser NA1.25

Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Plain Stage 140×140mm/ 75×50mm

lllumination

LED
Halogen Lamp 6V/ 20W (optional)

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
