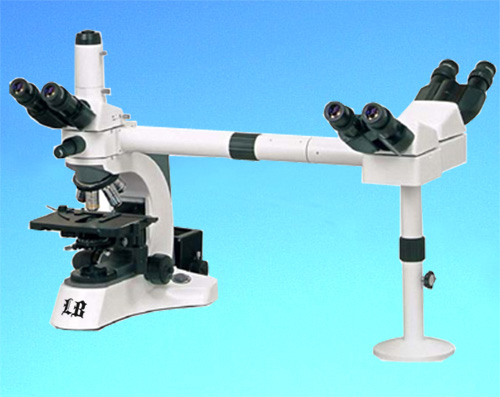

LB-981 Multi-Head Triple View Microscope (for 3 Users) with Infinite Optical System

(Anti-Fungus)


LB-981 Multi-Head Microscopes (for 3 users)
with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) are high level microscopes equipped with multi-head for more persons observing at the same time. The optical system is high quality and reliable. YOU CAN ATTACH A CAMERA TO THIS MICROSCOPE (OPTIONAL).

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • User-friendly and comfortable operation with ergonomic design.
  • With the features of Infinite Optical System, Effective Illumination, LED Pointer and Image Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.



Top of the Page

Technical Specifications

Applications

LB-981 Multi-Head Microscopes (for 3 users) with Infinite Optical System are mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

2PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

6PCS

Nosepiece

Inverse Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×、10×、40×、100×



Condenser

Swing Condenser N.A.0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/100W



Pointer

Green LED Pointer , Brightness Adjustable



Dual Color Pointer , Brightness Adjustable (optional)



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
