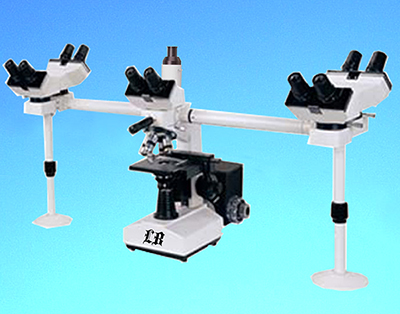

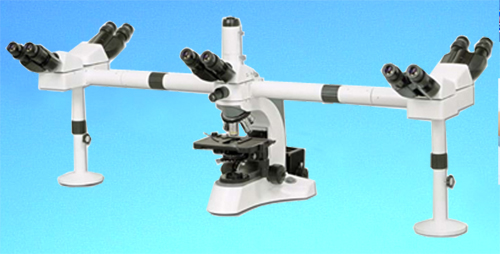

LB-982 Multi-Head Microscope (for 5 Users) with Infinite Optical System
(Anti-Fungus)
LB-982 Multi-Head Microscopes (for 5 users) with Infinite Optical System are high level microscopes equipped with multi-head for more persons observing at the same time. The optical system is high quality and reliable. YOU CAN ATTACH A CAMERA TO THIS MICROSCOPE (OPTIONAL).
Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.
-
Sharp image display with excellent optical system.
-
Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
-
User-friendly and comfortable operation with ergonomic design.
-
With the features of Infinite Optical System, Effective Illumination, LED Pointer and Image Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Applications
LB-982 Multi-Head Microscopes (for 5 users) with Infinite Optical System are mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.
Optical System |
Infinite Optical System |
|
Viewing Head |
Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm |
1PC |
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm |
4PCS |
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/ 20 |
10PCS |
Nosepiece |
Inverse Quintuple Nosepiece |
|
Objective |
Infinite Plan Achromatic Objective 4×、10×、40×、100× |
|
Condenser |
Swing Condenser N.A.0.9/ 0.25 |
|
Focusing |
Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm |
|
Stage |
Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm |
|
Kohler Illumination |
External Illumination, Halogen Lamp 12V/ 50W |
|
Pointer |
Green LED Pointer, Brightness Adjustable |
|
