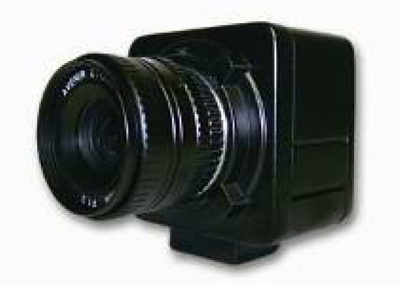

LC-1 USB2.0 Color Digital Camera (5.0MP)
with CMOS Image Sensor

(Lenses sold separately)

LC-1 USB2.0 Color Digital Camera (5.0MP) with CMOS Image Sensor are used to capture microscope images and display real-time live video on your PC screen. They come with a high-resolution digital camera, built-in IR filter, user-friendly software, and adapters for all sizes of microscopes.



Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • With high resolution sensor, providing high quality image and widely used in academic and medical field for high precision and resolution image capturing and processing.
  • Very convenient to Use, just insert it into eyepiece tube or top tube of trinocular head.
  • Getting Real-time and Non-compressing Video Data and Capturing Image Directly
  • High sensitivity, low noise, excellent color correction.
  • Easy and fast software installation.
  • User-friendly image processing software.
  • Compatible with Windows 2000/ XP/ Vista/Win7/Win8/Mac/Linux.
  • With measurement function, including angle, length, square and etc..
  • Supports multi-cameras working together.

Top of the Page

Application

  • Research, education (teaching, demonstration, academic exchanges)
  • Teaching and equipment digitized laboratories, medical research
  • Industrial Vision (PCB circuit board inspection, IC quality control)
  • Medical (pathological observation)
  • Food (microbial colonies observed count)

Technical Specifications

Image Sensor

1/2.5 inch 5.0MP CMOS Image Sensor (4:3) MT9P031

Pixel Size

2.2μm×2.2μm

Filter RGB Bayer
Lens Interface C/CS
Shutter Type Electronic rolling shutter
Frame Rate 5fps@2592×1944
21fps@1280×960
25fps@1024×768
38fps@640×480
Sensitivity 1.4 V/lux-sec (550nm)
A/D 8-bit
Exposure Controlling Auto/Manual
White Balance Auto/Manual
Exposure Time 1ms-0.8 sec
Scan Mode Progressive Scan
Dynamic Range >60dB
SNR 40.5dB
Software Control Image size, brightness, gain, exposure time, color
Data Output USB2.0, 480Mb/s
Power Supply USB2.0, 500mA
Working Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Working Humidity 45%~ 85%
USB Cable 1.8m
Operating System Windows 2000/ XP/ Vista/Win7/Win8/Mac/Linux
Optical Interface: C mount, Optic for connection towards the oculars of the microscope
Size 65mm×86mm×37mm
Weight 220g
