Labomed Inc.

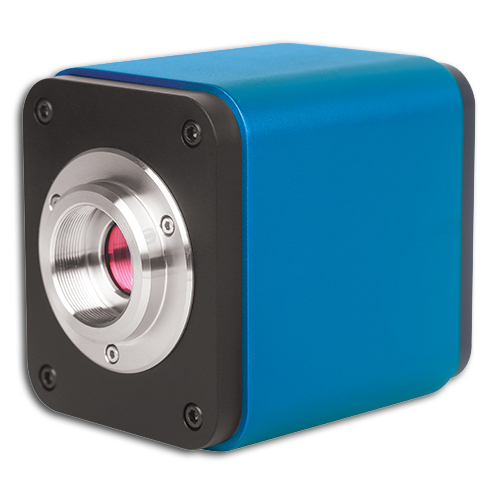

LC-10 1080P/Sony IMX236 1/2.8”(5.38x3.02)

C-mount HDMI+USB CMOS Camera

LC-10 1080P/Sony IMX236 1/2.8”(5.38x3.02) C-mount HDMI+USB CMOS Camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony IMX236 CMOS sensor as the image capture device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView. With ImageView, you can control the camera, process the image as other USB series camera.

Labomed, Inc. is certified by ISO 9001, has CE Conformity and is FDA Licensed.

Features

The LC-10 1080P/Sony IMX236 1/2.8”(5.38x3.02) C-mount HDMI+USB CMOS Camera’s basic characteristic is as follows:

1. All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;

2. Simultaneous HDMI & USB output;

3. CNC precision machining shell;

4. Built-in mouse control;

5. Built-in image capture & video record to SD card;

6. Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;

7. Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;

8. Built-in image & video browsing, display & play;

9. Ultra-Fine color engine with perfect color reproduction capability(USB);

10. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);

11. Support standard UVC for Windows/Linux/Mac(USB).

Top of the Page

Applications

The possible applications of LC-10 1080P/Sony IMX236 1/2.8”(5.38x3.02) C-mount HDMI+USB CMOS Camera are as follows:

1. Scientific research, education (teaching, demonstration and academic exchanges);

2. Digital laboratory, medical research;

3. Industrial visual (PCB examination, IC quality control);

4. Medical treatment (pathological observation);

5. Food (microbial colony observation and counting);

6. Aerospace, military (high sophisticated weapons).



Technical Specifications
Model LC-10
Sensor & Size(mm) 1080P/Sony IMX236
1/2.8”(5.38x3.02)
Pixel(μm) 2.8x2.8
G Sensitivity 510 mv with 1/30s
Dark Signal 0.15mv with 1/30s
FPS/Resolution 60@1920X1080P(HDMI)
30@1920X1080(USB)
Binning 1x1
Exposure 0.1ms~999ms
Interface & Button Functions
USB USB Camera or USB Mouse
HDMI HDMI Out
DC12V 12V Power in
SD SD Card Slot
ON/OFF Power On/off Switch
Other Specification for HDMI Output
UI Operation With USB Mouse
Image Capture High Speed in SD Card(8G)
Video Record 1080P 30fps in SD Card(8G)
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
Other Specification for USB Output
White Balance Auto White Balance
Color Technique Ultra-FineTM Color Engine (USB)
Capture/Control API Standard UVC for Windows/Linux/Mac(USB)
Recording System Still Picture or Movie (USB)
Software Environment (for USB2.0 Connection)
Operating System Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:4GB or More
USB Port:USB2.0 High-speed Port
Display:19” or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 12V/1A Adapter

XCamView UI for Mouse Control

Dimension



Packing Info

Standard Packing List
A Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)
B LC-10 camera
C Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D HDMI Cable
E USB Mouse
F High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m
G CD (Driver & utilities software, Ø12cm)
Optional Accessory
H Adjustable lens adapter C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)
I Fixed lens Adapter C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)
Note: For H and I optional items, please specify your camera type(C-mount, microscope camera), our engineer will help you to determine the right microscope camera adapter for your application.
J 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
K 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
L Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
M SD Card(4G or 8G)
