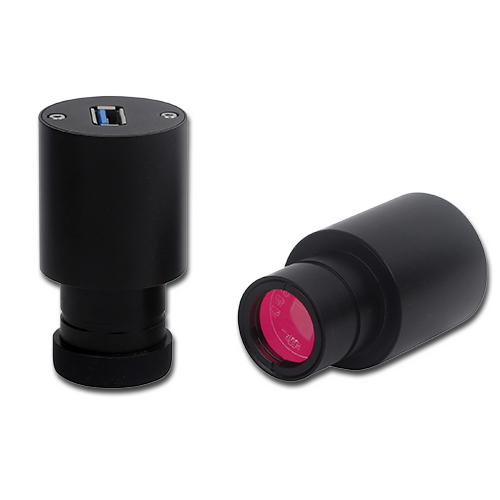

LC-2 USB3.0 Eyepiece Camera
LC-2 USB3.0 Eyepiece Camera is an economic version with simple and compact structure USB3.0 CMOS eyepiece camera. USB3.0 is used as the data transfer interface. Microscope eyepiece camera with 23.2 diameter and compact size;
The LC-2 USB3.0 Eyepiece Camera comes with high-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption; Also the LC-2 USB3.0 Eyepiece Camera comes with advanced video & image processing application ImageView.
Labomed, Inc. is certified by ISO 9001, CE Conformity
and is FDA Licensed.
Features
- Microscope eyepiece camera with 23.2 diameter and compact size;
- Easy to extend to C or CS- Mount camera with high quality lens(optional);
- High-quality camera with Aptina CMOS sensor;
- Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
- High-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption;
- With advanced video & image processing application ImageView;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
|
Top
of the Page
Technical Specifications
| Model |
LC-2 |
| Sensor & Size |
5.0M/MT9P001(Color) |
|
1/2.5"(5.70x4.28) |
| Pixel(μm) |
2.2x2.2 |
| G Responsivity |
0.53 V/lux-sec |
| Dynamic range |
66.5dB |
| SNRmax |
40.5dB |
| FPS/Resolution |
15@2560x1920 |
|
15@2048x1536 |
|
30@1920x1080 |
| Binning |
1x1, 2x2 |
| Exposure |
Auto |
| Spectral Range |
380-650nm (with IR-cut Filter) |
| White Balance |
Auto White Balance |
| Color Technique |
N/A |
| Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
| Recording System |
Still Picture and Movie |
| Cooling System* |
Natural |
| Operating Environment |
|
| Operating Temperature(in Centidegree) |
-10~ 50 |
| Storage Temperature(in Centidegree) |
-20~ 60 |
| Operating Humidity |
30~80%RH |
| Storage Humidity |
10~60%RH |
| Power Supply |
DC 5V over PC USB3.0 Port |
| Software Environment |
|
| Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) |
|
OSx(Mac OS X) |
|
Linux |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
USB Port:USB3.0 High-speed Port |
|
Display:17” or Larger |
|
CD-ROM |
Dimensions
The LC-2 USB3.0 Eyepiece Camera body, made from aluminum alloy blackening, ocular housing: Dia.32 X 56mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Packing Information
| Standard Camera Packing List |
|
|
| A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|
| B |
Gift box L:15cm W:15cm H:10cm (0.25~0.35Kg/ box) |
|
| C |
MDE4 series camera |
|
| D |
High-Speed USB3.0 USB315-ATA | USB 3.0 A Male to A Male Cable,1.5m |
|
| E |
CD (Driver & utilities software, Ø8cm) |
|
| Optional Accessory |
|
|
| F |
C-Mount Adapter Housing:108027(HS502) |
|
| G |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
|
| H |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
|
| I |
108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube |
|
| J |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.)； |
|
|
106012/TS-M2(X,Y=0.01mm/100Div.); |
|
|
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
