LC-23 6.0M/ICX695AQG(C) 1“ (12.48x9.99)

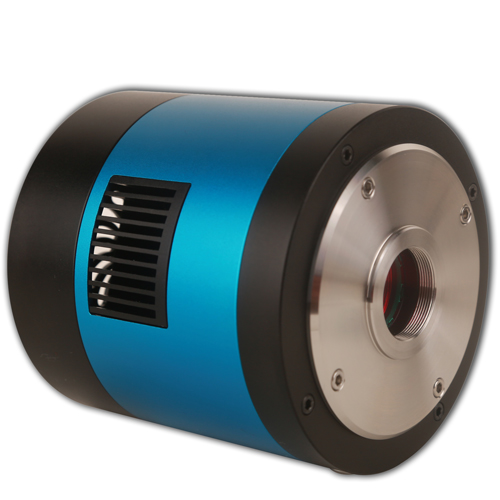

TE-Cooling C-mount USB3.0 CCD Camera

LC-23 6.0M/ICX695AQG(C) 1“ (12.48x9.99) TE-Cooling C-mount USB3.0 CCD Camera adopts Sony Exview HAD CCD II sensor as the image capture device with two-stage peltier cooling imaging chip to -50 degree below ambient. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.

USB3.0 is used as the data transfer interface to increase the frame rate.

LC-23 6.0M/ICX695AQG(C) 1“ (12.48x9.99) TE-Cooling C-mount USB3.0 CCD Camera comes with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

Labomed, Inc. is certified by ISO 9001, has CE Conformity and is FDA Licensed.

Features

The basic characteristic of LC-23 6.0M/ICX695AQG(C) 1“ (12.48x9.99) TE-Cooling C-mount USB3.0 CCD Camera can be summarized as follows:

1. Standard C-Mount camera with SONY ExView HAD CCD II sensor is 6M;
2. Two-stage TE-cooling with controllable electric fan;
3. Image chip cooling up to 50°C below ambient;
4. Working temperature can be regulated to specified temperature in 5 minutes;
5. Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
6. IR-CUT/AR coated windows;
7. Up to 1 hour long time exposure;
8. USB3.0 5Gbit/second interface ensuring high speed data transmission;
9. Ultra-FineTM color engine with perfect color reproduction capability;
10. With advanced video & image processing application ImageView;
11. Support both video and trigger modes;
12. Providing Windows/Linux/Mac OS multiple platforms SDK;
13. Native C/C++, C#/VB.NET, DirectShow, Twain control API.



Top of the Page

Applications

The LC-23 6.0M/ICX695AQG(C) 1“ (12.48x9.99) TE-Cooling C-mount USB3.0 CCD Cameracan be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy application.



Technical Specifications

Model LC-23
Sensor & Size(mm) 6.0M/ICX694AQG(Color)
1“ (12.48x9.99)
Pixel(μm) 4.54x4.54
G Sensitivity 1000mv with 1/30s
Dark Signal 8mv with 1/30s
FPS/Resolution 7.5@2748x2200
14@2748x1092
Binning 1x1
Exposure 0.06ms~1h
Other Specification
Spectral Range 380-650nm (with IR-cut Filter)
White Balance ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique Ultra-FineTM Color Engine/NA for Monochromatic Sensor
Capture/Control API Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System Still Picture and Movie
Cooling System Two-stage TE-cooling System -45 °C below Camera Body Temperature
Operating Environment
Operating Temperature (in Centidegree) -10~ 50
Storage Temperature (in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
External Power Adapter for Cooling System, DC12V, 3A
Software Environment
Operating System Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:2GB or More
USB Port:USB2.0 High-speed Port
Display:17” or Larger
CD-ROM



Dimension

The LC-23 6.0M/ICX695AQG(C) 1“ (12.48x9.99) TE-Cooling C-mount USB3.0 CCD Camera body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor and block the IR light. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Packing Information

Standard Package
A Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo
B 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm
C LC-23 camera(C-mount)
D Power adapter: input: AC 100~240V 50Hz/60Hz, out: DC12 V 3A
E High-Speed USB3.0 A male to B male gold-plated connectors cable /2.0m
F CD (Driver & utilities software, Ø12cm)
Optional Accessory
G Adjustable lens adapter C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)
H Fixed lens Adapter C-mount to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)
  Note: For G and H optional items, please specify your camera type(C-mount, microscope camera), engineer will help you to determine the right microscope camera adapter for your application.
I 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
J 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
K External trigger control line
L Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)



click here to fill out the Information Request Form
