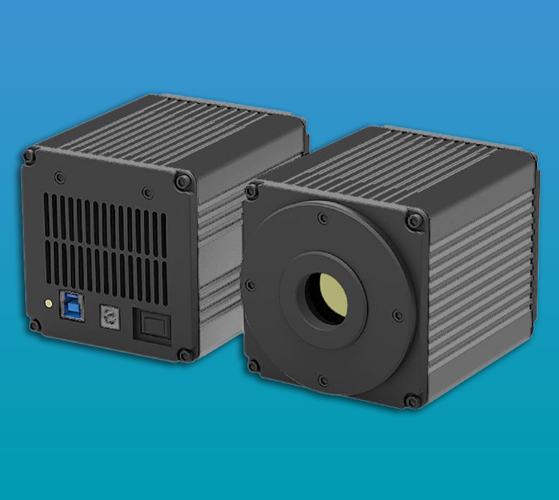

LC-26 USB2.0 CMOS Microscope Color Digital Camera (10.0MP)


LC-26 USB2.0 CMOS Microscope Color Digital Camera (10.0MP)
are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. They come with a high-resolution digital camera, built-in IR filter and user-friendly software. Adapters for all sizes of microscopes are optional. The cameras can provide high quality image and are widely used in academic and medical field for high precision and resolution image capturing and processing.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Top of the Page

Technical Specifications

Image Sensor

1/2.3 inch CMOS Micron MT9J001

Effective pixels

10.0MP

Resolution 3856x2764

Pixel size

1.67μm×1.67μm

Frame Rate

3fps@3656×2740, 7fps@1824×1362, 33fps@908×672

Sensitivity

0.44V/lux-S (550nm)

Exposure Time 0.001-0.5 sec

Dynamic range

56dB

SNR

43dB

Color Depth 24bit
A/D 8bit
Exposure Control Auto/Manual
White Balance Auto/Manual
Scan Mode Progressive Scan
Shutter Type Electronic rolling shutter
Filter RGB filter
Lens Interface C/CS
Data Output USB2.0, 480Mb/s
Power Supply USB2.0, 500mA
Working Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Working Humidity 45%~ 85%
Operating System Windows 2000/XP/ Vista/Win7/Win8/Mac/Linux
Size and Weight 69mm×87mm×44mm, 220g

Packaging Contents

  • LC-26 USB2.0 CMOS Microscope Color Digital Camera (10.0MP) with a C-mount and 1.8m USB cable.
  • CD including driver, software and instruction manual.
  • 0.45×(LC-26 comes with a 0.5× adapter) video adapter (23mm) and 30mm, 30.5mm connecting rings.

Optional (must be purchased separately): 0.1mm (for biological and other low power microscopes) Calibration Slide.
