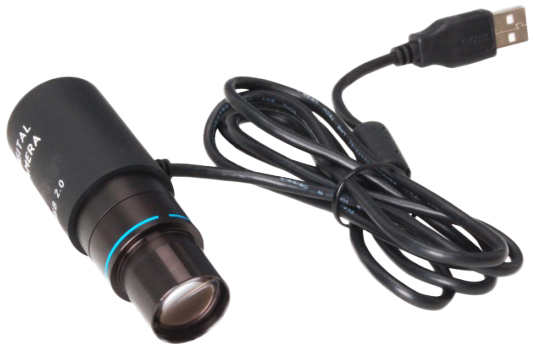

LC-27 USB2.0 CMOS Eyepiece Camera


LC-27 USB2.0 CMOS Eyepiece Camera
is an economic version with simple and compact structure CMOS eyepiece camera (digital eyepiece). USB2.0 is used as the data transfer interface. LC-27 comes with a high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption. LC-27 comes with an advanced video & image processing application ImageView. The LC-27 can be widely used to transform the monocular or binocular student microscopes to a digital microscope. With a 23.2 to 30mm or 23.2 to 30.75 convert ring, the LC-27 camera can also change the stereo microscope to digital stereo microscope.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Microscope eyepiece camera with 23.2 diameter and compact size.
  • Easy to extend to C or CS- Mount camera with high quality lens (optional).
  • High-quality camera with Aptina CMOS sensor.
  • Auto white balance and auto-exposure; Brightness, contrast, chroma and saturation can be adjusted.
  • High-speed U SB2.0 interface and high frame rate video display keep the screen smooth without interruption.
  • With advanced video & image processing application ImageView.
  • Providing Windows/Linux/Mac OS multiple platforms SDK.
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

Top of the Page

Technical Specifications

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Auto White Balance

Color Technique

N/A

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System

Natural

Operating Environment

Operating Temperature(in Centigrade)

-10~ 50

Storage Temperature(in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM

Accessories

Standard Camera Packing List

Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/carton), not shown in the photo

Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.16Kg/box)

USB2.0 eyepiece camera

High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m

CD (Driver & utilities software, 8cm)

Optional Accessory (must be purchased separately)

C-Mount Adapter Housing:108027 (HS502)

108015 (Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

108016 (Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

108017 (Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

Calibration kit

106011/TS-M1 (X=0.01mm/100Div.);
106012/TS-M2 (X,Y=0.01mm/100Div.);
106013/TS-M7 (X=0.01mm/100Div., 0.10mm/100Div.)



Dimensions and Packing Contents
