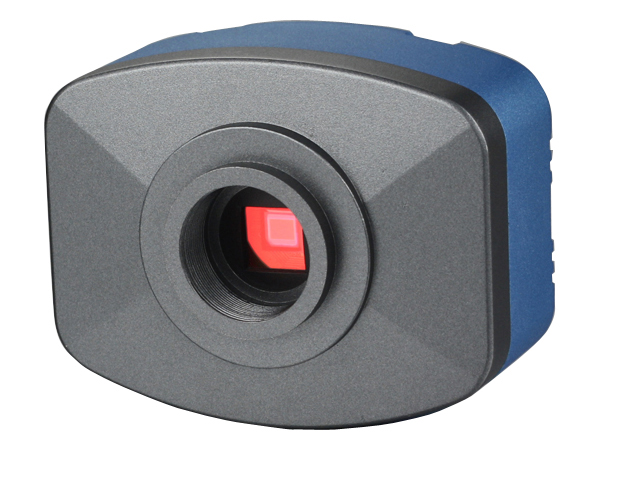

LC-4 USB2.0 CMOS Industrial Color Smart
Digital Camera (3.2MP)

LC-4 USB2.0 CMOS Industrial Color Smart Digital Camera (3.2MP) According to the machine vision industry requirements, Labomed, Inc. has developed the latest LC-4 series smart industrial cameras.

With  USB2.0  interface,  0.36  mega-pixel,  1.3  mega-pixel,  3.2  mega-pixel cameras are available. The size is only 29mm * 29mm * 46mm, weight (without lens) is only 60g. Among these cameras, 0.36 mega-pixel digital camera has high sensitivity, high dynamic range, global shutter, hardware frame buffer, high-speed features. 1.3 mega-pixel and 3.2 mega-pixel digital cameras have high sensitivity, high dynamic range, rolling shutter, high-speed features. LC-4 digital cameras are widely used in machine vision and a variety of image acquisition areas.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Fine new design, small size, 0.36 mega-pixel digital camera is 29mm × 29mm × 50mm (length × width× height), weight 60g, 1.3 mega-pixel and 3.2 mega-pixel digital camera are 29mm × 29mm × 46mm (length × width × height), weight 60g;
  • Multiple  mounting  angles,  suitable  for  all  kinds  of  industrial  production equipments’ installation requirements;
  • Real industrial Color/mono CMOS image sensor with high sensitivity, high dynamic range, no compression, no interpolation. 0.36 mega-pixel digital camera is global shutter, 1.3 mega-pixel and 3.2 mega-pixel digital cameras are rolling shutter;
  • High-speed USB2.0 interface, up to 480Mb/s;
  • 5. Support extraction modes, users can choose AOI area(Area of Interest), the image frame rate is greatly speed up after the extraction;
  • Separate image capture and preview, support high-speed preview, high-quality acquisition; Supports SKIP2/SKIP4/SKIP8 3 extraction modes, the image frame rate multiplied after the extraction;
  • The brightness of all modes and resolution switch is the same;
  • Gamma correction, extended RGB gain, color reproduction more realistic;
  • Support for still image capture (JPG, BMP), image color is rich and vivid;
  • Support 8-bit, 24-bit, 32-bit bitmap preview and capture(Mono camera support 8-bit bitmap);
  • Support uncompressed, compressed videos;
  • Provide completed API for users’ secondary development, provide Demo Source Code;
  • Hardware automatic gain control (AGC) and Exposure Control (AEC)
  • Software auto white balance, auto exposure, continuous auto exposure control;
  • Users can program to control white balance and exposure area;
  • Support the plug recovery during acquisition and preview;
  • Support firmware upgrade on-line;
  • Plug and play, dispense with external power supply;
  • Support Windows XP / Vista / 7 Operation System;
  • Support VC, VB, DELPHI, LABVIEW and other development language;
  • Fix USB cable on the camera with bolt to prevent from falling off;
  • Support Twain;
  • Support standard C-mount lenses and all kinds of customized lenses;
  • Durable aluminum alloy shell.

Top of the Page

Applications

  • License image capture
  • Medical diagnosis
  • Microscope system
  • Notes image capture
  • Industrial production line image capture
  • Fingerprint, palm print image capture
  • Public Security investigation image capture
  • Desktop images, portraits, iris image capture
  • High speed vehicle license plate capture
  • Outdoor Monitoring

Technical Specifications

Model

LC-4

Description

USB2.0 Color CMOS 3.2MP industrial digital camera

Image Sensor

1/2 inch, Color 3.2MP CMOS Image Sensor

Pixel Size

3.2μm×3.2μm

Spectral Response

400nm~1000nm

Sensitivity

1.0V/lux-sec@550nm

Scan Mode

Progressive Scan

Exposure Mode

Electronic rolling shutter

Max Resolution

2048 × 1536

Frame Rate

7fps@2048 x 1536
18fps@2048 x 1536
SKIP2 35fps@2048 x 1536 SKIP4

White Balance

Auto / Manual

Exposure Control

Auto / Manual, software/hardware

Image Output

USB2.0, 480Mb/s

Power

USB2.0 Power Supply, 500mW

Dynamic Range

61dB

Signal-to-Noise

43dB

Programmable control

Image size, Contrast, brightness, gain, exposure time

Software Function

Image display, image processing, video

Working Temperature

0°C~60°C

Spectral Response Curves



Dimensions
