Semi-Automatic Clinical Chemistry Analyzer

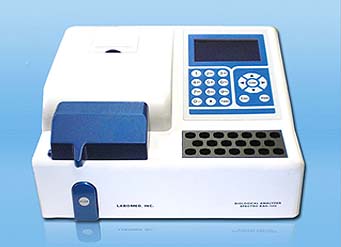

Analyzer BAS-100

BAS-100 is a new concept designed clinical chemistry analyzing system for biochemical research and clinical diagnostics: Powerful data process function makes it easy to perform data management and statistics: report may be in single test or with completed patient data, which will be convenient for clinical diagnostics. BAS-100 includes a suction pump system.

This semi automatic biochemistry analyzer can measure all blood elements and print on built in printer as indicated in the features section.

BAS-100 has a built in printer and flow through system to use up to 32uL and incubating system for 25-30-37° for kinetic test.


Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Photometric scanning of Spectrum, Analysis in multiple longitude of wave and kinetics
  • Diagnosis of Operation
  • Automatic Calibration
  • System of aspiration of sample (Pale of flow, Aspiration System, Faslk of Residuals, Tubes, Connectors, Etc)
  • 2 Reserve halogen Lamp included
  • 4 Rolls of Printer Paper included
  • Cable and Software connection to PC included


Top of the Page

Technical Specifications

Methods: End point, two points, multi standard, kinetics, bichromatic, serum blank

Wavelength: From 300-800nm. free to choose.

Wavelength Precision: +- 1.0nm.

Wave of band ghastly: 5nm.

Scanning Speed: 1000nm/min.

Items: store 200 items, which can increase, modify and delete

Reaction volume: 500ul

Flow through cell: 32ul

Temperature Control System: 25°C, 30 °C, 37°C controlled by Peltier element

Optical system: interferential filters,340,405,492,510,546,578,620 (can increase to 9)

Light source: 6V 10W halogen lamp

Photometric range: 0-3-3.0ABS

Photometric approach: 0.003A.

Absorbance Landslide: 0.002A

Printer: Incorporated.

Display: large LCD screen with back light

Printer: built-in stylus/thermal printer

Serial output: RS-232 standard

Power supply: 220V 50Hz 150VA and 110V. 50/60Hz.

Dimension: 390 x 370 x 180mm

Testing List

BAS-100 will measure the following elements at blood test:

T. BILI
D. BILI
TP
ALB
Lactic Acid
LP (a)
CHE
Fe
LgM

R-GT/GGT
ALP/AKP
UREA
CREA
ALT/GPT
AST/GOT
LA
Cu
LgA



CHO
TG
CK
LDH
UA
GLU
TBA
Zn
and drug toxicity

Ca
CL
P
C
A-HBDH
AMY
ADA
C3

APOB-IB
APOB
CK-MB
ASO
CO2
LOL-C
HS-CRP
C4
CHE
CREA
Mg
AFU
FMN
HDL-C
PA
LgC
