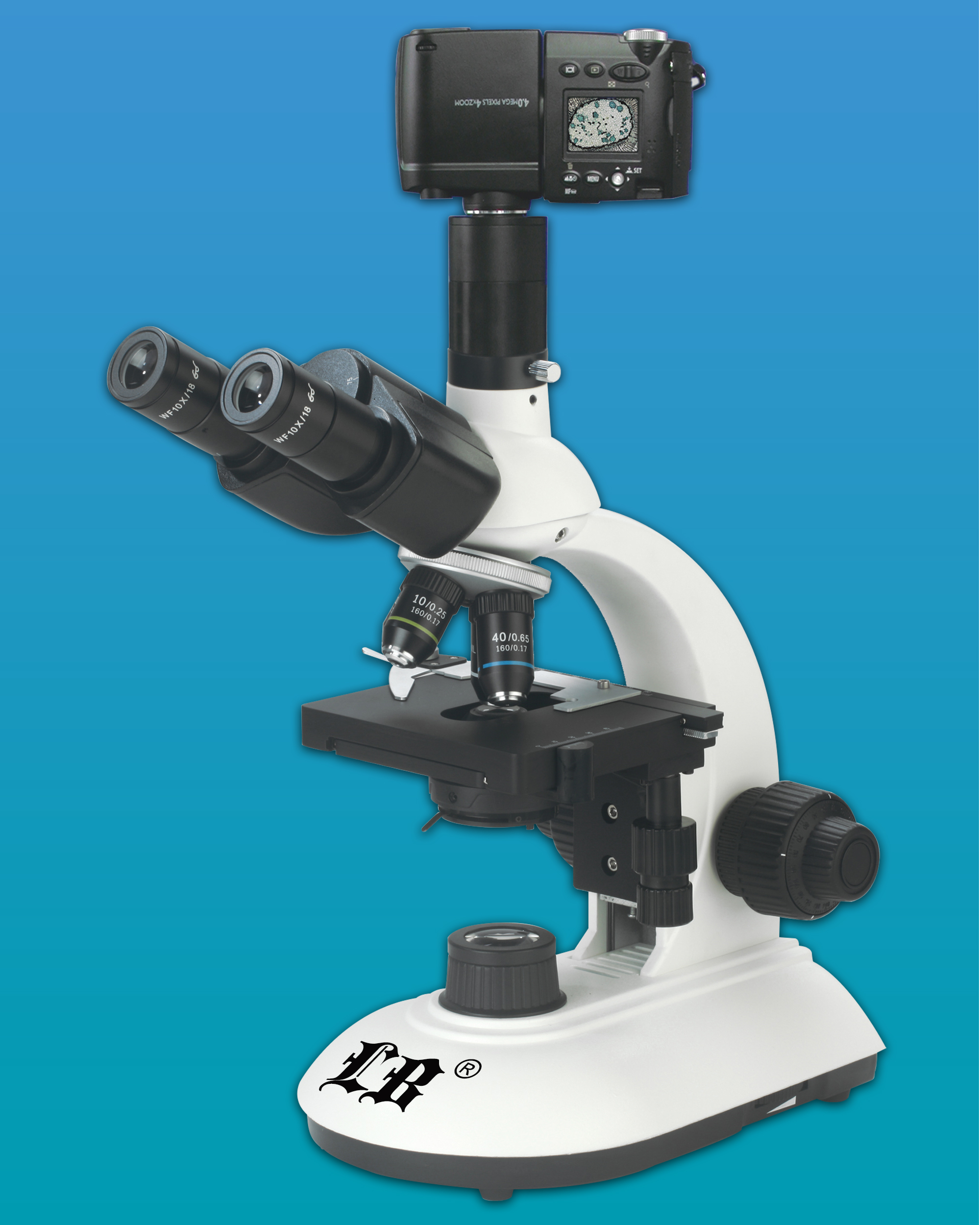

LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination
LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination is economic, practical and easy to operate.
LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination adopts LED illumination, which saves energy and have long working life, it is also very comfortable for observation.
LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination is widely used in educational, academic, agricultural and study field. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
1. New machining facility and advanced alignment technology.
2. Comfortable operation with ergonomic design.
3. LED light illumination, save energy and long working life.
4. Compact and flexible, ideally suited for desktop, laboratory worktable.
Note: camera is not included |
Top
of the Page
Technical Specifications
Applications
LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination is ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in schools, clinics, hospitals, academic labs and scientific research department.
Model |
LB-222 |
Optical System |
Finite Optical System |
Viewing Head |
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm, Light Distribution 20:80 |
Eyepiece |
WF10×/18mm |
Objective |
Achromatic Objective 4×, 10×, 40×(S), 100×(Oil)(S) |
Nosepiece |
Quadruple Nosepiece |
Stage |
Double Layer Mechanical Stage 125×115mm/ 75×35mm |
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving Range 22mm |
Condenser |
Abbe NA 1.25 with Iris Diaphragm |
Illumination |
3W LED illumination, Brightness Adjustable |
C-mount Adapter |
0.5× C-mount(Adjustable) |
Package |
1pc/carton, 34cm*25cm*42cm, 6.5kgs, NW: 5kgs |
Sample Images
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
|
