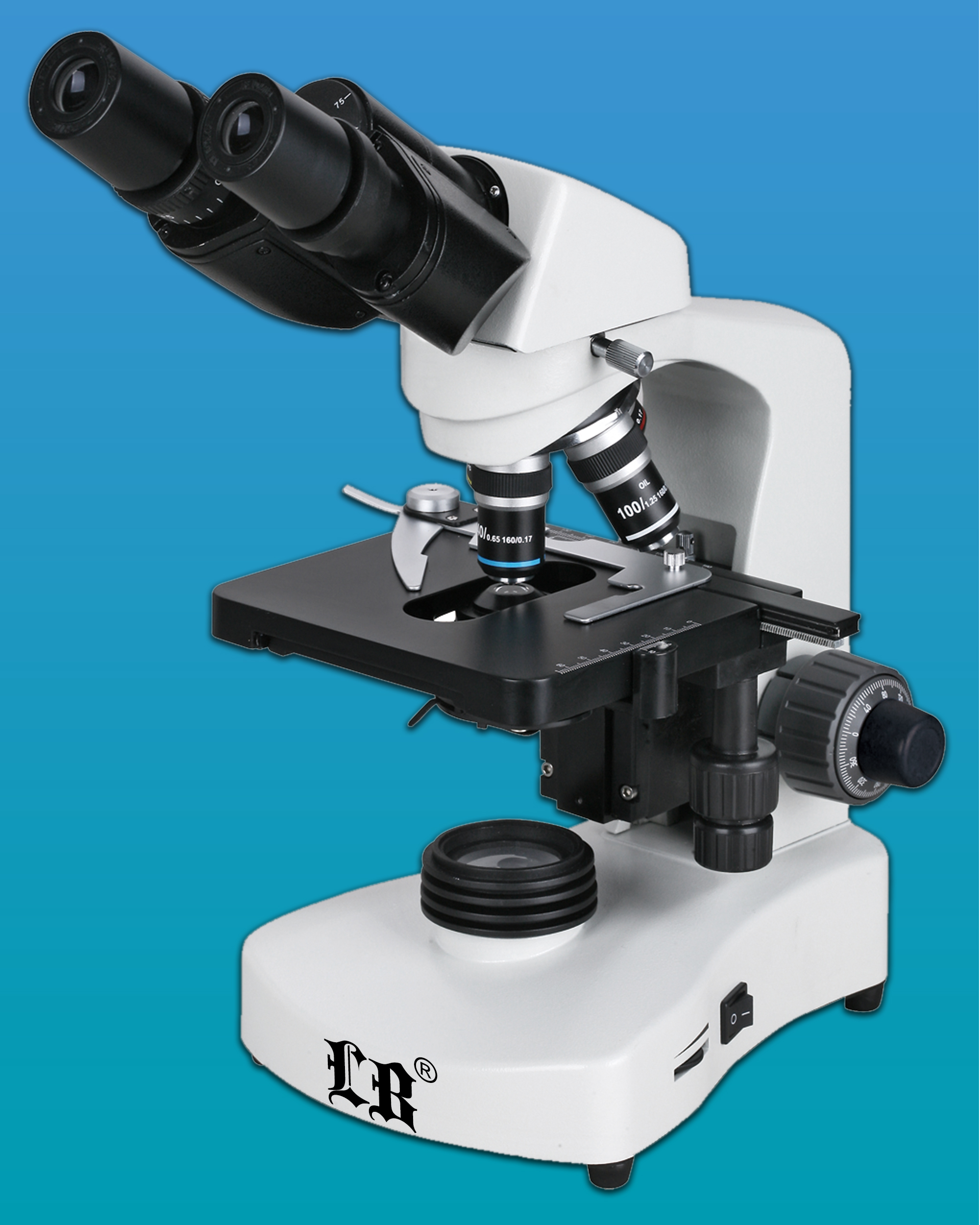

LB-223 Biological Binocular Microscope With LED Illumination And Five Achromatic Objectives (4x, 10x, 40x, 60x, 100x)
LB-223 Biological Binocular Microscope with LED Illumination is an economic, practical and easy to operate binocular microscope, this microscope is widely used in the educational, academic, agricultural and study fields.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- New machining facility and advanced alignment technology;
- With complete functions and outfit of binocular microscope;
- Comfortable operation with updated and ergonomic design;
- LED light illumination, saves energy;
- Compact and flexible, ideally suited for desktop, laboratory worktable;
- Eyepoint height and interpupillary distance can be adjusted to fit for observation.
|
Top
of the Page
Technical Specifications
Applications
LB-223 Biological Binocular Microscope with LED Illumination is ideally suited for the school biological education and medical analyses areas. We can use it to observe all kinds of slides. It can be widely used in clinics, hospitals, schools, academic labs and scientific research departments.
Viewing Head |
Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm |
Eyepiece |
WF10×/18, P16×/11 (optional) with diopter adjustment |
Objective |
Achromatic Objective 4×, 10×, 40×, 60×, 100× |
Nosepiece |
Backward Quadruple Nosepiece |
Stage |
Double Layer Mechanical Stage 132×142mm/ 75×40mm |
Focusing |
Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm |
Condenser |
Abbe NA 1.20 with Iris Diaphragm & Filter |
Illumination |
LED 3W, Brightness Adjustable
Kohler illumination (optional) |
Dimension & G.W. |
39.5cm*26.5cm*50cm, 7kg |
Immersion Oil |
5 ml |
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
|
