Scanning Visible Spectrophotometer
Spectro 35

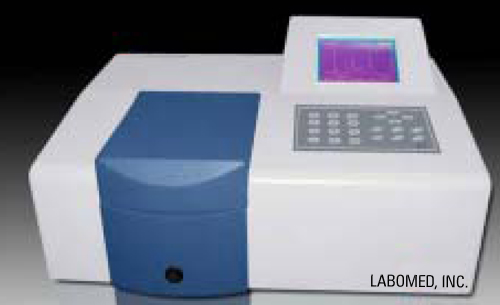

Spectro 35 Scanning Visible Spectrophotometer is an intelligent product with single-chip microprocessor control technology so that it has many sophisticated functions possessed by large high-end instruments and can meet the requirements of qualitative and quantitative tests for most samples conducted in conventional laboratories. The instrument is widely used in medical and health, clinical examination, biochemical, petroleum chemical, environmental protection and quality control departments, etc. The instrument with a low price and high performance is your best choice.

Labomed, Inc. is certified by
ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

Top of the Page

• The instrument adopts a 5.8” LCD graphic display and an externally linked thermal sensitive printer as its display and output devices to give a clear display of test results and prompts during the operation procedures. The thermal sensitive printer can easily print out test results for making data report and retention.

• Test method offers photometric mode, wavelength scanning, quantitative analysis and dynamical analysis and multi-wavelength test mode. In the quantitative test mode, three normal analytical methods of factor input, single-point and undetermined multiple-point are offered.

• Unique cell-matching function eliminates measurement errors caused by cell-matching (effective only in the photometric mode and quantitative analysis).

• It has the function of automatic zero and full scale adjustment.

• It is highly accurate in measurement reading and excellent in repeatability and stability.

• The instrument has many advanced functions such as concentration direct reading, linear regression, timing print, GOTOλ and spectrum scanning and the like.

• Sampling at different wavelength intervals of 0.1nm, 0.2nm, 0.5nm, 1nm, 2nm and 4nm can be made according to users’ requirements

Included Accessories

Top of the Page

• 1 Main instrument
• 1 Power Cable
• 4 10mm Glass Cell
• 1 10mm Cell Holder
• 2 Fuse 3A
• 1 Printer FD-TP40
• 2 Printing Paper
• 1 Signal Cable

Optional Accessories

Top of the Page

• 4 10mm Glass Cells
• 1 10 mm Cell Holder
• 1 Printer
• 1 Tungsten-Halogen Lamp (6V10W)
• 2 Rolls Printing Paper


Technical Specifications

Top of the Page

• Optical system: single beam, grating of 1200 lines/mm
• Wavelength range: 325-1000nm.
• Wavelength accuracy: ± 1nm
• Wavelength repeatability: ≤ 0.5nm.
• Spectrum bandwidth: 4nm
• Stray light ≤ 0.3% τ (in a test at 360nm with NaNo2, the value is 0.1%τ)
• Transmittance display range: 0.0%τ -200.0%τ.
• Transmittance accuracy: ±0.5% τ (tested with NBS930D).
• Transmittance repeatability: ≤ 0.2% τ
• Absorptivity display range: -0.301A- 4.000 A
• Concentration direct-reading range: 0000-9999
• Baseline flatness: ±0.005A
• Noise: 100% noise ≤ 0.3%τ
• Drift: ≤0.004A/h

Overall dimension & weight:
Shipping package dimension:  570-470-330mm
Gross weight:      20Kg
Net weight:          15Kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
