Welcome to Labomed's Catalog! The following are brief descriptions of our line of diagnostic equipment, to see more detailed description and specifications, click on the picture.
Please, Keep an eye on this page, any new products will be announced here.

View Complete Diagnostic Brochure by Flipbook PDF


CHOOSE YOUR ANALYZER



We offer six types of Fully Automatic Biochemistry Analyzers:

The construction of each analyzer is the same, with different specifications and testing capabilities.

Each system has two categories, one with electrolyte testing (ISE) and one without.

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

Features

  • Random Access and
    Direct Reading System
  • Automatic Washing System for Both Sample and Reagent Probe
  • Liquid Level Detection and Collision Protection for Both Sample and Reagent Probe, with Teflon Coating and Automatic Washing Station
  • Reliable Cooling System for Reagent Chamber
  • Powerful Reaction Cuvette Washing System
  • User-Friendly Interface
  • ISE module (optional) and Barcode Scanner (optional)
  • Works with Windows XP and Windows 7.
  • Enzyme Kinetic GPT GOT tests.
  • CABINET IS OPTIONAL.

To see the brochure of each instrument, click on the model below:

FACA-801
800 tests/hour (800 chemistry tests)
True Random Access

Click here to see brochure

FACA-801-ISE (Electrolyte Tester and Analyzer)
960 tests/hour (800 chemistry tests + 160 tests ISE)
True Random Access

Click here to see brochure

FACA-601
600 Tests/hour
True Random Access

Click here to see brochure

FACA-601-ISE (Electrolyte Tester and Analyzer)
760 tests/hour
(600 chemistry tests + 160 ISE)
True Random Access

Click here to see brochure

FACA-401
400 Tests/hour
True Random Access

Click here to see brochure

FACA-401-ISE (Electrolyte Tester and Analyzer)
520 test/hr (400 tests/hr + 120 ISE tests/hr), with minimum three ISE test (Na, K, Cl)
True Random Access

Click here to see brochure

FACA-301
300 Tests/hour
True Random Access

Click here to see brochure

FACA-301-ISE (Electrolyte Tester and Analyzer)
420 Tests/hour (300 chemistry tests + 120 ISE)
True Random Access

Click here to see brochure

FACA-261
257 Tests/hour
True Random Access

Click here to see brochure

FACA-261-ISE (Electrolyte Tester and Analyzer)
377 Tests/hour (257 chemistry tests + 120 ISE)
True Random Access

Click here to see brochure

FACA-200 (Electrolyte Tester and Analyzer)
200 Tests/hour (200 chemistry tests)
True Random Access

Click here to see brochure

FACA-200 (Electrolyte Tester and Analyzer)
200 Tests/hour (200 chemistry tests)
True Random Access

Click here to see brochure



FACA-801

FACA-801-ISE

FACA-601

FACA-601-ISE

FACA-401

FACA-401-ISE

FACA-301


FACA-301-ISE

FACA-261

FACA-261-ISE

FACA-200






DW-20 De-Ionized Water Distiller with Gauge

Water Processing Volume: 20L/hour
Installation requires:

a) Water Conductivity: <400us/cm
b) Water Pressure: 0.1-0.4 Mpa (if no need extra pump)
c) Water Temperature: 5°C-45°C
Water Speed of Output: 1.5-2L/min
After Purification Conductivity: >16 Ion< 0.1ppb
Power: 50W
Dimensions: 420mm x 350mm x 500mm
Weight: 25-30 kg



DW-20
DE-IONIZED WATER DISTILLER WITH GAUGE



Combined Clinical Chemistry and Coagulation Multitest Analyzer Touch Screen BAS-150 TS PLUS is a TOUCH SCREEN Microprocessor Biochemical and Coagulation Analyzer, which measures the biological indicators, more than 50 elements plus Coagulation test TT, PT, APTT.

The BAS-150 TS Plus is open to being used with all brands of biochemistry reagents.

THIS BIOCHEMISTRY ANALYZER CAN TEST SAMPLES IN TWO WAYS,
BY SUCTION PUMP AND BY DISPOSABLE CUVETTE

Features:

  • Latest concept and technology
  • Flow through cell, micro and macro cuvette available
  • Lower energy consuming technique
  • Color touch screen
  • Multi-language, and more
  • Coagulation Testing
  • 7.0" True Color Touch Screen (800 x 480 pixels)
  • Inside multi-function incubator
  • Universal power supply
  • Enzyme Kinetic GPT GOT tests
  • Sample blood serum
  • Volume: Reagent plus sample serum 500 ul
  • Reagent will give ratio
  • The suction volume is 500 ul
  • Halogen lifetime is 1500 hours
  • Calibration is leaner
  • Photometric resolution is 0.0002A
Function: Chemistry + Coagulation
Analysis method:

Photometry: End point, fixed time, kinetic, serum blank, Bi-chromatic, double-reagent, multi-point
Coagulation: Nephelometry

Wavelength: Chemistry: 340, 405, 492, 510, 546, 620, 670nm. Other available on request.
Coagulation: 450, 670nm. Others on request.
Cuvette: Flow through cell, direct reading, and coagulation cuvette available
Sample Volume: 50-500 ul
Incubator: 2 reagent and 20 sample incubation positions, controlled at 37±0.1°C
Temp. for cuvette 37±0.1°C
Drift ≤0.0001 OD/hr
Quality Control: Quality control for normal and abnormal value, automatic statistics, and analysis of control data
Display: 7 inch, color touch screen
Storage: 1,000 test results
Printer: Built-in thermal printer

Interface:

USB & RS-232
Languages: English, Spanish, French, Russian, Portuguese, Chinese, Others available on request.
Power: 110V/60Hz, or 220V/50Hz 150W
Dimensions: 340mm x 380mm x 210mm
Weight: 6.5 kg
Test Menu: Chemistry: Kidney function, liver function, cardiac markers, minerals, blood disorders, blood lipids, drug of abuse, miscellaneous, etc.
Coagulation: PT, APTT, FBG, TT, D-Dimer, FDP, AT-III, PC, PS, VWF, Factor V, VII, VIII, IX, X, XI, XII, deficient substrate, etc.

COMBINED CLINICAL CHEMISTRY ANALYZER TOUCH SCREEN BAS-150 TS PLUS



Clinical Biochemistry Touch Screen Analyzer with Temperature Control and Internal Printer BAS-120TS is a TOUCH SCREEN Microprocessor Biochemical Analyzer, which measures over 50 biological indicators.

The BAS-120TS is open to being used with all brands of biochemistry reagents.

THIS BIOCHEMISTRY ANALYZER CAN TEST SAMPLES IN TWO WAYS,
BY SUCTION PUMP AND BY DISPOSABLE CUVETTE

Features:

  • Powerful Software
  • 7.0" Touch Screen
  • Multi-language
  • Built-in Printer
  • USB port for external printer, online operation, keyboard,software update (optional)
  • Very easy to use, user-friendly interface
  • 50 Biochemistry tests
  • Sample blood serum
  • Volume: Reagent plus sample serum 500 ul
  • Reagent will give ratio
  • The suction volume is 500 ul
  • Halogen lifetime is 1500 hours
  • Calibration is leaner
  • Photometric resolution is 0.0002A



Reading Cuvette

Both flow through cell and direct reading cuvette

Measuring Volume 500ul
Incubator 20 incubating positions
Photometric System Light source: 6V/10W halogen lamp
Wavelength: 340/405/492/510/546/578/620nm , 2 more filters upon request
Wavelength accuracy: ±2nm
Thermostatic Control Temperature: 25 °C,30 °C, 37 °C
Precision: ±0 °C
Measuring System Method: End point, Fixed time,Multistandards,Differential, Bichromatic, Immunoturbidimetric,etc.
Measuring Range: 0-3.000 O.D
Photometric Linearity: ± 2% (0-3.000 O.D)
Photometric Accuracy: ±1% (0-3.000 O.D)
Carry-over: ≤1%
Drift <0.005 0.D/hr
Test Menu Chemistry: T.B LI r-GT/GGT CHO Ca APOB-1/B CHE D.B LI ALP/AKP TG CL
APOB CREA TP UREA CK P CK-MB Mg ALB LOH C ASO AFU Lactic Acid
ALT/GPT UA a-HBDH C02 FMN LP(a) AST/GOT GLU AMY LDL-C HDL-C
Quality Control Excellent Q.C function, Q.C chart may be displayed and printed
Display 7 inch touch screen
Storage Over 200 programs, 1000 test results
Printer Built-in thermal printer
LIS Software Optional
Interface USB port for external printer, keyboard,software update (optional)
Power Supply AC 110V/60Hz or 220V/50 Hz
Dimensions 34cm x 38cmx 18cm
Weight 8.0Kg

CLINICAL BIOCHEMISTRY TOUCH SCREEN ANALYZER WITH TEMPERATURE CONTROL AND INTERNAL PRINTER BAS-120 TS

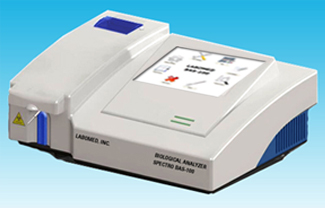

Analyzer BAS-100 TS is a TOUCH SCREEN Microprocessor Biochemical Analyzer, which measures the biological indicators, more than 50 elements.

The BAS-100 TS is open to being used with all brands of biochemistry reagents.

Single chip machine, WindowsCE operating system, does not require Windows XP or Windows 7.

THIS BIOCHEMISTRY ANALYZER CAN TEST SAMPLES IN TWO WAYS,
BY SUCTION PUMP AND BY DISPOSABLE CUVETTE

Features:

Optics: 7 filters, 340, 405, 450, 505, 546, 578, 630.
Thermostatic Control:
Flow Cell Temperature: 37C Peltier Elements.
Flow through cell: 32ul
Suction Pump System
Display:7.0 inch TFT Color touch screen
Precision: +-0.2C
Continuous Memory: 200 assay program,200000 results
Printer: Built-in thermal printer, 57mm. wide paper
Power Supply: AC85-260; 50Hz or 60Hz
Sample blood serum
Volume: Reagent plus sample serum 500 ul
Reagent will give ratio
The suction volume is 500 ul
Halogen lifetime is 1500 hours
Calibration is leaner
Photometric resolution is 0.0002A



  • Photometric scanning of Spectrum, Analysis in multiple longitude of wave and kinetics, endpoint, fixed time, kinetic. Blank of water or blank of reagent method can be linear or nonlinear, according to the type of reagent you are using.
  • Diagnosis of Operation
  • Automatic Calibration
  • System of aspiration of sample (Pale of flow, Aspiration System, Faslk of Residuals, Tubes, Connectors, Etc)
  • Power Cable Included
  • Works with WindowsCE operating system. Single chip machine, does not require Windows XP or Windows 7.
  • Enzyme Kinetic GPT GOT tests.
Assay method: Absorbance, concentration, factor, 1 point end point, 2 point end (Sample blank), fixed time, kinetic, and dichromatic, immunoturbidimetric. Coagulation (optional).
Wave Length: 7 filters, 340, 405, 450, 505, 546, 578, 630 as standard configuration. (5 years warranty for each filter)
Light source: 6V 10W Long-life Tungsten halogen lamp. Service life 2000 hours.
Light has auto shutdown function that will extend usage period.
Auto-Sleep function.
Display: 7.0 inch TFT Color touch screen,260000 Pixel,800x480 resolution; real time to show response curve
Built-in Thermal Printer: Built-in Thermal Printer, 57mm printer paper
Paper alarm, transparent cover; easy installation
Incubation temperature: 37℃ and room temperature are standby; temperature accuracy±0.1℃,
by means of Peltier elements
Flow cell capacity and optical path: 32ul, 10mm
Resolution: 0.0001 Abs
Photometric Range: 0 – 3.5 Abs
Absorbance range: 0.0000-2.5000(10mm flowcell)
0.0000-3.5000(6mm flowcell)
Spectral Band:

< 8 nm

Vacuum system programmable:

200 – 5000 ul at least
Carry over:     <1%;
Stability: <0.005Abs/hour
Absorbance Precision: 0.0001Abs;
Absorbance drift: <0.005Abs/hour
Absorbance repeatability: CV≤1%
QC analysis:   L-J QC chart , Westguard  Multi-regulation analysis.
Software: Window CE 6.0 operation system,high-capacity storage; edit 200 assay program,200000 results
Unlimited storage by connecting to computer.
Single chip machine, does not require Windows XP or Windows 7.
Operation Manual: Available in 4 different languages
CPU: ARM Cortex-A8, 720MHz
Memory: DDR2 SDRAM: 1G bit
Flash: 256 MB
Over 200 programs, 200,000 results can be stored
USB Port:  USB Mouse; USB keypad; USB Printer; 4 USB ports for Keyboard, Mouse, Printer, U Disk, Bar Code Reader. 1 USB Slave for PC connections (supports PC software control function).
1 Ethernet port.
Supports all HP series inkjet printers; Computer control software,LIS system available. External scanner is available. Support remote diagnostics
Operational Environment: Temperature: 10℃~37. Humidity: ≤85%.
Power supply: Wide power supply: 100-240V  50Hz or 60Hz.
Dimensions: 400mm (L) x 300mm (W) 160mm (H)
Weight: 17 lbs..

ANALYZER BAS-100 TS



Clinical Microplate Reader EMR-500 Touch Screen has eight channel photometers for the sequential and simultaneous for the sequential and simultaneous reading of microplates. Providing the best level of sensitivity for variable assay conditions, with powerful software are able to perform reading and data procession with relative memorization.

Features:

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

  • Eight channel photometers for the sequential and simultaneous for the reading of microplates.
  • Providing the best level of sensitivity for variable assay conditions, with powerful software are able to perform reading and data procession with relative memorization.
  • Ability to read flat, U and V bottom.
  • Auto calibration before each reading.
  • Programmable variable speed shaking.
  • Measurement range: 0.000-3.500A
  • Light Source: Halogen
  • EMR-500 can work by itself, and can connect to the computer. Can use with Windows XP and Windows 7.
Measurement System: 8 channels, 96 well plate
Analysis Mode: Cut-off, single and multi-standard, O.D. bichromatic, dynamic reading, etc.
Reading Speed: 6 seconds (fast kinetic measurements)
Linear Range: 0.001-3.500Abs
Photometric Accuracy: ±1% or ±0.001A
Repeatability: <1.0%
Stability: <0.005Abs/hr
Linearity: <±1.0%
Sensitivity: <±0.001A
Channels Discrepancy: <±0.002A
Optical filters: 405/450/492/630nm
Reading: Automatic focusing function makes the results more precise
Tray Shaking : Yes
Storage: 100 programs
Display: Touch screen
Interface: RS-232 and USB port
Printer: Internal printer (External printers are available on request)
Power Supply : AC 220V 50Hz or 110V 60 Hz
Dimensions: 46cm*33cm*18cm
Weight: 7.5kg

CLINICAL MICROPLATE READER TOUCH SCREEN
EMR-500











Clinical Microplate Washer EMW-600 Touch Screen

An automatic washer for microplates. It is capable of all types of microplate wells and provides automatic plate calibration. 8- or 12- channel modes are available and can be easily fitted to wash single and multiple strips or a complete 96-well plate.

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

Features:

Residual Volume: <2ul/well
Dispensing volume: 50ul ~ 500ul
Dispensing Precision: <2% CV at 300ul across plate
Dispensing error: <2%
Working Temperature : 8°C - 50°C
Plate Type: 96/48 well plate or strip plate
Manifolds: 8- or 12- way available
Wash cycles: 0-99
Soak time: 0-3600 seconds
Shaking time: 0-99 seconds
Alarming: Automatic alarm after washing
Self-test Function: Automated location check
Storage: 50 programs
Language: English. Other languages on request
Interface: RS232 and USB port
Monitor: Back-illuminated LCD
Power Supply : AC 220V 50Hz or 110V 60 Hz
Dimensions: 48cm x 40cm x 27cm
Weight: 6.0kg

CLINICAL MICROPLATE WASHER
TOUCH SCREEN
EMW-600




Hematology Clinical Chemistry Analyzer H-7021 (3-Diff) (Less Service, More Stable)

Features:

  • Easy operation
  • Carry-over prevented by automatic probe interior and exterior cleaning
  • Whole blood test mode and prediluted blood test mode available
  • Automatic self-diagnosing and alarm function
  • Internal real-time monitoring system
  • Clog prevention and maintenance function
  • Automatic 24 hours standby function
  • Multiple report formats available.
  • Free cyanide reagent
  • Can use manual scanner.
  • Software can upload results to computer.

Hematology Analyzer H-7021

  • Analysis samples by one button.
  • Aspiration probe cleanable automatically avoid the carry-over.
  • Changing from the mode of peripheral blood to venous blood by one key
  • The appropriative calibrate program can calculate the peripheral blood and venous blood respectively and save the results automatically
  • Internal Real-time monitoring system (continual supervise the micro hole, liquid circulating system and reagent residue), reminding the special results and diagnosing the problem automatically.
  • Internal automatic capacity of maintenance. Maintaining the apparatus timely, increasing the reliability of operation.
  • The new liquid circulating system with patent technology can avoid and remove the jam.
  • Open shell to help maintain the liquid circulating system.
  • Special WBC analysis category menu, sieve the abnormal samples.
  • Safe reagent without any harm to environment
  • Fully automatic automization
  • Capable of blanking at automatic zero setting

    I. Technological information:
Sample Volume: 10ul (distal blood) 20ul (venous blood)
Throughput: 60 test /hour
Measurement theory: Electro-impedance, photometric analysis
Display: LCD displaying all the reading results of sample
Storage: 200,000 results including histograms
Printing mode: Internal thermal printer or interface to external printer
Data Input: Keypad (mouse and keyboard available)
Output: RS232, USB, Internet access, available for LIS system
Dimensions: 43cm x 32cm x 50.5cm
Weight: 20kg/50 Lbs.
Voltage/power: AC110-220 unlimited 50/60Hz 180VA
Parameters: WBC, LY, MO, GR, LY%, MO%, GR%, RBC, HCT, MCV, RDW-SD, RDW-CV, MCH, MCHC, PLT, MPV, PCT, PDW, HGB,
WBC Histograms, RBC Histograms, PLT Histograms
QC: 3 QC Program calculates X, SD, CV%, saves data
Language: English, other languages on request.

II. Testing items:
Red Blood Cells
Hemoglobin
White Blood Cells
Hematocrit
Mean Corpuscular Volume
Mean Corpuscular Hemoglobin
Mean Corpuscular
Concentration
Platelets Count
Neutrophilia
Lymphocytes
Monocytes
Eosinophils
Basophils
Reticulocytes Count

WBC LY (#) LY (%) MO (#)
MO (%) GR (#) HGB RBC
DW MCH MCHC MCV
HCT PLT PCT MPV
PDW WBC. RTC. PLT

III. Linearity range:
WBC 0.0-99.9 (X 10^9/L)
RBC 0.0-9.9 (X 10^12/L)
HGB 0.0-300.0 (g/L)
PLT 0-999 (X 10^9/L)

IV. Accuracy (CV%):

WBC ≤ 3.0% RBC ≤ 1.5%
PLT ≤ 4.0% HGB ≤ 1.5%
HCT ≤ 2.0% MCV ≤ 1.0%
MCH ≤ 2.0% MCHC ≤ 2.0%
PCT ≤ 3.0% PDW ≤ 3.0%
MPV ≤ 3.0%

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

HEMATOLOGY CLINICAL CHEMISTRY ANALYZER
H-7021 (3-Diff)
(Less Service, More Stable)








H-7022 Touch Screen 3-Part 23 Parameters Hematology Analyzer (Less Service, More Stable) is a 3-part differential of WBC blood cell counter. Its advantages include digital technology, auto-relocation separatrix, intelligent flush clog, dual measuring technology (with time and volume) to ensure precise test results.

Automated and User-Friendly Interface

  • 8-inch LCD display, resolution: 800x600
  • Real-time alert for abnormal results
  • USB keyboard and mouse operation
  • Based on Linux
  • Easy to search and edit patient information
  • Storage capacity: 50,000 results including histograms
  • Optional printout for formats
  • Real-time guidelines for easy operation

Accurate Results and Low Sample Consumption

  • Accurate analysis technology with low sample consumption
  • Venous mode: 9.6ul
  • Capillary mode: 9.6ul
  • Pre-diluted mode: 20ul

Easy Maintenance and Environmentally-Friendly System

  • Adjustable sample probe for various cuvettes
  • With liquid sensor to alarm low reagent
  • Cyanide-free Lyse
  • Automated and Systematic diagnosis and maintenance with alerts
  • Liquid tubing and electronic circuit separately for easy maintenance
  • Closed reagent tubing to avoid contamination

Perfect QC System

  • Calibration mode: manual and auto
  • QC mode: L-J, SD, CV, QC histogram

Advanced Technology

  • Unique sweep flow technology to avoid recounting
  • Auto-relocation separatrix to exact the differential of WBC
  • Intelligent PLT histogram fit technology to improve the precision of PLT
  • Auto sample probe cleaning
  • Auto standby and wakeup
  • High voltage burn, soaking and flush clog with real time monitor

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

H-7022 Touch Screen
3-Part 23 Parameters Hematology Analyzer
(Less Service, More Stable)








H-7028 Fully Automatic 28 Parameter Hematology Analyzer (5 Diff.) (Less Service, More Stable) is a multi-parameter automated Hematology Analyzer designed for clinical laboratories, offering WBC, RBC, PLT, 5-diff, and 24 other testing parameters. The analyzer uses light scatter and impedance technology for WBC differential and impedance method for RBC and PLT. With the most updated technology and concepts, it best meets most clinical laboratory requirements for an automated hematology analyzer. The equipment offers user-friendly software, powerful functions and accurate results.

Measuring Principles

  • Fluorescence Flow Cytometry Technology/cytochemical flow cytometry using Semi-Conductor LASER and Dye Reagents for WBC and 5 Differential for WBC.
  • Hydrodynamic Focus/impedence/optical focus flow detection method for RBC & PLT Analysis.
  • Cyanide free SLS/Photometric – Hemoglobin method for HGB measurement.
  • Automatic Sampling with Bar Code

WBC Panel

RBC Panel
PLT Panel
WBC  # RBC# PLT #
NEUT # & % HGB MPV
LYMPH # & % HCT PCT
MONO  # & % MCV P-LCR
EOS     # & % MCH  PDW
BASO   # & % MCHC
IG   # & % RDW-SD RDW-CV

HEMATOLOGY FULLY AUTOMATIC 28 PARAMETER HEMATOLOGY ANALYZER
(5 Diff.)
H-7028
(Less Service, More Stable)



Electrolyte Clinical Analyzer IO-005

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

Features:

  • Automatic priming and maintenance function.
  • Carry-over prevented by automatic probe cleaning.
  • Automatic standby function.
  • Automatic calibration.
  • Low reagent consumption.
  • User-friendly software.
  • Long-life and stable electrodes
  • Automatically shows any abnormality in electrolyte reading

Technical Specifications

Parameters: K+, NA+, Cl-, Ca2+, PH
Assay Method: Ion selective electrode
Throughput: 60 tests/hr
Sample Type: Whole blood, serum, plasma, urine, sweat, dialysate
Sample Volume: 35-120 ul
Display: 128mm X 64mm back-illuminated LCD
Storage: More than 2000 samples and Q.C. data
Printer: Built-in thermal printer
Interface: RS-232
Environment: Temperature: 18~35°C
Requirements: Humidity: <85%
Closed or open tube: Yes
Visible Sample: Yes
Chamber: Yes
Analysis Time, sec: 50 seconds
Sample Rate: Up to 60 per hour or more
Na serum/plasma: 30-200 mmol/L
K serum/plasma: 0.5-10 mmol/L
Cl serum/plasma: 30-200 mmol/L
Ca++: 1.10-5.00 mmol/L
Automatic Wash: Yes
Type and frequency: On demand/Automatic
Language: English, other languages on request
Power Supply: AC 110 V /60 Hz or 220 V / 50Hz
Voltage: 220V, max. 15A, 1 Phase
Frequency: 60Hz
Power Cord: 3 Pin BT, 1-2 Meter Length
Regulatory Compliances: ISO, CE
Safety Standard: UL
Dimensions: 36cm x 25cm x 26cm
Weight: 6.0kg
Accessories: All standard accessories
Reagents: Reagents for a three month supply for 25-30 samples per day should be ordered at the time you order the equipment.

ELECTROLYTE CLINICAL ANALYZER
IO-005



Clinical Coagulometer SCO-2000

Labomed's new SCO-2000 Coagulometer Analyzer has a Double Reading Channel for testing Prothrombin Time (PT), Activated Partial Thromboplasting Time (APTT), Thromboplastin time (TT) and Fibrous Protein (FBG). It tests for Clotting Factors (exogenous or endogenous), Available Ratio (Ration) Activation Degree (%) and International Normalized Ratio (INR) and other ways. Its advanced testing features can eliminate errors. It has an automatic mixing device, and has a customizable ten sets of test parameters, along with a customizable incubation time. Up to 255 records can be stored. It provides 2 detection channels, with sample and reagent preheating, and is supplied with a built-in thermal printer.

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

Features:

  • Built-in incubator
  • Automatic stirring system
  • Up to seven points calibration
  • Open system for reagent, low reagent consumption (50-100 ul)
  • Large memory and review system
  • User-friendly software
  • Accurate measurement, no influence from pathological sample during the test



CLINICAL COAGULOMETER
SCO-2000





Labomed's new SCO-2004 Four Channel Semi-Automatic Coagulation Analyzer

The SCO-2004 is open to being used with all brands of biochemistry reagents.

It is very user-friendly and easy to use, requiring minimal training or supervision to get started.

Features:

  • Dual functions of platelet aggregation and coagulation.
  • Simultaneous on screen display for results of 2 channels.
  • Rapid testing rate and small sample volume.
  • Reagent pre-heating holes and sample pre-heating channels (16 holes) are available.
  • Real time display temperature of pre-heating holes and channels.
  • Finnpipette or pipette (optional - must be purchased separately)
  • Support barcode reader inputting (optional - must be purchased separately)
  • Friendly menu,support English inputting.
  • Supports English printing, combined report and separate item report.
  • Automatically saves about 20,000 groups of calibration data, and calculated testing results.
  • Inquire print and upload current or historical test result.
  • Results will not be affected by jaundice, hemolysis or chyle.

Principle:

  • Platelet aggregation testing: photoelectric turbimetric measurement.
  • Coagulation testing: photoelectrical electromagnetism measurement.

Configuration:

  • Built-in microcomputer.
  • LCD
  • Built-in printer
  • Cuvette, bead and bead dispenser
  • Barcode reader (optional)

Technical Specifications:

Principle: Photoelectrical electromagnetism measurement
Test items: PT, APTT, FIB, TT, PC, Coagulation Factors
Platelet Aggregation Function: Yes
Testing Sample: Plasma
Testing Channel: 4
Reagent Position: 3
Incubation Position: 16
LCD Display Blue
Built-in Micro Printer YES
Finnpipette Optional
Barcode Reader Optional
Coagulation CV (%) 3%
Platelet aggregation CV (%) 15%
Temperature: 37°C±1.5°C
Pre-heating time: 0s-999s
Testing time: 3s-999s

Communication:
RS-232 Port Yes

Working Condition:
Power Supply: AC 220V / 110V, 50 / 60 Hz
Environment: 10°C-30°C, Humidity 85%
Dimension: 43 x 38 x 11
Net Weight: 8 Kg



FOUR CHANNEL SEMI-AUTOMATIC COAGULATION ANALYZER
SCO-2004





Labomed's new SCO-2002 Two Channel Semi-Automatic Coagulation Analyzer

The SCO-2002 is open to being used with all brands of biochemistry reagents.

It is very user-friendly and easy to use, requiring minimal training or supervision to get started.

Features:

  • Dual functions of platelet aggregation and coagulation.
  • Simultaneous on screen display for results of 2 channels.
  • Rapid testing rate and small sample volume.
  • Reagent pre-heating holes and sample pre-heating channels (16 holes) are available.
  • Real time display temperature of pre-heating holes and channels.
  • Finnpipette or pipette (optional - must be purchased separately)
  • Support barcode reader inputting (optional - must be purchased separately)
  • Friendly menu,support English inputting.
  • Supports English printing, combined report and separate item report.
  • Automatically saves about 20,000 groups of calibration data, and calculated testing results.
  • Inquire print and upload current or historical test result.
  • Results will not be affected by jaundice, hemolysis or chyle.

Principle:

  • Platelet aggregation testing: photoelectric turbimetric measurement.
  • Coagulation testing: photoelectrical electromagnetism measurement.

Configuration:

  • Built-in microcomputer.
  • LCD
  • Built-in printer
  • Cuvette, bead and bead dispenser
  • Barcode reader (optional)

Technical Specifications:

Principle: Photoelectrical electromagnetism measurement
Test items: PT, APTT, FIB, TT, PC, Coagulation Factors
Platelet Aggregation Function: No
Testing Sample: Plasma
Testing Channel: 2
Reagent Position: 2
Incubation Position: 4
LCD Display Blue
Built-in Micro Printer YES
Finnpipette Optional
Barcode Reader Optional
Coagulation CV (%) 3%
Platelet aggregation CV (%) N/A
Temperature: 37°C±1.5°C
Pre-heating time: 0s-999s
Testing time: 3s-999s

Communication:
RS-232 Port Yes

Working Condition:
Power Supply: AC 220V / 110V, 50 / 60 Hz
Environment: 10°C-30°C, Humidity 85%
Dimension: 31 x 33 x 8
Net Weight: 8 Kg



TWO CHANNEL SEMI-AUTOMATIC COAGULATION ANALYZER
SCO-2002





Veterinary Auto Hematology Analyzer VH-22 (22 Parameters)

One of the important advantages of this instrument is that it is open to working with any proper reagent and with many applications.

VETERINARY AUTO HEMATOLOGY ANALYZER
VH-22



click here to fill out the Information Request Form


Labomed, Inc. Mailing Address: 2728 S La Cienega Blvd.
, Los Angeles, CA 90034 U.S.A
TEL (310) 202-0811 FAX (310) 202-7286

Email: spectro@labomed.com, labomedinc@gmail.com

Send mail to Company Webmaster with questions or comments about this web site.
Copyright © 2001
