Labomed Inc.

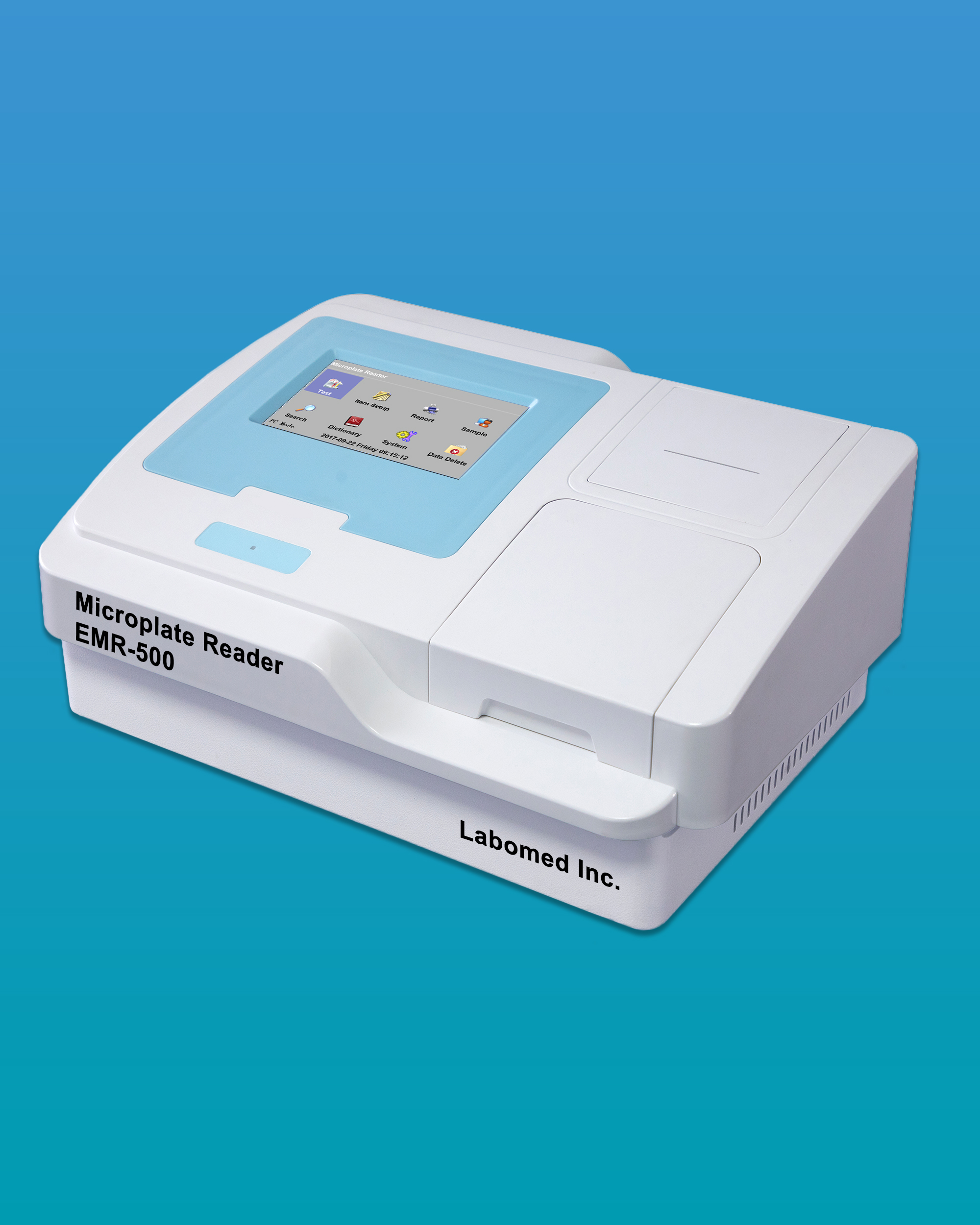

Clinical Microplate Reader
Touch Screen


  • Eight channel photometers for the sequential and simultaneous for the reading of microplates.
  • Providing the best level of sensitivity for variable assay conditions, with powerful software are able to perform reading and data procession with relative memorization.
  • Ability to read flat, U and V bottom.
  • Auto calibration before each reading.
  • Programmable variable speed shaking.
  • Measurement range: 0.000-3.500A
  • Light Source: Halogen
  • EMR-500 can work by itself, and can connect to the computer. Can use with Windows XP and Windows 7.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Technical Specifications

Measurement System: 8 channels, 96 well plate
Analysis Mode: Cut-off, single and multi-standard, O.D. bichromatic, dynamic reading, etc.
Reading Speed: 6 seconds (fast kinetic measurements)
Linear Range: 0.001-3.500Abs
Photometric Accuracy: ±1% or ±0.001A
Repeatability: <1.0%
Stability: <0.005Abs/hr
Linearity: <±1.0%
Sensitivity: <±0.001A
Channels Discrepancy: <±0.002A
Optical filters: 405/450/492/630nm
Reading: Automatic focusing function makes the results more precise
Tray Shaking : Yes
Storage: 100 programs
Display: Touch screen
Interface: RS-232 and USB port
Printer: Built-in thermal printer (External printers are available on request)
Power Supply : AC 110-240V 50/60 Hz
Dimensions: 46cm*33cm*18cm
Weight: 7.5kg

(all standard accessories and consumables required to make the unit
fully functional and ready for immediate use)

  • 1 Power Cable
  • 2 Fuse
  • 1 USB Cable
  • 1 Touch Pen
  • 2 Roll of Printer Paper
  • 1 User Manual
  • 1 Operation Software CD

Please note: Reagents required should be purchased when you place your order, and must be purchased separately. Please contact us to discuss your reagent needs.
