Labomed Microscope Devices



Microscopes

Labomed Inc. is the leading manufacturer of microscopes in the US. We manufacture many different types of microscopes such as, biological microscopes, comparison microscopes, compound digital microscopes, gemological microscopes, geological microscopes, inverted microscopes, medical microscopes, metallurgical microscopes, polarizing microscopes, portable microscopes, surgical microscopes, stereo microscopes and more.

separator

LB-200 Binocular Biological Microscope with Finite Semi-Plan Achromatic Objectives and Extra Wide Field (Anti-Fungus) With precision machining equipment and advanced alignment technology, they are advanced biological microscopes.

Features

  • Built-in transmitted illumination System LED
  • Frame should have end opening, Stage Focusing Lock
  • Stage height movement coarse and fine Focusing on both sides of frame
  • Fixed quadruple nosepiece
  • Abbe type with aperture iris diaphragm NA:1.25
  • Finite Semi-Plan Achromatic objectives(anti-fungus)
  • Extra Wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and Interpupillary Adjustable

Viewing Head

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Eyepiece

Wide Field Eyepiece WF10×/ 18 with diopter adjustment

Nosepiece

Quadruple Nosepiece

Objective

Finite Semi-Plan Achromatic Objective 4×, 10×, 40×, 100×

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination 3W
6V 20W Halogen light, Brightness Adjustable (optional)

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

Dust cover, green filter, immersion oil and user manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg



LB-200 BINOCULAR BIOLOGICAL MICROSCOPE WITH FINITE SEMI PLAN ACHROMATIC OBJECTIVES AND EXTRA WIDE FIELD (ANTI-FUNGUS)

Brochure

separator

LB-201 Binocular Biological Microscope with Finite Optical System, Achromatic Objectives and LED illumination

Features

  • Affordable  price.
  • Built-in LED illumination.
  • Light weight.
  • New shape design.

Optical System

Finite Optical System

Viewing Head

Seidentopf Binocular head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75mm

Eyepiece

WF10×/18mm

Objectives

Achromatic objectives 4x/0.10, 10x/0.25,
40x/0.65, 100x/ 1.65 (oil)

Nosepiece

Quadruple Nosepiece

Stage

115x125mm/ moving range: 50x70mm

Condenser

Abbe NA 1.25 with Iris Diaphragm

Illumination

LED illumination/ Halogen lamp 6V 20W (Optional)

Fuse Spare fuse 2pcs

separator

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination is economic, practical and easy to operate.

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination adopts LED illumination, which saves energy and have long working life, it is also very comfortable for observation.

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination is widely used in educational, academic, agricultural and study field. Rechargeable battery is optional for outdoors operation or places that power supply is not stable

Feature

1. New machining facility and advanced alignment technology.
2. Comfortable operation with ergonomic design.
3. LED light illumination, save energy and long working life.
4. Compact and flexible, ideally suited for desktop, laboratory worktable.

Model LB-202
Optical System Finite Optical System
Viewing Head Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable,
Interpupillary Distance 48-75mm,
Eyepiece WF10×/18mm
Objective Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil)
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage 125×115mm/ 75×35mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving
Range 22mm
Condenser Abbe NA 1.25 with Iris Diaphragm
Illumination 3W LED illumination, Brightness Adjustable
Package 1pc/carton, 34cm*25cm*42cm, 6.5kgs, NW: 5kgs




separator

LB-203 Trinocular Biological Microscope with Finite Plan Optical System, Plan Achromatic Objectives, Quadruple Nosepiece, and LED Illumination is economic, practical and easy to operate.

LB-203 Trinocular Biological Microscope with Finite Plan Optical System, Plan Achromatic Objectives, Quadruple Nosepiece, and LED Illumination adopts LED illumination, which saves energy and have long working life, it is also very comfortable for observation.

LB-203 Trinocular Biological Microscope with Finite Plan Optical System, Plan Achromatic Objectives, Quadruple Nosepiece, and LED Illumination is widely used in educational, academic, agricultural and study field. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

1. New machining facility and advanced alignment technology.
2. Comfortable operation with ergonomic design.
3. LED light illumination, save energy and long working life.
4. Compact and flexible, ideally suited for desktop, laboratory worktable.

Note: camera is not included

Model LB-203
Optical System Finite Optical System
Viewing Head Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable,
Interpupillary Distance 48-75mm, Light Distribution 20:80
Eyepiece WF10×/18mm
Objective Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil)
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage 125×115mm/ 75×35mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving Range 22mm
Condenser Abbe NA 1.25 with Iris Diaphragm
Illumination 3W LED illumination, Brightness Adjustable
Adapter 0.5× C-mount(Adjustable)
Package 1pc/carton, 34cm*25cm*42cm, 6.5kgs, NW: 5kgs




separator

LB-204 Binocular Biological Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Quadruple Nosepiece, Achromatic Objectives and LED Illumination is economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  • New machining facility and advanced alignment technology
  • Comfortable operation with updated and ergonomic design
  • LED light illumination, save energy and long working life
  • Compact and flexible, ideally suited for desktop, laboratory worktable
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

    Viewing Head

    Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm,

    Eyepiece

    WF10×/18
    P16×/12 (optional)

    Objective

    Achromatic Objective 4×, 10×, 40×, 100×(Oil)

    Nosepiece

    Quadruple Nosepiece

    Stage

    Double Layer Mechanical Stage 132×142mm/ 75×40mm

    Focusing

    Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

    Condenser

    Abbe NA 1.25 with Iris Diaphram and Filter

    Illumination

    3W LED illumination, Brightness Adjustable
    Halogen Lamp 12V/ 20W, Brightness Adjustable (optional)
    Kohler illumination (optional)

    Immersion oil

    5ml Immersion oil

    Optional Accessories

    Phase Contrast Kit (optional)
    Dark Field Attachment (optional)
    Polarization Attachment (optional)
    Rechargeable battery (optional)

    Dimension & G.W.

    32cm*26cm*44cm, 6kg




separator

LB-205 Binocular Digital Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Backward Quadruple Nosepiece, Achromatic Objectives, LED Illumination and 3.2MP Camera and Software comes with a 3.2 MP color image sensor and is economical, practical and easy to operate. It is widely used in educational, academic, agricultural and study field. It is connected to a computer via a USB cable. The software is powerful and easy to operate, it can view images at real time, take photos and videos and measurement without touch.

Features

  • Built-in 3.2 Mega Pixel CMOS camera, vivid images and real color reproduction.
  • High definition images and videos, high frame rate.
  • Professional image analyze software supports Windows Vista / Win 7 / Win8 / Mac Operation Systems. The software can preview, take photos and video, do image processing and measurement.
  • Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish and etc.).
  • Compact and flexible, ideally suited for desktop, laboratory worktable.
  • Viewing Head Seidentopf Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
    Camera System Resolution 2048×1536 (3.2Mega Pixel)
    Output Mode USB2.0
    Operation System Window 2000/ XP/ Vista/ Win 7/ Win8/ Mac
    Software ScopeImage 9.0
    Frame Rate 9 fps @ 2048×1536
    Eyepiece WF10×/ 18
    P16×/ 12
    Nosepiece Backward Quadruple Nosepiece
    Objective Achromatic Objective 4×, 10×, 40×, 100×
    Stage Double Layers Mechanical Stage 132×142mm/ 75×40mm
    Condenser Abbe NA1.25 with Iris Diaphragm & Fliter
    Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
    Illumination 3W LED illumination, Brightness Adjustable
    Halogen Lamp 6V/ 20W, Brightness Adjustable (optional)
    Kohler illumination (optional)
    Optional accessories Phase Contrast Kit (optional)
    Dark-Field Attachment (optional)
    Polarization Attachment (optional)
    Rechargeable battery (optional)

separator

LB-206 Biological Trinocular Microscope with Infinite Optical System are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  • Infinite optical system.
  • New machining facility and advanced alignment technology.
  • Comfortable operation with updated and ergonomic design.
  • LED light illumination, save energy and long working life.
  • Compact and flexible, ideally suited for desktop, laboratory worktable.
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.
Item Specification
Optical System Infinite Optical System
Viewing Head Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm
Eyepiece WF10×/18mm
Objective Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil)
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage 132×142mm/ 75×40mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Condenser Abbe NA 1.25 with Iris Diaphragm
Illumination 1W S-LED illumination, Brightness Adjustable
Optional Accessories Phase Contrast Kit
Dark Field Condenser
Polarization Attachment
Rechargeable battery
Photo adapter for Nikon or Canon DSLR camera
Video adapter: 1X or 0.5X C-mount adapter
Package 1pc/carton, 32cm*26cm*44cm, 6kg




separator

LB-207 Biological Microscope w/ Backward Quadruple Nosepiece, Achromatic Objective & Finite Optical System are economic and easy to operate with clear image. These microscopes adopt LED illumination and ergonomics design, comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. Rechargeable battery compartment is standard for outdoors operation or places that power supply is not stable.

Features

  • Comfortable operation with ergonomic design.
  • Rechargeable LED illumination system.
  • Cord rest on back of the microscope.
  • Compact and flexible, ideally suited for desktop, laboratory worktable.

Item Specification
Optical System Finite Optical System
Viewing Head Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, right diopter adjustment:±5, Interpupillary Distance 50-75mm
Eyepiece PL10×/18mm
Objective Achromatic Objective 4×/0.10, WD=21.50mm
10×/0.25, WD=6.26mm
40×(S)/0.65, WD=0.48mm
100×(S,Oil)/1.25, WD=0.15mm
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 115×125mm/ 70×30mm
Focusing Low-position coarse and fine adjustment with stop and tighten structure, moving range: 13mm (combine with single layer stage), 7mm (combine with double layers mechanical stage); fine precision 0.002mm
Condenser NA 1.25 Abbe condenser with iris diaphragm and filter holder
Illumination 0.2W LED illumination (color temperature 5700-6500K), intensity adjustable; external power adapter (input 100V-240V, output 5V/1A), with rechargeable battery compartment(for 3pcs Ni-MH AA battery, battery not included)
Packaging 1pc/carton, 44cm*47cm*24cm, GW:6kgs, NW: 5kgs

  LB-207 BIOLOGICAL MICROSCOPE W/ BACKWARD QUADRUPLE NOSEPIECE, ACHROMATIC OBJECTIVE & FINITE OPTICAL SYSTEM

Brochure

separator

LB-208 Fluorescent Biological Binocular Microscope with Achromatic Objective are basic level microscopes which are specially designed for college education, medical and laboratory study. They have beautiful structure and ergonomic design. The excellent optical performance will make your works enjoyable.

Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.
  • Perfect image with fluorescent objectives.
  • More stable power supply, digital display and timer.
    Item Specification
    Viewing Head Sliding Binocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary distance 55-75mm, Anti-mould
    Eyepiece Wide Field Eyepiece WF10×/18mm, Eyepiece Tube Diameter 23.2mm
    Objective Achromatic Objective 4×, 10×, 40×, 100×
      Fluorescent Achromatic Objective 4×, 10×, 40×, 100×
    Nosepiece Quadruple Nosepiece
    Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
    Stage Double Layer Mechanical Stage 140×140mm, Cross Travel 75×50mm, Can Hold Two Sides
    Condenser Abbe Condenser NA1.25 with Iris Diaphragm & Filter
    Reflected Light Source   Excitation Dichroic Mirror Barrier Filter
    Blue Excitation BP460~490 DM500 BA520
    Green Excitation BP510~550 DM570 BA590
    Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
    Power Box Power box NFP-1, 220V/ 110V Interchangeable, Digital Display
    Transmitted Illumination 1W S-LED illumination, Brightness Adjustable
    Optional Accessories Photo Attachment, Video Attachment, Polarization Set, Phase Contrast Kit, Dark Field Attachment
    Package 2cartons/set, 33cm*28cm*44cm, 7kg; 38*45*26cm, 5kg
  LB-208 FLUORESCENT BIOLOGICAL BINOCULAR MICROSCOPE WITH ACHROMATIC OBJECTIVE 4×, 10×, 40×, 100×

Brochure

separator

LB-208T Fluorescent Biological Trinocular Microscope with Achromatic Objective are basic level microscopes which are specially designed for college education, medical and laboratory study. They have beautiful structure and ergonomic design. The excellent optical performance will make your works enjoyable.

Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.
  • Perfect image with fluorescent objectives.
  • More stable power supply, digital display and timer.
    Item Specification
    Viewing Head Sliding Trinocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary 55-75mm, Anti-mould
    Eyepiece Wide Field Eyepiece WF10×/18mm, Eyepiece Tube Diameter 23.2mm
    Objective Achromatic Objective 4×, 10×, 40×, 100×
    Objective Fluorescent Achromatic Objective 4×, 10×, 40×, 100×
    Nosepiece Quadruple Nosepiece
    Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
    Stage Double Layer Mechanical Stage 140×140mm, Cross Travel 75×50mm, Can Hold Two Sides
    Condenser Abbe Condenser NA1.25 with Iris Diaphragm & Filter
    Reflected Light Source   Excitation Dichroic Mirror Barrier Filter
    Blue Excitation BP460~490 DM500 BA520
    Green Excitation BP510~550 DM570 BA590
    Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
    Power Box Power box NFP-1, 220V/ 110V Interchangeable, Digital Display
    Transmitted Illumination 1W S-LED illumination, Brightness Adjustable
    Optional Accessories Photo Attachment, Video Attachment, Polarization Set, Phase Contrast Kit, Dark Field Attachment
    Package 2cartons/set, 33cm*28cm*44cm, 7kg; 38*45*26cm, 5kg
  LB-208T FLUORESCENT BIOLOGICAL TRINOCULAR MICROSCOPE WITH ACHROMATIC OBJECTIVE 4×, 10×, 40×, 100×

Brochure

separator

LB-210 Biological Binocular Educational Microscopes with LED Illumination, Wide Field and Finite Optical System (Anti-Fungus) offer ease of use, reliability and a modern design. These microscopes are economically priced, with all basic features for educational use in high schools and colleges.

Features
  • Sliding Binocular Head, Inclined at 45°, 360° Rotatable
  • Built-in Revolving Quadruple Nosepiece
  • Built-in Rotating Head
  • Optical Coating
  • Brass Gears
  • Wide Field Eyepiece WF10×/18, 4 Hole Nosepiece
  • Achromatic Objectives 4×, 10×, 40×(S), 100×
  • Double Layers Mechanical Stage 110x120mm/70X20mm
  • Coaxial Coarse and Fine Adjustment
  • Abbe NA 1.25 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser
  • LED Illumination, Brightness Adjustable for Long Life and Energy Saving
  • Dust Cover
  • Styrofoam & Carton, Dimension 28x20x40cm, 3kg

Viewing Head

Sliding Binocular Head, Inclined at 45°, 360° Rotatable

Nosepiece

Quadruple Nosepiece

Eyepiece

Wide Field Eyepiece WF10×/18 with diopter adjustment

Achromatic Objective

4×, 10×, 40×(S)

100×

Stage

Double Layers Mechanical Stage 110×120mm/ 70×20mm

Focusing

Coaxial Coarse and Fine Adjustment

Condenser

Abbe NA 1.25 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser

Spare Parts Dust Cover

Illumination

LED Illumination, Brightness Adjustable

Package

Styrofoam & Carton, Dimension 28×20×40 cm, 3kg




LB-210 BIOLOGICAL
BINOCULAR EDUCATIONAL MICROSCOPE WITH LED ILLUMINATION, WIDE FIELD AND FINITE OPTICAL SYSTEM (ANTI-FUNGUS)


Brochure
separator

LB-212 Binocular Digital Microscope with Wide Field Plane-Scope Eyepiece, Camera and Software (1.3MP) features a built in 1.3 MegaPixel Digital Microscopy Camera and professional software offering high resolution and user friendly operation. This combination of microscope, digital imaging system and software is easy to operate offering outstanding performance. It can take photos, videos and do measurement functions. The objectives with 4 Hole Nosepiece are 4x, 10x, 40x and 100x for clear observation. Illumination is LED with variable light intensity. The microscope is primarily designed for students for image capturing and distant sharing. This unique combination of microscope, image system and software makes the LB-212 microscopy system a professional tool for education applications. This microscope also provides a cost effective solution for universities, computer interactive laboratories and clinical environments.

Features

  • With 1.3 Megapixel CMOS image sensor, the output images have high Signal to Noise Ratio;
  • High definition images and videos, high frame rate;
  • Professional software of real-time review, take photos and videos, measurement.
  • Easy to operate;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;

Binocular Head

Binocular eyepiece, 45º Inclined, 360º Rotatable with built-in CMOS camera, 1/3” 1.3MP, resolution: 1280×1024, USB2.0 Connection.

Software

ScopeImage 9.0 for capturing image and showing live video on PC screen, Saving images as BMP, JPG files, software also has previewing, video, measuring comparing, saving and deleting functions. Range of viewing field: >100%

Eyepiece

Wide Field Plane-Scope Eyepiece: WF10×/18 with diopter adjustment

Objective

Achromatic Objective: 4×, 10×, 40×(S), 100×(S, Oil)

Stage

Double Layers Mechanical Stage: 115×125mm, Moving Range X-Y:70×20mm, with Ø2-Ø30mm Iris Diaphragm And Ø32 Filter;

Condenser

ABBE Condenser: N.A. 1.25(Φ2-Φ30mm) with Frosted Filters

Focus

Coaxial Coarse And Fine Focusing Adjustable

Illumination

With an AC adapter, Built-in LED Lamp

System requirement

•      PC: Windows XP or above, Mac OS X.
•      CPU 200 Mhz or above
•      RAM 128 MB or above
•      Hard disk 500 MB or above
•      CD-ROM drive
•      USB plug

Accessories

Packed in carton, with operation manual, dust cover, AC adapter and USB cable.

Optional

Rechargeable battery (only for LED illumination)

Dimension & G.W.

29cm × 23cm × 42cm, 5kg

Packing Carton, 4 sets/carton: 29cm × 88cm × 42cm, 20kg



separator
LB-213 Binocular Compound Microscope with Dark Field Attachment and Phase Contrast Kit (Anti-Fungus)  is an advanced biological microscope, with a Phase contrast kit that reveals many cellular structures that are not visible with simple bright field microscopes and a Dark field attachment that is used for getting high contrast images. It comes with precision machining equipment and advanced alignment technology.

Features



  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Interpupillary distance can be adjusted to fit for observation.
  • Phase contrast kit attachment.
  • Dark field attachment.

Viewing Head:

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Eyepiece:

Wide Field Eyepiece WF10×/ 18

Nosepiece:

Quadruple Nosepiece

Objective:

Achromatic Objective 4×, 10×, 40×, 100×
(Can be supplied with plan achromatic objectives)

Total Magnifications:

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage:

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus:

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

Condenser:

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination:

LED Illumination 3W, Brightness Adjustable
Plan-concave Mirror
Kohler illumination (optional)

Body / Power:

Body firm backing of Aluminum and built in power supply 110-240V

Supplied With: Dust cover, green filter, immersion oil and user manual

Phase Contrast kit:

Simple phase contrast kit

Dark Field Attachment: Dry Dark field attachment

Dimension & G.W.:

33cm×28cm×44cm×, 9 kg



separator

LB-220 Binocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination is economic, practical and easy to operate.

LB-220 Binocular Biological Microscope adopts LED illumination, which saves energy and have long working life, it is also very comfortable for observation.

LB-220 Binocular Biological Microscope is widely used in educational, academic, agricultural and study field. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

1. New machining facility and advanced alignment technology.
2. Comfortable operation with ergonomic design.
3. LED light illumination, save energy and long working life.
4. Compact and flexible, ideally suited for desktop, laboratory worktable.

Model LB-220
Optical Systme Finite Optical System
Viewing Head Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable,
Interpupillary Distance 48-75mm
Eyepiece WF10×/18mm
Objective Achromatic Objective 4×, 10×, 40×(S), 100×(Oil)(S)
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage 125×115mm/ 75×35mm
  Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving
Focusing Range 22mm
Condenser Abbe NA 1.25 with Iris Diaphragm
Illumination 3W LED illumination, Brightness Adjustable
Package 1pc/carton, 34cm*25cm*42cm, 6.5kgs, NW: 5kgs





separator

LB-221 Binocular Digital Microscope with Seidentopf Binocular Head, Camera and Software (1.3MP) and LED Illumination offers a 1.3 Megapixel color image sensor. It is economical, practical and easy to operate The LB-221 is widely used in educational, academic, agricultural and study fields. It is connected to a computer via a USB Cable. The software is powerful and easy to operate, it can view images at real time, it also can take photos and videos and measurement without touch.

Features

  • Integrated digital microscope, with 1.3 Megapixel CMOS image sensor, the output images have high Signal to Noise Ratio;
  • High definition images and videos, high frame rate;
  • Professional software of real-time review, take photos and videos, measurement. Easy to operate;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Camera System

Resolution

1280×1024(1.3Megapixel)

Output Mode

USB2.0

Operation System

WINDOWS 2000/ XP/ VISTA/ WIN 7/ MAC

Software

ScopeImage Plus

Range of Viewing Field

90%

Eyepiece

WF10×/ 18

Nosepiece

Backward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Stage

Double Layers Mechanical Stage 132×142mm/ 75×40mm

Condenser

Abbe NA1.20 with Iris Diaphragm & Fliter

Focusing

Coaxial Coarse & Fine Adjustment System, Fine Division 0.004mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.4mm per rotation, Moving Range 24mm

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 8kg




separator

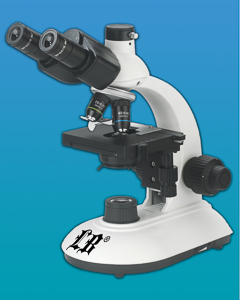

LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination is economic, practical and easy to operate.

LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination adopts LED illumination, which saves energy and have long working life, it is also very comfortable for observation.

LB-222 Trinocular Biological Microscope with Finite Optical System, Achromatic Objective, Quadruple Nosepiece, and LED Illumination is widely used in educational, academic, agricultural and study field. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

1. New machining facility and advanced alignment technology.
2. Comfortable operation with ergonomic design.
3. LED light illumination, save energy and long working life.
4. Compact and flexible, ideally suited for desktop, laboratory worktable.

Model LB-222
Optical System Finite Optical System
Viewing Head Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm, Light Distribution 20:80
Eyepiece WF10×/18mm
Objective Achromatic Objective 4×, 10×, 40×(S), 100×(Oil)(S)
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage 125×115mm/ 75×35mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving Range 22mm
Condenser Abbe NA 1.25 with Iris Diaphragm
Illumination 3W LED illumination, Brightness Adjustable
C-mount Adapter 0.5× C-mount(Adjustable)
Package 1pc/carton, 34cm*25cm*42cm, 6.5kgs, NW: 5kgs



separator

LB-223 Biological Binocular Microscope with LED Illumination is an economic, practical and easy to operate binocular microscope, this microscope is widely used in the educational, academic, agricultural and study fields.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

WF10×/18, P16×/11 (optional) with diopter adjustment

Objective

Achromatic Objective 4×, 10×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm

Condenser

Abbe NA 1.20 with Iris Diaphragm & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg

Immersion Oil 5 ml




separator

LB-224 Trinocular Biological Microscope with LED Illumination and Five Achromatic Objectives (4x, 10x, 40x, 60x, 100x) is an economic, practical and easy to operate trinocular microscope, this microscope is widely used in the educational, academic, agricultural and study fields.

Features

  • Comes with a trinocular head
  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 55-75mm

Eyepiece

WF10×/18 with diopter adjustment

Objective

Achromatic Objective 4×, 10×, 40×, 60×, 100× (oil)

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial  Coarse  &  Fine  Adjustment,  Moving  Range  24mm,  Fine Division 0.004mm, Fine Stroke 0.4mm per rotation, coarse stroke 37.7 per rotation

Condenser

Abbe NA 1.20 with Iris Diaphram & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Immersion Oil 5ml immersion oil

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg




separator

LB-225 Biological Binocular Microscope with LED Illumination and Six Achromatic Objectives (4x, 10x, 20x, 40x, 60x, 100x) is an economic, practical and easy to operate binocular microscope, this microscope is widely used in the educational, academic, agricultural and study fields.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

WF10×/18, P16×/11 (optional) with diopter adjustment

Objective

Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm

Condenser

Abbe NA 1.20 with Iris Diaphragm & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg

Immersion Oil 5 ml




separator

LB-226 Trinocular Biological Microscope with LED Illumination and Six Achromatic Objectives (4x, 10x, 20x, 40x, 60x, 100x) is an economic, practical and easy to operate trinocular microscope, this microscope is widely used in the educational, academic, agricultural and study fields. With a trinocular head and a digital camera (or digital eyepiece), it can be easily converted to a digital microscope.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 55-75mm

Eyepiece

WF10×/18

Objective

Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× (oil)

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm, Fine Stroke 0.4mm per rotation, coarse stroke 37.7 per rotation

Condenser

Abbe NA 1.20 with Iris Diaphram & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Immersion Oil 5ml immersion oil

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg



separator

LB-227 Binocular Digital Microscope with Seidentopf Binocular Head, Camera and Software (1.3MP), LED Illumination and Five Achromatic Objectives (4x, 10x, 40x, 60x, 100x) offers a 1.3 Megapixel color image sensor. It is economical, practical and easy to operate. The LB-227 is widely used in educational, academic, agricultural and study fields. It is connected to a computer via a USB Cable. The software is powerful and easy to operate, it can view images at real time, it also can take photos and videos and measurement without touch.

Features

  • Integrated digital microscope, with 1.3 Megapixel CMOS image sensor, the output images have high Signal to Noise Ratio;
  • High definition images and videos, high frame rate;
  • Professional software of real-time review, take photos and videos, measurement. Easy to operate;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Camera System

Resolution

1280×1024(1.3Megapixel)

Output Mode

USB2.0

Operation System

WINDOWS 2000/ XP/ VISTA/ WIN 7/ MAC

Software

ScopeImage Plus

Range of Viewing Field

90%

Eyepiece

WF10×/ 18

Nosepiece

Backward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 60×, 100×

Stage

Double Layers Mechanical Stage 132×142mm/ 75×40mm

Condenser

Abbe NA1.20 with Iris Diaphragm & Fliter

Focusing

Coaxial Coarse & Fine Adjustment System, Fine Division 0.004mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.4mm per rotation, Moving Range 24mm

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 8kg




separator

LB-228 Binocular Digital Microscope with Seidentopf Binocular Head, Six Achromatic Objectives (4x, 10x, 20x, 40x, 60x, 100x), Camera, Software (1.3MP) and LED Illumination offers a 1.3 Megapixel color image sensor. It is economical, practical and easy to operate. The LB-228 is widely used in educational, academic, agricultural and study fields. It is connected to a computer via a USB Cable. The software is powerful and easy to operate, it can view images at real time, it also can take photos and videos and measurement without touch.

Features

  • Integrated digital microscope, with 1.3 Megapixel CMOS image sensor, the output images have high Signal to Noise Ratio;
  • High definition images and videos, high frame rate;
  • Professional software of real-time review, take photos and videos, measurement. Easy to operate;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Camera System

Resolution

1280×1024(1.3Megapixel)

Output Mode

USB2.0

Operation System

WINDOWS 2000/ XP/ VISTA/ WIN 7/ MAC

Software

ScopeImage Plus

Range of Viewing Field

90%

Eyepiece

WF10×/ 18

Nosepiece

Backward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Stage

Double Layers Mechanical Stage 132×142mm/ 75×40mm

Condenser

Abbe NA1.20 with Iris Diaphragm & Fliter

Focusing

Coaxial Coarse & Fine Adjustment System, Fine Division 0.004mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.4mm per rotation, Moving Range 24mm

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 8kg




separator

LB-229 Affordable Digital Compound Medical and Educational Microscope is an economic, practical and easy to operate compound microscope, this microscope is widely used in the medical and educational fields.

LC-27 USB2.0 CMOS Eyepiece Camera is an economic version with simple and compact structure CMOS eyepiece camera (digital eyepiece). USB2.0 is used as the data transfer interface. LC-27 comes with a high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption. LC-27 comes with an advanced video & image processing application ImageView. The LC-27 can be widely used to transform the monocular or binocular student microscopes to a digital microscope. With a 23.2 to 30mm or 23.2 to 30.75 convert ring, the LC-27 camera can also change the stereo microscope to digital stereo microscope.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

LC-27

  • Microscope eyepiece camera with 23.2 diameter and compact size.
  • Easy to extend to C or CS- Mount camera with high quality lens (optional).
  • High-quality camera with Aptina CMOS sensor.
  • Auto white balance and auto-exposure; Brightness, contrast, chroma and saturation can be adjusted.
  • High-speed U SB2.0 interface and high frame rate video display keep the screen smooth without interruption.
  • With advanced video & image processing application ImageView.
  • Providing Windows/Linux/Mac OS multiple platforms SDK.
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API.



Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

WF10×/18, P16×/11 (optional) with diopter adjustment

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm

Condenser

Abbe NA 1.20 with Iris Diaphragm & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg

Immersion Oil 5 ml

LC-27

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Auto White Balance

Color Technique

N/A

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System

Natural

Operating Environment

Operating Temperature(in Centigrade)

-10~ 50

Storage Temperature(in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM








separator

LB-230 Binocular Biological Digital Microscope (Anti-Fungus) with Wide Field, Achromatic Objectives, Camera and Software (1.3MP) and LED Illumination With precision machining equipment and advanced alignment technology, LB-230 digital biological microscope is a classical biological microscope. With a built-in 1.3MP camera and software, this microscope can take images, take videos and make measurements. It is a very good assistant for your lab work and education.

Features

  • Integrated digital microscope, resolution 1280×1024 (1.3 MP), can take pictures, videos and make measurements.
  • USB2.0 output, plug and unplug freely.
  • Cost effective, price is much lower than a binocular biological microscope + a digital camera.
  • Supports WINDOWS 2000/XP/VISTA/Win 7 Operation system, equipped with powerful software.
  • Economical features, widely used in academic demonstration and health system.

THIS MICROSCOPE LB-230 CAN USE A DARK FIELD CONDENSER, DRY OR OIL, ON REQUEST.

Viewing Head

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Camera System

Resolution: 1280×1024, 1.3 MP CMOS sensor
Frame Rate of Built-In Camera: 15fps
Output: USB2.0
Software: Scope Image Plus
Range of Viewing Field: > 75%

Eyepiece

Wide Field Eyepiece WF10×/ 18

Nosepiece

Toward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional) (Can be supplied with plan achromatic objectives)

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per rotation

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination 3W
Built-in Illumination, 6V 20W Halogen light, intensity adjustable (optional)

Plan-concave Mirror
Kohler illumination (optional)



Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

dust cover, green filter, immersion oil and halogen light source parts and operating manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg

Optional
(must be purchased separately)

Can be supplied with an epi-flourescent attachment







LB-230 BIOLOGICAL BINOCULAR DIGITAL MICROSCOPE (ANTI-FUNGUS) WITH WIDE FIELD, ACHROMATIC OBJECTIVES, CAMERA AND SOFTWARE (1.3MP) AND LED ILLUMINATION

Brochure

separator

LB-231 Trinocular Biological Microscope (Anti-Fungus) with Wide Field and LED Illumination With precision machining equipment and advanced alignment technology, LB-231 Trinocular Biological Microscope is an advanced biological microscope.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of trinocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Interpupillary distance can be adjusted to fit for observation.





Viewing Head

Sliding Trinocular Head, Head Binocular sliding inclined at 45 º and 360 º turn 55-75mm interpupillary distance, digital cameras can be added to the trinocular head. Anti-mould.

Eyepiece

Wide Field Eyepiece WF10×/ 18

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives, adding 20× or 60× objectives optional)
(Can be supplied with plan achromatic objectives)

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination 3W

Plan-concave Mirror
Kohler illumination (optional)

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

Dust cover, green filter, immersion oil and operating manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg





LB-231 TRINOCULAR BIOLOGICAL MICROSCOPE (ANTI-FUNGUS) WITH WIDE FIELD AND LED ILLUMINATION

Brochure

separator

LB-232 Binocular Biological Microscope with Wide Field and Phase Contrast Kit With precision machining equipment and advanced alignment technology, LB-232 binocular microscopes are precise biological microscopes.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Interpupillary distance can be adjusted to fit for observation.



Viewing Head

Binocular Head, Head Binocular sliding inclined at 45 º and 360 º turn 55-75mm interpupillary distance. Anti-mould.

Eyepiece

Wide Field Eyepiece WF10×/ 18

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can be supplied with plan achromatic objectives)

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm. Coarse Stroke 37.7 mm per rotation.

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination

Plan-concave Mirror
Kohler illumination (optional)

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

Dust cover, green filter, immersion oil and operating manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg





LB-232 BIOLOGICAL BINOCULAR MICROSCOPE WITH WIDE FIELD AND PHASE CONTRAST KIT

Brochure

separator

LB-233 Trinocular Biological Microscopes with Semi-Plan Objectives and LED Illuminationare classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features
  • Convenient and Comfortable Observing with High Point and WF 10×/20.
  • Sharp and Bright Image with Infinite Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.
  •

    Viewing Head

    Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

    Eyepiece

    WF 10×/20

    Objective

    Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

    Nosepiece

    Backward Quadruple Nosepiece

    Stage

    Double Layers Mechanical Stage 140×140mm/ 75×50mm

    Focus

    Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

    Condenser

    NA 1.25 Abbe Condenser with Iris Diaphragm and Filter

    Illumination

    LED Illumination, Brightness Adjustable
    Kohler illumination (optional)

    Filter Blue, Green Filter
    Dimension & G.W. 35cm*31cm*57cm, 9.5kg






LB-233 TRINOCULAR BIOLOGICAL MICROSCOPE WITH SEMI-PLAN OBJECTIVES AND LED ILLUMINATION

Brochure

separator

LB-234 Binocular Biological Microscope with Advanced Alignment, Wide Field and LED Illumination With precision machining equipment and advanced alignment technology, LB-234 microscopes are advanced biological microscopes.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Interpupillary distance can be adjusted to fit for observation.



Viewing Head

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Eyepiece

Wide Field Eyepiece WF10×/ 18 with diopter adjustment

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can be supplied with plan achromatic objectives)

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination 3W, Brightness Adjustable
Plan-concave Mirror
Kohler illumination (optional)

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

Dust cover, green filter, immersion oil and user manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg





LB-234 BINOCULAR BIOLOGICAL MICROSCOPE WITH ADVANCED ALIGNMENT, WIDE FIELD AND LED ILLUMINATION

Brochure

separator

LB-235 Binocular Biological Microscope with Wide Field and Semi-Plan Optical System This is a digital biological microscope that features ingenious stand, sharp image, comfortable operation, which can make your work much enjoyable.


Features

  • Sharp Image with Semi-plan Achromatic Objectives.
  • Easy to replace lamp.



Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable

Eyepiece

Wide Field Eyepiece EW10×/ 20

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial coarse & fine focus adjustment, range 23mm, fine division 0.002mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

Halogen Lamp 6V/ 20W, Brightness Adjustable, Kohler (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg







LB-235 BINOCULAR BIOLOGICAL MICROSCOPE WITH WIDE FIELD AND SEMI-PLAN OPTICAL SYSTEM

Brochure

separator

LB-236 Digital Microscope with Extra Wide Field, Semi-Plan Achromatic Objectives, Rack and Pinion Adjustment, Semi-Plan Optical System, Camera 3.0MP and Software. This is a digital biological microscope with camera that features an ingenious stand, sharp image, comfortable operation and high-resolution camera, which can make your work much more enjoyable. It is widely used in the biological, pathological, bacterial, histological, immune, pharmacological and genetic fields. It is suitably used in hospitals, clinics, medical academies, morphology and related research centers.

Features

  • High resolution, real-time image display by 3.0 Megapixel CMOS digital camera connecting to PC through USB2.0.
  • Sharp Image with Semi-plan Achromatic Objectives.
  • Easy to replace lamp.
  • High sensitive camera can be used for optional attachments such as dark field, phase contrast, Epi-fluorescence and so on.
  • Professional and powerful micro-image process and analysis software.



Digital System

3.0MP CMOS digital camera with high-resolution, 1280×1024, USB2.0 output

Viewing Head

Seidentopf type Binocular Head at 30°, Interpupillary Distance 55-75mm

Eyepiece

Wide Field EW10/20 with diopter adjustment

Nosepiece

Backward Quadruple Nosepiece

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Condenser

NA1.25 Abbe Condenser with iris diaphragm and filter, rack & pinion adjustment

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Illumination

LED Illumination, Brightness Adjustable Halogen Lamp 6V/20W (optional), Brightness Adjustable, Kohler (optional)

Filter

Blue and Green Filter

Software

ScopeImage 9.0
Optional Can be supplied with Plan, Infinite and Infinite Plan Achromatic Objectives





LB-236 DIGITAL MICROSCOPE WITH EXTRA WIDE FIELD, SEMI-PLAN ACHROMATIC OBJECTIVES, RACK AND PINION ADJUSTMENT, SEMI-PLAN OPTICAL SYSTEM, CAMERA 3.0MP AND SOFTWARE

Brochure

separator

LB-237 Binocular Biological Digital Microscope with Wide FieldSemi-Plan Optical System and Camera 5.0MP and Softwareis a digital biological microscope with camera that features an ingenious stand, sharp image, comfortable operation and high-resolution camera, which make your work much more enjoyable. It is widely used in the biological, pathological, bacterial, histological, immune, pharmacological and genetic fields. It is suitably used in hospitals, clinics, medical academies, morphology and related research centers.

Features

  • High resolution, real-time image display by 1.3 Megapixel CMOS digital camera connecting to PC through USB2.0.
  • Sharp Image with Semi-plan Achromatic Objectives.
  • Easy to replace lamp.
  • High sensitive camera can be used for optional attachments such as dark field, phase contrast, Epi-fluorescence and so on.
  • Professional and powerful micro-image process and analysis software.



Digital System

5.0MP CMOS digital camera with high-resolution, 1280×1024, USB2.0 output

Viewing Head

Seidentopf type Binocular Head at 30°, Interpupillary Distance 48-75mm

Eyepiece

Wide Field EW10/20

Nosepiece

Backward Quadruple Nosepiece

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Condenser

NA1.25 Abbe Condenser with iris diaphragm and filter, rack & pinion adjustment

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Illumination

LED Illumination
Halogen Lamp 6V/20W (optional), Brightness Adjustable, Kohler (optional)

Filter

Blue and Green Filter

Software

ScopeImage 9.0

Optional Can be supplied with Plan, Infinite and Infinite Plan Achromatic Objectives




LB-237 BINOCULAR BIOLOGICAL DIGITAL MICROSCOPE WITH WIDE FIELD, SEMI-PLAN OPTICAL SYSTEM AND CAMERA 5.0MP AND SOFTWARE

Brochure

separator

LB-238 Biological Binocular Microscope with Infinite Optical System and Infinite Objective are specially designed for college education, medical and laboratory study. They adopt Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

Features

  • Excellent infinite optical system with High resolution and perfect definition.
  • Comfortable operating with ergonomic design.
  • 100X water objective is available for convenient viewing.
  • Unique LED illumination system, provide bright and comfortable lighting.
  • Winding device for cable, easy to move and storage.
  • Various accessories for upgrading.
Item Specification
Optical System Color Corrected Infinite Optical System
Viewing Head Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm
Eyepiece WF10×/20mm (High eyepoint)
Infinite Objective E-Plan 4×/0.10
E-Plan 10×/0.25
E-Plan 40×/0.65(S)
E-Plan100×/1.25(S, Oil)
Nosepiece Backward Quadruple Nosepiece
Mechanical Stage Size 145mm×140mm, Travel Range:76mm×52mm, Scale: 0.1mm, Two Slide Holder
Abbe Condenser N.A.1.25, With iris Diaphragm
Focusing Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Fine division: 2µm
Illumination 3W LED Illumination, Voltage: 100V-240V
Wire Winding Device Wind cable on back of the microscope







LB-238 BIOLOGICAL BINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE OBJECTIVE 4x, 10x, 40x, 100x (S,OIL)


Brochure

separator

LB-238T Biological Trinocular Microscope with Infinite Optical System and Infinite Objective are specially designed for college education, medical and laboratory study. They adopt Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

Features

  • Excellent infinite optical system with High resolution and perfect definition.
  • Comfortable operating with ergonomic design.
  • 100X water objective is available for convenient viewing.
  • Unique LED illumination system, provide bright and comfortable lighting.
  • Winding device for cable, easy to move and storage.
  • Various accessories for upgrading.

Item Specification
Optical System Color Corrected Infinite Optical System
Viewing Head Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm, Light Distribution: 20:80
Eyepiece WF10×/20mm (High eyepoint)
Infinite Objective Plan 4×/0.10
Infinite Objective Plan 10×/0.25
Infinite Objective Plan 40×/0.66(S)
Infinite Objective Plan 100×/1.25(S, Oil)
Nosepiece Backward Quadruple Nosepiece
Mechanical Stage Size 145mm×140mm, Travel Range:76mm×52mm, Scale: 0.1mm, Two Slide Holder
Abbe Condenser N.A.1.25, With iris Diaphragm
Focusing Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Fine division: 2µm
Illumination 3W LED Illumination, Voltage: 100V-240V
Wire Winding Device Wind cable on back of the microscope



LB-238T BIOLOGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE OBJECTIVE 4×, 10×, 40×, 100× (S,OIL)


Brochure

separator

LB-240 Binocular Biological Microscope with Plan Objectives (Anti-Fungus) With precision machining equipment, and advanced alignment technology, LB-240 binocular microscope is an excellent biological microscope.

Features

  • Built-in transmitted illumination System LED
  • Frame should have end opening, Stage Focusing Lock
  • Stage height movement coarse and fine Focusing on both sides of frame
  • Quadruple nosepiece
  • Abbe type with aperture iris diaphragm NA:1.25
  • Plan Achromatic objectives (anti-fungus)
  • Extra Wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and Interpupillary Adjustable
  • Abbe NA 1.25 Condenser with Iris Diaphragm & Filter
  • Handle for easy carrying
  • Lamp Replacement by Direct Removal of Housing
  • Advanced design of mechanical stage structure prevents the scratches of users.

Viewing Head:

Sliding Binocular head, Inclined at 45°, 360° Rotatable, 55-75mm Interpupillary Distance. Anti-Fungus.

Eyepiece:

Wide Field Eyepiece WF 10×/18

Nosepiece:

Quadruple Nosepiece

Objective:

Plan Achromatic Objectives 4x, 10x, 40x, 100x

Total Magnification: With 10x eyepiece: 40x, 100x, 400x, 1000x

Stage:

Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Focus:

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm

Condenser:

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination:

LED Illumination 3W (or)
Halogen Lamp 6V/20W (optional), Brightness Adjustable

Body/Power: Body with firm backing of aluminum and a built-in power supply 110-230V
Supplied With: Dust cover, green filter, immersion oil, plan concave mirror

Dimensions & G.W.:

33cm x 28cm x 44cm, 9 kg



LB-240 BINOCULAR BIOLOGICAL MICROSCOPE WITH PLAN ACHROMATIC OBJECTIVES (ANTI-FUNGUS)

Brochure

separator

LB-241 Biological Digital Microscope with 5.0MP Built-in Camera and Software are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  • High contrast and sharp image with high quality optical system.
  • Low environment requirement with Anti-mold technology.
  • Comfortable operation with low position coarse and fine adjustment knobs.
  • ECO function is optional, automatically turn off after 15 mins of no use.
  • With cord rest on the back, making the working table clean and tidy.

Optical System

Infinite Optical System

Eyepiece

WF10×/20mm

Viewing Head

Digital Binocular Head with built-in camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, Support Wifi

Objective

Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100×

Nosepiece

Backward Quadruple Nosepiece

Backward Quintuple Nosepiece (optional)

Stage

Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm

Condenser

Abbe Condenser NA1.25

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm

Illumination

6V/20W Halogen Lamp, Brightness Adjustable

Package

1pc/carton, 36*26*46mm, gross weight: 8kg





LB-241 BIOLOGICAL MICROSCOPE WITH 5.0MP BUILT-IN CAMERA AND SOFTWARE

Brochure

LB-242 Trinocular Biological Microscope with Infinity Plan Optical System (Infinity Color Corrected System) and Extra Wide Field With precision machining equipment, advanced alignment technology, and an infinity color corrected system, LB-242 trinocular microscope is a comfortable biological microscope. With a trinocular head, digital cameras can be added to this microscope for digital image capture and analysis.

Features

  • Extra wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and interpupillary adjustable
  • Sliding-in Centerable Condenser Adjustable
  • Handle for easy carrying
  • Lamp replacement by directly removing housing

  • Viewing Head Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm
    Eyepiece Wide Field Eyepiece WF 10×/18 with diopter adjustment
    Objective Infinitive Semi-Plan Achromatic Objectives 4× 10× 40× 100×
    Nosepiece Quadruple Nosepiece
    Stage Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm
    Condenser Sliding-in condenser NA1.25
    Focusing Coaxial Coarse & Fine Adjustment System, Fine Division 0.002mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation, Moving Range 20mm
    Illumination LED Illumination
    Halogen Lamp 6V/20W (optional), Brightness Adjustable
    Package

    1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg





LB-242 TRINOCULAR BIOLOGICAL MICROSCOPE
WITH INFINITY PLAN OPTICAL SYSTEM AND EXTRA WIDE FIELD

Brochure

separator

LB-243 Biological Binocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  • Infinite Optical System.
  • WF10×/22mm eyepiece with diopter adjustment.
  • Sliding-in Centerable Condenser.
  • Easy carrying handle.
  • Fluorescent attachment, Dark field condenser, phase contrast attachment, simple polarizing kit are optional.
Item Specification
Optical System Infinite Optical System
Viewing Head Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm, eyepiece tube: Φ30mm
Eyepiece Wide Field Eyepiece WF 10×/22mm with Diopter Adjustment
Objective Infinite Plan Achromatic Objectives 4×, 10×, 40×(S), 100×(S, Oil)
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm
Condenser Sliding-in Centerable Condenser NA1.25
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination 3W LED Lamp, Brightness Adjustable
Optional accessories Simple Polarizing Set (Polarizer and Analyzer)
Phase Contrast Kit BPHE-1 (Infinite 10×, 20×, 40×, 100× phase contrast objective)
YX-2 Epi-fluorescent Attachment (Mercury lamp)
FL-LED Epi-fluorescent Attachment (LED lamp, B, G, UV, V, R fluorescent filters are available)
Packing 1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg





LB-243 BIOLOGICAL BINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE PLAN ACHROMATIC OBJECTIVES 4X, 10X, 40X(S), 100X (S,OIL)

Brochure

separator

LB-243T Biological Trinocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  • Infinite Optical System.
  • WF10×/22mm eyepiece with diopter adjustment.
  • Sliding-in Centerable Condenser.
  • Easy carrying handle.
  • Fluorescent attachment, Dark field condenser, phase contrast attachment, simple polarizing kit are optional.
Item Specification
Optical System Infinite Optical System
Viewing Head Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, eyepiece tube: Φ30mm, Light distribution: 100: 0 and 50:50(eyepiece: trinocular tube)
Eyepiece Wide Field Eyepiece WF 10×/22mm with Diopter Adjustment
Objective Infinite Plan Achromatic Objectives 4×, 10×, 40×(S), 100×(S, Oil)
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm
Condenser Sliding-in Centerable Condenser NA1.25
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination 3W LED Lamp, Brightness Adjustable
Optional accessories Simple Polarizing Set (Polarizer and Analyzer)
Phase Contrast Kit BPHE-1 (Infinite 10×, 20×, 40×, 100× phase contrast objective)
YX-2 Epi-fluorescent Attachment (Mercury lamp)
FL-LED Epi-fluorescent Attachment (LED lamp, B, G, UV, V, R fluorescent filters are available)
Video Adapter 0.5× C-mount (Used for microscope camera)
Packing 1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg





LB-243T BIOLOGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE PLAN ACHROMATIC OBJECTIVES 4X, 10X, 40X(S), 100X (S,OIL)

Brochure

separator

LB-244 Binocular LED Fluorescent Biological Microscope with Wide Field, Epi-Fluorescent Attachment, Seidentopf Binocular Head, Infinite Semi-Plan Achromatic Objectives and Optical System (Infinity Color Corrected System) are newly developed microscopes with an infinity color corrected system, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.

    Optical System

    Infinite Optical System

    Viewing Head

    Seidentopf Binocular Head Inclined at 30°,Interpupillary Distance 48-75mm

    Eyepiece

    Wide Field Eyepiece WF10×/18

    Nosepiece

    Backward Quadruple Nosepiece

    Objective

    Infinite Semi-plan Achromatic Objective 4× 10× 40× 100×

    Condenser

    Sliding-in Centerable Condenser NA 1.25

    Focusing

    Coaxial coarse & fine adjustment, Fine division 0.002mm

    Stage

    Double Layers Mechanical Stage 140×140/ 75×50 mm

    Illumination

    LED Illumination
    Halogen Lamp 6V/20W (optional)

    Reflected Light Source



    Excitation

    Dichroic Mirror

    Barrier Filter

    Blue excitation

    BP460~490

    DM505

    BA515

    Green excitation

    BP510~550

    DM570

    BA590

    Lamp

    3W LED Lamp(465-476nm)

    Immersion Oil

    Fluorescent Free Oil







LB-244 BINOCULAR LED FLUORESCENT BIOLOGICAL MICROSCOPE WITH WIDE FIELD, EPI-FLUORESCENT ATTACHMENT, SEIDENTOPF BINOCULAR HEAD, INFINITE SEMI-PLAN ACHROMATIC OBJECTIVES AND OPTICAL SYSTEM

Brochure

separator

LB-245 Trinocular LED Fluorescent Biological Microscope with Seidentopf Trinocular Head, Wide Field, Epi-Fluorescent Attachment and Infinite Semi-Plan Achromatic Objectives and Infinite Optical System (Infinity Color Corrected System) are newly developed microscopes with an infinity color corrected system , the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.

Optical System

Infinite Optical System

Viewing Head Seidentopf Trinocular Head Inclined at 30°, Interpupillary Distance 48-75mm
Eyepiece

Wide Field Eyepiece WF10×/18 with diopter adjustment

Nosepiece

Backward Quadruple Nosepiece

Objective

Infinite Semi-plan Achromatic Objective 4× 10× 40× 100×

Condenser

Sliding-in Centerable Condenser NA 1.25

Focusing

Coaxial Coarse & Fine Adjustment System, Fine Division 0.002mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation, Moving Range 20mm

Stage

Double Layers Mechanical Stage 140×140/ 75×50 mm

Illumination

LED Illumination Halogen Lamp 6V/20W (optional)

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460~490

DM505

BA515

Green excitation

BP510~550

DM570

BA590

Lamp

3W LED Lamp(465-476nm)

Immersion Oil

Fluorescent Free Oil




LB-245 TRINOCULAR LED FLUORESCENT BIOLOGICAL MICROSCOPE WITH SEIDENTOPF TRINOCULAR HEAD, WIDE FIELD, EPI-FLUORESCENT ATTACHMENT, INFINITE SEMI-PLAN ACHROMATIC OBJECTIVES AND INFINTE OPTICAL SYSTEM

Brochure

separator

LB-246 Biological Binocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

FEATURES

  • Infinite Color Corrected Optical System
  • Sensitive dimming system
  • Koehler illumination
  • Easy carrying Handle
Item Specification
Optical System Infinite Color Corrected Optical System
Viewing Head Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm
Eyepiece Plan 10×/18mm with adjustable diopter
Objective Infinite plan Achromatic Objectives 4×, 10×, 40×, 100×
Nosepiece Reversed Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×132mm, moving range 76mm×50mm
Condenser NA1.25 Condenser (with slot for phase contrast and darkfield accessories)
Focusing Coaxial focusing system with tension adjustable, coarse:25mm per rotation, with upper limit and tightness adjustment, Fine Division 0.002mm
Illumination 100V-240V, single high brightness 3W LED Koehler illumination, intensity adjustable
Optional accessories Phase Contrast Kit
Dark Field Attachment
Polarizing attachment
Video & photo accessories (1/3×, 1/2×, 1× C-mount)
Various filters (Blue, Green, Yellow and frosted)



`

LB-246 BIOLOGICAL BINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE PLAN ACHROMATIC OBJECTIVES 4X, 10X, 40X, 100X

Brochure

separator

LB-246T Biological Trinocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

FEATURES

  • Infinite Color Corrected Optical System
  • Sensitive dimming system
  • Koehler illumination
  • Easy carrying Handle
Item Specification
Optical System Infinite Color Corrected Optical System
Viewing Head Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light splitting ratio: Eyepiece:Trinocular=8:2
Eyepiece Plan 10×/18mm with adjustable diopter
Objective Infinite plan Achromatic Objectives 4×, 10×, 40×, 100×
Nosepiece Reversed Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×132mm, moving range 76mm×50mm
Condenser NA1.25 Condenser (with slot for phase contrast and darkfield accessories)
Focusing Coaxial focusing system with tension adjustable, coarse:25mm per rotation, with upper limit and tightness adjustment, Fine Division 0.002mm
Illumination 100V-240V, single high brightness 3W LED Koehler illumination, intensity adjustable
Optional accessories Phase Contrast Kit
Dark Field Attachment
Polarizing attachment
Video & photo accessories (1/3×, 1/2×, 1× C-mount)
Various filters (Blue, Green, Yellow and frosted)



`

LB-246T Biological Trinocular Microscope with Infinite Optical System and Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100×

LB-246T BIOLOGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE PLAN ACHROMATIC OBJECTIVES 4×, 10×, 40×, 100×

Brochure

separator

LB-247 Binocular Biological Microscope with Infinite Plan Optical System (Infinity Color Corrected System) and Extra Wide Field (Anti-Fungus) With precision machining equipment, and advanced alignment technology, LB-247 binocular microscope is an excellent biological microscope.

Features

  • Infinite Optical System
  • Built-in transmitted illumination System LED
  • Frame should have end opening, Stage Focusing Lock
  • Stage height movement coarse and fine Focusing on both sides of frame
  • Fixed quadruple nosepiece
  • Abbe type with aperture iris diaphragm NA:1.25
  • Plan Achromatic objectives(anti-fungus)
  • 4XN.A.10W.D18.5mm
  • Extra Wide Field Eyepiece EW10x/20 with Diopter Adjustment as Optional
  • Comfortable Observation with Eyepoint and Interpupillary Adjustable
  • Sliding-in Centerable Condense Adjustable
  • Handle for easy carrying
  • Lamp Replacement by Direct Removal of Housing
  • Advanced design of mechanical stage structure prevents the scratches of users.

Optical System

Infinity Optical System

Viewing Head Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm
Eyepiece Wide Field Eyepiece WF 10×/18 with diopter adjustment
Objective Infinitive Semi-Plan Achromatic Objectives (Anti-Fungus)
4XN.A.10W.D18.5mm (Anti-Fungus)
10x, NA0.25/WD 10mm (Anti-Fungus)
40x, NA0.65/WD 0.6mm (Anti-Fungus)
100x, (Oil immersion), NA1.25/WD 0.13mm (Anti-Fungus)
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)
Nosepiece Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm
Condenser Sliding-in condenser NA1.25
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 20mm
Illumination LED Illumination 3W
Halogen Lamp 6V/20W (optional), Brightness Adjustable
Package 1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg



`

LB-247 BINOCULAR BIOLOGICAL MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND
EXTRA WIDE FIELD (ANTI-FUNGUS)

Brochure

separator

LB-248 Binocular Digital Microscope with Infinity Plan Optical System, (Infinity Color Corrected System), Wide Field, Double Layer Mechanical Stage, Sliding-In Centerable Condenser, and Camera and Software (3.0MP)

With precision machining equipment, infinity color corrected system and advanced alignment technology, LB-248 binocular digital microscope is an advanced biological microscope.

Features

  • 3.0 Megapixels digital systems, high-resolution real-time micro-image;
  • With high-sensitivity feature, suitable for equipped wide range of accessories such as dark field, phase contrast, Epi-fluorescence and so on;
  • Excellent optical performance with infinity optical system.

Viewing Head

Built-in 3M pixel digital camera with ScopeImage Advanced Micro-image Process Software; Binocular head, 30°inclined,interpupillary distance 48-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 18 with diopter adjustment

Objective

Infinitive Semi-Plan Achromatic objectives 4× 10× 40× 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Nosepiece

Quadruple Nosepiece

Stage

Double layers mechanical stage 140mm×140mm/ 75mm×50mm

Condenser

Sliding-in centerable condenser NA1.25

Focusing

Coaxial coarse and fine adjustment, moving range 20mm

Illumination

LED Illumination, Brightness Adjustable
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable (optional)

Dimension & G.W.

35cm*35.5cm*55.5cm, 13kg





LB-248 BINOCULAR DIGITAL MICROSCOPE WITH INFINITY OPTICAL SYSTEM, WIDE FIELD, DOUBLE LAYER MECHANICAL STAGE, SLIDING-IN CENTERABLE CONDENSER, CAMERA AND SOFTWARE (3.0MP)

Brochure

separator

LB-252 Binocular Biological Pathological Medical Microscope with Wide Field Eyepiece and Semi-Plan Objective are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  • High contrast and sharp image with high quality optical system.
  • Low environment requirement with Anti-mould technology.
  • Comfortable operation with low position coarse and fine adjustment knobs.
  • ECO function is optional, automatically turn off after 15 mins of no use.
  • With cord rest on the back, making the working table clean and tidy.
LB-252 Specification
Optical System Infinite optical system
Viewing Head Seidentopf Binocular Head, 30°Inclined, Interpupillary Distance 47-78 mm
Eyepiece WF 10X/20mm
Nosepiece Backward Quadruple Nosepiece
Objective Infinite Semi-Plan Objective 4×, 10×, 40×, 100×
Focusing Coaxial Coarse and Fine Adjustment, Moving Range 0.002mm, Fine Division 20mm
Condenser Abbe Condenser, NA1.25
Stage Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm
Illumination 1W S-LED /6V20W Halogen Lamp
Package 1pc/carton, 36*26*46mm, gross weight: 8kg





LB-252 BINOCULAR BIOLOGICAL PATHOLOGICAL MEDICAL MICROSCOPE WITH WIDE FIELD EYEPIECE AND SEMI-PLAN OBJECTIVE

Brochure

separator

LB-253 Trinocular Biological Medical Microscope with Wide Field Eyepiece are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  • High contrast and sharp image with high quality optical system.
  • Low environment requirement with Anti-mould technology.
  • Comfortable operation with low position coarse and fine adjustment knobs.
  • ECO function is optional, automatically turn off after 15 mins of no use.
  • With cord rest on the back, making the working table clean and tidy.
LB-253 Specification
Optical System Infinite optical system
Viewing Head Seidentopf Trinocular Head, 30°Inclined, Interpupillary Distance 47-78 mm
Eyepiece WF 10X/20mm
Nosepiece Backward Quadruple Nosepiece
Objective Infinite Semi-Plan Objective 4×, 10×, 40×, 100×
Focusing Coaxial Coarse and Fine Adjustment, Moving Range 0.002mm, Fine Division 20mm
Condenser Abbe Condenser, NA1.25
Stage Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm
Illumination 1W S-LED /6V20W Halogen Lamp
Package 1pc/carton, 36*26*46mm, gross weight: 8kg





LB-253 TRINOCULAR BIOLOGICAL MEDICAL MICROSCOPE WITH WIDE FIELD EYEPIECE

Brochure

separator

LB-254 Binocular Biological Microscope with Wide Field, LED Illumination and Five Semi-Plan Achromatic Objectives (4×, 10×, 40×, 60×, 100×) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 50-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20 with diopter adjustment

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg





LB-254 BIOLOGICAL BINOCULAR MICROSCOPE WITH WIDE FIELD, LED ILLUMINATION AND FIVE SEMI-PLAN ACHROMATIC OBJECTIVES
(
4×, 10×, 40×, 60×, 100× )

Brochure

separator

LB-255 Trinocular Biological Microscope with Wide Field, LED Illumination and Five Semi-Plan  Achromatic Objectives (4×, 10×, 40×, 60×, 100×) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.


Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20 with diopter adjustment

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg





LB-255 BIOLOGICAL TRINOCULAR MICROSCOPE WITH WIDE FIELD, LED ILLUMINATION AND FIVE SEMI-PLAN ACHROMATIC OBJECTIVES
(
4×, 10×, 40×, 60×, 100× )

Brochure

separator

LB-256 Binocular Biological Microscope with Wide Field, LED Illumination and Six Plan Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20 with diopter adjustment

Objective

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg





LB-256 BIOLOGICAL BINOCULAR MICROSCOPE WITH WIDE FIELD, LED ILLUMINATION AND SIX SEMI-PLAN ACHROMATIC OBJECTIVES
(
4×, 10×, 20 ×,
40×, 60×, 100×
)

Brochure

separator

LB-257 Trinocular Biological Microscope with Wide Field, LED Illumination and Six Plan Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20 with diopter adjustment

Objective

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg




separator

LB-258 Binocular Biological Microscope with Wide Field, LED Illumination and Six Infinite Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) (Infinity Color Corrected System) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece, and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20 with diopter adjustment

Objective

Infinite Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg





LB-258 BIOLOGICAL BINOCULAR MICROSCOPE WITH WIDE FIELD, LED ILLUMINATION AND SIX PLAN ACHROMATIC OBJECTIVES
(4×, 10×, 20×,
40×, 60×, 100×)

(INFINITY COLOR CORRECTED SYSTEM)

Brochure

separator

LB-259 Trinocular Biological Microscope with Wide Field, LED Illumination and Six Infinite Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) (Infinity Color Corrected System) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece, and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.

Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20 with diopter adjustment

Objective

Infinite Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg




LB-259 BIOLOGICAL TRINOCULAR MICROSCOPE WITH WIDE FIELD, LED ILLUMINATION AND SIX INFINITE ACHROMATIC OBJECTIVES (4×, 10×, 20×, 40×, 60×, 100×)

Brochure

Separator

LB-263 Biological Binocular Flourescent Microscope With LED Illumination and Infinite Optical System (Infinity Color Corrected) has an infinite optical system. The microscope is using LED illumination as the light source; the life span of the LED lamp (more than 50000 hours) is much longer than mercury lamp.

Features

  • Excellent fluorescent image with infinite optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up

Optical System

Infinite optical system

Viewing Head

Seidentopf Binocular viewing head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75 mm.

Eyepiece

WF 10X/20 with diopter adjustment
WF 16X/13 (optional)

Objective

Infinite E-Plan Achromatic objectives 4X, 10X, 40X, 100x (OIL)

Nosepiece

Backward Quadruple Nosepiece
Backward Quintuple Nosepiece (optional)

Focusing

Coaxial coarse and Fine focusing knobs,
Travel range: 26mm, scale: 2um

Stage

Stage size 145X140mm, Cross Travel 76X52mm, Two slide holder

Condenser

Abbe condenser NA 1.25 with Iris Diaphragm

Illumination

6V/20W Halogen lamp, Brightness adjustable
3W LED illumination, Brightness adjustable (optional)

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460~490

DM505

BA515

Green Excitation

BP510~550

DM570

BA590

Lamp

3W LED lamp (465-476nm)

Immersion Oil

Flourescent free oil

Package:

42cmx28cmx45cm, 40cmx20cmx40cm, 12Kg





LB-263 BIOLOGICAL BINOCULAR FLOURESCENT MICROSCOPE WITH LED ILLUMINATION AND INFINITE OPTICAL SYSTEM (INFINITY COLOR CORRECTED)

Brochure

Separator

LB-264 Biological Trinocular Flourescent Microscope With LED Illumination and Infinite Optical System (Infinity Color Corrected) has an infinite optical system. The microscope is using LED illumination as the light source; the life span of the LED lamp (more than 50000 hours) is much longer than mercury lamp.

Features

  • Excellent fluorescent image with infinite optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.



Optical System

Infinite optical system

Viewing Head

Seidentopf Trinocular viewing head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75 mm.

Eyepiece

WF 10X/20 with diopter adjustment
WF 16X/13 (optional)

Objective

Infinite E-Plan Achromatic objectives 4X, 10X, 40X, 100x (OIL)

Nosepiece

Backward Quadruple Nosepiece
Backward Quintuple Nosepiece (optional)

Focusing

Coaxial coarse and Fine focusing knobs,
Travel range: 26mm, scale: 2um

Stage

Stage size 145X140mm, Cross Travel 76X52mm, Two slide holder

Condenser

Abbe condenser NA 1.25 with Iris Diaphragm

Illumination

6V/20W Halogen lamp, Brightness adjustable
3W LED illumination, Brightness adjustable (optional)

Reflected Light Source

Excitation

Dichroic Mirror

Barrier Filter

BP460~490

DM505

BA515

BP510~550

DM570

BA590

Lamp

3W LED lamp (465-476nm)

Immersion Oil

Flourescent free oil

Package:

42cm x 28cm x 45cm, 40cm x 20cm x 40cm, 12Kg



LB-264 BIOLOGICAL TRINOCULAR FLOURESCENT MICROSCOPE WITH LED ILLUMINATION AND INFINITE OPTICAL SYSTEM (INFINITY COLOR CORRECTED)

Brochure

separator

LB-270 Biological Binocular Microscope With Infinite Optical System (Infinity Color Corrected) (Anti-Fungus) is a highly level microscope which is specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. It adopts an Infinite optical system, an infinity color corrected system, beautiful structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this biological microscope makes your work enjoyable.

Features



  • Excellent optical system, outstanding image quality with high resolution and definition.
  • Comfortable operating with ergonomic design.
  • Unique aspheric illumination system, provide bright and comfortable lighting.
  • Various colors (White, Blue, Black) are available to provide lively environment and happy mood.
  • Various accessories are available for upgrading.



Optical System

Infinite optical system

Viewing Head

Seidentopf Binocular viewing head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75 mm.

Eyepiece

WF 10X/20 with diopter adjustment
WF 16X/13 (optional)

Objective

Infinity Plan Achromatic objectives 4X, 10X, 40X (S), 100X (Oil) (S) (Plan 20X & Plan 60X(S) are optional)
(Can be supplied with Infinity E-Plan objectives 4X, 10X, 4X, 100X)
Infinite PLAN Achromatic 100X water objective (S,W), N.A.1.15, W.D.=0.19mm (optional)

Nosepiece

Backward Quadruple Nosepiece
Backward Quintuple Nosepiece (optional)

Focusing

Coaxial coarse and Fine focusing knobs, Travel range: 26mm, scale: 2um

Stage

Stage size 145X140mm, Cross Travel 76X52mm, Two slides

Condenser

Abbe condenser NA 1.25 with Iris Diaphragm

Illumination

6V/20W Halogen lamp, Brightness adjustable
6V/30W Halogen lamp, Brightness adjustable
3W LED illumination, Brightness adjustable (optional)

Filter

Blue
(Green and yellow filters are optional.)

Dimension & G.W.

42cmx28cmx45cm, 8Kg




LB-270 BIOLOGICAL BNOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTE (INFINITY COLOR CORRECTED) (ANTI-FUNGUS)

Brochure

separator

LB-271 Biological Trinocular Microscope with Infinite Optical System (Anti-Fungus) is a microscope that is economic, practical and easy to operate. These microscopes adopt LED illumination, which can save energy and have a long working life. Iit is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plugged into the trinocular tube or the eyepiece tube. The rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  • Excellent image quality with infinite optical system.
  • Comfortable operating with ergonomic design.
  • Better illumination with sliding-in centerable condenser, convenient to replace phase contrast and dark field condenser.
  • Advanced design of mechanical stage structure prevents the scratches of users.



    Optical System

    Infinite Optical System

    Viewing Head

    Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

    Eyepiece

    WF10×/18mm

    Objective

    Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× (Oil)

    Nosepiece

    Quadruple Nosepiece (this microscope can be supplied with a quintuple nosepiece)

    Stage

    Double Layer Mechanical Stage 132×142mm/ 75×40mm

    Focusing

    Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

    Condenser

    Abbe NA 1.25 with Iris Diaphragm

    Illumination S-LED illumination, Brightness Adjustable
    Package 1pc/carton, 32cm*26cm*44cm, 6kg




LB-271 BIOLOGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM (ANTI-FUNGUS)

Brochure

separator

LB-272 Biological Binocular Digital Microscope with Infinite Optical System (Infinity Color Corrected System) and Built-in 3.2MP Digital Camera (Anti-Fungus) is a high level microscope which is specially designed for college education, medical and laboratory research. With a built-in 3.2MP digital camera, an infinity color corrected system, innovative structure, excellent optical performance and easy to operate system, LB-272 digital biological microscope makes your works enjoyable.

Features

  • Excellent image quality with infinite optical system.
  • 3.2MP built-in digital camera system with professional image process software, 5.0MP and 9.0MP cameras are optional.
  • Comfortable operating with ergonomic design.
  • Better illumination with sliding-in centerable condenser, convenient to replace phase contrast and dark field condenser.
  • Advanced design of mechanical stage structure prevents the scratches of users.

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Viewing Head with built-in 3.2MP camera, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

Eyepiece

WF10×/20

Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100

Nosepiece

Backward Quadruple Nosepiece (Can be supplied with backward quintuple nosepiece (optional))

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm

Stage

Rectangular 216×150mm, Cross Travel 78×54mm, Using Low-positioned X/Y Coaxial Control Knob, Can Hold Two Sides

Condenser

Abbe Condenser NA1.25 with Aperture Diaphragm

Illumination

LED Illumination
Halogen Lamp 12V/20W (optional)
Kohler illumination (optional)

Dimension & G.W.

38cm*26cm*51cm, 10kg

Dust Cover Supplied with dust cover

Digital Camera Parameters

Image Sensor

1/2 inch 3.2MP CMOS Image Sensor(4:3)

Resolution

2048×1536

Pixel size

3.2μm × 3.2μm

Shutter type

Electronic Rolling Shutter

Frame rate

9 fps @ 2048×1536

Sensitivity

61dB

SNR

43dB

Operating Temperature

0°C ~ 60°C

Image Output

USB2.0

Software

ScopeImage 9.0

Operating System

Windows 2000/ XP/ Vista/Win7/Mac





LB-272 BIOLOGICAL BINOCULAR DIGITAL MICROSCOPE WITH INFINITE OPTICAL SYSTEM (ANTI-FUNGUS)

Brochure

separator

LB-273 Biological Binocular Microscope with Infinite Optical System (Anti-Fungus) is a microscope that is economic, practical and easy to operate. These microscopes adopt LED illumination, which can save energy and have a long working life. Iit is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plugged into the trinocular tube or the eyepiece tube. The rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  • Excellent image quality with infinite optical system.
  • Comfortable operating with ergonomic design.
  • Better illumination with sliding-in centerable condenser, convenient to replace phase contrast and dark field condenser.
  • Advanced design of mechanical stage structure prevents the scratches of users.

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

Eyepiece

WF10×/18mm

Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× (Oil)

Nosepiece

Quadruple Nosepiece (this microscope can be supplied with a quintuple nosepiece)

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

Abbe NA 1.25 with Iris Diaphragm

Illumination S-LED illumination, Brightness Adjustable
Package 1pc/carton, 32cm*26cm*44cm, 6kg




LB-273 BIOLOGICAL BINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM (ANTI-FUNGUS)

Brochure

separator

LB-274 Binocular LED Fluorescent Biological Microscopes with Wide Field Infinite Color Corrected Plan Optical System, (Infinity Color Corrected System), Seidentopf Binocular Viewing Head, Infinite Plan Achromatic Objectives, and Abbe Condenser (Anti-Fungus) are newly developed microscopes with an infinity color corrected system, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.



Optical System

Infinite Color Corrected Optical System

Viewing Head

Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

Eyepiece

Wide Field Eyepiece WF10×/20 with diopter adjustment

Nosepiece

Backward Quadruple Nosepiece
(Can be supplied with backward quintuple nosepiece (optional))

Objective

Infinite Plan Achromatic Objective 4×(N.A0.10, W.D15.5mm), 10×(N.A0.25, W.D5.02mm), 40×(N.A0.65,W.D0.60mm), 100×(N.A1.25, W.D0.13mm)
(20× and 60× are optional and must be purchased separately.)

Condenser

Abbe Condenser NA1.25 with Aperture Diaphragm

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation

Stage

Rectangular 216×150mm, Cross Travel 78×54mm, Using Low-positioned X/ Y Coaxial Control Knob, Can Hold Two Sides. Moving Range is 24mm along the Z-axis.

Illumination

LED Illumination
12V/20W Halogen Lamp (optional), Brightness Adjustable
(30W illumination and Kohler illumination are optional, and must be purchased separately.)

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue Excitation

BP460~490

DM505

BA515

Green Excitation

BP510~550

DM570

BA590

Lamp

3W LED Lamp(465-476nm)

Immersion Oil

Fluorescent Free Oil

Dimensions 38cm*26cm*51cm, 9kg





LB-274 BINOCULAR LED FLUORESCENT BIOLOGICAL MICROSCOPE WITH WIDE FIELD INFINITE PLAN
COLOR CORRECTED PLAN OPTICAL SYSTEM, SIEDENTOPF BINOCULAR VIEWING HEAD, INFINITE PLAN ACHROMATIC OBJECTIVES AND ABBE CONDENSER (ANTI-FUNGUS)

Brochure

separator

LB-275 Trinocular LED Fluorescent Biological Microscope with Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) (Anti-Fungus) are newly developed microscopes with an infinity color corrected system, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.





    Optical System

    Infinite Optical System

    Viewing Head

    Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

    Eyepiece

    Wide Field Eyepiece WF10×/20

    Nosepiece

    Backward Quadruple Nosepiece (Can be supplied with backward quintuple nosepiece (optional))

    Objective

    Infinite Plan Achromatic Objective 4×(N.A0.10, W.D15.5mm), 10×(N.A0.25, W.D5.02mm), 40×(N.A0.65,W.D0.60mm), 100×(N.A1.25, W.D0.13mm)

    Condenser

    Abbe Condenser NA1.25 with Aperture Diaphragm

    Focusing

    Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm

    Stage

    Rectangular 216×150mm, Cross Travel 78×54mm,
    Using Low-positioned X/ Y Coaxial Control Knob, Can Hold Two Sides

    Illumination

    LED Illumination 3W, Brightness Adjustable,
    12V/20W Halogen Lamp (optional)
    Kohler illumination (optional)

    Reflected Light Source



    Excitation

    Dichroic Mirror

    Barrier Filter

    Blue Excitation

    BP460~490

    DM505

    BA515

    Green Excitation

    BP510~550

    DM570

    BA590

    Lamp

    3W LED Lamp(465-476nm)

    Immersion Oil

    Fluorescent Free Oil

    Dimensions 38cm*26cm*51cm, 9kg





LB-275 TRINOCULAR LED FLUORESCENT BIOLOGICAL MICROSCOPE WITH WIDE FIELD AND INFINITE PLAN
OPTICAL SYSTEM (ANTI-FUNGUS)

Brochure

separator

LB-276 Biological Binocular Microscope with Infinite Optical System, Wide Field, Infinite Plan Achromatic Objectives (4×, 10×, 20x, 40×, 100×) is high level microscopes which is specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscope make your works enjoyable.

Features

1. Excellent infinite optical system with high resolution and perfect definition.
2. Wide field 10×/Φ22mm eyepiece, more comfortable for observation..
3. 100X water objective is available for convenient viewing.
4. Trinocular head with light distribution 100:0 (100% for eyepiece) and 80:20(80% for trinocular head and 20% for eyepiece).
5. Rackless stage is is safer than traditional stage.
6. Various accessories for upgrading.




LB-276 Biological Binocular Microscope with Infinite Optical System, Wide Field, Infinite Plan Achromatic Objectives (4x, 10x, 20x, 40x, 100x)

Brochure

separator

LB-277 Trinocular Biological Microscope with Infinite Optical System, Wide Field, Infinite Plan Achromatic Objectives (4x, 10x, 20x, 40x, 100x) is high level microscopes which is specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscope make your works enjoyable.

Features

1. Excellent infinite optical system with high resolution and perfect definition.
2. Wide field 10×/Φ22mm eyepiece, more comfortable for observation.
3. 100X water objective is available for convenient viewing.
4. Trinocular head with light distribution 100:0 (100% for eyepiece) and 80:20(80% for trinocular head and 20% for eyepiece).
5. Rackless stage is safer than traditional stage.



LB-277 TRINOCULAR BIOLOGICAL MICROSCOPE WITH INFINITE OPTICAL SYSTEM, WIDE FIELD, INFINITE PLAN ACHROMATIC OBJECTIVES (4X, 10X, 20X, 40X, 100X)

Brochure

separator
LB-278 Biological Binocular Microscope with Infinite Optical System, Extra Wide Field Eyepiece EW10×/22mm and Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100× are high level microscopes which are specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user’s operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence, and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.

Features

  • Excellent Optical Design
  • Infinite Plan Objectives
  • This is an unbounded microscope
  • Easier to store and transport
  • Ergonomic Design
Item Specification
Optical System Infinite Optical System
Eyepiece Extra Wide Field Eyepiece EW10×/22mm
Viewing Head Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm
Objective NIS45 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:20.6mm)
Objective NIS45 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:18.0mm),
Objective NIS45 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm),
Objective NIS45 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm)
Nosepiece Backward Quintuple Nosepiece
Stage Rackless stage, Size 230×150mm, Moving Range 78×54mm
Condenser Inserted Abbe Condenser NA1.25(Including Empty Plate)
Focusing Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm
Illumination 1W LED illumination, Brightness Adjustable
Other Accessories 1× C-mount adapter
0.5× C-mount adapter
Simple Polarization Set
Digital Camera
Filter Green
Package 1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg





LB-278 BIOLOGICAL BINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM, EXTRA WIDE FIELD EYEPIECE EW10X/22MM AND INFINITE PLAN ACHROMATIC OBJECTIVES 4X, 10X, 40X, 100X;

Brochure

separator
LB-278T Biological Trinocular Microscope with Infinite Optical System, Extra Wide Field Eyepiece EW10×/22mm and Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100× are high level microscopes which are specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user’s operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence, and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.

Features

  • Excellent Optical Design
  • Infinite Plan Objectives
  • This is an unbounded microscope
  • Easier to store and transport
  • Ergonomic Design
Item Specification
Optical System Infinite Optical System
Eyepiece Extra Wide Field Eyepiece EW10×/22mm
Viewing Head Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm
Objective NIS45 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:20.6mm)
Objective NIS45 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:18.0mm),
Objective NIS45 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm),
Objective NIS45 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm)
Nosepiece Backward Quintuple Nosepiece
Stage Rackless stage, Size 230×150mm, Moving Range 78×54mm
Condenser Inserted Abbe Condenser NA1.25(Including Empty Plate)
Focusing Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm
Illumination 1W LED illumination, Brightness Adjustable
Other Accessories 1× C-mount adapter
0.5× C-mount adapter
Simple Polarization Set
Digital Camera
Filter Green
Package 1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg





LB-278T BIOLOGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM, EXTRA WIDE FIELD EYEPIECE EW10X/22MM AND INFINITE PLAN ACHROMATIC OBJECTIVES 4X, 10X, 40X, 100X;

Brochure

separator

LB-279 Binocular Biological Microscope w/ Infinite Optical System, Extra Wide Field Eyepiece & Backward Quintuple Nosepiece is a high level microscopes which is specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user’s operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.

Features

  • Excellent Optical Design.
  • Infinite Plan Objectives.
  • This is an unbounded microscope.
  • Intelligent operating system.
  • Easier to store and transport.
  • Ergonomic Design.


Item Specification
Optical System Infinite Optical System
Eyepiece Extra Wide Field Eyepiece EW10×/22mm
Viewing Head Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm
Objective NIS60 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:30mm)
NIS60 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:10.2mm)
NIS60 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm)
NIS60 Infinite Plan Achromatic Objective 100× (Water, N.A.:1.10, W.D.:0.2mm)
Nosepiece Backward Quintuple Nosepiece(Coding)
Stage Rackless stage, Size 230×150mm, Moving Range 78×54mm
Condenser Inserted Abbe Condenser NA1.25(Including Empty Plate)
Focusing Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm
Illumination 3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.)
Filter Green
Package 1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg





LB-279 BINOCULAR BIOLOGICAL MICROSCOPE W/ INFINITE OPTICAL SYSTEM, EXTRA WIDE FIELD EYEPIECE & BACKWARD QUINTUPLE NOSEPIECE

Brochure

separator

LB-279T Trinocular Biological Microscope w/ Infinite Optical System, Extra Wide Field Eyepiece & Backward Quintuple Nosepiece is a high level microscopes which is specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user’s operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.

Features

  • Excellent Optical Design.
  • Infinite Plan Objectives.
  • This is an unbounded microscope.
  • Intelligent operating system.
  • Easier to store and transport.
  • Ergonomic Design.



Item Specification
Optical System Infinite Optical System
Eyepiece Extra Wide Field Eyepiece EW10×/22mm
Viewing Head Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm
Objective NIS60 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:30mm)
NIS60 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:10.2mm)
NIS60 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm)
NIS60 Infinite Plan Achromatic Objective 100× (Water, N.A.:1.10, W.D.:0.2mm)
Nosepiece Backward Quintuple Nosepiece(Coding)
Stage Rackless stage, Size 230×150mm, Moving Range 78×54mm
Condenser Inserted Abbe Condenser NA1.25(Including Empty Plate)
Focusing Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm
Illumination 3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.)
Fluorescent Attachment 3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination
Filter Green
Package 1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg






LB-279T TRINOCULAR BIOLOGICAL MICROSCOPE W/ INFINITE OPTICAL SYSTEM, EXTRA WIDE FIELD EYEPIECE & BACKWARD QUINTUPLE NOSEPIECE

Brochure

separator

LB-280 Research Trinocular Biological Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) is a high level microscope which is specially designed for laboratory study. It adopts an Infinite optical system, an infinity color corrected system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory work enjoyable.

Features

  • Comes with a trinocular head
  • With Infinite Optical System, providing excellent optical quality and making Image perfect.
  • With low and forward position of C&F coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral structure, and reasonable ergonomic design, making operators feel more comfortable and effective.



Optical System

Infinite Optical System

Viewing Head

Seidentopf type Trinocular Head, Inclined at 30°,
Interpupillary 48-75mm

Eyepiece

Extra Wide Field Eyepiece EW10×/ 22

Nosepiece

Backward Quintuple Nosepiece (Can be supplied with backward sextuple nosepiece (optional))

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm

Objective

Infinite Plane Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Condenser

Swing-out Condenser NA 0.9/ 0.25

Stage

Double Layers Mechanical Stage 185×142mm, moving range 75×55mm

Illumination

External Illumination, Aspherical Collector, Halogen Lamp 6V/30W

Filter

Blue Filter Green Filter

Dimension & G. W.

43.5cm*39.5cm*59cm, 14kg





LB-280 RESEARCH TRINOCULAR BIOLOGICAL MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM

Brochure

separator
LB-281 Trinocular LED Fluorescent Biological Microscope with Compensation Free Trinocular Head, Wide Field, Backward Quintuple Nosepiece, Kohler and LED Illumination, Infinite Plan Achromatic Objectives, (Infinity Color Corrected System) Reflected Light Source and Infinite Plan Optical System are newly developed microscopes, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.



Optical System Infinite Optical System
Viewing Head Compensation Free Trinocular Head Inclined at 30°,
Interpupillary Distance 48-75mm
Eyepiece Wide Field Eyepiece WF10×/22 with diopter adjustment
Nosepiece Backward Quintuple Nosepiece (Can be supplied with backward sextuple nosepiece (optional))
Objective Infinite Plan Achromatic Objective 4× 10× 40× 100×
Condenser Swing Condenser NA 0.9/0.25
Focusing Coaxial coarse & fine adjustment, Fine division 0.001mm
Stage Double Layers Mechanical Stage 185×142/ 75×55 mm
Illumination External Kohler illumination, Aspherical collector, Halogen lamp 6V/30W
Reflected Light Source   Excitation Dichroic Mirror Barrier Filter
Blue Excitation BP460~490 DM505 BA515
Green Excitation BP510~550 DM570 BA590
Lamp 3W LED Lamp (465-476nm)
Immersion Oil Fluorescent Free Oil




LB-281 TRINOCULAR LED FLUORESCENT BIOLOGICAL MICROSCOPE WITH COMPENSATION FREE TRINOCULAR HEAD, WIDE FIELD, BACKWARD QUINTUPLE NOSEPIECE, KOHLER AND LED ILLUMINATION, INFINITE PLAN ACHROMATIC OBJECTIVES, INFINITY COLOR CORRECTED SYSTEM, REFLECTED LIGHT SOURCE AND INFINITE PLAN OPTICAL SYSTEM

Brochure

separator

LB-282 LED Flourescent Binocular Medical Diagnostic Microscope is designed specifically for the daily routine work in the demanding applications of education, pathology investigation, clinical and laboratory usage. The innovative LED medical diagnostic fluorescent illumination source provides excellent image processing, with a user-friendly and comfortable microscope experience.

Features

  • Six-holes disk fluorescence unit, More fluorescence filters can be supplied
  • Reckless Wire Driven Mechanical Fixed Stage with focus lock is safer than traditional stage
  • Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
  • N.A.0.9/0.13 Swing-out Condenser
  • Dark field condenser (dry) available to 4X-40X Objective
  • Dark field condenser (wet) available to 100X Objective
  • Infinity Plan Objectives
  • This model is mainly used for sputum smear examination of Tuberculosis. The fluorescent filter for O Auramine is mainly used for this application. This microscope is mainly used in the Centers for Disease Control and Prevention (CDC).

Optical System

Universal Infinity Optical System

Optical Lens

Anti- fungus coated Optical Lens

Eyepiece

WF10×/20mm (adjustable with special eye cups)

Infinity Plan Objectives

PLAN 10×/0.25

W.D.=4.64mm

PLAN 20×/0.40(S)

W.D.=2.41mm

PLAN 40×/0.66(S)

W.D.=0.65mm

PLAN 100×/1.25(S, Oil)

W.D.=0.12mm

Seidentopf Binocular Head

Inclined 30°, rotatable 360°
Interpupillary distance: 48mm-76mm

Nosepiece

Quintuple

Mechanical Stage

Reckless Wire Driven Mechanical Fixed Stage with focus lock
Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

Coaxial Coarse and
 Fine Focusing Knobs

Coarse Focusing Travel Range: 25mm
Fine Focusing Travel Range: 2µm/division

Condenser

Abbe Condenser N.A. 1.25  with iris diaphragm.

Koehler Illumination

3W LED Lamp
Wide voltage input: 100V~240V
Field diaphragm , center adjustable

Filter

Blue

Fluorescence Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G and another filters), LED fluorescence lamp.
Optional battery pack (6V DC) with charger

Excitation Filter: O Auramin Filter
Optional Filters: Blue, Green, Violet and Ultraviolet (UV)
Battery: Rechargeable Battery (Built-in)
Gross Weight: 17 kgs
Net Weight: 15kgs




separator

LB-283 LED Flourescent Trinocular Medical Diagnostic Microscope is designed specifically for the daily routine work in the demanding applications of education, pathology investigation, clinical and laboratory usage.The innovative LED medical diagnostic fluorescent illumination source provides excellent image processing, with a user-friendly and comfortable microscope experience.

Features

  • Six-holes disk fluorescence unit, More fluorescence filters can be supplied
  • Reckless Wire Driven Mechanical Fixed Stage with focus lock is safer than traditional stage
  • Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
  • N.A.0.9/0.13 Swing-out Condenser
  • Dark field condenser (dry) available to 4X-40X Objective
  • Dark field condenser (wet) available to 100X Objective
  • Infinity Plan Objectives
  • This model is mainly used for sputum smear examination of Tuberculosis. The fluorescent filter for O Auramine is mainly used for this application. This microscope is mainly used in the Centers for Disease Control and Prevention (CDC).

Optical System

Universal Infinity Optical System

Optical Lens

Anti- fungus coated Optical Lens

Eyepiece

WF10×/20mm (adjustable with special eye cups)

Infinity Plan Objectives

PLAN 10×/0.25

W.D.=4.64mm

PLAN 20×/0.40(S)

W.D.=2.41mm

PLAN 40×/0.66(S)

W.D.=0.65mm

PLAN 100×/1.25(S, Oil)

W.D.=0.12mm

Seidentopf Trinocular Head

Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm,
Light distribution (both): 100: 0 (100% for eyepiece)
80:20(80% for trinocular head and 20% for eyepiece)

Nosepiece

Quintuple

Mechanical Stage

Reckless Wire Driven Mechanical Fixed Stage with focus lock
Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

Coaxial Coarse and
 Fine Focusing Knobs

Coarse Focusing Travel Range: 25mm
Fine Focusing Travel Range: 2µm/division

Condenser

Abbe Condenser N.A. 1.25  with iris diaphragm.

Koehler Illumination

3W LED Lamp
Wide voltage input: 100V~240V
Field diaphragm , center adjustable

Filter

Blue

Fluorescence Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G and another filters), LED fluorescence lamp.
Optional battery pack (6V DC) with charger

Excitation Filter: O Auramin Filter
Optional Filters: Blue, Green, Violet and Ultraviolet (UV)
Battery: Rechargeable Battery (Built-in)
Packing Size: 755mm×340mm×440mm
Gross Weight: 17 kgs
Net Weight: 15kgs




separator

After years of research and development in optical technology field, LB-284 Advanced Research Trinocular Biological Microscope with Plan Semi-Apochromatic Fluorescent Objectives is designed to present a safe, comfortable and efficiency observation experience for users. With perfectly performed structure, high-definition optical image and simple operating system, LB-284 Advanced Research Trinocular Biological Microscope with Plan Semi-Apochromatic Fluorescent Objectives realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.

Features

1. High eye point wide field plan eyepiece.
The eyepiece field of view has been upgraded from traditional 22mm to 25mm and 26.5mm, to provide a more flat field of view and to improve working efficiency. With a wider diopter adjustment range and foldable rubber eye guard.

2. Viewing head with multi-splitting ratio.
The viewing head is designed of multiple options for splitting ratio.
(1) Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100 is standard. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time.
(2) Trinocular head with erected image, splitting ratio Binocular:Trinocular=100:0 or 0:100 is optional. The moving direction of samples is the same as observed.

3. Large size rackless stage for both hands.
Large stage with adjustment in either hand In order to correct the hidden danger of horizon guide rail, the stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the reliability and performance of the stage.

The handle of the stage can be set at each side based on users’ preference. The X, Y biaxial adjustment are designed with low position for comfortable operation.

Two slices can be hold on the stage by using damping-type double clips, easy for comparative study. Moving range: 80mm X55mm; precision: 0.1mm. Processed with special craft, the surface of the stage is anti-corrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.

4. Modular frame, improve the system compatibility.
With modularization design, separated cross arm and main body, improves the system compatibility of biological and fluorescence frame.

5. Highly sensitive coaxial coarse and fine adjustment system.
Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is 25mm and fine precision is 1μm. Not only accurately focus, but also precision measurement is available.



Optical System:

Infinite color corrected optical system

Viewing Head:

Seidentopf trinocular head(Inverted image), 30° inclined, interpupillary distance: 50mm-76mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100

Eyepiece:

High eyepoint wide field plan eyepiece PL10X25mm, diopter adjustable

Objective:

Plan semi-apochromatic fluorescent objective 4X/0.13(infinity), WD=18.5mm
Plan semi-apochromatic fluorescent objective 10X/0.30(infinity), WD=10.6mm
Plan semi-apochromatic fluorescent objective 20X/0.50(infinity), WD=2.33mm
Plan semi-apochromatic fluorescent objective 40X/0.75(infinity), WD=0.6mm
Plan semi-apochromatic fluorescent objective 100X/1.30(infinity), WD=0.21mm

Nosepiece
(with DIC slot):

Backward Sextuple Nosepiece

Frame:

Biological frame (transmitted), low-position coaxial coarse and fine adjustment, coarse adjustment distance: 25mm; fine precision: 0.001mm. With coarse adjustment stop and tightness adjustment.
Built-in 100-240V_AC50/60Hz wide voltage transformer, intensity adjustable by digital set and reset; built-in transmitted filters LBD/ND6/ND25)

Stage: Double layers mechanical stage, size: 187mm X168mm; moving range: 80mm X55mm; precision: 0.1mm; two-way linear drive, tension adjustable
Condenser:

Swing-out type achromatic condenser (N.A.0.9)

Transmitted Illumination:

12V/100W halogen lamp house for transmitted light, center pre-set, intensity adjustable





LB-284 ADVANCED RESEARCH TRINOCULAR BIOLOGICAL MICROSCOPE WITH SEMI-PLAN APOCHROMATIC FLOURESCENT OBJECTIVES

Brochure

separator

LB-285 Research Biological Microscope has been designed to present a safe, comfortable and precision observation experience. With perfectly performed structure, high-definition optical image and ergonomical operating system, LB-285 Research Biological Microscope realizes professional analysis and meets all the needs of research in biological, medical, life science and other fields.

Features

  • Sapphire Glass Stage is optional.
  • Put Slide by One Hand.
  • Tilting Trinocular Head is optional.
  • ECO Function.
  • Low Position X-Y Knobs.

Specification

Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective: N-PLN Plan Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Backward Sextuple Nosepiece (with DIC slot)
Condenser Swing-out type condenser N.A.0.9/0.25
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm
Stage Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slide holder, Right or left handle); precision: 0.1mm
Other Accessories 0.5X C-mount Adapter
Dust Cover
Power Cord
Cedar Oil 5ml





LB-285 RESEARCH BIOLOGICAL MICROSCOPE

Brochure

separator

LB-286 Biological Microscope with LED Illumination and N-PLN Plan Objective  has been designed to present a safe, comfortable, and precision observation experience. The motorized nosepiece and condenser will make your works easier. With perfectly performed structure, high-definition optical image and ergonomical operating system, LB-286 Biological Microscope with LED Illumination and N-PLN Plan Objective realizes professional analysis and meets all the needs of research in biological, medical, life science and other fields.


Features

  • Sapphire Glass Stage Insert.
  • Put Slide by One Hand.
  • Image Capture Button.
  • Tilting Trinocular Head.
  • Low Position Focusing System.
  • Motorized Objective Change
  • Nosepiece Rotating Buttons.
  • Motorized Swing-out Condenser.
  • Light Intensity Management.

Specification

Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective N-PLN Plan Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Motorized Backward Sextuple Nosepiece (with DIC slot)
Condenser Swing-out type condenser N.A.0.9/0.25(Auto)
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm
Stage Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slides holder, Right or left handle); precision: 0.1mm; with Sapphire Crystal Glass Insert
Other Accessories Dust Cover
Power Cord
Cedar Oil 5ml






LB-286 BIOLOGICAL MICROSCOPE WITH LED ILLUMINATION AND N-PLN PLAN OBJECTIVE

Brochure

separator

LB-286T Trinocular Research Fluorescent Biological Microscope w/ Super Wide Field Plan Eyepiece & Motorized Backward Sextuple Nosepiece has been designed to present a safe, comfortable and precision observation experience. The motorized nosepiece and condenser will make your works easier. B, G, U, V, R fluorescent filters are available. With perfectly performed structure, high-definition optical image and ergonomical operating system, LB-286T Trinocular Research Fluorescent Biological Microscope w/ Super Wide Field Plan Eyepiece & Motorized Backward Sextuple Nosepiece realizes professional analysis and meets all the needs of research in biological, medical, life science and other fields.


Features

  • Sapphire Glass Stage Insert.
  • Put Slide by One Hand.
  • Image Capture Button.
  • Tilting Trinocular Head.
  • Low Position Focusing System.
  • Motorized Objective Change
  • Nosepiece Rotating Buttons.
  • Motorized Swing-out Condenser.
  • Light Intensity Management.
  • 6-Position Turret for fluorescent filter blocks.
  • Fine focusing knob can be installed to left or right.

Specification

Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective N-PLN Plan Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Motorized Backward Sextuple Nosepiece (with DIC slot)
Condenser Swing-out type condenser N.A.0.9/0.25(Auto)
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm
Stage Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slides holder, Right or left handle); precision: 0.1mm; with Sapphire Crystal Glass Insert
Reflected fluorescence illuminator Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters).
100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable.
Digital power controller, wide voltage 100-240VAC
Other Accessories 0.5X C-mount Adapter
Dust Cover
Power Cord
Cedar Oil 5ml








LB-286T TRINOCULAR RESEARCH FLUORESCENT BIOLOGICAL MICROSCOPE W/ SUPER WIDE FIELD PLAN EYEPIECE & MOTORIZED BACKWARD SEXTUPLE NOSEPIECE

Brochure

separator

LB-287 Research Fluorescent Biological Microscope has been designed to present a safe, comfortable and precision observation experience. The motorized nosepiece and condenser will make your works easier. B, G, U, V, R fluorescent filters are available. With perfectly performed structure, high-definition optical image and ergonomical operating system, LB-287 Research Fluorescent Biological Microscope realizes professional analysis and meets all the needs of research in biological, medical, life science and other fields.

Features

  • Sapphire Glass Stage is optional
  • Put Slide by One Hand
  • Tilting Trinocular head is optional
  • ECO Function
  • Low Position X-Y Knobs
  • 6-Position Turret for fluorescent filter blocks

Specification


Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Backward Sextuple Nosepiece (with DIC slot)
Condenser Swing-out type condenser N.A.0.9/0.25(Auto)
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm
Stage Double layers mechanical stage, size 190mmX152mm; moving range78mmX32mm (Right or left handle); precision: 0.1mm
Reflected fluorescence illuminator Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters).
100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable.
Digital power controller, wide voltage 100-240VAC
Other Accessories Dust Cover
Power Cord
Cedar Oil 5ml








LB-287 RESEARCH FLUORESCENT BIOLOGICAL MICROSCOPE

Brochure

separator

LB-289 Motorized Automatic Fluorescent Microscope with Camera have been designed to present a safe, comfortable and precision observation experience. The motorized nosepiece, X-Y stage, condenser and auto focusing will make your works easier. The software has motion controlling, depth of field fusion, objective lens switching, brightness controlling, auto focusing, area scanning, image stitching, 3D imaging functions. Semi-APO objectives and B, G, U, V, R fluorescent filters are available for LB-289 Motorized Automatic Fluorescent Microscope with Camera. With perfectly performed structure, high-definition optical image and ergonomical operations, LB-289 Motorized Automatic Fluorescent Microscope with Camera realize professional analysis and meet all the needs of research in biological, medical, life science and other fields.

Features

  • Adopt Stepper Motor and Screw Driving Mode
  • Tilting Trinocular head
  • Motorized Objective Change
  • Nosepiece Rotating Buttons
  • Motorized Swing-out Condenser
  • Light Intensity Management
  • 6-Position Turret for fluorescent filter blocks
  • Can be controlled by the control handle and controller, also can be controlled by software

Specification

Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective: N-PLN Plan Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Motorized Backward Sextuple Nosepiece (with DIC slot)
Condenser Swing-out type condenser N.A.0.9/0.25(Auto)
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Motorized auto focusing, fine division 0.1μm, Max. speed 10 r/s, moving range: 30mm
Stage Motorized double layers mechanical stage, size 275 X 239 X 44.5 mm; moving range 125mmX75mm (X-Y); precision: 0.1μm, Max. Speed: 20mm/s
Reflected fluorescence illuminator Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters).
100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable.
Digital power controller, wide voltage 100-240VAC
Control Handle 3D control handle, 4 gears speed
Controller Communication interface: USB2.0 and RS232
Other Accessories 0.5X C-mount Adapter
Dust Cover
Power Cord
Cedar Oil 5ml










LB-289 MOTORIZED AUTOMATIC FLUORESCENT MICROSCOPE WITH CAMERA

Brochure

separator

LB-290 Inverted Tr inocular Biological Microscope with Extra Wide Field and Infinite Plan Optical System This microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your work enjoyable. digital camera or digital eyepiece can be added to the trinocular head to take photos and videos.

Features

  • Excellent optical function with infinitive optical system.
  • Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.



Viewing Head
Trinocular Head Inclined at 30°, Interpupillary Distance 48-75mm
Eyepiece
High-point, Extra Wide Field Eyepiece EW10×/ 22 with diopter adjustment
Objective
LWD(Long Working Distance) Infinite Plan Objective
4×/ 0.1, WD 18mm
40×/ 0.6, WD 2.6mm
Infinite Plan Phase Objective
PH10×/ 0.25, WD 10 mm
PH20×/ 0.4, WD 5.1mm
Nosepiece
Quintuple Nosepiece
Condenser
ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)
Centering
Centering Telescope (Φ30MM)
Phase Annulus
10×-20×, 40× Phase Annulus Plate
Stage Plain Stage 160×250mm
Glass Insert (optional)
Auxiliary Stages 70mm×180mm
Terasaki Holder (optional)
Petri Dish Holder Φ35MM and Φ90MM (optional)
Slide Glass Holder Φ54MM (optional)
Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
Illumination Halogen Lamp 6V/30W
Filter Diameter 45mm, Blue, Green and Frosted Filter
Dimension & G.W. 46.5cm*39.5cm*64cm, 15.5kg



LB-290 INVERTED TRINOCULAR BIOLOGICAL MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM

Brochure

separator
LB-291 Inverted Trinocular Biological Microscope with Infinite Optical System (Infinity Color Corrected System) is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable.

Features

  • Excellent optical function with infinite optical system.
  • DSLR (Digital Single Lens Reflex) and microscope digital camera can be used together for image and video capture.
  • Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.
  • With LWD Infinite Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.
  • Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable.
  • With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens.

    Optical System Infinite Optical System
    Viewing Head Seidentopf Trinocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary Distance 48-75mm
    Eyepiece Wide Field Eyepiece WF10×/ 22 with diopter adjustment, Eyepiece Tube Diameter 30mm
    Objective LWD (Long Working Distance)
    Infinite Plan Achromatic Objective 4×/ 0.1,WD 22mm
    LWD (Long Working Distance) Infinite Plan Achromatic Phase Objective 10×/ 0.25, WD 6mm
    20×/ 0.4, WD 3.1mm
    40×/ 0.55, WD 2.2mm
    Nosepiece Backward Quintuple Nosepiece
    Condenser ELWD (Extra Long Working Distance) Condenser NA 0.3,
    LWD 72mm (Without Condenser the WD is 150mm)
    Centering Telescope Centering Telescope (Φ30mm)
    Phase Annulus 10×-20×, 40× Phase Annulus Plate(Fixed)
    Stage Plain Stage 170×230mm
    Glass Insert
    Auxiliary Stages 70mm×180mm
    Terasaki Holder
    Petri Dish Holder Φ35MM
    Slide Glass Holder Φ54MM
    Attachable Mechanical Stage, X-Y coaxial control, Moving Range 80 x 120 mm
    Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm
    Illumination Halogen Lamp 6V/30W, Brightness Adjustable
    Filter Blue, Green and Frosted Glass Filter, Diameter 45mm
    Dimension & G.W. 46.5cm*39.5cm*64cm, 18kg





LB-291 INVERTED TINOCULAR BIOLOGICAL MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM

Brochure

separator

LB-293 Inverted Trinocular Biological Microscope w/ Infinite Optical System, Wide Field Eyepiece & Backward Quintuple Nosepiece is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.


Features

  • Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.
  • More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.
  • Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece).
  • Long working distance condenser N.A. 0.30, Working distance: 72mm(with condenser), Working distance: 195mm (without condenser), available for extra high culture dishes.
  • Large size stage, convenient for research. Size: 210mm(X) × 240 (Y)mm, Moving range: 128mm (X) × 80 (Y)mm.
  • Mechanical stage available for 96 holes plate.
  • Culture Dish Holder
  • Knob of X-Y mechanical stage can be changed by left or right.
  • Infinite plan 4X phase contrast objective is available.

    Item Specification
    Optical System Infinite Optical System
    Viewing Head  Seidentopf Trinocular Head, Inclined at 45°, Interpupillary Distance 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece), Eyepiece Tube Diameter 30mm
    Eyepiece  Wide Field Eyepiece WF10×/ 22mm
    Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 4×/0.11, W.D.=12.1mm
    Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 10×/0.25, W.D.=8.3mm
    Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 20×/0.40, W.D.=7.2mm
    Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 40×/0.60, W.D.=3.4mm
    Nosepiece  Backward Quintuple Nosepiece
    Condenser  Long Working Distance Condenser, N.A. 0.3, Working Distance 72mm (with condenser), 195mm (without condenser)
    Phase Annulus  10×, 20×, 40× Phase Annulus Plate
    Stage  Plain Stage 210(X)×240mm(Y), round slide plate: Φ110mm
    Stage  Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range: 128mm×80mm
    Stage  Petri Dish Holder Φ65mm
    Stage  Petri Dish Holder Φ54mm
    Stage  Petri Dish Holder Φ35mm
    Focusing  Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 10mm
    Koehler Illumination  6V/30W Halogen Lamp, Brightness Adjustable, input voltage: 100V-240V
    Filter  Blue Filter, Diameter 32mm
    Filter  Green Filter, Diameter 32mm
    C-mount 0.5× C-mount Adapter (focus adjustable)
    Packing 1carton/set, Packing Size: 66×59×33cm, Gross Weight: 18kgs, NW: 13.5kgs





LB-293 INVERTED TRINOCULAR BIOLOGICAL MICROSCOPE W/ INFINITE OPTICAL SYSTEM, WIDE FIELD EYEPIECE & BACKWARD QUINTUPLE NOSEPIECE

Brochure

separator

LB-294 Inverted Biological Microscope are high level microscopes which are specially designed for medical and health units, universities, research institutes to observe cultured living cells. With innovative infinite optical system and ergonomic design, they have excellent optical performance and easy to operate features. The microscopes have adopted long life LED lamps as transmitted and fluorescent light source. Digital cameras can be added to the microscope on left side to take photos, videos and make measurement.


The LB-294 Inverted Biological Microscope has an intelligent illumination management system, the illumination intensity will automatically change after you change the objectives and make the microscope to get the best illumination effect, LB-294 Inverted Biological Microscope also has a LCD screen to show the working mode like magnification, light intensity, transmitted or fluorescent light source, working or sleep etc.

Features

  • Excellent infinite optical system, Φ22mm wide field eyepiece, 45° inclined viewing head,
    more comfortable for observation.
  • Camera port is on left side, less disturb for operation. Light distribution (both): 100 : 0
    (100% for eyepiece); 0 : 100 (100% for camera).
  • Long working distance condenser N.A. 0.30, Working distance: 75mm(with condenser),
    Working distance: 187mm (without condenser), available for extra high culture dishes.
    Condenser is detachable, without condenser, it is suitable for culture flask.
  • Large size stage, convenient for research. Stage Size: 170mm(X) × 250 (Y)mm,
    Mechanical stage moving range: 128mm (X) × 80 (Y)mm. 6 types of petri-dish holders
    are available.
  • LB-294 Inverted Biological Microscope has an intelligent illumination management
    system.
  • The microscope body is compact, stable and suitable for clean bench. The microscope
    body has been coated with anti-UV material and can be placed into the clean bench for
    sterilization under UV lamp.
  • Phase Contrast, Hoffman Modulation Phase Contrast and 3D Emboss Contrast observation
    method are available with transmitted illumination.
  • LED Fluorescent attachment is optional.

    Item Specification
    Optical System NIS 60 Infinite Optical System, Tube length 200mm
    Viewing Head  Seidentopf Binocular Head, Inclined at 45°, Interpupillary Distance 48-75mm, Left side camera port, Light distribution: 100: 0 (100% for eyepiece), 0:100 (100% for camera), Eyepiece Tube Diameter 30mm
    Eyepiece  SW10×/ 22mm
    Objective  NIS60 Infinite LWD Plan Achromatic Objective (Parfocal distance 60mm, M25×0.75) 4×/0.1, WD=30mm
    NIS60 Infinite LWD Plan Phase Contrast Achromatic Objective (Parfocal distance 60mm, M25×0.75) PH10×/0.25, WD=10.2mm
    PH20×/0.40, WD=12mm
    PH40×/0.60, WD=2.2mm
    Nosepiece  Quintuple Nosepiece
    Coded Quintuple Nosepiece
    Condenser  Long Working Distance Condenser, N.A. 0.3, Working Distance 75mm (with condenser), 187mm (without condenser)
    Telescope Centering Telescope: used to adjust the center of phase annulus
    Phase Annulus  10×-20×-40× Phase Annulus Plate (center adjustable)
    Stage  Stage 170 (X)×250(Y) mm with glass insert plate (diameter 110mm)
    Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang: 128mm×80mm, accept 5 types of petri-dish holders, well plates and stage clips
    Universal Holder: used for Terasaki plate, glass slide and Φ35-65mm petri dishes
    Focusing  Coaxial Coarse and Fine Adjustment, tension adjustment, Fine Division 0.001mm, Fine stroke 0.2mm per rotation, Coarse stroke 37.5mm per rotation. Moving Range: up 7mm, down 1.5mm; Without limitation can up to 18.5mm
    Transmitted Illumination  3W S-LED Koehler illumination, Brightness Adjustable
    Other Accessories Dust cover
    Power Supply AC 100-240V, 50/60Hz
    Fuse T250V500mA
    Packing 2cartons/set, Packing Size: 47cm×37cm×39cm, 69cm×39cm×64cm Gross Weight: 20kgs, Net Weight: 18kgs





LB-294 INVERTED BIOLOGICAL MICROSCOPE

Brochure

separator

LB-295 Research Inverted Microscope is a research level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design.

With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this research inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head to take photos and videos.

Features

  • Excellent optical function with infinite optical system.
  • Bright field, phase contrast and DIC observation is available.
  • Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.
  • With Plan semi-APO phase contrast objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.
  • Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable.


    Item Specification
    Optical system NIS60 Infinite optical system
    Eyepiece SW10×/25mm, φ30mm
    Viewing Head Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47-78mm, 3 position beam split ratio: 50/50, 100/0, 0/100
    Plan semi-APO phase contrast objective 10×  NA=0.3  WD=8.1mm   Cover glass 1.2mm
    20×  NA=0.45  WD=7.5-8.8mm   Cover glass 0-2mm
    40×  NA=0.60  WD=3-4.4mm   Cover glass 0-2mm
    Nosepiece 6-hole nosepiece with DIC slot (DIC for transmitted and reflected)
    Condenser Long working distance condenser, NA0.55, WD=26mm, with 6-position plate
    Illumination Kohler illumination, 12V/100W halogen lamp
    ECO Auto-off function (automatically shut off in 15 mins if no users)
    Focusing Coaxial coarse&fine focusing. Movement range 9mm, coarse adjustment 2mm/rotation, fine adjustment 0.2mm/rotation
    Internal magnification 1×, 1.5×
    Side video port Switchable by turning plate, 3 models: left side port/eyepiece=50/50; right side port/eyepiece=20/80; left&right side port/eyepiece=0/100
    Phase contrast Standard
    Stage Three-layer mechanical stage, movement range 130×85mm, flexible knob. Different small sizes stage could be attached to main stage
    Fluorescent attachment Epi-fluorescence attachment with 100W HBO mercury lamp and B,G,UV fluorescent filters, field diaphragm, center adjustable.
    Multi-model plate structure, total 6 position, could be taken out from main frame and change different cube easily.





LB-295 MEDICAL RESEARCH INVERTED MICROSCOPE

Brochure

separator

LB-296 Trinocular Inverted Biological Microscope w/ Wide Field Eyepiece & Backward Quintuple Nosepiece is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.

LB-296 Trinocular Inverted Biological Microscope w/ Wide Field Eyepiece & Backward Quintuple Nosepiece is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Features

  • Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, perfect for cell observation and culture.
  • Brand-new design for life science research.
  • More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.
  • Both light ports for microscope digital camera and DSLR photography camera, available for observing with microscope digital camera and DSLR photography camera at the same time.
  • Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece).
  • Automatic infrared induction for power on-off. Power off upon user leaving 10 minutes, and power on upon user approaching.
  • Special light port for SLR digital camera, 7°inclined up to be more convenient to observe the image of the DSLR camera.
  • 12V/50W Kohler illumination makes the field more even and brighter.
  • 4-hole rotating disc phase contrast condenser as standard to change bright field and phase contrast easily.
  • Culture Dish Holders.
  • Knob of X-Y mechanical stage can be changed by left or right.
  • Infinite plan 4X phase contrast objective is available.



Item Specification
Optical System Infinite Optical System
Viewing Head  Seidentopf Trinocular Head, Inclined at 45°, Interpupillary Distance 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece), Eyepiece Tube Diameter 30mm
Eyepiece  Wide Field Eyepiece WF10×/ 22mm
Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 4×/0.11, W.D.=12.1mm
Long Working Distance Infinite Plan Achromatic Phase Contrast Objective (L Plan FL PHP) 10×/0.25, W.D.=10.3mm
20×/0.45, W.D.=5.8mm
40×/0.65, W.D.=5.1mm
Nosepiece  Backward Quintuple Nosepiece
Condenser  4-hole rotating disc phase contrast condenser, N.A.0.4, W.D.45mm, It can be adjusted up-down
Centering Telescope Centering Telescope (Φ30mm)
Phase Annulus  10×, 20×, 40× Phase Annulus Plate
Stage  Plain Stage 210(X)×240mm(Y), round slide plate: Φ110mm
Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang: 128mm×80mm
Petri Dish Holder Φ54mm
Focusing  Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 10mm
Koehler Illumination  12V/50W Halogen Lamp, Brightness Adjustable, input voltage: 100V-240V
Auto power on-off system Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching
Filter  Blue Filter, Diameter 32mm
Green Filter, Diameter 32mm
C-mount 0.5× C-mount Adapter (focus adjustable)
Adapter for DSLR Photography  100% light for Photography Port (Adapter for CANON or NIKON DSLR Digital Photography Camera)
Packing 1carton/set, Packing Size: 66cm×59cm×33cm, Gross Weight: 18kgs, Net Weight: 13.5kgs


LB-296 TRINOCULAR INVERTED BIOLOGICAL MICROSCOPE W/ WIDE FIELD EYEPIECE & BACKWARD QUINTUPLE NOSEPIECE

Brochure

separator

LB-297 Motorized Automatic Biological Microscope have been designed to present a safe, comfortable and precision observation experience. The motorized X-Y stage and nosepiece, auto focusing, touch screen controller and powerful software will make your works easier. The software has motion controlling, depth of field fusion, objective lens switching, brightness controlling, auto focusing, area scanning, image stitching, 3D imaging functions. 4pcs slide can be placed on the stage for automatic scanning, a LCD touch screen in front of the microscope, which can show magnification and illumination information. With perfectly performed structure, high-definition optical image and ergonomical operations, LB-297 Motorized Automatic Biological Microscope realize professional analysis and meet all the needs of research in biological, medical, life science and other fields.

Features

  • Adopt line motor and screw driving mode.
  • Tilting Trinocular Head is optional.
  • Nosepiece Rotating Buttons.
  • Light Intensity Management.
  • Can be controlled by the control handle and software.
Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective N-PLN Plan Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Motorized Backward Sextuple Nosepiece (with DIC slot)
Condenser Universal Condenser (4X-100X)
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Low-hand Motorized auto focusing mechanism, independent operation of left and right hand wheels, three-speed speed adjustment, focusing range 30mm, repeat positioning accuracy: 0.1μm, motorized escape and recovery mechanism
Stage High-precision motorized X-Y double layers mechanical stage, size 275 X 239 X 44.5 mm; travel: X axis, 125mm; Y axis, 75mm. Repeat positioning accuracy ±1.5μm, maximum speed 20mm/s
Control Handle 3D control handle, 4 gears speed
Controller Communication interface: USB2.0 and RS232
Other Accessories 0.5X C-mount Adapter
Dust Cover
Power Cord
Cedar Oil 5ml





LB-297 MOTORIZED AUTOMATIC BIOLOGICAL MICROSCOPE

Brochure

separator

LB-298 Motorized Automatic Biological Microscope have been designed to present a safe, comfortable and precision observation experience. The motorized X-Y stage and nosepiece, auto focusing, touch screen controller and powerful software will make your works easier. The software has motion controlling, depth of field fusion, objective lens switching, brightness controlling, auto focusing, area scanning, image stitching, 3D imaging functions. Semi-APO objectives and B, G, U, V, R fluorescent filters are available for LB-298 Motorized Automatic Biological Microscope. 4pcs slide can be placed on the stage for automatic scanning, a LCD touch screen in front of the microscope, which can show magnification and illumination information. With perfectly performed structure, high-definition optical image and ergonomical operations, LB-298 Motorized Automatic Biological Microscope realize professional analysis and meet all the needs of research in biological, medical, life science and other fields.

Features

  • Adopt line motor and screw driving mode.
  • Tilting Trinocular Head is optional.
  • Nosepiece Rotating Buttons.
  • Light Intensity Management.
  • 6-Position Turret for fluorescent filter blocks.
  • Can be controlled by the control handle and software.
Item Specification
Optical System NIS60 Infinite Color Corrected Optical System
Viewing Head Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective N-PLN Plan Objective N-PLN 4X/NA=0.10, WD=30mm
N-PLN 10X/NA=0.25, WD=10.2mm
N-PLN 20X/NA=0.40, WD=12mm
N-PLN 40X/NA=0.65, WD=0.7mm
N-PLN 100X(Oil)/NA=1.25, WD=0.2mm
Nosepiece Motorized Backward Sextuple Nosepiece (with DIC slot)
Condenser Universal Condenser (4X-100X)
Transmitted Illumination 3W S-LED lamp, center pre-set, intensity adjustable
Focusing Low-hand Motorized auto focusing mechanism, independent operation of left and right hand wheels, three-speed speed adjustment, focusing range 30mm, repeat positioning accuracy: 0.1μm, motorized escape and recovery mechanism
Stage High-precision motorized X-Y double layers mechanical stage, size 275 X 239 X 44.5 mm; travel: X axis, 125mm; Y axis, 75mm. Repeat positioning accuracy ±1.5μm, maximum speed 20mm/s
Reflected Mercury Fluorescence Attachment Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters).
Reflected Mercury Fluorescence Attachment 100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable
Reflected Mercury Fluorescence Attachment Digital power controller, wide voltage 100-240VAC
Control Handle 3D control handle, 4 gears speed
Controller Communication interface: USB2.0 and RS232
Other Accessories 0.5X C-mount Adapter
Dust Cover
Power Cord
Cedar Oil 5ml


LB-298 MOTORIZED AUTOMATIC BIOLOGICAL MICROSCOPE

Brochure

separator

LB-310 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

  • High quality, high function and excellent cost performance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Ideal instrument in the academic, medical and industrial fields

Head

Inclined Binocular Viewing Head at 45°, Un-rotatable
Interpupillary distance 55-75mm

Eyepiece

WF10× with diopter adjustment

Objective

2×, 4×

Working Distance

57mm

Illumination

Transmitted light 6V/ 12W

Incident light 6V/ 12W

Package & Dimension 68cm*31cm*38cm, 4pcs/carton,16kg







LB-310 BINOCULAR STEREO MICROSCOPE

Brochure

separator

LB-311 Binocular Stereo Microscope offers upright, un-reversed 3D images with high resolution and high quality. Optional eyepieces and objectives expand magnification range and working distances. LB-311 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

  • High quality, high function and excellent cost performance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Ideal instrument in the academic, medical and industrial fields

Head

Inclined Binocular Head at 45°, 360° Rotatable

Eyepiece

WF10× with diopter adjustment

Objective

2×, 4×

Working Distance

76mm

Illumination

Epi-illumination 12V/ 10W

Diascopic Illumination 12V/ 10W

Package & Dimension 68cm*31cm*38cm, 4pcs/carton,16kg









LB-311 BINOCULAR STEREO MICROSCOPE

Brochure

separator

LB-320 Binocular Academic Zoom Stereo Microscop e with Wide Field and LED Illumination Stereo microscopes are also known as low magnification and dissecting microscopes. LB-320 Academic Zoom Stereo Microscopes on a post stand offer upright, un-reversed 3D images that are very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

LB-320 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary, LB-320 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features



  • High quality, high function and excellent cost performance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
  • Ideal instrument in the academic, medical and industrial fields.

Viewing Head

Binocular head, inclined at 45°/Interpupillary distance 55-75mm

Eyepiece

Wide field eyepiece 10×/ 20

Objective

Zoom objective 1×~4.5×

Zoom Ratio 1:4.5

Working Distance

97mm

Illumination

LED Reflection illumination 1W

LED Transmission illumination 3W

Attachment

Photo Attachment (optional)

Video Attachment (optional)

Stage: Temperature controlled stage and power supply (optional)
Package & Dimension: 36.5cm*31cm*52cm, 4pcs/carton,6kg







LB-320 BINOCULAR ACADEMIC ZOOM STEREO MICROSCOPE WITH WIDE FIELD AND
LED ILLUMINATION

Brochure

separator

LB-321 Trinocular Academic Zoom Stereo Microscope with Wide Field and LED IlluminationStereo microscopes are also nown as low magnification and dissecting microscopes. LB-321 Trinocular Academic Zoom Stereo Microscopes on a post stand offer upright, un-reversed 3D images that are very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. LB-321 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary, LB-321 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features

  • High quality, high function and excellent cost performance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
  • Ideal instrument in the academic, medical and industrial fields.
Viewing Head Trinocular head, inclined at 45°
Eyepiece Wide field eyepiece 10×/ 20 with diopter adjustment
Objective Zoom objective 1×~4.5×
Zoom Ratio 1:4.5
Working Distance 97mm
Illumination LED Reflection illumination 1W
LED Transmission illumination 3W
Attachment Photo Attachment (optional)
Video Attachment (optional)
Stage Temperature controlled stage and power supply (optional)
Package & Dimension 36.5cm*31cm*52cm, 4pcs/carton,6kg







LB-321 TRINOCULAR ACADEMIC ZOOM STEREO MICROSCOPE WITH WIDE FIELD AND
LED ILLUMINATION

Brochure

separator

LB-327 Zoom Stereo Microscope with Trinocular Head, WF10x Eyepiece, Zoom Objective and Universal Stand offer sharp 3D images which are very clear throughout the zoom range. These microscopes are very popular and cost effective. Optional eyepieces and auxiliary objectives can expand magnification range and working distances. Cold light and ring light can be chosen for this microscope.

Features

  • 7×-45× zoom magnification power with sharp images, can be extended to 3.5×-270× with optional eyepiece and auxiliary objective.
  • High eyepoint WF10×/20mm eyepiece.
  • 100mm Long working distance.
  • Ergonomic design, sharp image, wide viewing field, high depth of field and easy to operate.
  • Ideal instrument in education, medical and industrial field.


Item Specification
Viewing Head Trinocular head, inclined at 45°, Interpupillary Distance, 54-76mm, 2:8, diopter adjustment for both tubes, 30mm tube
Eyepiece WF10×/ 20mm eyepiece (micrometer is optional)
Objective Zoom objective 0.7×-4.5×
Zoom Ratio 01:06.3
Working Distance 100mm
Head Mount 76mm
Focusing Arm Coarse focusing, focusing range 50mm
Pillar Stand ST1 single arm universal stand, no illumination, can expand the operating range and observe objects in any direction.
Vertical column height: 380mm
Column diameter: φ32mm
Horizontal movement: 235mm
Base: 230x230x40mm
With FA1 coarse focusing arm(76mm mounting size)
Package 1set/1carton, 49.5cm*48.5cm*29cm, Net/Gross Weight: 19/20kg







LB-327 ZOOM STEREO MICROSCOPE WITH TRINOCULAR HEAD, WF10X EYEPIECE, ZOOM OBJECTIVE AND UNIVERSAL STAND

Brochure

separator

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-330 Zoom Stereo Microscope offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes.

Features

  • High quality and excellent cost performance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Providing a wide viewing field of Φ22mm with the zoom ratio of 1:6.7, zoom range: 0.67×- 4.5×.
  • Transmitted & Reflected 3W LED Illumination
  • Ideal instrument in academic, medical and industrial field.

Item Specification
Optical system Greenough Optical System
Viewing Head Binocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces
Eyepiece WF10×/Φ22mm
Objective: Zoom objective 0.67×-4.5×
Zoom Ratio 01:06.7
Magnification 6.7×-45×
Working Distance 105mm
Focusing Coarse focus knob with tension adjustable, moving range: 106mm. Focusing arm diameter: 76mm
Column Height 300mm
Microscope Base Size 205×275×40mm
Illumination Reflected illumination: 5V 3W LED
Transmitted illumination: 5V 3W LED
Package 1pc/carton, 51cm*37cm*31cm, Net weight: 5.5kg, Gross weight: 6.5kg







LB-330 BINOCULAR STEREO ZOOM MICROSCOPE WITH LED ILLUMINATION

Brochure

separator

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-331 Zoom Stereo Microscope offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes.

Features

  • High quality and excellent cost performance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Providing a wide viewing field of Φ22mm with the zoom ratio of 1:6.7, zoom range: 0.67×- 4.5×.
  • Transmitted & Reflected 3W LED Illumination
  • Ideal instrument in academic, medical and industrial field.

Item Specification
Optical system Greenough Optical System
Viewing Head Trinocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces
Eyepiece WF10×/Φ22mm
Objective: Zoom objective 0.67×-4.5×
Zoom Ratio 01:06.7
Magnification 6.7×-45×
Working Distance 105mm
Focusing Coarse focus knob with tension adjustable, moving range: 106mm. Focusing arm diameter: 76mm
Column Height 300mm
Microscope Base Size 205×275×40mm
Illumination Reflected illumination: 5V 3W LED
Transmitted illumination: 5V 3W LED
Attachment 0.5× C-mount adapter (adjustable)
Package 1pc/carton, 51cm*37cm*31cm, Net weight: 5.5kg, Gross weight: 6.5kg







LB-331 TRINOCULAR STEREO ZOOM MICROSCOPE WITH LED ILLUMINATION

Brochure

separator

LB-335 Zoom Binocular Stereo Microscope is also known as low magnification and dissecting microscopes. LB-335 Zoom Binocular Stereo Microscope offer sharp 3D images with very competitive price. Optional eyepiece, auxiliary objectives, light source, stands and other accessories can fulfill different requirements.


Features

  • Well-coated optical components, providing sharp and high contrast images and ensure large depth of field.
  • High quality optical system with zoom magnification 8×-50×, zoom ratio 1:6.3.
  • Various eyepieces, objectives and other accessories can meet different requirements.
Item Specification
Viewing Head Binocular Head, Inclined at 45°, Interpupillary Distance 52-75mm
Eyepiece Extra wide field eyepiece EW10×/22mm
Zoom Objective 0.8×-5×
Zoom Ratio 6.3:1
Working Distance 115mm
Stage Plate Frosted Glass Plate, Diameter 100mm
White&Black round plate, Diameter 100mm
Focusing Unit Coarse Focus Knob with tension adjustable, Moving range 100mm
Illumination Incident Illumination 100V-240V/ LED
Transmitted Illumination 100V-240V/ LED
Package 1pc/carton, 36.5cm*31cm*52cm, 8.5kg







LB-335 ZOOM BINOCULAR STEREO MICROSCOPE

Brochure

separator

LB-336 Zoom Trinocular Stereo Microscope is also known as low magnification and dissecting microscopes. LB-336 Zoom Trinocular Stereo Microscope offer sharp 3D images with very competitive price. Optional eyepiece, auxiliary objectives, light source, stands and other accessories can fulfill different requirements.


Features

  • Well-coated optical components, providing sharp and high contrast images and ensure large depth of field.
  • High quality optical system with zoom magnification 8×-50×, zoom ratio 1:6.3.
  • Various eyepieces, objectives and other accessories can meet different requirements.
Item Specification
Viewing Head Trinocular Head, Inclined at 45°, Interpupillary Distance 52-75mm, 30:70 light distribution
Eyepiece Extra wide field eyepiece EW10×/22mm
WF15×/16mm
WF20×/12.5mm
Zoom Objective 0.8×-5×
Zoom Ratio 6.3:1
Working Distance 115mm
  Frosted Glass Plate, Diameter 100mm
Stage Plate White&Black round plate, Diameter 100mm
Focusing Unit Coarse Focus Knob with tension adjustable, Moving range 100mm
Illumination Incident Illumination 100V-240V/ LED
Transmitted Illumination 100V-240V/ LED
Package 1pc/carton, 36.5cm*31cm*52cm, 8.5kg







LB-336 ZOOM TRINOCULAR STEREO MICROSCOPE

Brochure

separator
LB-340 Zoom Binocular Stereo Microscope with Extra Wide Field and LED Illumination
Stereo microscopes are also known as low magnification and dissecting microscopes. LB-340 Zoom Stereo Microscope on a post stand
offers upright, un-reversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. LB-340 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary, LB-340 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features

  • With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
  • With LED light for both incident and transmitted illumination, providing even illumination and life expectancy of the LED light can reach 6000 hours.
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.


Viewing Head Binocular Viewing Head, Inclined at 45°
Eyepiece Extra wide field eyepiece EW10×/22 with diopter adjustment
Zoom Objective 0.8×-5×
Zoom Ratio 6.3:1
Working Distance 115mm
Interpupillary Distance 57-75mm
Stage Plate Glass Insert Plate, Diameter 100mm
White & Black round plate
Illumination Incident Illumination 100V-240V/ LED
Transmitted Illumination 100V-240V/ LED
Package & Dimension 36.5cm*31cm*52cm, 1pc/carton, 8.5kg




Brochure

separator

LB-341 Trinocular Zoom Stereo Microscope on a post stand offers upright, un-reversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

LB-341 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary, LB-341 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features

  • With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
  • With LED light for both incident and transmitted illumination, providing even illumination and life expectancy of the LED light can reach 6000 hours.
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.

Viewing Head

Trinocular Viewing Head, Inclined at 45°

Eyepiece

Extra wide field eyepiece EW10×/22 with diopter adjustment

Zoom Objective

0.8×-5×

Zoom Ratio

6.3:1

Working Distance

115mm

Interpupillary Distance

57-75mm

Stage Plate

Glass Insert Plate, Diameter 100mm

White & Black round plate

Illumination

Incident Illumination 100V-240V/ LED

Transmitted Illumination 100V-240V/ LED

Package & Dimension 36.5cm*31cm*52cm, 1pc/carton, 8.5kg




LB-341 TRINOCULAR ZOOM STEREO MICROSCOPE WITH EXTRA WIDE FIELD

Brochure

separator

LB-342 Digital LCD Stereo Microscope (5.0MP) with 9 inch HD LCD screen with HD video and HDMI output has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging and a high resolution LCD screen. A LED illumination is built-in the microscope head. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using
a traditional microscope for a long time.

Features

  • 9 Inches HD screen(1280×800) real-time display and no need to connect to computer.
  • Built in 5 Mega digital professional camera and integration of capture, video and storage.
  • 720P/30fp HD video and HDMI Output.
  • Improving working efficiency and reducing labor fatigue.
  • It can be connected to a projector and a big monitor screen at the same time.
  • Images and videos can be stored in the SD card.

LCD Screen

9 Inches HD TFT Screen

LCD Resolution

1280×800

Sensor Resolution

5 Mega Pixel (2560×1920)

Sensor Size

1/2.5 Inches

Photo Resolution

2560×1920 CMOS

Video Resolution

720P/30fps

Photo/Video Playback

Yes

Data Output

HDMI

External Interface

Projector/Monitor

Language

English

Measurement

Crosshair

Positioning

Crosshair/Arrow Pointer

Coordinate Colors

Black/White/Red/Blue/Green

Date Mode

Year, Month, Day, Hour, Minute

Objectives

Continuing Zoom Range 0.7×~4.5×

Zoom Ratio

1:6.5

Total Magnification

9×-80×

Digital Magnifications

Field of View

16×12mm-2.45×1.8mm

Working Distance

With 1× objective, 100mm
With 0.5× objective, 203mm;
With 2× objective, 50mm

Storage

SD Card (4G)

Exposure

Manual/Auto

White Balance

Manual/Auto

Color Mode

Color/Black&White/Negative

Top Illumination

Four-zone LED Ring Lighting Control

Voltage Input

100V-240V, 50Hz/60Hz

Optional Parts
(must be purchased separately)

Universal Stand

Precision Measuring Platform

Stage Micrometer

Bottom LED Light

0.5X objective

2X objective








LB-342
DIGITAL LCD STEREO MICROSCOPE (5.0MP) WITH 9 INCH HD LCD SCREEN WITH HD VIDEO AND HDMI OUTPUT

Brochure

separator

LB-343 Digital LCD Stereo Measuring Microscope (5.0MP, with measuring function) with 9 inch HD LCD screen with HD video and HDMI output has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging, a high resolution LCD screen and an accurate measurement stage. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope for a long time. It features high resolution of LCD display to generate genuine photos and videos. This unit integrates X/Y digital micrometer and moving measuring stage for measuring functions.

Features



  • It features a high resolution LCD screen to reverting genuine photo and video. This product integrates magnification, imaging, display, measurement and built-in LED illumination functions.
  • X/Y digital micrometer and moving stage for accurate measuring.
  • 9 Inches HD screen (1280×800) real-time display and no need to connect to computer.
  • Built in 5 Mega digital professional camera and integration of capture, video and storage.
  • 720P/30fp HD video and HDMI Output.
  • Images and videos can be stored in the SD card.


LCD Screen

9 Inches HD TFT Screen

LCD Resolution

1280×800

Sensor Resolution

5 Mega Pixel(2560×1920)

Sensor Size

1/2.5 Inches

Photo Resolution

2560×1920 or 1600×1200

Video Resolution

720P/30fps

Photo/Video Playback

Yes

Data Output

HDMI

External Interface

Projector/Monitor

Language

English

Measurement

Crosshair

Positioning

Crosshair/Arrow Pointer

Coordinate Colors

Black/White/Red/Blue/Green

Date Mode

Year, Month, Day, Hour, Minute

Objectives

Continuing Zoom Range 0.7×~4.5×

Zoom Ratio

1:6.5

Total Magnification

9×-80×

Digital Magnifications

Field of View

16×12mm-2.45×1.8mm

Working Distance

With 1× objective, 100mm

Storage

SD Card (4G)

Exposure

Manual/Auto

White Balance

Manual/Auto

Color Mode

Color/Black&White/Negative

Top Illumination

Four-zone LED Ring Lighting Control

Measurement Stage

Moving range: 30mm*30mm
Measuring accuracy: 0.005mm

Voltage Input

100V-240V, 50Hz/60Hz

Optional Parts
(must be purchased separately)

Universal Stand

Precision Measuring Platform

Stage Micrometer

Bottom LED Light

0.5X objective

2X objective






LB-343
DIGITAL LCD STEREO MICROSCOPE (5.0MP, WITH MEASURING FUNCTION) WITH 9 INCH HD LCD SCREEN WITH HD VIDEO AND HDMI OUTPUT

Brochure

separator

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-344 Zoom Stereo Digital Microscope with Extra Wide Field, LED Illumination and 3.2 MP Digital Camera on a post stand offers upright, un-reversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

LB-344 Zoom Stereo Digital Microscope with Extra Wide Field, LED Illumination and 3.2 MP Digital Camera and Software is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary, LB-344 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features

Viewing Head

Digital Viewing Head, Inclined at 45°, 3.2MP(2048×1536)

Eyepiece

Extra wide field eyepiece EW10×/22 with diopter adjustment

Zoom Objective

0.8×-5×

Zoom Ratio

6.3:1

Working Distance

115mm

Interpupillary Distance

57-75mm

Stage Plate

Glass Insert Plate, Diameter 100mm

White & Black round plate

Illumination

Incident Illumination 100V-240V/ LED

Transmitted Illumination 100V-240V/ LED

Package & Dimension 36.5cm*31cm*52cm, 1pc/carton, 8.5kg

Digital Camera Specification

Image Sensor

1/2 inch 3.2MP CMOS Image Sensor (4:3)

Active pixels

2048×1536

Pixel size

3.2µm × 3.2µm

Shutter type

Global reset release (GRR), electronic rolling shutter (ERS)

Image Format Frame rate

9 fps @ 2048×1536

Sensitivity

>1.0 V/lux-sec (550nm)

Dynamic range

61dB

SNR

43dB

Operating temperature

0°C ~ 60°C

Image Output

USB2.0, Directshow and Twain

Operating System

Windows 2000/XP/Vista

Software

ScopeImage 9.0







LB-344
ZOOM STEREO DIGITAL MICROSCOPE WITH EXTRA WIDE FIELD, LED ILLUMINATION AND 3.2 MP DIGITAL CAMERA

Brochure

Separator

LB-356 Digital Zoom Stereo Microscope with 5MP HD Touch Screen Digital Camera offer sharp 3 D images with very competitive price. Optional eyepieces, auxiliary objectives, light source, stands and other accessories can fulfill different requirements.

Features

  • Well-coated optical components, providing sharp and high contrast image and ensure large depth of field.
  • High quality optical system with zoom magnification 8×-50×, zoom ratio 1:6.3.
  • Various eyepieces, objectives and other accessories can meet different requirements.

Viewing Head:

Trinocular Viewing Head, Inclined at 45°, 30:70 light distribution

Eyepiece:

Extra wide field eyepiece EW10×/22,
WF15×/Φ16 (optional), WF20×/Φ12 (optional)

Zoom Objective:

0.8×-5×

Zoom Ratio:

6.3:1

Working Distance:

115mm

Interpupillary Distance:

52-75mm

Auxiliary objective:

0.5×, WD 210mm (optional), 0.7×, WD 13mm (optional),
2×, WD 45mm (optional)

Stage Plate:

Frosted Glass Plate, Diameter 100mm

White&Black round plate, Diameter 100mm

Illumination:

Incident Illumination 100V-240V/ LED

Transmitted Illumination 100V-240V/ LED

Attachment:

Photo Attachment (optional),

Video Attachment (optional)

Package & Dimension:

36.5cm*31cm*52cm, 1pc/carton, 8.5kg






LB-356 DIGITAL ZOOM STEREO MICROSCOPE WITH 5MP HD TOUCH SCREEN DIGITAL CAMERA

Brochure

separator

LB-360 Zoom Binocular Stereo Microscope with Infinity Parallel Plan Optical System (Infinity Color Corrected System) and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes.
LB-360 Zoom Binocular Stereo Microscope with Infinity Parallel Optical System and LED Illumination on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary LB-360 Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Binocular Head, 20°Inclination

Eyepiece

EW10×/Φ22 with diopter adjustment

Zoom Objective

0.8×-6.4×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 8

Working Distance

78mm

Focusing

Focusing Range 105mm

Stage Temperature controlled stage and power supply (optional)

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable







LB-360 ZOOM BINOCULAR STEREO MICROSCOPE WITH INFINITY PARALLEL PLAN OPTICAL SYSTEM AND LED ILLUMINATION

Brochure

separator

LB-361 Zoom Binocular Stereo Microscope with Infinity Parallel Plan Optical System (Infinity Color Corrected System) and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes.
LB-361 Zoom Binocular Stereo Microscope with Infinity Parallel Optical System and LED Illumination on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary LB-361 Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Binocular Head, 20°Inclination

Eyepiece

EW10×/Φ22 with diopter adjustment

Zoom Objective

0.8×-5×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 6

Working Distance

78mm

Focusing

Focusing Range 105mm

Stage Temperature controlled stage and power supply (optional)

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable







LB-361 ZOOM BINOCULAR STEREO MICROSCOPE WITH INFINITY PARALLEL PLAN OPTICAL SYSTEM AND LED ILLUMINATION

Brochure


separator

LB-362 Binocular Zoom Stereo Microscope with Infinity Parallel Plan Optical System (Infinity Color Corrected System) and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-362 Binocular Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary , LB-362 Binocular Zoom Stereo Microscope with Infinity Parallel Optical System and LED Illumination give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Binocular Head, 20°Inclination

Eyepiece

EW10×/Φ22 with diopter adjustment

Zoom Objective

0.8×-8×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 10

Working Distance

78mm

Focusing

Focusing Range 105mm

Stage Temperature controlled stage and power supply (optional)

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable

Package 49cm x 40cm x 56cm, 1 pc/carton, 9.5kg
Dimensions & G.W. 36cm x 31cm x 67cm, 8kg







LB-362 BINOCULAR ZOOM STEREO MICROSCOPE WITH INFINITY PARALLEL PLAN OPTICAL SYSTEM AND LED ILLUMINATION

Brochure

separator

LB-363 Trinocular Zoom Stereo Microscope with Infinity Parallel Optical System and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-363 Trinocular Zoom Stereo Microscope with Infinity Parallel Optical System and LED Illumination on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary LB-363 Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Trinocular Head, 20°Inclination

Eyepiece

EW10×/Φ22, diopter adjustable on both eyepieces

Zoom Objective

0.8×-8×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 10

Interpupillary Distance 55-75mm

Working Distance

78mm

Focusing

Focusing Range 105mm

Stage Temperature controlled stage and power supply (optional)

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable

Photo Attachment One Phototube







LB-363 ZOOM TRINOCULAR STEREO MICROSCOPE WITH INFINITY PARALLEL PLAN OPTICAL SYSTEM AND LED ILLUMINATION

Brochure

separator

LB-365 Trinocular Zoom Stereo Microscope with Infinity Parallel Plan Optical System (Infinity Color Corrected System) and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-365 Trinocular Zoom Stereo Microscope with Infinity Parallel Optical System and LED Illumination on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, LB-365 Trinocular Zoom Stereo Microscope with Infinity Parallel Optical System and LED Illumination give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Binocular Head, 20°Inclination

Eyepiece

EW10×/Φ22, wotj diopter adjustmemt

Zoom Objective

0.8×-6.4×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 8

Working Distance 78mm

Focusing

Focusing Range 105mm

Stage Temperature controlled stage and power supply (optional)

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable







LB-365 TRINOCULAR ZOOM STEREO MICROSCOPE WITH INFINITY PARALLEL OPTICAL SYSTEM AND LED ILLUMINATION

Brochure

separator

LB-366 Trinocular Zoom Stereo Microscope with Infinity Parallel Zoom Plan Optical System (Infinity Color Corrected System) and LED Illumination

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-366 Trinocular Zoom Stereo Microscope with Infinity Parallel Zoom Optical System and LED Illumination on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, LB-366 Trinocular Zoom Stereo Microscope with Infinity Parallel Zoom Optical System and LED Illumination give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both reflected and transmitted illumination, providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Optical System

Infinity Parallel Zoom Optical System

Drawing Tube

Binocular Head, 20°Inclination

Eyepiece

EW10×/Φ22 with diopter adjustment

Zoom Objective

0.8×-5×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 6

Working Distance

78mm

Focusing

Focusing Range 105mm

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable







LB-366 TRINOCULAR ZOOM STEREO MICROSCOPE WITH INFINITY PARALLEL ZOOM PLAN OPTICAL SYSTEM AND LED ILLUMINATION

Brochure

separator

LB-367 Binocular Zoom Fluorescent Stereo Microscope with Infinity Parallel Zoom Plan Optical System (Infinity Color Corrected System) and LED Illumination (Zoom Ratio 1:6) with Phototube Attachment

Flourescent stereo microscope realizes fluorescence observation of living cell, widely used in biology, industrial inspection, criminal justice etc. It is an essential tool of fluorescence inspection for security printing and ideal instruments for mineral research.

Features

  • Infinite Parallel Zoom Optical System
  • Extra Wide Field Eyepiece
  • Fluorescent attachments
  • One zoom objectives
  • One plan achromatic objective
  • Transmission & Reflection LED Illumination, Brightness Adjustable
  • 100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display
  • Phototube attachment for connecting cameras

Optical System

Infinite Parallel Zoom Optical System

Viewing Head

Binocular Head, 20°Inclination, Interpupillary Distance 55-75mm

Eyepiece

EW10×/Φ22 with diopter adjustment

Fluorescent Attachment GFP-B (EX460-500,DM505,BA510-560),
GFP-L (EX460-500,DM505,BA510)

Zoom Objective

0.8×-5×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 6

Working Distance

78mm

Focusing

Focusing Range 105mm

Stand Stand

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable
100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display







LB-367 BINOCULAR ZOOM FLUORESCENT STEREO MICROSCOPE WITH INFINITY PARALLEL ZOOM PLAN OPTICAL SYSTEM AND LED ILLUMINATION (ZOOM RATIO 1:6) WITH PHOTOTUBE ATTACHMENT

Brochure

separator

LB-368 Binocular Zoom Fluorescent Stereo Microscope with Infinity Parallel Zoom Plan Optical System (Infinity Color Corrected System) and LED Illumination (Zoom Ratio 1:8) with Phototube Attachment

Flourescent stereo microscope realizes fluorescence observation of living cell, widely used in biology, industrial inspection, criminal justice etc. It is an essential tool of fluorescence inspection for security printing and ideal instruments for mineral research.

Features

  • Infinite Parallel Zoom Optical System
  • Extra Wide Field Eyepiece
  • Fluorescent attachments
  • One zoom objectives
  • One plan achromatic objective
  • Transmission & Reflection LED Illumination, Brightness Adjustable
  • 100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display
  • Phototube attachment for connecting cameras
  • Optical System

    Infinite Parallel Zoom Optical System

    Viewing Head

    Binocular Head, 20°Inclination, Interpupillary Distance 55-75mm

    Eyepiece

    EW10×/Φ22

    Fluorescent Attachment GFP-B (EX460-500,DM505,BA510-560),
    GFP-L (EX460-500,DM505,BA510)

    Zoom Objective

    0.8×-6.4×

    Objective

    Plan Achromatic Objective 1×

    Zoom Ratio

    1: 8

    Working Distance

    78mm

    Focusing

    Focusing Range 105mm

    Stand Coaxial Coarse Focusing Stand

    Illumination

    Transmission & Reflection LED Illumination, Brightness Adjustable
    100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display





LB-368 BINOCULAR ZOOM FLUORESCENT STEREO MICROSCOPE WITH INFINITY PARALLEL ZOOM PLAN OPTICAL SYSTEM AND LED ILLUMINATION (ZOOM RATIO 1:8) WITH PHOTOTUBE ATTACHMENT

Brochure

separator

LB-369 Binocular Zoom Fluorescent Stereo Microscope with Infinity Parallel Zoom Plan Optical System (Infinity Color Corrected System) and LED Illumination (Zoom Ratio 1:10) with Phototube Attachment

Flourescent stereo microscope realizes fluorescence observation of living cell, widely used in biology, industrial inspection, criminal justice etc. It is an essential tool of fluorescence inspection for security printing and ideal instruments for mineral research.

Features

  • Infinite Parallel Zoom Optical System
  • Extra Wide Field Eyepiece
  • Fluorescent attachments
  • One zoom objectives
  • One plan achromatic objective
  • Transmission & Reflection LED Illumination, Brightness Adjustable
  • 100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display
  • Phototube attachment for connecting cameras

Optical System

Infinite Parallel Zoom Optical System

Viewing Head

Binocular Head, 20°Inclination, Interpupillary Distance 55-75mm

Eyepiece

EW10×/Φ22 with diopter adjustment

Fluorescent Attachment GFP-B (EX460-500,DM505,BA510-560),
GFP-L (EX460-500,DM505,BA510)

Zoom Objective

0.8×-8×

Objective

Plan Achromatic Objective 1×

Zoom Ratio

1: 10

Working Distance

78mm

Focusing

Focusing Range 105mm

Stand Coaxial coarse & fine focusing stand

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable
100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display





LB-369 BINOCULAR ZOOM FLUORESCENT STEREO MICROSCOPE WITH INFINITY PARALLEL ZOOM PLAN OPTICAL SYSTEM AND LED ILLUMINATION (ZOOM RATIO 1:10) WITH PHOTOTUBE ATTACHMENT

Brochure

separator

The LB-370 Wide Field Digital Zoom Stereo Microscope features a large viewing field without an eyepiece. Users can see sharp and stereoscopic images from the lens in microscope head. Built-in LED illumination provides bright and even light for comfortable viewing, brightness can be adjusted with the external power box. The microscopes are easy to operate and widely applied to biological dissection, electronics producing and inspection, minerals, historical relic restoration. etc.

Features

  • With high quality optical components, providing sharp and high contrast image at super-long working distance, super-large viewing field, large depth of focus, reduce the fatigue and improve the working efficiency.
  • With LED light, Providing even illumination and life expectancy can reach 60000 hours.
  • Various objectives are available, 2×, 4×, 6× objectives are standard, 8×, 10×, 15× and 6×SL objectives are optional. The objectives can be conveniently changed.

Viewing Head

2× high quality optical head without eyepieces

Objective

2×, WD: 208mm, FOV: 68mm

4×, WD: 98mm, FOV: 34mm

6×, WD: 80mm, FOV: 22.7mm

8×, WD: 58mm, FOV: 17mm (optional)

10×, WD: 46mm, FOV: 13.6mm (optional)

15×, WD: 50mm, FOV: 9.1mm (optional)

6×SL(Super Long working distance), WD: 115mm, FOV: 22.7mm (optional)

Total magnification

4×-12×

Illumination

3W built-in LED illumination with external control box

Stand

Column height 500mm, moving range 200mm, Base 400×300×20mm

Focus

Coarse focus with focus knob on stand





LB-370 WIDE FIELD DIGITAL ZOOM STEREO MICROSCOPE

Brochure

separator

The LB-371 Wide Field Digital Zoom Stereo Microscope with Adjustable Stage features a large viewing field without an eyepiece. Users can see sharp and stereoscopic images from the lens in microscope head. Built-in LED illumination provides bright and even light for comfortable viewing, brightness can be adjusted with the external power box. The microscopes are easy to operate and widely applied to biological dissection, electronics producing and inspection, minerals, historical relic restoration. etc.

Features

  • With high quality optical components, providing sharp and high contrast image at super-long working distance, super-large viewing field, large depth of focus, reduce the fatigue and improve the working efficiency.
  • With LED light, Providing even illumination and life expectancy can reach 60000 hours.
  • Various objectives are available, 2×, 4×, 6× objectives are standard, 8×, 10×, 15× and 6×SL objectives are optional. The objectives can be conveniently changed.

Viewing Head

2× high quality optical head without eyepieces

Objective

2×, WD: 208mm, FOV: 68mm

4×, WD: 98mm, FOV: 34mm

6×, WD: 80mm, FOV: 22.7mm

8×, WD: 58mm, FOV: 17mm (optional)

10×, WD: 46mm, FOV: 13.6mm (optional)

15×, WD: 50mm, FOV: 9.1mm (optional)

6×SL(Super Long working distance), WD: 115mm, FOV: 22.7mm (optional)

Total magnification

4×-12×

Illumination

3W built-in LED illumination with external control box

Stand

Column height 500mm, moving range 200mm, Base 400×300×20mm, with adjustable stage

Focus

Coarse focus with focus knob on stand





LB-371 WIDE FIELD DIGITAL ZOOM STEREO MICROSCOPE WITH ADJUSTABLE STAGE

Brochure

separator

The LB-372 Wide Field Digital Zoom Stereo Microscope with Universal Stand features a large viewing field without an eyepiece. Users can see sharp and stereoscopic images from the lens in microscope head. Built-in LED illumination provides bright and even light for comfortable viewing, brightness can be adjusted with the external power box. The microscopes are easy to operate and widely applied to biological dissection, electronics producing and inspection, minerals, historical relic restoration. etc.

Features

  • With high quality optical components, providing sharp and high contrast image at super-long working distance, super-large viewing field, large depth of focus, reduce the fatigue and improve the working efficiency.
  • With LED light, Providing even illumination and life expectancy can reach 60000 hours.
  • Various objectives are available, 2×, 4×, 6× objectives are standard, 8×, 10×, 15× and 6×SL objectives are optional. The objectives can be conveniently changed.

Viewing Head

2× high quality optical head without eyepieces

Objective

2×, WD: 208mm, FOV: 68mm

4×, WD: 98mm, FOV: 34mm

6×, WD: 80mm, FOV: 22.7mm

8×, WD: 58mm, FOV: 17mm (optional)

10×, WD: 46mm, FOV: 13.6mm (optional)

15×, WD: 50mm, FOV: 9.1mm (optional)

6×SL (Super Long working distance), WD: 115mm, FOV: 22.7mm (optional)

Total magnification

4×-12×

Illumination

3W built-in LED illumination with external control box

Stand

Universal stand can be fixed on table

Focus

Focus with handle on head





LB-372 WIDE FIELD DIGITAL ZOOM STEREO MICROSCOPE WITH UNIVERSAL STAND

Brochure

separator

LB-373 Dual Viewing Head Zoom Stereo Teaching Microscope w/ Infinity Parallel Optical System on a heavy stand offers upright, un-reversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives are available to expand magnification range and working distances.

Optional cold light and ring light are available for this microscope. You can also choose beam splitter to add digital camera with the appropriate camera adapter. LB-373 Dual Viewing Head Zoom Stereo Teaching Microscope w/ Infinity Parallel Optical System give the greatest range of magnifications, working distances, photo options, various accessories and are the most convenient to use.

It is an outstanding assistant in Industrial, Medical and Scientific Research areas.



Features

  • Excellent Image Quality & Optical Performance with Infinity Galilean Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • Can apply for double people observations of the same specimen simultaneously, eliminate the defects of digital teaching.
  • The built-in dual color(red and green) pointer can be switched as request, convenient for teaching.



Item Specification
Optical System Infinite Parallel Zoom Optical System
Viewing Head Binocular Head, 20°Inclination, Interpupillary Distance 55-75mm
Eyepiece EW10×/Φ22mm
Pointer Red and Green LED pointer
Zoom Objective 0.8×-6.4×
Objective Plan Achromatic Objective 1×, W.D.: 78mm
Zoom Ratio 01:08
Focusing Unit Coarse Focus Knob with tension adjustable, Moving range 215mm
Illumination Right light(LED/fluorescent)
Base Size 420x350mm
Toughened Glass Stage 250x250mm





LB-373 DUAL VIEWING HEAD ZOOM STEREO TEACHING MICROSCOPE W/ INFINITY PARALLEL OPTICAL SYSTEM

Brochure

separator
LB-380 Trinocular Parallel Light Zoom Stereo Microscope w/ High Eye-Point Wide Field Eyepiece & Infinite Parallel Galileo Optical System is based on Galileo optical system and Apochromatic objective, it can provide real and perfect microscopic images on details. The excellent ergonomics and user-friendly operating system can truly allow users to experience a simple and comfortable work. The Mirror in the base can be 360 °rotatable to achieve the best observation results. LB-380 can meet the research demands of life sciences, biomedicine, microelectronics, semiconductors, materials science and other fields of research needs.

Features

  • Tilting viewing head for comfortable operation.
    Tilting viewing head from 5 to 45 degrees, can be flexibly adjusted for different operators with different posture.
  • Large zoom ratio 12.5:1.
    LB-380 has large zoom ratio of 12.5:1, zoom range from 0.8X to 10X, with click stop for main magnifications, the images remain clear and smooth during zoom magnifying.
  • Apochromatic objective.
    Apochromatic design has significantly improved the color reproduction of the objective. Correcting the axial chromatic aberration of red/green/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples. 2X apochromatic objective is optional.
  • Aperture diaphragm adjustment.
    Shift the aperture diaphragm lever in front of the microscope to adjust depth of field for high-quality image.


Item Specification
Optical System Infinite Parallel Galileo Zoom Optical System
Viewing Head Tilting trinocular viewing head, 5-45 degree adjustable; binocular: trinocular=100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
Eyepiece High eye-point wide field plan eyepiece PL10×/23mm, diopter adjustable
  Zoom range: 0.8X-10X, click stop for 0.8×, 1×, 1.5×, 2×, 3×, 4×, 5×, 6×, 8×, 10×, with built-in aperture diaphragm
Zoom Range
Objective Plan Apochromatic Objective 1×, W.D.: 78mm
Zoom Ratio 01:12.5
  Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm
Focusing Unit
Base Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location and angle adjustable
Illumination 5W LED light box (size: 270×100×130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V




LB-380 TRINOCULAR PARALLEL LIGHT ZOOM STEREO MICROSCOPE W/ HIGH EYE-POINT WIDE FIELD EYEPIECE & INFINITE PARALLEL GALILEO OPTICAL SYSTEM

Brochure

separator

LB-390 Parallel Light Zoom Trinocular Stereo Microscope with Infinite Optical System and Plan Apochromatic Objective is a research level zoom stereo microscope with infinite parallel Galileo optical system. Based on Galileo optical system and Apochromatic objective, it can provide real and perfect microscopic images on details. The excellent ergonomics and user-friendly operating system can truly allow users to experience a simple and comfortable work. The zoom ratio is 18:1, with 10× eyepiece, the magnification range is 7.5×-135×.

LB-390 Parallel Light Zoom Trinocular Stereo Microscope with Infinite Optical System and Plan Apochromatic Objective can meet the research demands of life sciences, biomedicine, microelectronics, semiconductors, materials science and other fields of research needs.

Features

  • Trinocular viewing head for comfortable operation.
    The interpupillary distance and diopter can be adjusted, users can operate the microscope with the most comfortable gesture. This can minimize the visual fatigue caused by long-term observation. Trinocular tube with C-mount can be used to connect different digital cameras.
  • Large zoom ratio 18:1.
    LB-390 has large zoom ratio of 18:1, zoom range from 0.75X to 13.5X, with click stop for main magnifications, the images remain clear and smooth during zoom magnifying.
  • Apochromatic objective.
    Apochromatic design has significantly improved the color reproduction of the objective. Correcting the axial chromatic aberration of red/green/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples. The 1X objective is NA0.15.
  • Aperture diaphragm adjustment.
    Shift the aperture diaphragm lever in front of the microscope to adjust depth of field for high-quality image.
Item Specification
Optical System Infinite Parallel Galileo Zoom Optical System
Viewing Head 30 degree inclined trinocular head; binocular: trinocular=100:0, 20:80; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
Eyepiece High eye-point wide field plan eyepiece PL10×/23mm, diopter adjustable
Zoom Range Zoom range: 0.75X-13.5X, click stop for 0.75×, 1×, 2×, 3×, 4×, 5×, 6×, 8×, 10×, 11×, 12×, 13×, 13.5×, with built-in aperture diaphragm
Objective Plan Apochromatic Objective 1×, W.D.: 60mm, NA0.15
Zoom Ratio 1:18
Focusing Unit Coarse and fine coaxial focus system, tension adjustable, coarse moving range 50mm, fine precision 0.002mm
Base Plan base with transmitted illumination
Illumination LED transmitted illumination, brightness adjustable
Packing 1set/carton, Net/Gross weight: 14/16kg, Carton size: 59×55×81cm





LB-390 PARALLEL LIGHT ZOOM TRINOCULAR STEREO MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND PLAN APOCHROMATIC OBJECTIVE

Brochure

separator

LB-400 Trinocular Industrial Inspection and Integrated Circuit Inspection Microscope with Extra Wide Field and Infinity Plan Optical System (Infinity Color Corrected System) is specially designed for precise industrial inspection. It adopts an Infinity optical system and long working distance high-power objective lens. It provides an outstanding optical performance and available to IT industry, large-scale integrated circuits, chips observation and testing. It is stable, easy and comfortable to operate.

Features

  • Big Stage with Extra Large Moving Range 250×250mm.
  • Well designed structure, easy to operate. It is specially used in IT Industry for Large Area Integrated
    Circuit, Wafer Observation and Inspection.
  • Excellent Optical Quality with Infinite Optical System.
  • Stage Speedy Movement by Hand to Get Observation Point Immediately.
  • Comfortable and Enjoyable Operation with Low and Pre Position Control Knob.

Viewing Head

Trinocular Head

Eyepiece

Extra Wide Field Eyepiece EW10X/ 22 with diopter adjustment

Objective

Infinitive Plan Achromatic Objectives

4×/ 0.1     WD25.4mm

10×/ 0.25 WD11mm

20×/ 0.4 WD6mm

40×/ 0.6 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Stage 300×268mm/ 250×250mm

Focusing

Coaxial Coarse & Fine Adjustment, Range24mm

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable

Filter

Blue, Green, Yellow and Ground Glass






LB-400 TRINOCULAR INDUSTRIAL INSPECTION AND INTEGRATED CIRCUIT INSPECTION MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITY OPTICAL SYSTEM


Brochure
separator

LB-401 Trinocular Industrial Inspection and Integrated Circuit Inspection Microscope with Extra Wide Field and Infinity Optical System (Infinity Color Corrected System)is specially designed for precise industrial inspection. It adopts an Infinity optical system and long working distance high-power objective lens. It provides an outstanding optical performance and available to IT industry, large-scale integrated circuits, chips observation and testing. It is stable, easy and comfortable to operate.

Features

  • Big Stage with Extra Large Moving Range 250×250mm.
  • Well designed structure, easy to operate. It is specially used in IT Industry for Large Area Integrated Circuit, Wafer Observation and Inspection.
  • Excellent Optical Quality with Infinite Optical System.
  • Stage Speedy Movement by Hand to Get Observation Point Immediately.
  • Comfortable and Enjoyable Operation with Low and Pre Position Control Knob.
  • Suitable for different Specimen Observation with Polarization Set.
  • Easy, Safe and Reliable Lamp Replacement Device
  • Available for Measuring with digital Camera and software

Viewing Head

Seidentopf type trinocular head

Eyepiece

Extra Wide Field Eyepiece EW10×/ 22 with diopter adjustment

Objective

Infinitive  Plan Achromatic Objectives
5×/0.12/∞/-            WD 15.5mm
10×/0.25/∞/- (BF/DF)   WD 10.0mm
20×/0.40/∞/0 (BF/DF)    WD 4.3mm
50×/0.75/∞/0           WD 0.32mm
100×/0.8/∞/0           WD 2.0mm

Nosepiece

Quintuple Nosepiece

Focusing

Coaxial coarse & fine Adjustment, Moving Range 24mm

Illumination 24V / 100W Halogen Lamp, Brightness Adjustable






LB-401 TRINOCULAR INDUSTRIAL INSPECTION AND INTEGRATED CIRCUIT INSPECTION MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITY OPTICAL SYSTEM
Brochure

separator

The LB-530 Polarizing Binocular Microscope feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

FEATURES

  • Excellent Infinite Optical System.
  • Widely used in geology, Mineralogy, Fossil fuel exploration.
  • Single polarization, othorgonal polarization or conoscopic observation is available.
    Item LB-530
    Optical System Infinite Optical System
    Viewing Head Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.
    Eyepiece WF10×/20 mm
    WF10×/20 mm (Reticule 0.1mm)
    LWD Infinite Strain Free Plan Achromatic Objective (Reflected) 5×/0.13 (S)      W.D=24.23mm
    10×/0.25 (S)      W.D=18.48mm
    20×/0.40 (S)      W.D=8.35mm
    50×/0.70 (S)     W.D=1.95mm
    Nosepiece Backward Quintuple nosepiece, center adjustable
    Analyzer Unit Rotatable 360°, module type, can be locked
    Bertrand Lens Built In, Center Adjustable
    Optical Compensator λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)
    Revolving Round Stage Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’
    Focusing Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm
    Reflecting Polarizing Unit  With field diaphragm, aperture diaphragm, polarizer,
    12V/50W halogen lamp (Input voltage:100V~240V)
    Filter Blue
    Packing Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs




LB-530 POLARIZING BINOCULAR MICROSCOPE
Brochure

separator

The LB-531 Polarizing Trinocular Microscope feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Features

  • Excellent Infinite Optical System.
  • Widely used in geology, Mineralogy, Fossil fuel exploration.
  • Single polarization, othorgonal polarization or conoscopic observation is available.
Item LB-531
Optical System Infinite Optical System
Viewing Head Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.
Eyepiece WF10×/20 mm
WF10×/20 mm (Reticule 0.1mm)
Infinite Strain Free 4×/0.10       W.D=10.0mm
Plan Achromatic Objective (Transmitted) 10×/0.25      W.D=2.1mm
20×/0.40(S)   W.D=2.41mm
40×/0.66(S)   W.D=0.45mm
LWD Infinite Strain Free Plan Achromatic Objective (Reflected) 50×/0.70 (S)     W.D=1.95mm
Nosepiece Backward Quintuple nosepiece, center adjustable
Analyzer Unit Rotatable 360°, module type, can be locked
Bertrand Lens Built In, Center Adjustable
Optical Compensator λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)
Revolving Round Stage Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’
Focusing Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm
Swing-out Condenser N.A.0.9/0.13 swing out condenser
Polarizing Unit  with Scale, Rotatable 360°, Can Be Locked
Transmitted Illumination Koehler Illumination 6V/20W Halogen Lamp (Input voltage:100V~240V)
Reflecting Polarizing Unit  With field diaphragm, aperture diaphragm, polarizer,
12V/50W halogen lamp (Input voltage:100V~240V)
Filter Blue
Packing Packing size 750mm×360mm×450mm, Gross Weight 16kgs, Net Weight 12kgs





LB-531 POLARIZING TRINOCULAR MICROSCOPE
Brochure

Separator

LB-540 Binocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System is equipped with a smooth, rotating, graduated stage and a set of polarizers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates. It is equipped with an infinite optical system, a comfortable viewing head and a set of Strain-free Infinity Plan Objectives which give a magnification range of 40X – 400X.

Features

  • Color corrected infinity optical system.
  • Infinity strain free plan objectives, ensuring excellent resolution and clarity.
  • Center adjustable nosepiece and center adjustable rotating platform make the operation more accurate and reliable.
Optical system: Infinity color corrected optical system
Viewing Head: Seidentopf  Binocular head, inclined 30 degree, rotatable 360 degree, Interpupillary  distance 50-75mm.
Eyepiece: WF 10X/18mm
WF 10X/18mm (graticule 0.1mm)
Objective: Strain free plan objectives 4x, 10x, 20x, 40x(s)
Nosepiece: Center adjustable Quadruple nosepiece
Analyzing Unit: Rotatable 90 degree (Module type, can be locked)
Bertrand Lens: Inbuilt, Center adjustable
Optical components: λ slip first class red
¼ λ slip
(I-IV class) Quartz wedge
Stage: Revolving round stage, rotatable 360 degree, center adjustable, division 1 degree, Vernier division 6 degree
Condenser: Abbe N.A. 1.25 Non-stress
Polarizing unit: With scale rotatable 360 degree, can be locked
Illumination: 6V/20W Halogen Lamp OR can be supplied with LED Illumination
Filter: Blue (built-in)




LB-540 BINOCULAR TRANSMITTED POLARIZING MICROSCOPE WITH HALOGEN ILLUMINATION AND INFINITY COLOR CORRECTED OPTICAL SYSTEM
Brochure

Separator

LB-541 Trinocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System is equipped with a smooth, rotating, graduated stage and a set of polarizers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates. It is equipped with an infinite optical system, a comfortable viewing head and a set of Strain-free Infinity Plan Objectives which give a magnification range of 40X – 400X.

Features

  • Color corrected infinity optical system.
  • Infinity strain free plan objectives, ensuring excellent resolution and clarity.
  • Center adjustable nosepiece and center adjustable rotating platform make the operation more accurate and reliable.
Viewing Head: Sliding binocular viewing head, Inclined at 45°
Eyepiece: Eyepiece WF10×/ 18 with Scale of Crosshair
Eyepiece WF10×/ 18 with graticule
Eyepiece WF10×/ 18
Objective: Strain free plan objectives 4x, 10x, 20x, 40x(s)
Nosepiece: Backward Quadruple Nosepiece, Center Adjustable
Analyzer: Rotatable Analyzer with Gradation 0°-90°
Bertrand Lens: Bertrand Lens, Sliding in/ out of Optical Path
Optical Compensator: λ Slip(first class red), 1/ 4λ Slip, Quartz wedge
Revolving Round Stage: Diameter Φ160mm, Graduated in1° Increments,
Minimum Resolution 6’ when using Vernier Scale
Focusing: Coaxial Coarse & Fine Adjustment, Range 28mm,
Fine Division 0.002mm
Illumination: 12V/ 50W Halogen Lamp, Brightness Adjustable
Accessories: Mechanical stage, Moving range 30 x 40 mm
0.01 Micrometer




LB-541 TRINOCULAR TRANSMITTED POLARIZING BINOCULAR MICROSCOPE WITH HALOGEN ILLUMINATION AND INFINITY COLOR CORRECTED OPTICAL SYSTEM
Brochure

Separator

LB-560 Polarizing Microscope is equipped with a smooth, rotating, graduated stage and a set of polarisers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates.


It is equipped with a comfortable viewing, adjustable binocular head and a fine set of achromatic objectives giving a magnification range of 40X – 400X. The analyser mounted in the head is retractable and the polariser is mounted over the collector near the lamp and is rotatable though 360deg. The microscope is also supplied with a rack and pinion mounted, adjustable condenser with a 20W illumination source and coarse/fine focus knobs with limit stoppers and tension adjustment.

Features

  • Easy to operate.
  • Eyepiece with Scale of Crosshair, easy to analyze.
  • With polarizing accessories.
Item Specification
Viewing Head  Sliding Binocular Head at 45°, 360° Rotatable
Eyepiece Eyepiece WF10×/ 18 with Scale of Crosshair
Eyepiece WF10×/ 18
Objective Strain free Achromatic Objective 4×, 10×, 40×
Nosepiece Toward Quadruple Nosepiece, Center Adjustable
Analyzer Rotatable Analyzer with Gradation 0°-90°
Bertrand Lens  Bertrand Lens, Sliding in/ out of Optical Path
Optical Compensator λ Slip(first class red)
1/ 4λ Slip
Quartz wedge
Revolving Round Stage Diameter Φ160mm, Graduated in1° Increments, Minimum Resolution 6’ when using Vernier Scale
Condenser Abbe Condenser with Iris Diaphragm & Filter
Focusing Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm
Polarizer Sliding in/ out of Optical Path, Located on the Top of Collector
Illumination 6V/ 20W Halogen Lamp, Brightness Adjustable






LB-560 POLARIZING MICROSCOPE


Brochure


separator

LB-570 Binocular Polarizing Microscope w/ Backward Quadruple Nosepiece & Transmitted/Reflected Illumination System feature a highly robust construction and first class optics designed to provide a long life and excellent quality images. LB-570 Binocular Polarizing Microscope w/ Backward Quadruple Nosepiece & Transmitted/Reflected Illumination System have transmitted and reflected illumination system, which give a much better effect and wider application. The microscopes can be used for Single polarization, othorgonal polarization and conoscopic observation. Digital camera can be used together with the microscope for image analysis. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.


Features

  • Excellent Infinite Optical System.
  • Widely used in geology, Mineralogy, Fossil fuel exploration.
  • Single polarization, othorgonal polarization or conoscopic observation is available.
  • Transmitted and reflected illumination system offers a much better effect and wider application
  • Attachable stage is optional.

Item Specification
Optical System Infinite Optical System
Viewing Head Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-75mm
Eyepiece WF10×/ 20mm
WF10×/ 20mm with cross hair
WF10×/ 20mm with scale of cross hair
Infinite strain free plan achromatic objective Objective 4×, 10× for Reflected/Transmitted System
Objective 20×, 40×, 60× for Transmitted System
Nosepiece Backward quadruple nosepiece, center adjustable
Analyzer Rotatable analyzer with gradation 0°-360°
Bertrand Lens  Bertrand lens, focus/center adjustable, sliding in/out of optical path
Optical Compensator λ Slip (first class red), 1/ 4λ Slip, Quartz wedge
Revolving Round Stage Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale
Condenser NA 0.9 Abbe Condenser with Iris Diaphragm
Focusing Coaxial Coarse & Fine Adjustment, Range 24mm, Fine Division 0.002mm
Polarizer 360° Rotatable with Filter
Transmitted Illumination 12V/ 20W Halogen Lamp, Brightness Adjustable
Accessories  Micrometer 0.01mm
Filter




separator

LB-571 Polarizing Trinocular Microscope with Infinite Plan Optical System (Infinity Color Corrected System) is specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors. They are also used in chemical fiber industry, semiconductor  industry  and  the  pharmaceutical  inspection  industry  more  and  more.  The   LB-571 Polarizing Trinocular Microscope with Infinite Optical System features a highly robust construction and first class optics designed to provide a long life and excellent quality images. The microscopes can be used for Single polarization, orthogonal polarization and conoscopic observation. Digital camera can be used together with the microscope for image analysis. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.

Features

  • Excellent Infinite Optical System
  • Widely used in geology, Mineralogy, Fossil fuel exploration
  • Single polarization, orthogonal polarization or conoscopic observation is available.

FOR USE WITH TRANSPARENT SPECIMENS

Optical System Infinite Optical System

Viewing Head

Seidentopf Trinocular Viewing Head, inclined at 30°, 360°
Rotatable

Eyepiece

WF10×/ 20 with scale of Crosshair,
WF10×/ 20 with Graticule
WF10×/ 20

Objective

Infinite strain free plan achromatic objective 4×,
10×, 20×, 40×, 60×

Nosepiece

Backward Quadruple Nosepiece, Center Adjustable

Analyzer

Rotatable Analyzer with Gradation 0°-360°

Bertrand Lens

Bertrand Lens, Sliding in/out of Optical Path

Optical Compensator

λ Slip(first class red), 1/ 4λ Slip, Quartz Wedge

Revolving Round Stage

Diameter Φ160mm, Graduated in 1°Increments,
Minimum Resolution 6’ when using Vernier Scale

Condenser

NA0.9 Abbe Condenser with Iris Diaphragm & Filter

Focusing

Coaxial Coarse & Fine Adjustment, Range 24mm, Fine Division 0.002mm

Polarizer

360°Rotatable

Illumination

12V/ 30W Halogen Lamp, Brightness Adjustable
(Transmitted illumination)

Accessories Mechanical stage moving range 30x40mm
Micrometer
Color Correction Filter




separator

LB-572 Polarizing Photo Microscope Binocular Transmission and Reflection System with Infinite Plan Optical System (Infinity Color Corrected System)are specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors. They are also used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry more and more. The LB-572 polarizing microscope features a highly robust construction and first class optics designed to provide a long life and excellent quality images. The microscopes can be used for Single polarization, orthogonal polarization and conoscopic observation. Digital camera can be used together with the microscope for image analysis. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.

Features

  • Excellent Infinite Optical System
  • Widely used in geology, Mineralogy, Fossil fuel exploration
  • Single polarization, orthogonal polarization or conoscopic observation is available.



Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Viewing Head, inclined at 30°, 360° Rotatable

Eyepiece

WF10×/ 20 with scale of Crosshair

WF10×/ 20 with Graticule

WF10×/ 20

Infinite strain free plan achromatic objective

Reflected/transmitted objective: 4×, 10×

Transmitted objective: 20×, 40×, 60×

Nosepiece

Backward quadruple nosepiece, center adjustable

Epi-Illumination

12V/50W halogen lamp, brightness adjustable; variable aperture diaphragm / field diaphragm

Analyzer

Rotatable analyzer with gradation 0°-360°

Bertrand Lens

Bertrand lens, sliding in/out of optical path

Optical Compensator

λ Slip (first class red), 1/ 4λ Slip, Quartz wedge

Revolving
Round Stage

Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale

Condenser

NA 0.9 Abbe Condenser with Iris Diaphragm & Filter

Focusing

Coaxial Coarse & Fine Adjustment, Range 24mm,
Fine Division 0.002mm

Polarizer

360°Rotatable

Transmitted Illumination

12V/ 30W Halogen Lamp, Brightness Adjustable

Accessories

Mechanical stage moving rang 30x40mm
Micrometer
Color correction filter




separator

LB-573 Polarizing Photo Microscope Tr inocular Transmission and Reflection System with Infinite Plan Optical System (Infinity Color Corrected System)are specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors. They are also used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry more and more. The LB-572 polarizing microscope features a highly robust construction and first class optics designed to provide a long life and excellent quality images. The microscopes can be used for Single polarization, orthogonal polarization and conoscopic observation. Digital camera can be used together with the microscope for image analysis. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.

Features

  • Excellent Infinite Optical System
  • Widely used in geology, Mineralogy, Fossil fuel exploration
  • Single polarization, orthogonal polarization or conoscopic observation is available.

Optical System

Infinite Color Corrected Optical System

Viewing Head

Seidentopf Trinocular Viewing Head, inclined at 30°, 360° Rotatable

Eyepiece

WF10×/ 20 with scale of Crosshair

WF10×/ 20 with Graticule

WF10×/ 20

Infinite strain free plan achromatic objective

Reflected/transmitted objective: 4×, 10×

Transmitted objective: 20×, 40×, 60×

Nosepiece

Backward quadruple nosepiece, center adjustable. Only a quadruple nosepiece is available.

Epi-Illumination

12V/50W halogen lamp, brightness adjustable; variable aperture diaphragm / field diaphragm

Analyzer

Rotatable analyzer with gradation 0°-360°

Bertrand Lens

Bertrand lens, sliding in/out of optical path

Optical Compensator

λ Slip (first class red), 1/ 4λ Slip, Quartz wedge

Revolving
Round Stage

Diameter Φ160mm, Graduated in 2μm increments, Minimum resolution 6’ when using vernier scale

Condenser

NA 0.9 Abbe Condenser with Iris Diaphragm & Filter

Focusing

Coaxial Coarse & Fine Adjustment, Range on the Z-axis is 24mm, Fine Division 0.002mm

Polarizer

360°Rotatable

Transmitted Illumination

12V/ 30W Halogen Lamp, Brightness Adjustable. The illumination can only be halogen, but quartz wedge compensator is standard.

Camera/Computer Connections (optional)

The LC-2 or LC-15 work well with this microscope, the camera can be connected to a PC with a USB cable.




separator

LB-592 Polarizing Trinocular Microscopes with Infinite Optical System (Infinity Color Corrected System) are specifically  designed  for  university  colleges,  geology,  mining, metallurgy, pharmacy and other institutions for teaching, research and production. It can be used to analyze and identify various minerals and specimens,  it can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope.

Features

  • Trinocular head, digital cameras can be easily used on this microscope for image and video taking.
  • Supply high quality and contrast image with special strain free objectives.
  • Can be used for single polarization, othorgonal polarization and conoscopic observation.
  • Transmitted illumination, 24V/100W long life halogen lamp.
  • Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.
  • Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.



Viewing Head

Seidentopf trinocular viewing head, Inclined at 30°

Eyepiece

Plan Eyepiece EW 10X/22
Plan Eyepiece with scale of crosshair and gridding

Objective

Strain free plan achromatic objective 4X, 10X, 40X, 100X

Nosepiece

Backward quintuple nosepiece, Center adjustable

Analyzer

Rotatable analyzer with gradation 0°-90°

Bertrand Lens

Bertrand lens, Sliding in/out of optical path

Optical Compensator

λ Slip(first class red), 1/ 4λ Slip, Quartz Wedge

Revolving Round Stage

Diameter Φ160mm, Graduated in 1°Increments, Minimum resolution 6’ when using vernier scale 111111

Condenser

Strain Free Swing out condenser NA 0.9/0.25

Focusing

Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm

Polarizer

360°Rotatable, 0° position adjustable

Illumination

24V/100W Halogen lamp, brightness adjustable (Transmitted)

Filter

Blue Filter Φ45mm

Conscopic Observation

Switch between Orthoscopic and Conscopic Observation. Bertrand Lens, Position Adjustable

Optional Accessories (must be ordered separately)

Mechanical stage, Moving range 30X40mm




separator

LB-593 Reflected Polarizing Trinocular Microscope with Infinite Optical System (Infinity Color Corrected System) is specifically  designed  for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. They can be used to analyze and identify various minerals and specimens, they can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope.

Features

  • Trinocular head, digital cameras can be easily used on this microscope for image and video taking.
  • Supply high quality and contrast image with special strain free objectives.
  • Can be used for single polarization, othorgonal polarization and conoscopic observation.
  • Reflected illumination, 24V/100W long life halogen lamp.
  • Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.
  • Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.
  • High  quality  professional  polarizing  microscope  for  geology,  petroleum, chemicals,  mining, metallurgy, pharmacy, polymer, LED and other field.

FOR USE WITH NON-TRANSPARENT SPECIMENS

Optical System: Infinite Optical System
Viewing Head: Seidentopf trinocular head, Inclined at 30°, Interpupillary 48-75mm
Eyepiece: Plan Eyepiece EW10×/22
Plan eyepiece with scale of crosshair, Plan eyepiece with crosshair, Plan eyepiece with gridding
Strain-Free Plan
Achromatic Objective:

5×/0.12/∞/-, WD 15.5mm

10×/0.25/∞/-, WD 10.0mm

20×/0.4/∞/0, WD 5.8mm

50×/0.75/∞/0, WD 0.32mm

100×/0.8/∞/0, WD 2mm

Nosepiece: Backward Quintuple nosepiece, Center Adjustable
Analyzer:

0°-360° rotatable  analyzer  with  gradation,  minimum gradation: 0.1°

Conoscopic Observation: Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable
Optical Compensator: λ Slip(first class red), 1/ 4λ Slip, Quartz wedge
Polarizing Rotatable Stage:

Diameter  Φ170mm,  center  adjustable,  360°  scale,  minimum division 1°, minimum reading vernier scale 6’, 45° click stop knob

Focusing: Coaxial coarse & fine adjustment, range 32mm, fine division 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation
Polarizer: Reflected: Fixed
Illumination: 24V/100W Halogen lamp, brightness adjustable (Reflected)




separator

LB-594 Transmitted and Reflected Polarizing Trinocular Microscopes with Infinite Optical System (Infinity Color Corrected System) are  specifically  designed  for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. They can be used to analyze and identify various minerals and specimens, they can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope.

Features

  • Trinocular head, digital cameras can be easily used on this microscope for image and video taking.
  • Supply high quality and contrast image with special strain free objectives.
  • Can be used for single polarization, othorgonal polarization and conoscopic observation.
  • Reflected and transmitted illumination, 24V/100W long life halogen lamp.
  • Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.
  • Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.
  • High  quality  professional  polarizing  microscope  for  geology,  petroleum, chemicals,  mining, metallurgy, pharmacy, polymer, LED and other field.

FOR USE WITH NON-TRANSPARENT SPECIMENS

Optical System: Infinite Optical System
Viewing Head: Seidentopf trinocular head, Inclined at 30°,
Interpupillary 48-75mm
Eyepiece: Plan Eyepiece EW10×/22
Plan eyepiece with scale of crosshair, Plan eyepiece with crosshair, Plan eyepiece with gridding
Strain-Free Plan
Achromatic Objective:

5×/0.12/∞/-, WD 15.5mm

10×/0.25/∞/-, WD 10.0mm

20×/0.4/∞/0, WD 5.8mm

50×/0.75/∞/0, WD 0.32mm

100×/0.8/∞/0, WD 2mm

40×/0.65/∞/0.17, WD 0.54mm

100×/1.25/∞/0.17, WD 0.13mm

Nosepiece: Backward Quintuple nosepiece, Center Adjustable
Analyzer:

0°-360° rotatable  analyzer  with  gradation,
minimum gradation: 0.1°

Conoscopic Observation:
Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable
Optical Compensator: λ Slip(first class red), 1/ 4λ Slip, Quartz wedge
Polarizing Rotatable Stage:

Diameter  Φ170mm,  center  adjustable,  360°  scale,  minimum division 1°, minimum reading vernier scale 6’, 45° click stop knob

Condenser: Strain free swing out condenser NA0.9/0.25
Focusing: Coaxial coarse & fine adjustment, range 32mm, fine division 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation
Polarizer: Transmitted: 360°Rotatable, 0°position adjustable
Reflected: Fixed
Illumination: Reflected light: 24V/100W Halogen lamp, brightness adjustable
Transmitted light: 24V/100W Halogen lamp, brightness adjustable
Filter: Blue filter Φ45mm




separator

LB-601 Binocular Metallurgical Microscope with Infinite Plan Optical System (Infinity Color Corrected System) is a very professional microscope which is specially designed for metallurgical analysis. With excellent optical system, an Ingenious stand and convenient operation, it will be your best choice.

Features

  • Excellent infinite Optical System.
  • High Magnification Objective with Long Working Distance (up to 3.7mm for 40X Objective)
  • Comfortable and Enjoyable Operation with low and Repetitive Position Control knob
  • Triangle Structure makes it much steadier and less working space occupation
  • Easy, Safe and Reliable Lamp Replacement Device



Viewing Head

Seidentopf type binocular head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

WF10×/18 with diopter adjustment



Objective

Infinitive plan achromatic objectives

4×/0.1/∞/- WD25.4mm
10×/0.25/∞/- WD11.0mm
40×/0.60/∞/0 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Double layer mechanical stage150×140mm/75×50mm

Focusing

Coaxial Fine & Coarse Adjustment

Illumination

Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters

Blue, Green, Yellow & Frosted Filters





LB-601 BINOCULAR METALLURGICAL MICROSCOPE WITH INFINITE PLAN
OPTICAL SYSTEM


Brochure


separator

LB-602 Trinocular Inverted Metallurgical Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. To facilitate the users to save images such as metallographic analysis, and operational needs, LB-602 Trinocular Inverted Metallurgical Microscope with Infinite Plan Optical System can be fit to a imaging system with optional digital camera system, which makes the microscope to enlarge image analysis.

Features

  • Infinitive optical system provides excellent optical functions.
  • With the stable stand structure, advanced stage design and comfortable operation.



Viewing Head

Trinocular head inclined at 30°, interpupillary distance 48-75mm

Eyepiece

High-point , extra wide field eyepiece EW10×/ 20

Infinite Plan Achromatic Objective

4×/ 0.1, 10×/ 0.25, 20×/ 0.40, 40×/ 0.60

Nosepiece

Quintuple nosepiece

Stage

Plain stage with slide clips

Focusing

Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation

Kohler Illumination

Halogen lamp 6V/ 30W

Filter

Blue, Yellow, Green and Frosted

Attachments Polarization Attachment





LB-602 TRINOCULAR INVERTED METALLURGICAL MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM

Brochure


separator

LB-603 Trinocular Metallurgical Microscope with Infinite Plan Optical System (Infinity Color Corrected System) is a very professional microscope which is specially designed for metallurgical analysis. With excellent optical system, an Ingenious stand and convenient operation, it will be your best choice.

Features

  • Excellent infinite Optical System.
  • High Magnification Objective with Long Working Distance (up to 3.7mm for 40X Objective)
  • Comfortable and Enjoyable Operation with low and Repetitive Position Control knob
  • Triangle Structure makes it much steadier and less working space occupation
  • Easy, Safe and Reliable Lamp Replacement Device



Viewing Head

Seidentopf, Trinocular Head, inclined at 30°

Eyepiece

WF10×/18

Objective

Infinitive plan achromatic objectives
4×/0.1/∞/- WD25.4mm
10×/0.25/∞/- WD11.0mm
40×/0.60/∞/0 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Double layer mechanical stage150×140mm/75×50mm

Focusing

Coaxial Fine & Coarse Adjustment

Illumination

Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters
Blue, Green, Yellow & Ground Glass





LB-603 TRINOCULAR METALLURGICAL MICROSCOPE WITH INFINITE PLAN
OPTICAL SYSTEM


Brochure


separator

LB-605 Portable Metallurgical Microscope with Plan Eyepiece is a portable metallurgical microscope, it has vertical light source, it is easily to be used in field to identify the structures of all kinds of metal and alloy when failure occurs in making sample. It can be widely used for identification of casting quality, inspection of raw material or metallurgical structures research and analysis of processed material in factory and laboratory, also can be used in antique gem and surface observation.

LB-605 adopts a rechargeable LED illuminator, it is portable and easy to use. It can work more than 40 hours after one charge.

The magnetic base is optional and is available on the LB-606, it can be adsorbed solidly on the work piece, it is adapted to various diameter pipes and flat, the magnetic base can be adjusted from X, Y directions.

Eyepiece

Plan eyepiece 10×/18mm

Objective

Long work distance plan objective: 10×, 50×

Total Magnification

100×-500×

Mechanical tube length

160mm

Focusing range

20mm

Illumination

Adjustable LED light(chargeable)

Dimension

23cm*11cm*7cm

Weight

0.75kg

Complete set of the instrument

Microscope Body

1 set

Eyepiece 10×

1 unit

Plan Metallurgical Objective 10×

1 unit

Plan Metallurgical Objective 50×

1 unit

LED Illumination

1 set

Power source battery charger

1 unit





LB-605 METALLURGICAL MICROSCOPE WITH
PLAN EYEPIECE


Brochure


separator

LB-606 Portable Metallurgical Microscope with Magnetic Base and Plan Eyepiece is a portable metallurgical microscope, it has vertical light source, it is easily to be used in field to identify the structures of all kinds of metal and alloy when failure occurs in making sample. It can be widely used for identification of casting quality, inspection of raw material or metallurgical structures research and analysis of processed material in factory and laboratory, also can be used in antique gem and surface observation.

LB-606 adopts a rechargeable LED illuminator, it is portable and easy to use. It can work more than 40 hours after one charge.

The magnetic base is optional and is available on the LB-606, it can be adsorbed solidly on the work piece, it is adapted to various diameter pipes and flat, the magnetic base can be adjusted from X, Y directions.

Features

Eyepiece

Plan eyepiece 10×/18mm

Objective

Long work distance plan objective: 10×, 50×

Total Magnification

100×-500×

Mechanical tube length

160mm

Focusing range

20mm

Illumination

Adjustable LED light(chargeable)

Dimension

23cm*11cm*7cm

Weight

0.75kg

Complete set of the instrument

Microscope Body

1 set

Eyepiece 10×

1 unit

Plan Metallurgical Objective 10×

1 unit

Plan Metallurgical Objective 50×

1 unit

LED Illumination

1 set

Power source battery charger

1 unit

Magnetic Base

1 unit





LB-606 METALLURGICAL MICROSCOPE
WITH MAGNETIC BASE
AND PLAN EYEPIECE


Brochure


Separator

LB-610 Binocular Metallurgical Microscope with Infinite Plan Optical System, Extra Wide Field, 5 objectives, Backward Quintuple Nosepiece, Reflected Kohler and Halogen Illumination, Polarizer and Analyzer are high level metallurgical microscopes with Reflected / Transmitted & Reflected illumination system, they not only can be used to identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also can be applied to micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Features

  • Infinite optical system provides excellent optical functions.
  • Laboratory metallurgical microscope, including bright field, dark field, polarization observation system.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for industry inspection and science research.



Optical System

Infinite optical system

Viewing Head:

Seidentopf binocular viewing head, inclined at 30°, interpupillary distance 48-75mm

Extra Wide Field Eyepiece:

WF10×/22 with diopter adjustment

WF10×/22 Eyepiece with scale of cross hair with diopter adjustment

Infinite Plan Achromatic Objective:

5×/0.12/∞/- (BF/DF)       LWD 10mm

10×/0.25/∞/- (BF/DF)      LWD 10mm

20×/0.40/∞/0 (BF/DF)      LWD 5.0mm

50×/0.75/∞/0 (BF/DF)      LWD 1.3mm

100×/0.90(Dry)/∞/0 (BF)   LWD 0.7mm

Nosepiece:

Backward quintuple nosepiece

Stage:

Double layer mechanical stage 188×148mm, Moving range 78×54mm

Focusing:

Coaxial coarse & fine adjustment, fine division 2μm, moving range 30mm

Kohler Illumination:

Reflected 12V/50W Halogen light, Center and brightness adjustable

Polarizer and analyzer

Green, Gray and Frosted filter

Accessories:

Micrometer scale 0.01mm






LB-610 BINOCULAR METALLURGICAL MICROSCOPE WITH INFINITE PLAN OPTICAL SYSTEM, EXTRA WIDE FIELD,
5 OBJECTIVES, BACKWARD QUINTUPLE NOSEPIECE, REFLECTED KOHLER AND HALOGEN ILLUMINATION, POLARIZER AND ANALYZER


Brochure


Separator
LB-612 Binocular Metallurgical Microscope with Infinite Plan Optical System, Extra Wide Field, 7 objectives, Backward Quintuple Nosepiece, Reflected and Transmitted Kohler and Halogen Illumination, Polarizer and Analyzer are high level metallurgical microscopes with Reflected / Transmitted & Reflected illumination system, they not only can be used to identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also can be applied to micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Features

  • Infinite optical system provides excellent optical functions.
  • Laboratory metallurgical microscope, including bright field, dark field, polarization observation system.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for industry inspection and science research.



Optical System: Infinite optical system
Viewing Head: Seidentopf binocular viewing head, inclined at 30°, interpupillary distance 48-75mm
Extra Wide Field Eyepiece: WF10×/22 with diopter adjustment
WF10×/22 Eyepiece with scale of cross hair with diopter adjustment
Infinite Plan Achromatic Objective: 5×/0.12/∞/- (BF/DF)       LWD 10mm
10×/0.25/∞/- (BF/DF)      LWD 10mm
20×/0.40/∞/0 (BF/DF)      LWD 5.0mm
50×/0.75/∞/0 (BF/DF)      LWD 1.3mm
100×/0.90(Dry)/∞/0 (BF)   LWD 0.7mm
40×/0.65/∞/0.17 (BF)       WD 0.6mm
100×/1.25/∞/0.17 (BF)      WD 0.16mm
Nosepiece: Backward quintuple nosepiece
Stage: Double layer mechanical stage 216×150mm, Moving range 78×54mm
Focusing: Coaxial coarse & fine adjustment, fine division 2μm, moving range 30mm
Kohler Illumination: Reflected 12V/50W Halogen light, Center and brightness adjustable
Transmitted 12V/20W Halogen light, Center and brightness adjustable
Polarizer and analyzer
Green, Gray and Frosted filter
Accessories: Micrometer scale 0.01mm



LB-612 BINOCULAR METALLURGICAL MICROSCOPE WITH INFINITE PLAN OPTICAL SYSTEM, EXTRA WIDE FIELD, 7 OBJECTIVES, BACKWARD QUINTUPLE NOSEPIECE, REFLECTED AND TRANSMITTED KOHLER AND HALOGEN ILLUMINATION, POLARIZER AND ANALYZER

Brochure

Separator

LB-615 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives Extra Wide Field, Reflected and Kohler are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice. DIC observation attachment is optional for these microscopes to meet some special requirements.

Features

  • Laboratory metallurgical microscope, including bright field, dark field and polarization observation system, DIC attachment is also optional.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for metallurgical analysis, industry inspection and science research.



Optical System: Infinite optical system
Viewing Head: Seidentopf trinocular viewing head, inclined at 30°, interpupillary distance 48mm-75mm
Eyepiece: Extra wide field eyepiece EW10×/22, eyepiece tube Φ30mm with diopter adjustment
Infinite Plan Achromatic Objective: 5×/ 0.12/∞/ - (BF/DF)   WD 12mm
10×/ 0.25/∞/ - (BF/DF)  WD 10.0mm
20×/ 0.4/∞/ 0 (BF/DF)   WD 4.3mm
50×/ 0.75/∞/ 0 (BF/DF)  WD 0.32mm
100×/ 0.8/∞/ 0 (BF/DF)  WD 2mm
Maximum Sample Height: 50mm
Reflected Light: 24V/100W Halogen light, Brightness adjustable
Kohler illumination and aspherical condenser
Blue, Green, Yellow and Frosted filter
Focusing: Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm
Nosepiece: Backward quintuple nosepiece
Stage: Double layer mechanical stage(without hole) 186×138mm/ 74mm×50mm







LB-615 TRINOCULAR LABORATORY METALLURGICAL MICROSCOPE WITH INFINITE OPTICAL SYSTEM, BRIGHT FIELD AND DARK FIELD OBJECTIVES, EXTRA WIDE FIELD, REFLECTED AND KOHLER ILLUMINATION

Brochure

Separator
LB-616 Trinocular Laboratory Metallurgical Microscope with Infinite Optical System, Bright Field and Dark Field Objectives, Extra Wide Field, Reflected, Transmitted and Kohler Illumination are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice. DIC observation attachment is optional for these microscopes to meet some special requirements.

Features

  • Laboratory metallurgical microscope, including bright field, dark field and polarization observation system, DIC attachment is also optional.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for metallurgical analysis, industry inspection and science research.



Optical System: Infinite optical system
Viewing Head: Seidentopf trinocular viewing head, inclined at 30°, interpupillary distance 48mm-75mm
Eyepiece: Extra wide field eyepiece EW10×/22, eyepiece tube Φ30mm with diopter adjustment
Infinite Plan Achromatic Objective: 5×/ 0.12/∞/ - (BF/DF)   WD 12mm
10×/ 0.25/∞/ - (BF/DF)  WD 10.0mm
20×/ 0.4/∞/ 0 (BF/DF)   WD 4.3mm
40×/ 0.65/∞/ 0.17       WD 0.54mm
100×/ 1.25/∞/ 0.17      WD 0.13mm
50×/ 0.75/∞/ 0 (BF/DF)  WD 0.32mm
100×/ 0.8/∞/ 0 (BF/DF)  WD 2mm
Maximum Sample Height: 30mm
Reflected Light: 24V/100W Halogen light, Brightness adjustable
Kohler illumination and aspherical condenser
Blue, Green, Yellow and Frosted filter
Transmitted Light: Swing-out condenser NA0.9/ 0.25
24V/100W Halogen light and aspherical condenser
Blue filter
Nosepiece: Backward quintuple nosepiece
Stage: Double layer mechanical stage 186×138mm/ 74mm×50mm
  Specimen preparation plate
Slide glass





LB-616 TRINOCULAR LABORATORY METALLURGICAL MICROSCOPE WITH INFINITE OPTICAL SYSTEM, BRIGHT FIELD AND DARK FIELD OBJECTIVES, EXTRA WIDE FIELD, REFLECTED, TRANSMITTED AND KOHLER ILLUMINATION

Brochure

separator

LB-619 Inverted Trinocular Metallurgical Microscope with Infinite Plan Optical System (Infinity Color Corrected System), Extra Wide Field and Kohler Illumination can identify and analyze not only a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating and so on. Digital cameras can be added to the trinocular tube to take images and make image analysis. DIC observation is optional.

Features

  • Infinite optical system provides excellent optical functions.
  • DIC observation is optional.
  • Meet most of your requirements by high performance optical system, technological innovation and high stability.

    Optical System Infinite optical system
    Viewing Head Seidentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
    Extra Wide Field Eyepiece EW10×/ 22 with diopter adjustment
    EW10×/ 20 Eyepiece with scale of cross hair
    Infinite LWD Plan Achromatic Objective 5×/0.12/∞/0 (BF/DF)    LWD 10.0mm
    10×/0.25/∞/0 (BF/DF)   LWD 10.0mm
    20×/0.40/∞/0 (BF/DF)   LWD 5.0mm
    50×/0.75/∞/0 (BF/DF)   LWD 1.3mm
    100×/0.90/∞/0 (BF/DF)  LWD 0.7mm (Dry)
    Nosepiece Backward quintuple nosepiece
    Stage Double layer mechanical stage 226×178mm,
    Moving range 40mm×40mm
    Small stage plate, Φ20mm, Φ30mm,
    Focusing Coaxial coarse & fine adjustment, fine division 2μm, move up 1mm, down 7mm
    Kohler Reflected Illumination 12V/50W Halogen lamp, center and brightness adjustable
    Polarizer and analyzer
    Built-in Green, Blue, Yellow, Gray and Frosted filters
    Optional Accessories
    (must be purchased separately)
    Micrometer scale 0.01mm
    Photo Attachment
    Video Attachment with C Mount





LB-619 INVERTED TRINOCULAR METALLURGICAL MICROSCOPE WITH INFINITE PLAN OPTICAL SYSTEM, EXTRA WIDE FIELD AND KOHLER ILLUMINATION

Brochure

separator

LB-620 Trinocular Laboratory Metallurgical Microscope with Extra Wide Field, Bright Field and Dark Field with Infinite Plan Optical System (Infinity Color Corrected System) is a high level professional microscope which is specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, it will be your best choice.

Features

  • Laboratory metallurgical microscope, including bright field and dark field systems.
  • Powerful transmitted and reflected system with Kohler illumination.
  • Ideal instrument for metallurgical analysis, industry inspection and science research.

  • Optical System

    Infinite optical system

    Viewing Head

    Seidentopf trinocular viewing head, inclined at 30°, interpupillary distance 48mm-75mm

    Eyepiece

    Extra wide field eyepiece EW10×/22 with diopter adjustment

    Infinite Plan Achromatic Objective

    5×/ 0.12/ ∞/ - (BF)

    10×/ 0.25/ ∞/ - (BF/DF)

    20×/ 0.4/ ∞/ 0 (BF/DF)

    50×/ 0.75/ ∞/ 0 (BF)

    100×/ 0.9/ ∞/ 0 (BF)

    40×/ 0.65/ ∞/ 0.17

    100×/ 1.25/ ∞/ 0.17

    Maximum Sample Height

    30mm

    Reflected Light

    24V/100W Halogen light, lightness adjustable

    Kohler illumination and aspherical condenser

    Blue, Green, Yellow and Ground glass

    Transmitted Light

    Swing-out condenser NA0.9/ 0.25

    24V/ 100W Halogen light and aspherical condenser

    Blue filter

    Focusing

    Coaxial coarse and fine adjustment, fine division 1μm

    Nosepiece

    Backward quintuple nosepiece



    Stage

    Double layer mechanical stage 186×138mm/ 74mm×50mm

    Specimen preparation plate

    Slide glass





LB-620 TRINOCULAR LABORATORY METALLURGICAL MICROSCOPE WITH EXTRA WIDE FIELD , BRIGHT FIELD, AND DARK FIELD WITH INFINITE PLAN OPTICAL SYSTEM

Brochure

separator

LB-625 Research Upright Metallurgical Trinocular Microscope with Infinite Optical System and Infinite LWD Plan Objectives have been developed for research with a number of pioneering design in appearance and functions, with wide field of view, high definition and bright/dark field semi-apochromatic metallurgical objectives and ergonomical operating system, they are born to provide a perfect research solution and develop a new pattern of industrial field. The objectives could be motorized controlled by the buttons on the microscope front base, the illumination intensity will change after changing objective.

Features

  • Excellent Infinite Optical System
  • Modular Design
  • Convenient
  • Comfortable and Easy to Use
  • Various Observation Methods
Item Specification
Optical System NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)
Viewing Head Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) 5X/NA=0.15, WD=20mm
10X/NA=0.3, WD=11mm
20X/NA=0.45, WD=3.0mm
NIS45 Infinite LWD Plan APO Objective (BF & DF) 50X/NA=0.8, WD=1.0mm
100X/NA=0.9, WD=1.0mm
Nosepiece Backward Motorized Sextuple Nosepiece (with DIC slot)
Reflected Illumination Reflected light 12W/100W halogen lamp, Koehler illumination, with 6 position turret
100W halogen lamp house
BF1 bright field module
BF2 bright field module
DF dark field module
Built-in ND6, ND25 filter and color correction filter
ECO Function ECO function with ECO button
Motorized Control Nosepiece control panel with buttons. 2 of the most commonly used objectives could be set and switch by pressing the green button. The light intensity will be automatically adjusted after changing the objective
Focusing Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm
Max. Specimen Height 76mm
56mm
Stage Double layers mechanical stage, size 210mmX170mm; moving range 105mmX105mm (Right or left handle); precision: 1mm; with hard oxidized surface to prevent abrasion, Y direction could be locked
Other Accessories Dust Cover
Power Cord
Optional Accessories 0.5X C-mount Adapter
1X C-mount Adapter
Calibration slide 0.01mm
Specimen Presser


LB-625 RESEARCH UPRIGHT METALLURGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM AND INFINITE LWD PLAN OBJECTIVES

Brochure

separator

LB-625T Research Upright Metallurgical Trinocular Microscope with Infinite Optical System and Infinite LWD Plan Objectives have been developed for research with a number of pioneering design in appearance and functions, with wide field of view, high definition and bright/dark field semi-apochromatic metallurgical objectives and ergonomical operating system, they are born to provide a perfect research solution and develop a new pattern of industrial field. The objectives could be motorized controlled by the buttons on the microscope front base, the illumination intensity will change after changing objective.

Features

  • Excellent Infinite Optical System
  • Modular Design
  • Convenient
  • Comfortable and Easy to Use
  • Various Observation Methods
Item Specification
Optical System NIS45 Infinite Color Corrected Optical System (Tube length: 180mm)
Viewing Head Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100
Eyepiece Super wide field plan eyepiece SW10X/25mm, diopter adjustable
Objective NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) 5X/NA=0.15, WD=20mm
10X/NA=0.3, WD=11mm
20X/NA=0.45, WD=3.0mm
NIS45 Infinite LWD Plan APO Objective (BF & DF) 50X/NA=0.8, WD=1.0mm
100X/NA=0.9, WD=1.0mm
Nosepiece Backward Motorized Sextuple Nosepiece (with DIC slot)
Condenser LWD condenser N.A.0.65
Transmitted Illumination 12V/100W halogen lamp, Kohler illumination, with ND6/ND25 filter
Reflected Illumination Reflected light 12W/100W halogen lamp, Koehler illumination, with 6 position turret
100W halogen lamp house
BF1 bright field module
BF2 bright field module
DF dark field module
Built-in ND6, ND25 filter and color correction filter
ECO Function ECO function with ECO button
Motorized Control Nosepiece control panel with buttons. 2 of the most commonly used objectives could be set and switch by pressing the green button. The light intensity will be automatically adjusted after changing the objective
Focusing Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm
Max. Specimen Height 76mm
56mm
Stage Double layers mechanical stage, size 210mmX170mm; moving range 105mmX105mm (Right or left handle); precision: 1mm; with hard oxidized surface to prevent abrasion, Y direction could be locked
Other Accessories Dust Cover
Power Cord
Optional Accessories 0.5X C-mount Adapter
1X C-mount Adapter
Calibration slide 0.01mm
Specimen Presser





LB-625T RESEARCH UPRIGHT METALLURGICAL TRINOCULAR MICROSCOPE WITH INFINITE OPTICAL SYSTEM, INFINITE LWD PLAN OBJECTIVES 5X, 10X, 20X, 50X, 100X AND LWD CONDENSER

Brochure

separator

LB-701 Trinocular Upright Fluorescent Biological Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) uses ultraviolet as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope.

Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.



Optical System

Infinite Optical System

Viewing Head

Seidentopf Trinocular Head Inclined at 30°,Interpupillary Distance 48-75mm

Eyepiece

Extra Wide Field Eyepiece EW10×/22

Nosepiece

Backward Quintuple Nosepiece

Objective

Infinite Plan Achromatic Objective 4× 10× 40× 100×

Condenser

Swing Condenser NA 0.9/ 0.25

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm

Stage

Double Layers Mechanical Stage 185×142/ 75×55 mm

Kohler Illumination

External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460~490

DM500

BA520



Green excitation

BP510~550

DM570

BA590



Lamp

100W HBO Ultra Hi-voltage Spherical Mercury Lamp

Protection Barrier

Barrier to Resist the Ultraviolet Light

Power Supplier

Power Supplier NFP-1, 220V/ 110V interchangeable , Digital Display

Immersion Oil

Fluorescent Free Oil

Filter ND25 Filter (optional)
Ultraviolet Excitation Filter (optional)
Violet Excitation Filter (optional)





LB-701 TRINOCULAR UPRIGHT FLUORESCENT BIOLOGICAL
MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM

Brochure

separator

LB-702 Inverted Trinocular Fluorescent Biological Microscope with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) uses ultraviolet as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope. LB-702 Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. Excellent high resolution fluorescent objectives provide high quality fluorescent images. Infinitive Optical System gives excellent Optical performance. This microscope can be your best assistant in laboratory research.

Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.
  • Excellent Optical Function with Infinitive Optical System.
  • Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.



Optical System Infinite Optical System
Viewing Head Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Eyepiece High-point, Extra Wide Field Eyepiece EW10×/ 22
Nosepiece Quintuple Nosepiece
Objective Long Working Distance Infinite Plan Objective 4×/0.1, WD 18mm
40×/0.6, WD 2.6mm
Infinite Plan Phase Objective PH 10×/0.25, WD 10mm
PH 20×/0.4, WD 5.1mm
Condenser Extra Long Working Distance Condenser NA 0.3, LWD 72mm
Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation
Stage Plain stage 160×250 mm
Glass Insert
Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm (Optional - must be purchased separately)
Auxiliary Stages70×180mm
Terasaki Holder (Optional - must be purchased separately)
ф38mm Petri Dish Holder (Optional - must be purchased separately)
ф54mm Slide Glass Holder (Optional - must be purchased separately)
Illumination Halogen Lamp6V/ 30W
Filter Blue/ Green and Frosted GlassFilter (ф45mm)
Filters (Optional)
Ultraviolet Excitation Filter, Violet Excitation Filter
Video Adapter Video Adapter with C Mount (Optional - must be purchased separately)
Reflected Light Source

Excitation

Dichroic Mirror

Barrier Filter

Blue excitation BP460~ 490 DM500 BA520

Green excitation BP480~ 550 DM570 BA590

Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
Protection barrier Barrier to Resist the Ultraviolet Light
Power Supplier Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display
Immersion Oil Fluorescent Free Oil
Centering Plate




LB-702 INVERTED
TRINOCULAR FLUORESCENT BIOLOGICAL MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM

Brochure

separator

LB-704 Trinocular LED Fluorescent Biological Microscope with Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) is a newly developed microscope, the microscope uses LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.


    Optical System

    Infinite Optical System

    Viewing Head

    Compensation Free Trinocular Head Inclined at 30°,Interpupillary Distance 48-75mm

    Eyepiece

    Extra Wide Field Eyepiece EW10×/22 with diopter adjustment

    Nosepiece

    Backward Quintuple Nosepiece

    Objective

    Infinite Plan Achromatic Objective 4× 10× 20× 40× 100×

    Condenser

    Swing Condenser NA 0.9/ 0.25

    Focusing

    Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm

    Stage

    Double Layers Mechanical Stage 185×142/ 75×55 mm

    Kohler Illumination

    External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W

    Reflected Light Source



    Excitation

    Dichroic

    Mirror

    Barrier

    Filter

    Blue excitation

    BP460~490

    DM500

    BA520



    Green excitation

    BP510~550

    DM570

    BA590



    Lamp

    3W LED Lamp (465-476nm)

    Protection barrier

    Barrier to Resist the Ultraviolet Light

    Power Supplier

    Power Supplier NFP-1, 220V/ 110V interchangeable , Digital Display

    Immersion Oil

    Fluorescent Free Oil

    Filter ND25 Filter







LB-704 TRINOCULAR LED FLUORESCENT BIOLOGICAL
MICROSCOPE WITH WIDE FIELD AND INFINITE PLAN
OPTICAL SYSTEM

Brochure

separator

LB-705 Inverted Fluorescent Biological Microscope uses mercury lamp as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope. The LB-705 Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. Excellent high resolution objectives provide high quality fluorescent images. Infinite Optical System gives excellent Optical performance. This microscope can be your best assistant in laboratory research.

Features

  • Perfect image with infinite optical system.
  • High resolution fluorescent objectives are optional for excellent fluorescent images.
  • Advanced and precision lamp housing reduces the light leak.
  • Reliable power supply with digital display and timer.
  • Innovative structure and sharp Image is perfect for viewing cell tissue.
Model LB-705
Optical System Infinite Optical System
Viewing Head Seidentopf Trinocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary Distance 48-75mm
Eyepiece Wide Field Eyepiece WF10×/ 20mm, Eyepiece Tube Diameter 30mm
Objective LWD(Long Working Distance) Infinite Plan Achromatic Objective 4×/0.1, W.D.= 22mm
LWD(Long Working Distance) Infinite Plan Achromatic Phase Objective 10×/ 0.25, W.D.= 6mm
20×/ 0.4, W.D.= 3.1mm
40×/ 0.55, W.D.= 2.2mm
Nosepiece Backward Quintuple Nosepiece
Condenser ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)
Telescope Centering Telescope (Φ30mm)
Phase Annular 10×, 20×, 40× Phase Annular Plate(Center Adjustable)
  Plain Stage 230×170mm
  Glass Insert Plate
  Attachable Mechanical Stage, X,Y Coaxial Control, Moving Rang 80mm×120mm
  Auxiliary Stages 70mm×180mm
Stage Terasaki Holder
  Petri Dish Holder Φ38mm
  Petri Dish Holder Φ54mm
  Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range up 4.5mm, down
Focusing 4.5mm
Transmitted Illumination Halogen Lamp 6V/30W, Brightness Adjustable
Reflected Light Source   Excitation Dichroic Mirror Barrier Filter
Blue excitation BP460~490 DM500 BA520
Green excitation BP480~550 DM570 BA590
Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
Protection barrier Barrier to Resist the Ultraviolet Light
Power Supplier Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display
Immersion Oil Fluorescent Free Oil
Centering Target
Filter Blue, Green and Ground Glass, Diameter 45mm
Accessories 0.5× C-mount (Used to directly connect a C-mount digital camera to the microscope)
Package 2 cartons/set, 36*61*62cm, 18kg; 38*45*26cm, 6kg









LB-705 INVERTED FLUORESCENT BIOLOGICAL MICROSCOPE WITH WIDE FIELD AND INFINITE PLAN
OPTICAL SYSTEM

Brochure

separator

LB-860 Binocular Gemological Microscope with Extra Wide Field is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. LB-860 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

Stereo Zoom Body

Zoom ratio 0.8×-5×, zoom ratio 1:6.3, working distance 115mm

Eyepiece

Extra wide field eyepiece WF15×/22 with diopter adjustment

Bright & Dark Field Illumination

Iris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable

Illumination

7W Fluorescent lamp

LED Point Light

6V/20W Halogen illumination, lamp can be changed

Focusing

Focusing range: 100mm, it is suitable for observing different size gems and samples

Gem Clamp

High quality steel clamp is perfect to hold the gem for observation from all directions

Stage

At both side, there are two gem clamp fixing holds for you to choose

Stand

0-38°Rotatable, so the height and angle of eyepiece can be adjusted, easy to operate

Base

0-325° Rotatable




LB-860 BINOCULAR GEMOLOGICAL MICROSCOPE WITH
EXTRA WIDE FIELD

Brochure

separator

LB-861 Trinocular Gemological Microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. LB-861 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.



Stereo Zoom Body

Zoom ratio 0.8×-5×, zoom ratio 1:6.3, working distance 115mm

Eyepiece

Extra wide field eyepiece WF15×/16 with diopter adjustment

Bright & Dark Field Illumination

Iris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable

Illumination

7W Fluorescent lamp

LED Point Light

6V/20W Halogen illumination, lamp can be changed

Focusing

Focusing range: 100mm, it is suitable for observing different size gems and samples

Gem Clamp

High quality steel clamp is perfect to hold the gem for observation from all directions

Stage

At both side, there are two gem clamp fixing holds for you to choose

Stand

0-38°Rotatable, so the height and angle of eyepiece can be adjusted, easy to operate

Base

0-325° Rotatable




LB-861 TRINOCULAR GEMOLOGICAL MICROSCOPE

Brochure

separator

LB-862 Binocular Gemological Microscope with Wide Field, Incident and Transmitted Halogen Illumination is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, LB-862 Binocular Gemological Microscope with Wide Field, Incident and Transmitted Halogen Illumination can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that contain them.

Features

  • Good quality illumination, come with gem clamp and dark field attachment.
  • Cost effective and affordable gemological microscopes.



Viewing Head

Inclined Binocular head, 360° Rotatable

Eyepiece

WF10×/20 with diopter adjustment

Objective

2, 4×

Incident Illumination

Halogen lamp 12V/10W

Transmitted Illumination

Halogen lamp 12V/10W

Accessories

High quality Jewel clamp

Darkfield working stage (with diagram)

OPTICAL PARAMETERS

Objective

Working Distance(mm)

Field of View(mm)

1X

75

20

2X

91

91

3X

69

10

4X

70

5






LB-862 BINOCULAR GEMOLOGICAL MICROSCOPE
WITH WIDE FIELD, INCIDENT AND TRANSMITTED ILLUMINATION

Brochure

separator

LB-863 Binocular Gemological Microscope with Wide Field and Fluorescent Illumination is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, LB-863 Binocular Gemological Microscope with Wide Field and Fluorescent Illumination can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that contain them.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.



Viewing Head

Inclined Binocular head, 360° Rotatable

Eyepiece

SWF10×/22 with diopter adjustment

Objective

1×-4×

Incident Illumination

Halogen lamp 12V/10W

Fluorescent 10W

Transmitted Illumination

Halogen lamp 12V/10W

Accessories

High quality Jewel clamp

Darkfield working stage (with diagram)

Objective

Working Distance(mm)

Field of View(mm)

1×-4×

90.5

22-5.5

0.7×~3.6×
(Optional - must be purchased separately)

86

26-5.8






LB-863 BINOCULAR GEMOLOGICAL MICROSCOPE
WITH WIDE FIELD AND FLUORESCENT ILLUMINATION

Brochure

separator

LB-864 Trinocular Gemological Microscope with Wide Field and Fluorescent Illumination is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, LB-864 Trinocular Gemological Microscope with Wide Field and Fluorescent Illumination can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that contain them.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

Viewing Head

Inclined Trinocular head, 360° Rotatable

Eyepiece

SWF10×/22 with diopter adjustment

Objective

1×-4×

Incident Illumination

Halogen lamp 12V/10W

Fluorescent 10W

Transmitted Illumination

Halogen lamp 12V/10W

Accessories

High quality Jewel clamp

Darkfield working stage (with diagram)

Objective

Working Distance(mm)

Field of View(mm)

1×-4×

90.5

22-5.5

0.7×~3.6×
(Optional - must be purchased separately)

86

26-5.8






LB-864 TRINOCULAR GEMOLOGICAL MICROSCOPE
WITH WIDE FIELD AND FLUORESCENT ILLUMINATION

Brochure

separator

LB-867 Binocular Digital Stereo Zoom Gemological Microscope with Extra Wide Field, 3.2MP Digital Camera, LED, Halogen and Fluorescent Illumination is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. LB-867 Binocular Digital Stereo Zoom Gemological Microscope with Extra Wide Field, 3.2MP Digital Camera, LED, Halogen and Fluorescent Illuminationis especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the sample.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • The excellent design can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

    Stereo Zoom Body

    Zoom ratio 0.8×-5×, zoom ratio 1:6.3, working distance 115mm

    Eyepiece

    Extra wide field eyepiece WF15×/16 with diopter adjustment

    Binocular Digital Head

    Built-in 3.2MP (2048*1536) digital camera. USB2.0 output. Digital Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm

    Bright & Dark Field Illumination

    Iris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable

    Illumination

    7W Fluorescent lamp (6000K)

    LED Point Light

    6V/20W Halogen illumination, lamp can be changed

    Focusing

    Focusing range: 100mm, it is suitable for observing different size gem and sample

    Gem Clamp

    High quality steel clamp is perfect to hold the gem for observation from all directions

    Stage

    At both side, there are two gem clamp fixing holds for you to choose

    Stand

    0-38°Rotatable, so the height and angle of eyepiece can be adjusted, easy to operate

    Base 0-325° Rotatable





LB-867 BINOCULAR DIGITAL ZOOM STEREO GEMOLOGICAL MICROSCOPE
WITH EXTRA WIDE FIELD, 3.2MP DIGITAL CAMERA, LED, HALOGEN AND FLUORESCENT ILLUMINATION

Brochure

separator

LB-931 Multi-Head Dual View (Front and Back) Microscopes (Anti-Fungus) are equipped with multi-heads for more persons observing at the same time. The optical system is high quality and reliable.

Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • Users friendly and comfortable operation with ergonomic design.



Viewing Head

Sliding Binocular Head, inclined at 45°

Eyepiece

Wide Field Eyepiece WF10×

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Condenser

Abbe Condenser NA1.25

Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Plain Stage 140×140mm/ 75×50mm

lllumination

LED
Halogen Lamp 6V/ 20W (optional)





LB-931
MULTI-HEAD DUAL VIEW (FRONT AND BACK) MICROSCOPE
(ANTI-FUNGUS)

Brochure

separator

LB-932 Multi-Head Triple View Microscopes (Anti-Fungus)are equipped with multi-heads for more persons observing at the same time. The optical system is high quality and reliable.

Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • User-friendly and comfortable operation with ergonomic design.



Viewing Head

Sliding Binocular Head, inclined at 45°

1Pc

Monocular Head, inclined at 45°

2Pcs

Eyepiece

Wide Field Eyepiece WF10×

4Pcs

Nosepiece

Quadruple Nosepiece



Objective

Achromatic Objective 4×, 10×, 40×, 100×



Condenser

Abbe Condenser NA1.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm



lllumination

LED
Halogen Lamp 6V/20W (optional)







LB-932
MULTI-HEAD
TRIPLE VIEW MICROSCOPE
(ANTI-FUNGUS)

Brochure

separator

LB-933 Multi-Head Microscopes (for 5 Users) (Anti-Fungus) are equipped with multi-heads for more persons observing at the same time. The optical system is high quality and reliable.

Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • Users friendly and comfortable operation with ergonomic design.



Viewing Head

Sliding Binocular Head, inclined at 45°

5Pcs

Eyepiece

Wide Field Eyepiece WF10× with diopter adjustment

10Pcs

Nosepiece

Quadruple Nosepiece



Objective

Achromatic Objective 4×, 10×, 40×, 100×



Condenser

Abbe Condenser NA1.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Plain Stage 140×140mm/ 75×50mm



lllumination

LED
Halogen Lamp 24V/ 100W (optional)





Pointer

Green LED Pointer, Brightness Adjustable







LB-933
MULTI-HEAD MICROSCOPE
(FOR 5 USERS)
(ANTI-FUNGUS)

Brochure

separator

LB-980 Multi-Head Microscope Dual View (Side by Side) with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) are high level microscopes equipped with multi-head for more persons observing at the same time. The optical system is high quality and reliable. YOU CAN ATTACH A CAMERA TO THIS MICROSCOPE (OPTIONAL).

Features



  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • User-friendly and comfortable operation with ergonomic design.
  • With the features of Infinite Optical System, Effective Illumination, LED Pointer and Image Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.

THE LB-980 MICROSCOPE CAN USE THE LC-2 OR LC-1 DIGITAL CAMERA WITH THE SCOPEIMAGE 9.0 SOFTWARE TO TAKE IMAGES, VIDEO AND MAKE MEASUREMENTS.

Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

4PCS

Nosepiece

Inverse Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×、10×、40×、100×



Condenser

Swing Condenser N.A.0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/100W



Pointer

Green LED Pointer, Brightness Adjustable



Dual Color Pointer, Brightness Adjustable


Filter Can be inserted on the illumination collector, with a filter frame for multi-filters on request.
Slide Capacity 2 slides





LB-980 MULTI-HEAD
DUAL VIEW - SIDE BY SIDE
MICROSCOPE
WITH EXTRA WIDE FIELD AND
INFINITE PLAN OPTICAL SYSTEM
(FOR 2 USERS)


Brochure

separator

LB-981 Multi-Head Microscopes (for 3 users) with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) are high level microscopes equipped with multi-head for more persons observing at the same time. The optical system is high quality and reliable. YOU CAN ATTACH A CAMERA TO THIS MICROSCOPE (OPTIONAL).

Features



  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • User-friendly and comfortable operation with ergonomic design.
  • With the features of Infinite Optical System, Effective Illumination, LED Pointer and Image Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.



Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

2PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

6PCS

Nosepiece

Inverse Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×、10×、40×、100×



Condenser

Swing Condenser N.A.0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/100W



Pointer

Green LED Pointer , Brightness Adjustable



Dual Color Pointer , Brightness Adjustable (optional)







LB-981 MULTI-HEAD
MICROSCOPE
WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM
(FOR 3 USERS)

Brochure

separator

LB-982 Multi-Head Microscope with Trinocular Head (for 5 Users with a Binocular Head and One User with a Trinocular Head) (Anti-Mold) is equipped with multi-heads for more persons observing at the same time. The optical system is high quality and reliable.

Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • Users friendly and comfortable operation with ergonomic design.



Viewing Head

Sliding Trinocular Head, inclined at 45°

1Pc



Sliding Binocular Head

4Pcs

Eyepiece

Wide Field Eyepiece WF10×

10Pcs

Nosepiece

Quadruple Nosepiece



Objective

Achromatic Objective 4×, 10×, 40×, 100×



Condenser

Abbe Condenser NA1.25



Focusing

Co axial Coarse & Fine Focus Adjustment, Fine Division 0.002mm



Stage

Plain Stage 140×140mm/ 75×50mm



lllumination

LED
Halogen Lamp 24V/100W (optional)





Pointer

Green LED Pointer, Brightness Adjustable







LB-982
MULTI-HEAD MICROSCOPE
WITH TRINOCULAR HEAD (FOR 5 USERS WITH A BINOCULAR HEAD AND ONE USER WITH A TRINOCULAR HEAD
(ANTI-MOLD)

Brochure

separator

LB-983 Multi-Head Microscopes (for 2 users) with Infinite Plan Optical System(Infinity Color Corrected System) , Extra Wide Field, Backward Quintuple Nosepiece, Kohler and Halogen Illumination is a high level microscope for 2 persons observing at the same time. The optical system is high quality and reliable.

Features



  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with anti-mould technology.
  • User-friendly and comfortable operation with ergonomic design.
  • Digital cameras can be added to the trinocular head for image, video capture, analyze and share.



Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20 with diopter adjustment

4PCS

Nosepiece

Backward Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×、10×、40×、100×



Condenser

Swing Condenser N.A.0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/ 100W



Pointer

Green LED Pointer, Brightness Adjustable
Dual Color LED Pointer, Brightness Adjustable (optional)







LB-983 MULTI-HEAD
MICROSCOPE WITH
INFINITE PLAN OPTICAL SYSTEM, EXTRA WIDE FIELD, BACKWARD QUINTUPLE NOSEPIECE, KOHLER AND HALOGEN ILLUMINATION
(FOR 2 USERS)

Brochure

separator

LB-984 Multi-Head Microscopes (for 6 users; 5 Users with a Binocular Head and One User with a Trinocular Head ) with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) (Anti- Fungus)are high level microscopes equipped with multi-head for more persons observing at the same time. The optical system is high quality and reliable. YOU CAN ATTACH A CAMERA TO THIS MICROSCOPE (OPTIONAL).

Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • User-friendly and comfortable operation with ergonomic design.
  • With the features of Infinite Optical System, Effective Illumination, LED Pointer and Image Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.



Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

4PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

10PCS

Nosepiece

Backward Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×



Condenser

Swing-out Condenser NA 0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/ 50W



Pointer

Green LED Pointer, Brightness Adjustable
Dual Color LED Pointer, Brightness Adjustable (optional)



Photo Attachment Used for Nikon or Canon DSLR cameras (optional)
Video Adapter
C Mount 1×, (optional)
C Mount 0.5× (optional)






LB-984
MULTI-HEAD MICROSCOPE
WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM (INFINITY COLOR CORRECTED SYSTEM)
(FOR
6 U SERS , 5 USERS WITH A BINOCULAR HEAD AND ONE USER WITH A TRINOCULAR HEAD ) (ANTI-FUNGUS)

Brochure

separator

LB-1000 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, docking and overlapping methods, two (or more) objects can be compared together. LB-1000 has clear image, high resolution, and can identify tiny differences between objects accurately. It is basically used for forensic science and police departments.

Features

  • Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
  • With changeable objectives, right and left objectives can be adjusted to consistency.
  • Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-54mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° - 45 °.
  • Two stages can be adjusted horizontally at the same time, moving range: 0-54mm.
  • Coarse lifting range of 0 - 60mm.
  • Equipped with 12V/50W air-cooled lamps, large power LED lamps, light intensity is adjustable.
  • Polarizing attachment, used to eliminate stray and glare light. (optional)
  • Coaxial illumination device, used for observation of deep hole, small hole and smooth surface. (optional)
  • With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
  • With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.

Total Optical
Magnification

3.8×~115×(can be extended to 345×)

Viewing Head

Seidentopf Trinocular Head, Inclined at 45°, Interpupilary Distance 55-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 22, diopter adjustment
Wide Field Eyepiece WF20×/ 12, diopter adjustment

Comparison
Mode

Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation

Objective

0.8×, 1.25×, 2×, 3.2×, 4.8× changeable objective

Stage

Manually operate stage, moving range: X-54mm, Y-54mm, Z-54mm
Two stage horizontal moving range: 54mm, The coarse vertical lifting range: 60mm

Illumination

High power LED illumination, brightness and angel adjustable
Side illumination, 12V/50W air cooled reflecting lamps
Polarizing attachment (optional)
Coaxial illumination device (optional)

Attachment

Photo attachment for DSLR digital camera(Nikon, Canon)

Video Adapter

C-mount for digital cameras

Eyepieces and Objective Parameters



Objective



Bridge

Magnification/FOV(mm)

Video
Attachment
Attachment

Working Distance (mm)

10× Eyepiece

20× Eyepiece

0.8×

1.2×

9.6×/φ28

19.2×/φ17

2.5×

101

1.25×



15×/φ18

30×/φ11







24×/φ11

48×/φ7

3.2×



36×/φ7

77×/φ4.5

4.8×



58×/φ4.2

115×/φ2.3



Note: With 0.8× objective, 10× eyepiece, the magnification=0.8×*1.2×*10×=9.6×





LB-1000 COMPARISON MICROSCOPE
Brochure

separator

LB-1010 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using
field cutting, jointing and overlapping methods, two (or more two) objects can be compared together.

LB-1010 has clear image, high resolution, and can identify tiny differences between objects accurately. It is basically used for forensic science and police departments.

LB-1010 has excellent optical performance and complete comparison function, it is suitable for various comparison demands, so it has a very wide range of applications.

Features

  • Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
  • With sextuple nosepiece, comes with 0.5×,  1×,  1.5×,  2×,  4×,  6×  objectives, nosepiece has stop clicks, comfortable to change the objectives.
  • Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-62mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° - 60 °.
  • Two stages can be adjusted horizontally at the same time, moving range: 0-62mm.
  • Coarse lifting range of 0 - 62mm.
  • Equipped with 12V/50W air-cooled lamps, large power LED lamps, light intensity is adjustable.
  • Polarizing attachment, used to eliminate stray and glare light. (optional)
  • Coaxial illumination device, used for observation of deep hole, small hole and smooth surface. (optional)
  • With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
  • With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.



Total Optical
Magnification
5×~120×
Viewing Head Seidentopf Trinocular Head, Inclined at 45°, Interpupilary Distance 55-75mm
Eyepiece Wide Field Eyepiece WF10×/ 22, diopter adjustment
Wide Field Eyepiece WF20×/ 12, diopter adjustment
Field of View Φ2mm~Φ60mm
Comparison
Mode
Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation
Objective 0.5×, 1×, 1.5×, 2×, 4×, 6×
Nosepiece Sextuple nosepiece
Stage Manually operate stage, moving range: X-62mm, Y-62mm, Z-62mm
Two stage horizontal moving range: 62mm, The coarse vertical lifting range: 62mm
Illumination High power LED illumination, brightness and angel adjustable
Side illumination, 12V/50W air cooled reflecting lamps
Polarizing attachment (optional)
Coaxial illumination device (optional)
Attachment
Photo attachment for DSLR digital camera(Nikon, Canon)

Video Adapter

C -mount for digital cameras

Eyepieces and Objective Parameters



Objective

Magnification/FOV(mm)

Working Distance (mm)

10× Eyepiece

20× Eyepiece

0.5×

5×/Φ60

10×/Φ24

143

10×/Φ21

20×/Φ12

102

1.5×

15×/Φ15

30×/Φ8

20×/Φ11

40×/Φ6

40×/Φ6

80×/Φ3

60×/Φ3.9

120×/Φ2

Dimension: 39(L) ×38(W) ×70(H)cm






LB-1010 DIGITAL COMPARISON MICROSCOPE WITH CAMERA AND SOFTWARE (3.0MP)
Brochure

separator

LB-1205 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective has integrated an optical microscope, 7-inch LCD screen and 5.0MP digital camera for image and video capture and data transmission. With high quality optics, the microscope can ensure you get high definition images. It is perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Features

  • 7-inch IPS LCD screen with wide visual angle, resolution 1024×600.
  • Built-in 5.0MP CMOS camera, output 1920×1080 HD Video.
  • 1*USB2.0 interface for mouse, no shaking. 1* HDMI interface is convenient for sharing videos to TV or projector for speech. 1* SD card slot, images and videos could be saved in SD card.
  • Battery compartment comes with the microscope, 3pcs AA battery can be used as the power supply, easy for out door work.
Item Specification
Viewing Head 7-inch IPS LCD screen with wide visual angle, resolution 1024×600, Built-in 5.0MP CMOS camera, output 1920×1080 HD Video. 1*USB2.0 interface for mouse, 1* HDMI interface, 1* SD card slot.
Built-in Camera Resolution: 5.0MP, 2592×1944
Image resolution: 2592×1944
Video resolution: 1920×1080
Pixel Size: 2.75×2.75μm
Nosepiece Triple Nosepiece
Objective Achromatic Objective 4×(185)
Achromatic Objective 10×(185)
Achromatic Objective 40×(185)
Stage Plain Stage with Slide Clips 95×95mm
Focusing Coaxial Coarse and Fine Adjustment
Condenser Single Lens NA 0.65 with Disc Diaphragm
Illumination Transmitted LED Illumination, Brightness Adjustable; Top LED light
Spare Parts Dust Cover
Power Supply AC100-220V power adapter, microscope input voltage DC5V
Battery compartment (can use 3pcs AA batteries as the power supply)
Package Styrofoam & Carton, Dimension 28×25×40 cm, 3kg







LB-1205 LCD DIGITAL BIOLOGICAL OPTICAL MICROSCOPE WITH HIGH QUALITY OPTICS AND ACHROMATIC OBJECTIVE

Brochure

separator

LB-1210 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective has integrated an optical microscope, 7-inch LCD screen and 5.0MP digital camera for image and video capture and data transmission. With high quality optics, the microscope can ensure you get high definition images. It is perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Features

  • 7-inch IPS LCD screen with wide visual angle, resolution 1024×600.
  • Built-in 5.0MP CMOS camera, output 1920×1080 HD Video.
  • 1* USB2.0 interface for mouse, no shaking. 1* HDMI interface is convenient for sharing videos to TV or projector for speech. 1* SD card slot, images and videos could be saved in SD card.
Item Specification
Viewing Head 7-inch IPS LCD screen with wide visual angle, resolution 1024×600, Built-in 5.0MP CMOS camera, output 1920×1080 HD Video. 1*USB2.0 interface for mouse, 1* HDMI interface, 1* SD card slot.
Built-in Camera Resolution: 5.0MP, 2592×1944
Image resolution: 2592×1944
Video resolution: 1920×1080
Pixel Size: 2.75×2.75μm
Nosepiece Quadruple Nosepiece
Objective Achromatic Objective 4×(195), 10×(195), 40×(195), 100×(195)
Stage Double Layers Mechanical Stage 110×120mm/ 60×30mm
Focusing Coaxial Coarse and Fine Adjustment, Moving Range 10mm, with stage height limiting screw
Condenser Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser
Illumination Transmitted LED Illumination, Brightness Adjustable
Spare Parts Dust Cover
Power Supply AC100-220V power adapter, microscope input voltage DC5V
Package Styrofoam & Carton, Dimension 35×28×45 cm, 6kg





LB-1210 LCD DIGITAL BIOLOGICAL OPTICAL MICROSCOPE WITH HIGH QUALITY OPTICS AND ACHROMATIC OBJECTIVE

Brochure

separator

LB-1261 LCD Digital Biological Microscope is a research level microscope which has been specially designed for college education, medical and laboratory research. The microscope has a 6.0MP high sensitive camera and 11.6” 1080P full HD retina LCD screen. Both traditional eyepieces and an LCD screen can be used for convenient and comfortable viewing. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing.

LB-1261 LCD Digital Biological Microscope can capture quick and easy snapshots, short videos and do measurement. It has integrated magnification, digital enlarge, imaging display, photo and video capture&storage on the SD card, it also can be connected to PC via USB2.0 cable and control by software.

Features

  • Excellent Optical Design.
  • Infinite Plan Objectives.
  • External rechargeable battery can be used as the power source.
  • Intelligent operating system.
  • Easier to store and transport.
  • Ergonomic Design.
Item Specification
  Camera Model LC-19
  Sensor Sony IMX307 CMOS Sensor
  Photo Resolution 6.0 Mega Pixel (3264 × 1840)
  Video Resolution 60fps@1920×1080
  Sensor Size 1/2.8 Inches
  Pixel Size 2.8um × 2.8um
  LCD Screen 11.6 Inches HD LCD Screen, Resolution is 1920 × 1080
  Data Output USB2.0, HDMI
  Storage SD Card (8G)
Digital Parts Exposure time 0.001 sec ~ 10.0 sec
  Exposure Mode Automatic & Manual
  White balance Automatic
  Packing Dimension 305mm×205mm×120mm, 3kgs
  Optical System Infinite Optical System
  Eyepiece Extra Wide Field Eyepiece EW10×/22mm
    Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable,
Optical Parts Viewing Head Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm
  Objective NIS60 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:30mm)
    NIS60 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:10.2mm)
  NIS60 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm)
  NIS60 Infinite Plan Achromatic Objective 100× (Water, N.A.:1.10,
  W.D.:0.2mm)
Nosepiece Backward Quintuple Nosepiece(Coding)
Stage Rackless stage, Size 230×150mm, Moving Range 78×54mm
Condenser Inserted Abbe Condenser NA1.25(Including Empty Plate)
Focusing Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm

  3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication
Illumination and Lock, etc.)
Fluorescent 3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined),
Attachment Fly-eye Lens Illumination
Other Accessories 0.5× C-mount adapter
Filter Green
Packing 1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight:
10.5kg/12.5kg





LB-1261 LCD DIGITAL BIOLOGICAL MICROSCOPE WITH 6.0 MP HIGH SENSITIVE CAMERA & FULL HD RETINA LCD SCREEN

Brochure

separator

The LB-1270 Compound Biological Trinocular Digital Microscope with Camera and Software (5.0MP), LCD and Infinite Optical System are high level microscope which are specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this biological
microscope makes your works enjoyable.

The LB-1270 Compound Biological Trinocular Digital Microscope with Camera and Software (5.0MP), LCD and Infinite Optical System employs the 11.6” retina HD LCD screen to see large images of your specimens. It also provides an option to connect it to your large monitor using an HDMI connection.

Features

  • Excellent optical system, outstanding image quality with high resolution and definition.
  • Comfortable operating with ergonomic design.
  • Unique aspheric illumination system, provide bright and comfortable lighting.
  • Various colorful matching looking can provide lively environment and happy mood.
  • Various accessories for upgrading.
  • Back handle and observing hole convenient for carry and operation
Model LB-1270
Optical System Infinite Optical System
Viewing Head Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm, Light Distribution: 20:80 (eyepiece: trinocular tube)
Eyepiece WF10×/20mm
Infinite Achromatic Objective E-Plan 4×, 10×, 40× (S), 100× (Oil) (S)
Nosepiece Backward Quadruple Nosepiece
Focusing Coaxial Coarse & Fine Focusing knobs, Travel Range: 26mm, Scale:2um
Stage Double Layers Mechanical Stage, Size: 145×140mm, Cross Travel 76×52mm, Scale 0.1mm, Two Slide Holder
Condenser Abbe Condenser NA1.25 with Iris Diaphragm
Illumination 3W LED Illumination Systems, Brightness Adjustable





  LB-1270 - LCD COMPOUND DIGITAL BIOLOGICAL MICROSCOPE WITH CAMERA AND SOFTWARE (5.0MP) LCD AND INFINITE OPTICAL SYSTEM

Brochure

separator

LB-1280 LCD Digital Biological Microscope has a built-in 6.0MP high sensitiv1 camera and 11.6” 1080P full HD retina LCD screen. Both traditional eyepieces and an LCD screen can be used for convenient and comfortable viewing. The microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope for a long time.

LB-1280 LCD Digital Biological Microscope not only feature HD LCD display to reverting genuine photo and video, but also feature quick and easy snapshots, short videos and measurement. It has integrated magnification, digital enlarge, imaging display, photo and video capture&storage on the SD card, it also can be connected to PC via USB2.0 cable and control by software.



Features

  1. Infinite optical system and high quality 10×/22mm eyepiece and infinite plan achromatic objectives.
  2. 6.0 megapixel HDMI digital camera, images and videos can be easily stored on the SD card without computers, can improve the efficiency of research and analysis, the camera has measurement functions.
  3. 11.6-inch HD digital LCD screen, high definition and high quality images, easy for people to share.
  4. LED lighting system, long working life and save energy.
  5. Two types of observation modes: binocular eyepiece and LCD screen, can meet different needs.
Item Specification
Digital Parts Camera Model LC-19
Sensor Sony IMX307 CMOS Sensor
Photo Resolution 6.0 Mega Pixel (3264 × 1840)
Video Resolution 60fps@1920×1080
Sensor Size 1/2.8 Inches
Pixel Size 2.8um × 2.8um
LCD Screen 11.6 Inches HD LCD Screen, Resolution is 1920 × 1080
Data Output USB2.0, HDMI
Storage SD Card (8G)
Exposure time 0.001 sec ~ 10.0 sec
Exposure Mode Automatic & Manual
White balance Automatic
Packing Dimension 305mm×205mm×120mm, 3kgs
Optical Parts Viewing Head Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light distribution: 100: 0 and 50:50(eyepiece: trinocular tube), 30mm tube
Eyepiece Wide Field Eyepiece WF10×/22mm
Objective Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100×
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm
Condenser Sliding-in Centerable Condenser NA1.25
Focusing System Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination  1W S-LED Lamp, Brightness Adjustable
Video Adapter 0.5× C-mount
Packing 1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg





LB-1280 LCD DIGITAL BIOLOGICAL MICROSCOPE WITH INFINITE PLAN ACHROMATIC OBJECTIVES AND BACKWARD QUADRUPLE NOSEPIECE
Brochure

separator

LB-1290 Compound Digital LCD Inverted Biological Microscope (12.0MP) with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) has renovated the traditional way of microscopic observation and adopted a modern way of digital imaging. Our LCD Microscope can be used with both traditional eyepieces and an 8 inch LCD Screen for easy and comfortable viewing for yourself and to share with others.

This patented microscope not only features high resolution of LCD display to generate genuine photo and video, but also features for quick and easy snapshots or short videos. This product integrates magnification, digital enlarge, imaging, display, capture photo and video, printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable. All of which achieve a more convenient and effective breakthrough.

The LWD infinitive plan objectives make the viewing field flatter and brighter. With the contrast sharper, observing living cells is easier. It is available to observe low contrast or transparent specimens used by the pre-centerable phase annulus. It is convenient and is especially suitable for Viewing Incubating Cell Tissue.

Features

  • Built-in 12 megapixel digital camera, image data can be easily retained without external computers and other equipment, they can improve the efficiency of research and analysis.
  • 9-inch digital LCD screen, high definition and bright colors, easy for people to share.
  • Large storage capacity, with SD card, print pictures instantly without being connected to PC.
  • Two kinds of observation modes, binocular eyepiece and LCD screen, which can meet different needs. Combine the compound microscope, digital camera and LCD together.
  • Very good structure, easy for operation and professional for special use.



Digital Parts

Sensor

1/2.5 inch 5.0 Megapixel CMOS image sensor

Photo Resolution

12.0 Megapixel

Video Resolution

1080P/30fps

LCD Screen

9 inches HD LCD screen, Resolution is 1280 x 800

Data Output

USB2.0, HDMI

Digital Zoom 8x

Storage

SD Card

Exposure Mode

Auto/Manual

White Balance

Auto/Manual

Date Mode Year, Month, Day, Hour, Minute
Crossing Line Black, White, Red, Blue, Green

Optical Parts

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective

LWD Infinite Plan Objective

4×/ 0.1,WD 18mm

40×/ 0.6,WD 2.6mm

Infinite Plan Phase Objective

PH10×/ 0.25,WD 10 mm

PH20×/ 0.4,WD 5.1mm

Nosepiece

Quintuple Nosepiece

Condenser

ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)

Annulus

10×-20×、40× Phase Annulus Plate (Fixed)

Stage

Plain Stage 160×250mm,

Glass Insert

Auxiliary Stages 70×180mm

Focusing

Coaxial Coarse and Fine Adjustment, Vertical Objective Movement; Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Illumination

Halogen Lamp 6V/ 30W

Filter

Diameter 45mm, Blue, Green and Ground Glass

Optional Parts (must be ordered separately)

Objective

LWD Infinite Plan Objective

10×/ 0.25, WD 10mm

20×/ 0.4, WD 5.1mm

Infinite Plan Phase Objective

PH40×/ 0.65, WD 0.35mm

Centering

Centering Telescope (Φ30MM)

Phase Annulus

10×-20×、40× Phase Annulus Plate (Adjustable)

Stage

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Range 120×78mm

Terasaki Holder

Φ38mm Petri Dish Holder





LB-1290 COMPOUND DIGITAL LCD
INVERTED BIOLOGICAL MICROSCOPE WITH EXTRA WIDE FIELD AND INFINITE PLAN OPTICAL SYSTEM (12.0MP)

Brochure

separator

LB-1500 Digital LCD Polarizing Microscopes with Infinity Optical System (12.0MP) adopt a polarizing light to observe and research objects which have double refraction features, users can make single polarizing observation, orthogonal observation, conoscope observation. It has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. Eyepieces and an LCD screen can both be used for easy and comfortable viewing for yourself and to share with others.

This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It not only features high resolution of LCD display to generate genuine photo and video, but also features for quick and easy snapshots or short videos. This product integrates magnification, digital enlarge, imaging, display, capture photo and video and printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable.

Features

  • Adopts a polarizing light to observe and research objects which have double refraction features.
  • The 12.0MP high resolution camera has real time imaging display and video recording function.
  • With a high definition 9” LCD screen.
  • 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
  • HDMI interface for connecting to other LCD monitor or projector via HDMI cable.
  • 4G SD Card for image, video storage and printing.



    Digital parts

    Resolution

    12 Mega Pixel

    Image Resolution

    12 Mega Pixel

    Video Resolution

    640×480

    Sensor Size

    1/2.5 Inches

    LCD Screen

    8 Inches TFT Screen, Resolution is 800×600

    Video Output

    AV Output (NTSC/PAL are optional)

    Data Output

    USB2.0

    Menu Language

    / English

    Storage

    SD Card (Maximal Storage Capacity is 4G)

    Scene Mode

    Standard / Softness / Vivid

    Exposure Mode

    Auto Exposure

    Date Mode

    Year, Month, Day, Hour, Minute

    Optical Parts

    Viewing Head

    Seidentopf Binocular Head Inclined 30˚

    Eyepiece

    Wide Field Plan Eyepieces  WF10×(Ф22mm.)

    Dividing Eyepiece(field number: Ф22mm) 0.10mm/Div

    Objective

    Strain-free Infinity Long W.D Plan Achromatic Objective (No Cover Glass)

    PL L5×/0.12, Work Distance: 26.1 mm

    PL L10×/0.25, Work Distance: 20.2 mm

    PL L40×/0.60(spring), Work Distance: 3.98 mm

    PL L60×/0.70(spring), Work Distance: 3.18 mm

    Polarizing Unit

    Polarizing Unit Can Be Move Out or Into Optical Path

    Polarizer Can Be Rotated 360°

    Analyzer Can Be Rotatable 360° with Scale and Minimum Vernier

    Integrated Field and Aperture Diaphragm.

    Nosepiece

    Quadruple (The Center of Objective is Adjustable )

    Intermediate Attachment

    Puller Type Bertrand Lens and Center Adjustable.

    Compensator

    λ, λ/4 and Quartz Wedge Compensator.

    Illumination

    6V30W Halogen, Brightness Adjustable.
    Wide Voltage Range Power Supply (85-265V 50/60Hz)

    Focusing System

    Coaxial Coarse/Fine Focus with Tension Adjustable and up Stop Device, Minimum Division of Fine Focusing: 2μm.

    Optional Parts
    (must be ordered separately)

    Objectives

    Strain-free Plan Achromatic Objective (No Cover Glass)

    PL L 20×/0.40, Work Distance: 8.80mm

    PL L50×/0.70(Spring), Work Distance: 3.68 mm

    PL L80×/0.80(spring), Work Distance: 1.25 mm

    PL L100×/0.85(spring), Work Distance: 0.4 mm

    Nosepiece

    Quintuple(Backward Ball Bearing Inner Locating)

    Slide Moving Holder

    Moving Range: 30mmX25mm


separator

LB-1600 Compound Digital LCD Metallurgical Microscope with Wide Fiel d and Infinity Plan Optical System (Infinity Color Corrected System) (5.0MP) renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. It combines an 8 inch LCD screen and a metallurgical microscope to generate genuine photos and videos. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups alike. It is also feature the latest 5 Megapixel digital imaging microscopy techniques for quick and easy snapshots or videos.

Features

  • Special designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people.
  • 5Megapixel high resolution camera with real time imaging display and video recording function.
  • With a high definition 9” LCD screen.
  • 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
  • USB Cable for Transferring Images to a PC.
  • SD Card slot for storage, archiving and printing, optional memory cards (Maximal Storage Capacity is 4G).



Digital Parts

Resolution

5Megapixel

Photo Resolution

12MP

Video Resolution

1080P/30fps

Sensor Size

1/2.5 Inches

LCD Screen

9 Inches TFT Screen, Resolution is 1280x800

Video Output

AV Output (NTSC/PAL)

Data Output

USB2.0

Menu Language

English

Storage

SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute

Optical Parts

Viewing Head

Compensation Free Binocular Head, 30° Inclined , Interpupillary Distance 55-75mm

Eyepiece

Wide Field Eyepiece WF10X/18

Objective

Infinity Plan Achromatic

4×/0.1/∞/- WD25.4mm

10×/0.25/∞/- WD11.0mm

20×/0.40/∞/- WD6.0mm







40×/0.60/∞/0 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm

Focusing System

Coaxial Coarse/Fine Focus System

Illumination

Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters

Blue, Green, Yellow & Ground Glass


Optional Parts (must be ordered separately)


Eyepiece


WF8×/18

WF10×/18 with 0.1mm Micrometer & Cross Hair

WF12.5×/15

Objective

Infinity Plan Achromatic

40×/0.65/∞/- WD0.78mm

50×/0.75/∞/- WD0.32mm

80×/0.90/∞/- WD0.2mm

100×/0.90/∞/0 WD0.7mm

Illumination

Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable

Simple Polarization
Attachment

Polarization Set



Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm

Focusing System

Coaxial Coarse/Fine Focus System

Illumination

Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters

Blue, Green, Yellow & Ground Glass


Optional Parts (must be ordered separately)


Eyepiece


WF8×/18 with diopter adjustment

WF10×/18 with 0.1mm Micrometer & Cross Hair with diopter adjustment

WF12.5×/15 with diopter adjustment

Objective

Infinity Plan Achromatic

40×/0.65/∞/- WD0.78mm

50×/0.75/∞/- WD0.32mm

80×/0.90/∞/- WD0.2mm

100×/0.90/∞/0 WD0.7mm

Illumination

Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable

Simple Polarization
Attachment

Polarization Set




separator

LB-1602 Compound Digital LCD Inverted Metallurgical Microscope (5.0MP)with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) consist of an inverted metallurgical microscope, a high definition LCD screen and a 5 Megapixel camera. It renovates the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It is also feature the latest 5 Megapixels digital imaging microscopy techniques for quick and easy snapshots or videos.

Features

  • Specially designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people.
  • 5 Megapixels with real time imaging display, images and video recording and re-playing function.
  • Inverted structure for some special applications.
  • 12VDC power supply, safety and reliability of low voltage (Input Voltage 90-240V).
  • USB Cable for transferring data to a PC.
  • SD Card slot for storage, printing, optional SD cards (Maximal Storage Capacity is 4G).



Digital Parts

Resolution

5 Megapixel

Photo Resolution

12MP

Video Resolution

1080P/30fps

Sensor Size

1/2.5 Inches

LCD Screen

9 Inches TFT Screen, Resolution is 800X 600

Video Output

AV Output (NTSC/PAL)

Data Output

USB2.0

Menu Language

English

Storage

SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute

Optical Parts

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective

Infinite Plan Achromatic Objective 4×/ 0.1,10×/ 0.25,20×/ 0.40,40×/ 0.60

Nosepiece

Quintuple Nosepiece

Stage

Plain Stage

Focusing

Coaxial Coarse & Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Illumination

Halogen Lamp 6V/ 30W

Filter

Blue, Yellow, Green and Ground Glass

Polarization Set

Simple Polarization Attachment

Optional Parts (must be ordered separately)

Objective

Infinite Plan Achromatic Objective 50×/ 0.75, 80×/ 0.90

Stage

Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120×78mm

Auxiliary Stage

Centering

Centering Telescope (Φ30MM)




separator

LB-1750 Compound Digital LCD Flourescence Microscope (5.0MP) with Extra Wide Field, Achromatic Objectives and Double Layer Mechanical Stage renovate the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time of working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It is also feature the latest 5 Megapixels digital imaging microscopy techniques for quick and easy snapshots or videos.

Features

  • Automatic fluorescence objective lens, providing high-quality optical imaging and ensuring clear images.
  • More stable and reliable power supply boxes, with digital display and a timer.
  • Protect the light leak with advanced lamp housing.
  • It consists of a fluorescence microscope, an 8” LCD screen and a 5 Megapixel camera, images and videos can be shared with other people.
  • Real time images display, images and video recording.
  • USB Cable for transferring data to a PC.
  • SD card (Maximum Storage Capacity is 4G) slot for storage and printing.



Digital Parts

Resolution 5 Megapixel
Photo Resolution 2560X1920-1600X1200
Video Resolution 640X480
Sensor Size 1/2.5 Inches
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute

Optical Parts

Viewing Head Compensation Free Binocular Head, Inclined at 30°
Eyepiece Wide Field Eyepiece WF10×/ 18 with diopter adjustment
Objective Achromatic Objective 4×、10×、40×、100×
Nosepiece Quadruple Nosepiece
Condenser NA 1.25 Abbe Condenser with Iris Diaphragm and Filter
Focusing System Coaxial Coarse & Fine Adjustment
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm
Illumination Halogen Lamp 6V/ 20W, Brightness Adjustable
Filter Blue & Green Filter
Dark Field Attachment Dark Field Condenser (Dry)
Dark Field Condenser (Oil)
Fluorescent Attachment Epi-fluorescent Attachment



Phase Contrast Kit Single Phase Contrast Kit
Sliding Phase Contrast Kit
Turret Phase Contrast kit
Polarization Set Simple Polarization Set




separator

LB-1910 Surgical Microscope for Dental emphasizes proper posture and placement of the instrument throughout the surgical procedure, allowing a practitioner to maintain an upright sitting position to gain maximum comfort, reducing fatigue, while protecting the practitioner’s neck, shoulders and back from unnecessary strain.

Features

  • Performance with ultimate ease and precision
  • High quality images
  • Astonishing attractive price
  • Illumination: coaxial illumination by optical light guide
  • Diameter of viewing field: 60mm-10mm
  • Bright and clear, strong objective lens with fine focus
  • Working distance 300mm
  • Foot pedal, control focus

Specification


MICROSCOPE

Binocular

Straight f’= 160mm

Objective

f'= 300mm

Eyepiece

12.5x, high-eyepoint, wide angular, pupil exit distance 21mm

Diopter adjustment

-5D ~ + 5D

Magnification changer

5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x

Total magnifications

2.8x, 4x, 7x, 11.5x, 17x

Visual field

60mm-10mm

Interpupillary distance

55mm-75 mm

Focusing

Micro-range of 40mm manual motorized for option

Working distance

295mm

ILLUMINATION

Type

Coaxial illumination by optical light-guide system

Cold light source

Halogen lamp, 15V/150W, twin bulbs

Illumination control

3 steps

Field of illumination

80mm

Power supply

AC 110V/220V - 220W

Light intensity

80,000 LUX

Filter

Blue, Green

ARM, STAND

Type

Pantographic arm, floor stand

Range

1210mm (1st arm 330mm, 2nd arm 580mm, 3rd arm 330mm)

Rotation angle

270°

Elevation stroke

350mm

Base size

600mm x 560mm

Weight

80 KGS

OPERATION

Controls

Foot-pedal controlled focus



OPTIONAL ACCESSORIES (Must be purchased separately)

Binocular

0 – 180° inclinable binoculars f'=170 mm

Objective

f'= 200mm

Objective

f’= 250mm

Objective

f’= 300mm

Objective

f’= 400mm

Beamsplitter

dismountable

Adapter for CCD Camera

With iris diaphragm, f’=65 mm

CCD Camera

LC-8 C-Mount HDMI+WiFi CMOS Camera

Integrated Beam Splitter and CCD adapter

 Integrated


separator

The LB-1915 surgical surgical microscopes for ENT are adopting the combinative structure which is in fashion internationally, are suitable for the examination and surgery in the ENT and ophthalmology.

The main microscope can be equipped with straight, inclined or tiltable binoculars on the basis of different usages. It is also with manual focusing system or motorized focusing system. The retinal protection device and red reflex module are very useful in the ophthalmic operation. In order to demonstrate or store the document, the beam splitter, observer’s monocular and adaptor for CCD camera or still camera are for option.

Features

  • With full range of spare parts, and flexible combination, it is suitable for examination and surgeries in several kinds of fields.
  • High-contrast image, great depth of field and excellent stereo effect.
  • 5-step drum magnification changer, different working distance for options.
  • The main microscope can be inclined back & forth and right & left, and move up & down.
  • The counter-balanced spring arm, easy for adjustment.
  • Co-axial cold light illumination, high intensity, no heating in the operation surface.

Specification

MICROSCOPE
Binoculars Straight: f’=160mm
Objective: f’=300mm
Eyepiece: 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
Diopter adjustment: -5D to + 5D
Magnification changer: 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
Total magnifications: 2.8x, 4x, 7x, 11.5x, 17x
Visual field: 80mm to 12.5mm
Interpupillary distance: 55mm to 75mm
Focusing: Micro-focusing manual 40mm or motorized pedal operated
Working distance, 295mm

ILLUMINATION
Type: Coaxial illumination by optical light-guide system
Cold light source: Halogen lamp, 15V/150W, twin bulbs
Illumination control: 3 steps
Field of illumination: 80mm
Power supply: AC 110V/220V - 220W
Light Intensity: 80,000 LUX
Filter: Blue, Green

ARM STAND
Type: Pantographic arm, floorstand
Range: 1210mm(1st arm 320mm, 2nd arm 605mm, 3rd arm 170mm)
Rotation angle: 270 degree
Elevation stroke: 350mm
Base size: 600mm x 560mm
Weight: 80 KGS

ACCESSORIES
Binoculars: 0-60 degree inclinable binoculars f’=160mm
Objective: f’=250mm, 350mm, 400mm
Beamsplitter: dismountable
Adaptor for CCD Camera: f’=65mm




separator

LB-1920 Trinocular Surgical Microscope for Ophthalmic Surgery offers coaxial light and a motorized continuous optical system. Used by many surgical specialists around the world, this microscope offers excellent image resolution and stable performance throughout daily surgical procedures.

Features

  • Double binocular magnification: 3x – 22x
  • Magnification mode: motorized continuity
  • Diameter of viewing field: 52 – 8 mm
  • Illumination: Cold coaxial light optical system
  • Foot pedal, controlled focus



Specification

MICROSCOPE
Binocular 45° inclined f'=125 mm
Objective f'=200 mm, with red reflex module
Eyepiece 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
Diopter adjustment -5D ~ + 5D
Magnification changer 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
Total magnifications 4x, 6x, 10x, 16x, 25x
Visual field 52mm-8mm
Interpupillary distance 55mm-75 mm
Focusing Micro-focusing manual 40mm motorized, pedal operated
Working distance 195 mm
ILLUMINATION
Type Coaxial illumination by optical light-guide system
Cold light source Halogen lamp, 15V/150W, twin bulbs
Illumination control 3 steps
Field of illumination 60mm
Power supply AC 110V/220V - 220W
Light intensity 80,000 LUX
Filter Green, retinal protection device
ARM, STAND
Type Pantographic arm, floor stand
Range 1210mm (1st arm 330mm, 2nd arm 605mm, 3rd arm 170mm)
Rotation angle 270°
Elevation stroke 350mm
Base size 600mm x 560mm
Weight 80 KGS
OPERATION
Controls Foot-pedal controlled focus
OPTIONAL ACCESSORIES (Must be purchased separately)
Binocular 0 – 180° inclinable binoculars f'=170 mm
Objective f'= 200mm
Objective f’= 250mm
Objective f’= 300mm
Objective f’= 400mm
Beamsplitter dismountable
Adapter for CCD Camera With iris diaphragm, f’=65 mm
CCD Camera LC-8 C-Mount HDMI+WiFi CMOS Camera
Integrated Beam Splitter and CCD adapter  Integrated




separator

LB-1925 Advanced Multifunctional Surgical Microscope (Ophthalmic Surgery, Orthopedic Surgery, and Hand Surgery) for 2 Viewer is a double binocular operation microscope designed for two men. Assistant binocular can also be switched as opponent binocular. It is applicable in ophthalmic surgery and hand surgery.

Features

  • Assistant microscope can be rotated to opponent microscope.
  • Internal beam splitter can be connected with teaching tube and CCD system.
  • Equipped with three different objective lenses(f200/f250/f300)and applicable in ophthalmic surgery,orthopedic surgery and hand surgery.
  • Oblique illumination can also be used as slit illumination and slit width is adjustable.

Specification


Model LB-1925
Eyepiece Magnifications 12.5×/18B
Diopter Adjustment ±7D
Pupil Distance 50mm~75mm
Magnifications for Main Microscope f200: 4X  6X  10X  16X  25X
f250: 3.2X  5X  8X  12.8X  20X
f300:2.7X  4.2X  6.7X  11X  17X
Magnifications for Assitant Microscope f200: 6X  10X  16X
f250: 5X  8X  12.8X
f300: 4.2X  6.7X  11X
Maximal Resolution 112 LP/mm
Illumination Source 12V/100W, Cold Reflection Halogen Bulb for Medical Use
Illumination Type 6°+0°coaxial illumination of cold light source 25°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable,and its angle is 360°rotation.
Coaxial Illumination ≥50000lx
Oblique Illumination ≥45000lx
Reaching Radius of Arm 1040mm
Adjustable Vertical Range 850mm~1350mm
Fine Focusing Speed and Range ≤2mm/s,≥50mm
Speed for X/Y and Range ≤2mm/s,50mm×50mm
Input Voltage AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power 330VA
Fuse AC250V T4.0A,AC125V T8.0A
Electrical Safety Standard Executive Standard: GB9706.1-2007,type I
Packing Volume 0.727m3,5cartons
Total Weight 210kg




separator

LB-1930 Surgical Microscope for Neurology (Neural Surgery, Brain Surgery, Facial Features Surgery) offers excellent optical features with high resolution, long depth of field. It adopts a combinative structure which is in fashion internationally, and is suitable for examination and surgeries in several kinds of fields. The main microscope has a manual focusing system. In order to demonstrate or store the document, the beam splitter, observer's monocular and adapter for CCD camera or CCD camera are for option.

Features

  • The main microscope can be inclined back and forth/ right and left/move up and down
  • Smooth six-step magnification changer
  • 230-260mm adjustable working distance objectives lens with Max. 24x magnification
  • Wide field 12.5x eyepieces with adjustable diopter
  • Fan cooled LED light source with AC 3V/10W
  • Continuous illumination control
  • Power off when lifting the spring arm
  • Green/yellow/blue filter in selector knob Plastic covers for the arm reduce the weight

Specification

MICROSCOPE

Binocular

Straight Binocular Head or 45° Binocular f’=160

Objective

230-260mm Adjustable working distance objective lens with Max 24x magnification

Eyepiece

Wide field 12.5x eyepiece with adjustable diopter

Diopter adjustment

-5D ~ + 5D

Magnification changer

6 steps: 0.3x, 0.5x, 0.8x, 1.2x, 2.0x, 3.0x

Total magnifications

6 steps: 2.4x, 4x, 6.4x, 9.6x, 16x, 24x

Visual field

8.5-78mm

Interpupillary distance

55mm-75 mm

ILLUMINATION

Type

LED 3V/10W

Diameter of illumination

65mm

Power supply

AC 90-240v

Light intensity

Min. 25000 LUX

Filter

Green, Yellow, Blue filter in selector knob

ARM

Extended Arm

1250mm (max)

Elevation Stroke for Spring Arm

400mm

Rotation Angle

270°

STANDARD ACCESSORIES

Dust cover, 2 spare fuse, 4 pcs. hexagon spanner, mini-screw driver, brush, flannelette cloth, and instruction manual

OPTIONAL ACCESSORIES (Must be ordered separately)

Objective

f’= 175mm

Objective

f’= 200mm

Objective

f’= 250mm

Objective

f’= 300mm

Objective

f’= 400mm

Integrated B/S & A/D

Integrated

Adapter for CCD Camera



Observer’s monocular



Monitor

HDMI monitor, LCD panel, 1080P resolution and LED backlight

CCD Camera

LC-8


separator

LB-1940 Operational Microscope with 2 Binocular for 2 Person (Ophthalmic Operation and Microsurgery) is a new-developed portable and popular instrument. It can be used widely in the field of ophthalmic operations and ophthalmic experiments for medical hospitals. It is an essential medical instrument of ophthalmic micro-technology with excellent quality and a reasonable price.

Features

  • Wide visual angle, clear imageries
  • Coaxial cold light source; bright and clear in depth
  • With assistant mirror provided for two persons to operate together
  • Slight adjusting of positions by foot; light and handy
  • Convenient for operation and carrying about

Specification


Mechanical performance Stand up-down range
Spring arm adjustment range 250mm; motorized up-down range:50mm
Motorized up-down speed 2.5mm/s
Direction Adjusting Range Level ±180° Left And Right: ±90°
Longest Turning Radius of Cross-Arm 800mm
Maximum illumination of light source Not Less Than 15000LX
Bromine and Tungsten Lamp 8V 50W
Voltage Of Power 220±10% 50Hz
Double binocular with 90 ° position (Magnification of main microscope: 10x, magnification of vice microscope:4x)
Main Microscope Eyepiece:12.5x/22b, the adjustable range of PD: 54mm-75mm)
Balance Frame Spring arm adjustable range 250mm)
8v/50W imported Halogen lamp maximum illuminance: 30000 LX
Up-down foot control Motorized fine-tune up-down speed: 2.5mm/s
Power cable 220V ±10% 50Hz
Optical fiber
Electric Focusing cable
separator

LB-1950 Operational Microscope for Ophthalmology (Cataracts and Other Eye Surgeries) is a friendly to use coaxial illumination operation microscope for one person. It is portable and compact. It is suitable for carrying out cataracts and other eye surgeries.

Application

It is portable, compact and is mainly applied in clinic, hospitals and mobile hospitals for Ophthalmology and areas like these.

Features

  • All the lenses are multi-coated, mildewproof and anti-reflective.
  • Optional objectives: f250/f300/f350f/f400.
  • Desktop stand can be chosen to make the device more portable. It can also be customized according to various operation requirements.
  • Foot control focus, 3 gears magnification, sharp images and comfortable observation, can meet the needs of cataracts and other eye surgeries.
  • With apochromatic technology, focal points of different wavelengths light through the lens are very close, the operators’ vision is more clearly.

Specification

Eyepiece Magnification

12.5×

Objective Lens

f=200

Working Distance

190mm

Magnifications for Main Microscope

5.3×, 8×, 12×

Diameter of Field

F37mm, F25mm, F16.7mm

Diopter Adjustment

±7D

Pupil Distance

50mm~80mm

Maximal Resolution

100LP/mm

Illumination Source

12V/100W, medical cold reflection halogen lamp

Illumination Type

6°+0°Coaxial cold light source illumination

Coaxial Illumination

≥30000lx

Reaching Radius of Arm

870mm

Adjustable Vertical Range

700mm~1100mm

Fine Focusing Range

30mm

Input Voltage

AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz

Power

120VA

Fuse

AC250V T1.25A, AC125V T2.5A

Electrical Safety Standard

Executive Standard: GB9706.1-2007, type I

Packing Volume

0.2m3, 1carton

Total Weight

41kg




separator

LB-1960 Binocular Operational Microscope for ENT and Ophthalmology (Ophthalmic Microsurgery) is a coaxial illumination binocular operation microscope for one person, compact, portable and flexible. It can meet general requirements of ophthalmic microsurgery.

Application

It is portable, compact and is mainly applied in clinic, hospitals and mobile hospitals for Ophthalmology, ENT and areas like these.

Features

  • Binocular operation microscope designed for one person, can meet the requirements of general ophthalmic surgery.
  • Germany optical lenses are all multi-coated. Image is clear and view field is even.
  • 6°+0 coaxial illumination provides the red reflex, lens posterior capsule can be observed, so as to reduce the risk of surgery.
  • Radius of microscope arm increases to 1030mm, which provides larger operation range for the surgeon.
  • Universal structure/stand to support the microscope head up and down, left and right movement, more application area.
  • Position lock screw can protect the arm at any location from moving.

Specification

Eyepiece Magnification

12.5×

Objective Focus

f=200

Working Distance

190mm

Magnification for Main Microscope

5.3×, 8×, 12× steps

Diameter of Field

F37mm, F25mm, F16.7mm

Diopter Adjustment

±7D

Pupil Distance

50mm~80mm

Maximal Resolution

100 LP/mm

Illumination Source

12V/100W, cold reflection medical halogen bulb

Illumination Type

6°+0°cold light coaxial illumination

Coaxial Illumination

≥30000lx

Reaching Radius of Arm

1030mm

Adjustable Vertical Range

±200mm

Fine Focusing Range

30mm

Input Voltage

AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz

Power

120VA

Fuse

AC250V T1.25A, AC125V T2.5A

Electrical Safety Standard

Executive Standard GB9706.1-2007 Class Ⅰ

Packing Volume

0.24m3, 1 carton

Total Weight

51kg




separator

LB-1970 Binocular Operational Microscope for ENT, Orthopedic, Ophthalmology and Gynecology (Microsurgery) adopts wholly new optical system, with clear image and wide view field, it is mainly used for operations and fine examinations of ophthalmology, gynecology, ENT and so on.

Application

It is compact and with complete functions, it is mainly applied in clinic, hospitals and mobile hospitals for operations and examinations of ophthalmology, gynecology, ENT and so on.

Features

  • ZOOM magnification system, 4×~24× zoom magnification, horizontal movement of foot control and fine focusing.
  • Compact structure and complete functions.
  • Germany imported Schott optics ensure the sharp image and even field of view.
  • Cold light source fiber illumination does no harm to tissues.

Specification

Eyepiece Magnification

12.5×/16B

Diopter Adjustment

±6D

Pupil Distance

50mm~75mm

Visual Angle of Eyepiece

30°~90°(Eyepiece moving between 0°~180°is optional )

Magnifications for Main Microscope
(Diameter of Field)

4×~24×(41.5mm~7.5mm)

Objective Lens

f=200(f=175/250/300 is optional)

Maximal Resolution

119LP/mm

Working Distance

190mm

Illumination Source

15V/150W, Medical Cold-reflection Halogen Bulb

Illumination Type

6°+0° Coaxial Illumination

Coaxial Illumination

≥40,000lx

Filters

Orange filter(cobalt filter is optional)

Reaching Radius of Arm

1020mm

Adjustable Vertical Range

250mm

Fine Focusuing Range and Speed

30mm, ≤2mm/s

Speed for X-Y and Range

50mm×50mm,≤2mm/s

Input Voltage

AC220V±22v/ 50Hz±1Hz, AC110V±11v / 60Hz±1Hz

Power

200VA

Fuse

T2AL 250V (51S-040H), T4AL 125V (51S-080L)

Electrical Safety Standard

Executive Standard:GB9706.1-2007, Class I

Packing Volume

0.418m, 2cartons

Total Weight

87kg




separator

LB-2700 Binocular Latest Surgical Microscope with Assistant Scopes for Ophthalmic and General Surgery is our latest researched product for ophthalmic surgery. Equipped with advanced motorized continuous zoom, the instrument can meet he needs of stepless magnification during the operation. The assistant scopes have tree ranges of magnification, and can be turned round the main scopes within 180 and be fixed at any angle.

Application

LB-2700 Binocular Latest Surgical Microscope with Assistant Scopes for Ophthalmic and General Surgery camera and presenting facilities are useful for teaching and storing information, and video system is option to customers. This is the most advanced operation microscope for ophthalmology in domestic markets, and can meet all kinds of ophthalmic surgery.

Features

  • The main and assistant scopes share the construction of same light route, and zero degree between them.
  • Light systems is equipped with retina protection device, red reflex intensifier, filter of infrared.
  • It adopts 28 inclined illumination device which can be used for slit illumination ,slit can revolve round the optical axis within 360.
  • The main scopes adopts motorized continuous zoom system ,with the magnification adjustable from 5xto 25x,and the instrument enjoys a clear image, a sharp stereoscopic perception and remarkable width of field.
  • The assistant scopes possess the step magnification of 4x, 10x, 16x, by hand wheel. Also, it can revolve round the main scopes within 180 and fixed at any angle.
  • X-y system with push button, and the moving range of x-y: 40mm
  • Equipped with motorized bending or lifting adjustment construction, it is convenient for doctor to operate the instrument.
  • The instrument adopts spring counter balance at every fixed point .the performance is easy and flexible, but stable and reliable.

Specification

LB-2700 Specification
Magnification of main scopes: 5x-25x
Visual field of main scopes: 42.5-8.5mm
Magnification of assistant scopes: 6x,10x,16x
Visual field of assistant scopes: 35mm,21mm,17mm
Range of stand’s vertical up-down: 500mm
The fine a adjustable focusing range: 50mm
Range of ocular distance: 55-72mm
The max. stretching length of stand’s horizontal arm: 1030mm
The swing angle of carries arm: 240
Power source: ac220+/-5%50hz or ac110 +/-5%50hz




separator

LB-3000 Advanced Multifunctional Surgical Microscope (Ophthalmology, ENT, Organic Surgery, Neurological Surgery, and Orthopedics) for 3 Viewer is designed for microsurgery in ophthalmology, ENT, organic surgery, neurological surgery, and orthopedics.

Application

The angle between the main and assistant's microscope is 90°. This is an operation microscope with dual binocular scopes sharing the same viewing field and motorized continuous optical system, suitable for super deep cavity operations and examinations. It makes possible for simultaneous and manipulation of two or three person. It can also be used for teaching, photographing and color video recording purposes.

Features

  • The main microscope is in the latest design of tilting binocular tube system with a continuous tilting range of-30~60°. This enables doctors to have the most comfortable body positions when performing various kinds of microsurgical operations.
  • Binocular assistant’s microscope synchronizes with the main microscope, with the same light route, magnification viewing field and bearing, both enjoy a good stereo-scopic perception when in observation.
  • Both the main and assistant’s microscope adopt a motorized continuous optical system, with a zoom rate of 1:5. This system features a clear image a sharp stereo-scopic perception and a remarkable depth of field, thus satisfying the needs of all kinds of deep cavity operations.
  • The instrument adopts a coaxial internal illumination system which has a great brightness, suitable for deep cavity operations and examinations.
  • The instrument adopts motorized focusing system which is both convenient and flexible.
  • The instrument has six movements of degrees of freedom allowing the microscope to be motorized or turned to and from up and down, and side to side. This permits each surgeon a best angle of observation.

Specification

  • Range of the stand’s vertical up-down: 500mm
  • Motorized zooming speed: 2r/min
  • The precise focusing range:40mm,aiming speed:2mm/s
  • The range of the microscope’s free movement to and from side to side are all 100°
  • The interpupillary distances of the main and assistant’s microscope are all adjustable, within a range of 55~75mm
  • Cold light source illumination: 15V 15OW, brightness: 80000~180000 Lx
  • The maximum stretching length of the stand’s horizontal arm: 1200mm
  • The swing angle of the carrier arm: 360°
  • The stand can be equipped with X-Y coupling, with the moving, range of 40mm




separator

LB-3100 Advanced Multifunctional Surgical Microscope (Ophthalmic Surgery and Orthopedic Surgery) for 2 Viewer


Features

  • Germany Schott optics ensures the surgeon bright, balanced,
    and fine observation.
  • Apochromatic technology used in the optical design, ensures coaxial light focus and provides clearer field of view.
  • Lock device under the microscope arm ensures the safe distance and prevents accidents from happening.
  • Independent electrical control box with the function of automatic diagnosis, which is very convenient for installation and repair if necessary.

Specification

Model LB-3100
Eyepiece Magnifications 12.5×
Objective Lens f=200
Working Distance 170mm
Magnification for Main Microscope 4.6×~27× motorized and manual control continuous magnification
Magnification for Assistant Microscope 6×,10×,16×
Diameter of Field Φ 46mm ~ Φ 8.5mm
Adjustable Diopter ±5D
Adjustable Range for Pupil Distance 55mm ~ 75mm (main microscope is 45mm ~ 80mm)
Focus for Assistant Microscope ≥30mm
Illumination Source 12V/100W,cold reflection halogen lamp for medical use
Illumination Type 6°+0°coaxial illumination of cold light source, 26°oblique illumination
Coaxial Illumination ≥60000lx,1~9level,panel operated
Oblique Illumination ≥60000lx,1~9level, panel operated
Reaching Radius of Arm 1230mm
Adjustable Vertical Range 880mm~1420mm
Fine Focusing Speed and Range ≤2mm/s,≥50mm
Speed for X/Y and Range ≤2mm/s,50mm×50mm
Power Supply AC110V±220V±10%, 50Hz/60Hz
Power Consumption 170VA
Fuse T4.0AL, T8.0AL 125V
Packing Volume 0.756m3,5cartons
Total Gross Weight 215kg




separator

The newly designed LB-92 HD Presentation Microscope features a rotating microscope head mounted on a flexible goose-neck arm to give you maximum flexibility when capturing images. The auto-focus lens makes it easy to zoom in and out while you are making presentation. You can adjust optical and digital zoom from your remote, then the microscope will automatically refocus the lens to a clear image.

The portable and compact design makes it the perfect desk companion for presentation.

Features

  • Portable design with goose neck.
  • Multiple inputs and outputs.\
  • USB Plug and play.\
  • Clear and sharp image.
  • Multi buttons for controlling on board or remote control.

Sensor

1/3" CMOS

Total pixel

2 Megapixel

Zoom

9× optical, 12× digital

Frame rate

12fps

Shooting area

Max: 16.5"×11.7"(41.9cm×29.7cm), Min: 0.1"×0.1"(0.3cm×0.3cm)

Focus

Auto/manual

Native output signal

SXGA(1280×1024)

Converted output signal

SXGA, XGA

Resolution (Horizontal)

≥750 TV lines

White balance

Auto/manual

Color adjustment

Yes

Brightness adjustment

Yes

Image capture

Yes, 12 volatile images

Video recording

Yes

Image mirror

Yes

Image rotation

180˚

Image split

Yes

Image freeze

Yes

OSD

Yes

Text mode

Yes

Mono/color conversion

Yes

Positive/negative conversion

Yes

Operation System

Windows XP/VISTA/WIN 7, Mac OS 10.4 OR ABOVE,
Driver plug and play

Remote control

Yes

Microscope adapter

Supported

Light source

Embedded LED lamp on Arm

Operation temperature

32˚F to 113˚F

Power supply

12V DC power adapter

Dimension & G.W.

17cm×21cm×40cm, 2.5kg




separator

LB-101 Monocular Zoom Microscope is a precise optical system providing high resolution, sharp and strong stereoscopic images. 7×-45× zoom images can be observed by easily operation. It is a very good microscope and can be used in semi-conductor and integrated circuit board inspection and measurement. It is also can be used in educational demonstrations and agriculture research areas.

Monocular Zoom Body LB-100 can also be flexibly equipped with a frame to work with a semi-conductor and integrate circuit board production line. With a microscope digital eyepiece LB-131, it turns into a digital microscope. It then can be connected to a PC to analyze the object.

Features

Infinite and high quality zoom optical system 1:6.5.
Integration structure design makes it occupy less working space.
High-resolution camera, USB2.0 output.
A wide range of accessories to be equipped with the microscope for multi-purpose.
Digital camera connected to computer to achieve analysis function.
Wider viewing field (eye survey up to 85mm).
Higher magnification (up to 400X with 15”monitor).


Eyepiece: Eyepiece WF10x with diopter adjustment
Zoom Ratio: Zoom Ratio: 1﹕6.5(0.7×-4.5×)
Total Magnification: 7×-45×
Working Distance: 90mm
Stand Focusing Range: 55mm
Stand Clips:

Φ90mm Frosted Glass or Black/ White Plate & Clips

Illumination:

Reflect Illumination, 6V/15W Halogen Lamp with Reflector

Bottom Illumination

6V/20W Halogen Lamp
Video System C Mount

.


separator

LB-108 Monocular Zoom Microscope adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. This series microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent optical performance make them a better choice in these areas.

Features

  1. Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view. Get high-resolution and high contrast images, naturally restore the true colors of observed objects.
  2. Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment.
  3. Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of machine vision conventional imaging.
  4. There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s optical magnification range 0.054×-1500×, working distance 2mm-270mm, object field of view 0.004mm-20mm.
  5. LED Ring light, Polarizing illumination, Coaxial illumination system are optional, Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions.
  6. Adopt modular design, various additional accessories are optional to make the microscope a powerful devoice for your jobs.



Item Specification
Optical System Infinite apochromatic parallel optical system
Zoom Lens Optical zoom magnification: 0.6×-5.0×
Zoom ratio 01:08.3
Mounting Size Φ40mm
C-mount Adapter 1× C-mount adapter
Auxiliary Lens 1× / WD: 88mm
Ring Light BAL-48A LED Ring light, brightness adjustable
Stand and focus arm BA2 Pillar type column plain stand with coarse and fine focus arm
Total Mag. 0.6-5.0×
FOV (mm) 8×6- 0.9×0.7




separator

With sharp image, competitive and reasonable unit price, LB-110 Monocular Biological Microscopes are ideal instruments for student use. These microscopes are mainly designed for elementary school.

Features

Eyepiece: Huygens Eyepiece H5x, H10x, H12.5x
Objective: Achromatic Objective 10x, 40x
Nosepiece: Triple Nosepiece
Stage: Plain Stage with Slide Clips 110-120mmm
Condenser: Single Lens with Disc Diaphragm
Illumination System: Plan-concave Mirror

Eyepiece: Huygens Eyepiece H5x, H10x, H12.5x
Objective: Achromatic Objective 10x, 40x
Nosepiece: Triple Nosepiece
Stage: Plain Stage with Slide Clips 110-120mmm
Condenser: Single Lens with Disc Diaphragm
Illumination System: Plan-concave Mirror
Optional (must be purchased separately) Attachable Illuminator




separator

With sharp image, competitive and reasonable unit price, LB-111 Monocular Biological Microscopes are ideal instruments for student use. These microscopes are mainly designed for elementary school.

Features

Eyepiece: Huygens Eyepiece H5x, H10x, H16x
Objective: Achromatic Objective 10x, 40x
Nosepiece: Triple Nosepiece
Stage: Plain Stage with Slide Clips 110-120mmm
Condenser: Iris Diaphragm
Illumination System: Plan-concave Mirror

Eyepiece: Huygens Eyepiece H5x, H10x, H16x with diopter adjustment
Objective: Achromatic Objective 10x, 40x
Nosepiece: Triple Nosepiece
Stage: Plain Stage with Slide Clips 110-120mmm
Condenser: Iris Diaphragm
Illumination System: Plan-concave Mirror
Optional (must be purchased separately) Attachable Illuminator




separator

With sharp image, competitive and reasonable unit price, LB-112 Monocular Biological Microscopes are ideal instruments for student use. These microscopes are mainly designed for elementary school.

Features

Eyepiece: Huygens Eyepiece H5x, H10x, H16x
Objective: Achromatic Objective 10x, 40x
Nosepiece: Triple Nosepiece
Stage: Attachable Mechanical Stage 110-120mmm / 60x30mm
Condenser: Abbe with Iris Diaphragm and Filter
Illumination System: Plan-concave Mirror
Filter: Blue Filter, Green Filter

Eyepiece: Huygens Eyepiece H5x, H10x, H16x with diopter adjustment
Objective: Achromatic Objective 10x, 40x, 100x
Nosepiece: Triple Nosepiece
Stage: Attachable Mechanical Stage 110-120mmm / 60x30mm
Condenser: Abbe with Iris Diaphragm and Filter
Illumination System: Plan-concave Mirror
Filter: Blue Filter, Green Filter
Optional (must be purchased separately) Attachable Illuminator




separator

LB-114 Biological Monocular Microscopes with Wide Field and LED Illumination are more comfortable and reliable operation with modern design. These microscopes are economical, with all basic features for educational use in elementary and high school.

Features

  • More comfortable and reliable operation with modern design.
  • Affordable price with reliable performance, long working life.



Viewing Head

Monocular, Inclined at 45°, 360° Rotatable

Nosepiece

Triple Nosepiece

Eyepiece

Wide Field Eyepiece WF10×/18 with diopter adjustment

Achromatic Objective

4×, 10×, 40×(S)

Stage Plain Stage with Slide Clips 110×120mm

Focusing

Coaxial Coarse and Fine Adjustment

Condenser

Single Lens NA 0.65 with Iris Diaphragm

Illumination

LED Illumination, Brightness Adjustable

Package

Styrofoam & Carton, Dimension 28×20×40cm, 3kg






separator

LB-115 Biological Monocular Microscope s with Wide Field and LED Illumination are more comfortable and reliable operation with modern design. These microscopes are economical, with all basic features for educational use in elementary and high school.

Features


  • More comfortable and reliable operation with modern design.
  • Affordable price with reliable performance, long working life.

Viewing Head

Monocular, Inclined at 45°, 360° Rotatable

Nosepiece

Triple Nosepiece

Eyepiece

Wide Field Eyepiece WF10×/18 with diopter adjustment

Achromatic Objective

4×, 10×, 40×(S)

Stage

Plain Stage with Attachable Mechanical 110×120mm/ 60×30mm

Focusing

Coaxial Coarse and Fine Adjustment

Condenser

Abbe NA 1.25 with Iris Diaphragm & Blue Filter,
Spiral Adjustment for Condenser

Illumination

LED Illumination, Brightness Adjustable

Package

Styrofoam & Carton, Dimension 28×20×40cm, 3kg





separator

LB-116 Biological Monocular Microscope s with Wide Field and LED Illumination are more comfortable and reliable operation with modern design. These microscopes are economical, with all basic features for educational use in elementary and high school.

Features

  • More comfortable and reliable operation with modern design.
  • Affordable price with reliable performance, long working life.



Viewing Head

Monocular, Inclined at 45°, 360° Rotatable

Nosepiece

Triple Nosepiece

Eyepiece

Wide Field Eyepiece WF10×/18 with diopter adjustment

Achromatic Objective

4×, 10×, 40×(S)

Stage

Double Layers Mechanical Stage 110×120mm/ 70×20mm

Focusing

Coaxial Coarse and Fine Adjustment

Condenser

Abbe NA 1.25 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser

Illumination

LED Illumination, Brightness Adjustable

Package

Styrofoam & Carton, Dimension 28×20×40cm, 3kg






separator

LB-117 Biological Monocular Microscope with Wide Field, Quadruple Nosepiece and Plan Achromatic Objectives is an ergonomic and economical Monocular microscope with Plan Achromatic objectives, Quadruple nosepiece and LED illumination system.

Features


  • More comfortable and reliable operation with modern design.
  • Affordable price with reliable performance, long working life.

    Optical System

    Finite Optical System

    Viewing Head

    Monocular Viewing Head, Inclined at 30°, 360° Rotatable

    Eyepiece

    WF10×/18mm

    Objectives

    PLAN Achromatic objectives 4X, 10X, 40X, 100X

    Nosepiece

    Quadruple Nosepiece

    Stage

    Stage size 115x125mm, Moving range: 50x70mm

    Condenser

    Abbe NA 1.25 with Iris Diaphragm

    Illumination

    LED illumination/ Halogen lamp 6V 20W (Optional)

    Fuse Spare fuse 2pcs






separator
LB-119 Monocular Biological Microscope with Finite Optical System and Achromatic Objective is economic, practical and easy to operate. This microscope adopt LED illumination, which saves energy, has long working life and also comfortable for observation. This microscope is widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, save energy and long working life;
  • Compact and flexible, ideally suited for desktop, laboratory worktable.
Specification LB-119
Optical System Finite Optical System
Viewing Head Monocular Head, Inclined at 30°, 360° Rotatable
Eyepiece WF10×/18
Objective Achromatic Objective 4×, 10×, 40×, 100×(Oil)
Nosepiece Backward Quadruple Nosepiece
Stage Double Layer Mechanical Stage 132×142mm/ 75×40mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm
Condenser Abbe NA 1.20 with Iris Diaphram and Filter
Illumination LED illumination, Brightness Adjustable
Immersion oil 5ml Immersion oil
Package 1pc/carton, 39.5cm*26.5cm*50cm, 7kg




Separator

LB-120 Monocular Polarizing Microscope is specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors. It also can be used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry. Digital camera can be used together with the microscope for image analysis.

Features

  • Supply sharp and clear images.
  • Widely used in crystallography, Analytical chemistry, Medicine, Biology, Environmental, Pharmacy, toxicology and so on.

Eyepiece

Eyepiece WF10×/18 with scale of cross hair

Eyepiece WF10×/18 with graticule

Eyepiece WF10×/18

Eyepiece WF5×/20

Objective

Strain free achromatic objective 4×, 10×, 25×, 40×, 63×

Bertrand Lens

Bertrand lens, Sliding in/out of optical path

Optical Compensator

λ Slip (first class red), 1/ 4λ Slip, Quartz wedge

Revolving Round Stage

Diameter Φ130mm, Graduated in 1° increments, Minimum resolution 6' when using vernier scale

Condenser

NA1.25 Abbe condenser with iris diaphragm & filter

Polarizer

360° Rotatable, Located on the top of collector

Illumination

6V/20W Halogen lamp, Brightness adjustable (Transmitted illumination)

Accessories

Micrometer 0.01mm

Blue filter




separator

LB-121 Digital Monocular Microscope with Wide Field and Camera (1.3MP) feature a built in 1.3 MegaPixel Digital Microscopy Camera and professional software offering high resolution and user friendly operation. This combination of microscope, digital imaging system and software is easy to operate offering outstanding performance. It can take photos, videos and do measurement functions. The objectives are 4x, 10x, 40x and 100x for clear  observation.  Illumination  is  LED  with  variable  light  intensity. The  microscope  is  primarily designed for students for image capturing and distant sharing. This unique combination of microscope, image system and software makes LB-2010MD microscopy system a professional tool for education applications. This microscope also provides a superior cost effective solution for computer interactive laboratory and clinical environments.

Features

  • With 1.3 Mega Pixel CMOS image sensor, the output images have high Signal to Noise Ratio.
  • High definition images and videos, high frame rate.
  • Professional software of real-time review, take photos and videos, measurement. Easy to operate.
  • Supports multiple languages.
  • LED light illumination, save energy.
  • Compact and flexible, ideally suited for desktop, laboratory worktable.



Monocular Head

Monocular eyepiece, 45º Inclined, 360º Rotatable with built-in CMOS camera, 1/3” 1.3MP, resolution: 1280×1024, USB2.0 Connection.

Software

Capturing image and showing live video on PC screen, Saving images as BMP, JPG files, software also has previewing, video, measuring comparing, saving and deleting functions.

Eyepiece

Wide Field Plane-Scope Eyepiece: WF10×/18 with diopter adjustment

Objective

45mm DIN Achromatic Objective: 4×, 10×, 40×(S), 100×(S, Oil)

Stage

Double Layers Mechanical Stage: 115×125mm, Moving Range X-Y: 70×20mm, with Ø2-Ø30mm Iris Diaphragm And Ø32 Filter;

Condenser

ABBE Condenser: N.A. 1.25(Φ2-Φ30mm)

Focus

Coaxial Coarse And Fine Focusing Adjustable

Illumination

With an AC adapter, Built-in LED Lamp

System requirement

•      PC: Windows XP or above, Mac OS X.
•      CPU 200 Mhz or above
•      RAM 128 MB or above
•      Hard disk 500 MB or above
•      CD-ROM drive
•      USB plug

Dimension & G.W

28cm×22cm×40cm, 3.5kg

Packing

Carton, 4 Sets/Carton    29cm×88cm×42cm; 15kg




separator

LB-122 USB Digital Microscope provides powers from 10× to 200× with 2.0MP Image sensor (interpolated to 5MP). It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects. A rugged, metal stand is included for holding the microscope steady at various positions for viewing and/or imaging. With the included software, you can observe the magnified images, capture video, take snapshots and do measurement with Windows Win7, Win 8, Win 10 32 bit & 64 bit, Mac OS X 10.5 or above Operating systems.

Features

  • Easy to use portable digital microscope with USB output interface.
  • 10× to 200× Magnification.
  • 2.0 Mega Pixels CMOS sensor, interpolate to 5MP with software.
  • Manual Focus from 10mm to 500mm.
  • LED illumination with 8pcs LED lamps, brightness adjustable.
  • Photo management software, Auto White Balance and Exposure.
  • Powered by USB 2.0 cable, 5V DC.
  • Metal stand to hold the microscope steady.
  • Multi-language support: English, Germany, Spanish, French, Russian.
  • Operating System: Windows Win7, Win 8, Win 10 32 bit & 64 bit, Mac OS X 10.5 or above.

Image Sensor

2.0 Mega Pixels CMOS sensor (interpolated to 5MP)

Capture Resolution

2560×2048(5MP), 2000×1600, 1600×1280(2MP), 1280×1024, 1024×960, 1024×768, 800×600, 640×480, 352×288, 320×240

Focus Range

Manual Focus From 10mm to 500mm

Frame Rate

Max30f/s under 600 Lus Brightness

Magnification Ratio

10× to 200×

Video Format

AVI format

Still Image Format

JPEG or BMP

Light Source

8 LED adjustable by control wheel

PC Interface

USB 2.0

Power Supply

5V DC from USB port

Operation System

Windows Win7, Win 8, Win 10 32bit&64 bit, Mac OS X 10.5 or above

OSD Language

English, German, Spanish, French, Russian

Bundled Software

MicroCapture with measurement & calibration function

Size

110mm(L) × 33mm(R)

Weight

160g

Package Content

Digital microscope with USB cable, Metal Stand, User Manual, CD with Software

Packing Info

Gift box, 20pcs/carton, 8.2kgs/carton, carton size: 45.5×34.5×30.0 cm





separator

LB-123 USB DIgital Microscope provides powers from 20× and 300× with 5.0MP Image sensor. It is ideally suited for Medical, Industrial Inspection, Engineering, Educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects. With the included software, you can observe the magnified images, capture video, take snapshots and do measurement with Windows Win7, Win 8, Win 10 32bit&64 bit, Mac OS X 10.5 or above Operating system.

Features

  • Easy to use portable digital microscope with USB output interface.
  • 20× and 300× Magnification.
  • 5.0 Mega Pixels CMOS sensor.
  • Manual Focus from 10mm to 500mm.
  • LED illumination with 8pcs LED lamps, brightness adjustable.
  • Photo management software, Auto White Balance and Exposure.
  • Powered by USB 2.0 cable, 5V DC.
  • Metal stand to hold the microscope steady.
  • Multi-language support: English, Germany, Spanish, French, Russian.
  • Operating System: Windows Win7, Win 8, Win 10 32 bit & 64 bit, Mac OS X 10.5 or above.

Image Sensor

5.0 Mega Pixels CMOS sensor (true resolution)

Capture Resolution

5M, 3M, 1.3M, VGA, QVGA

Focus Range

Manual Focus From 10mm to 500mm

Frame Rate

Max30f/s under 600 Lus Brightness

Magnification Ratio

20× to 300×

Video Format

AVI format

Still Image Format

JPEG or BMP

Light Source

8 LED adjustable by control wheel

PC Interface

USB 2.0

Power Supply

5V DC from USB port

Operation System

Windows Win7, Win 8, Win 10 32bit&64 bit, Mac OS X 10.5 or above

OSD Language

English, German, Spanish, French, Russian

Bundled Software

MicroCapture with measurement & calibration function

Size

110mm(L) x33mm(R)

Weight

90g

Package Content

Digital microscope with USB cable, Professional stand, User Manual, CD with Software

Packing Info

Gift box, 12pcs/carton, 11.8kgs/carton, carton size: 45×36×43cm



separator

With precision machining equipment and advanced alignment technology, LB-124 Monocular Biological Microscope are classical biological microscope.

Features

  • New machining facility and advanced alignment technology.
  • With complete functions and outfit of binocular microscope.
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable.
  • Interpupillary distance can be adjusted to fit for observation.

Viewing Head

Monocular Head Inclined at 45°, 360° Rotatable

Eyepiece

Wide Field Eyepiece WF10×/ 18

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm.

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

Built-in Illumination, 6V 20W Halogen light, intensity adjustable

Plan-concave Mirror

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

dust cover, blue + green filter, immersion oil and halogen light source parts and operating manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg



separator

LB-125 Monocular Biological Microscope with precision machining equipment and advanced alignment technology, LB-125 is a classical biological microscope. These microscope is widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Rechargeable battery(only for LED illumination) is optional for outdoors operation or places that power supply is not stable.

Feature

    1. New machining facility and advanced alignment technology.
    2. Comfortable operation with updated and ergonomic design;
    3. Compact and flexible, ideally suited for desktop, laboratory worktable;
    4. Interpupillary distance can be adjusted to fit for observation;
    5. Support Windows Vista / Win 7 / Win8 / Win 10 / Mac Operation System. The software can preview, take photos and video, do image processing and measurement;
    6. Support Multi-language (Arabic, Chinese, English, French, German, Japanese, Polish etc.)

OTHER FEATURES

  • 45 ° inclined monocular tube, 360 ° swiveling, length 160 mm
  • Widefield eyepiece WF10x / 18 with pointer
  • Achromatic semi-plan objectives on turret
  • 4x / 0,10 – 10x / 0,25 – S40x / 0,65 with spring
  • Abbe 1,25 condenser with iris diaphragm and filter holder
  • Double layer mechnical stage, stage size 140×140mm/ moving range 75×50mm
  • Coaxial focusing with division 0.002 mm
  • Cast aluminum with white epoxy
  • LED adjustable transmitted lighting
  • Lithium rechargeable batteries, has longer working life and better quality.
  • Supplied with protective cover and mains charger
Item Specification
Viewing Head Monocular Head Inclined at 45°, 360° Rotatable
Eyepiece Wide Field Eyepiece WF10×/ 18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic Objective 4×, 10×, 40×, 100×
Total magnifications With 10x eyepiece: 40×, 100×, 400×, 1000×
Stage Double Layer Mechanical Stage 140×140mm/ 75×50mm
Focus Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
Condenser Abbe NA 1.25 with Iris Diaphragm & Filter
Illumination 1W S-LED Illumination, Brightness Adjustable
Plan-concave Mirror
Body / Energy Firm Aluminum Body and built in power supply 110-240V
Supplied with Dust cover, immersion oil and user manual
Package 1pc/carton, 33cm×28cm×44cm×, 7kg





separator

LB-126 LCD USB digital microscope provides powers from 20× and 300× with 5.0MP Image sensor, the LCD screen is 3.5inch. It can take images and videos and save in the micro SD card. It also can be connected to PC and take image, take video and do measurement with software. It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects.

Feature

    1. Can work independently, portable and easy to operate.
    2. 20× and 300× Magnification.
    3. 3.5 inches LCD screen, resolution 320×240.
    4. Images and videos can be saved in micro SD card, up to 32G.
    5. 5.0 Mega Pixels CMOS sensor.
    6. Manual Focus from 10mm to 50mm.
    7. LED illumination with 8pcs LED lamps, brightness adjustable.
Model LB-126
Image Sensor 5.0 Mega Pixels CMOS sensor (interpolated to 12.0MP)
LCD Screen 3.5 inches LCD screen, resolution 320×240
Capture Resolution 12M, 9M, 5M, 3M, 1.3M, VGA
Focus Range Manual Focus From 10mm to 50mm
Frame Rate Max30f/s under 600 Lus Brightness
Magnification Ratio 20× to 300×(Digital Magnification can be 1200× )
TV output Available to any monitor with TV in
Card Slot Support MicroSD Card(not included) slot up to 32GB
Light Source 8 LED adjustable by control wheel
Battery Rechargeable lithium battery (recharged by power adapter or USB)
Measurement By software when connected to PC
OSD Language English, German, Spanish, French, Russian
Bundled Software MicroCapture with measurement & calibration function
Microscope Size 149mm(L)*104mm(W)*227(H)
Weight 1100g
Package Content Microscope, Power Adapter, USB cable, TV cable, CD with Software, User’s manual
Packing Info Gift box, 6pcs/carton, 9.0kgs/carton, 43.5x41.5x35cm





separator

LB-127 Monocular Biological Microscope with Wide Field Eyepiece and Achromatic Objectives are economical microscopes with basic features for educational applications in elementary and middle school. With the high quality material and optics, the microscopes can ensure you get high definition images. They are perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Feature

    1. Monocular head, 360° Rotatable, users can view from any angles.
    2. Maximum magnification can be up to 2500× with optional eyepiece and objectives.
    3. Battery compartment comes with the microscope, 3pcs AA battery can be used as the power supply, easy for outdoor work.

Item Specification
Viewing Head Monocular viewing head, Inclined at 45°, 360° Rotatable
Eyepiece WF10×/16mm
WF25×/6.5mm
Nosepiece Triple Nosepiece
Objective Achromatic Objective 4×(185)
Achromatic Objective 10×(185)
Achromatic Objective 40×(185)
Stage Plain Stage with Slide Clips 95×95mm
Focusing Coaxial Coarse and Fine Adjustment
Condenser Single Lens NA 0.65 with Disc Diaphragm
Illumination 0.1W LED Illumination, Brightness Adjustable
Spare Parts Dust Cover
Power Supply AC100-220V power adapter, microscope input voltage DC5V
Battery compartment (can use 3pcs AA batteries as the power supply)
Package Styrofoam & Carton, Dimension 28×19×40 cm, 3kg





separator

LB-132 Portable Measuring Microscope (50×, With Illumination) feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Features

  • Eyepiece 10× with reticle and diopter adjustment.
  • Various kinds of reticles for eyepiece to meet different requirements.



Total Magnification

50×

Mechanical Tube Length

160mm

Eyepiece

10× with diopter adjustment

Objective

Numerical Aperture

0.12

Diameter of Viewing field in Eyepiece

φ18mm

Eyepiece Reticle

0.1mm

Fine Division

0.02mm

Working Distance

17.6mm

Focus Range

30mm

Diameter of Bearing Plane

φ63mm

Height of Microscope

210mm

Mass of Microscope

650g

Illumination

Pen light, No.7 battery




LB-134 Portable Measuring Microscopes (100×, With Illumination) feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Features

  • Eyepiece 10× with reticle and diopter adjustment.
  • Various kinds of reticles for eyepiece to meet different requirements
Total Magnification 100×
Mechanical Tube Length 160mm
Eyepiece 10× with diopter adjustment
Objective 10×
Numerical Aperture 0.25
Diameter of Viewing field in Eyepiece φ18mm
Eyepiece Reticle 0.1mm
Fine Division 0.01mm
Working Distance 6.93mm
Focus Range 30mm
Diameter of Bearing Plane φ63mm
Height of Microscope 210mm
Mass of Microscope 650g
Illumination Pen light with holder, No.7 battery





separator

LB-137 Portable Measuring Microscopes (40×, With Illumination) feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Features

  • Eyepiece 10× with reticle and diopter adjustment.
  • Various kinds of reticles for eyepiece to meet different requirements
Total Magnification 40×
Mechanical Tube Length 160mm
Eyepiece 10× with diopter adjustment
Objective
Numerical Aperture 0.1
Diameter of Viewing field in Eyepiece φ18mm
Eyepiece Reticle 0.1mm
Fine Division 0.025mm
Working Distance 18mm
Focus Range 30mm
Diameter of Bearing Plane φ63mm
Height of Microscope 210mm
Mass of Microscope 650g
Illumination Pen light, No.7 battery



separator

LB-139 Portable Measuring Microscopes (20×, With Illumination) feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Features

  • Eyepiece 10× with reticle and diopter adjustment.
  • Various kinds of reticles for eyepiece to meet different requirements.



Total Magnification

20×

Mechanical Tube Length

160mm

Eyepiece

10× with diopter adjustment

Objective

Numerical Aperture

0.05

Diameter of Viewing field in Eyepiece

φ18mm

Eyepiece Reticle

0.1mm

Fine Division

0.05mm

Working Distance

17.2mm

Focus Range

30mm

Diameter of Bearing Plane

φ63mm

Height of Microscope

210mm

Mass of Microscope

650g

Illumination

Pen light, No.7 battery
Eyepiece
10×/18 Cross with Reticle
Objective
Illumination
Pen Light Illumination (with holder)





MICROSCOPE ACCESSORIES

separator

Epi-Flourescent Attachment

The Epi-Fluorescent Attachment is designed to attach to certain Fluorescent microscopes in the Labomed product line, including the LB-233.

Features

  • B and G Exciting Light Filter Systems
  • 100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
  • Protection Barrier to Resist the Ultraviolet Light
  • Power Supplier NFP-1, AC Input 220V/110V (Interchangeable), Digital Display and Timer
  • Fluorescence-Free Objectives 4x, 10x, 40x, 100x
  • Achromatic Optics System
  • Mercury Lamp Housing 100W
  • Mercury Burner GCQ100







EPI-FLOURESCENT ATTACHMENT

Brochure

separator

Accessories of Stereo Microscope

LB-150 Cold Light Illumination - Coaxial Episcopic Illumination

LB-150 Cold Light Illumination is designed as an auxiliary lighting device for microscope in order to get better observation results.

Features

  • More stable power supply with CE standard electrical equipment and PC control circuit.
  • With delay startup design to protect eyes and electrical equipment caused by sudden brightness.
  • Enhancing the security with skillful power off device.
  • Cooling the illumination better with advanced wind loop design.
  • Reliable with stable structure.
  • Longer working life and lower noise.



Power Supplier

Switch Power 110V/ 220V

T-H Lamp with Reflector 20V/ 150W

Brightness Adjustable



Multi-coated IR Cutoff Filter for Heat Insulation
Fan Cooling
Size: 260×120×150mm Weight 3.3 kg

Ring Light Guide

Flexible Tube, Length 1000mm, Adapter Ring Size Φ50mm/ Φ60mm







LB-150 COLD LIGHT ILLUMINATION

Brochure

separator

Accessories of Stereo Microscope

LB-8 Annular Illuminator, Circle LED Ring Light

With high brightness and even illumination, simple structure and easy to operate, annular LED lamp and fluorescent lamp are used as incident illuminator for stereomicroscopes.

Specification:
LED: 110V or 220V, 54 or 48 Pieces LED, Φ30-Φ60mm







LB-8 ANNULAR ILLUMINATOR, CIRCLE LED RING LIGHT

Brochure

separator

Accessories of Stereo Microscope

LB-10 Annular Illuminator, Circle Flourescent Ring Light

With high brightness and even illumination, simple structure and easy to operate, annular fluorescent lamp are used as incident illuminator for stereomicroscopes.

Specification:

Fluorescent Lamp: 110V or 220V, 8W or 10W, Φ30-Φ60mm







LB-10 ANNULAR ILLUMINATOR, CIRCLE FLUORESCENT RING LIGHT

Brochure

separator

Simple Phase Contrast Kit with 10 X, 40 X, 100 X Phase Contrast Objectives (SPH)



SIMPLE PHASE
CONTRAST KT
(SPH)

Brochure

separator
Sliding Phase Contrast Kit with 10 X, 40 X, 100 X Phase Contrast Objectives (SP)

SLIDING PHASE
CONTRAST KIT
(SP)

Brochure

separator
Turret Phase Contrast Kit with 5 choices of 10 X, 40 X, 100 X Phase Contrast Objectives (TP)

CUSTOMER CAN CHOOSE FROM ONE OF FIVE SETS OF OBJECTIVES BELOW:

  Condenser Plan Achromatic Objective 10x, 20x, 40x, 100x Semi-Plan Achromatic Objective 10x, 20x, 40x, 100x Achromatic Objective 10x, 20x, 40x, 100x Infinite Plan Achromatic Objective 10x, 20x, 40x, 100x Infinite Achromatic Objective 10x, 20x, 40x, 100x Centering Telescope Filter
BPHB-1
X
X

X
X
BPHB-2
X

X

BPHB-3
X

X

X
X
BPHB-4
X

X

X
X
BPHB-5
X

X
X
X





TURRET PHASE
CONTRAST KIT
(TP)

Brochure

separator

Dark Field for Gem Observation

DFD is Dry

DFO is Oil

DARKFIELD MICROSCOPE APPLICATIONS

  • Viewing blood cells (biological darkfield microscope, combined with phase contrast)
  • Viewing bacteria (biological darkfield microscope, combined with phase contrast)
  • Viewing different types of algae (biological darkfield microscope)
  • Viewing hairline metal fractures (metallurgical darkfield microscope)
  • Viewing diamonds and other precious stones (gemological microscope or stereo darkfield microscope)
  • Viewing shrimp or other invertebrates (stereo darkfield microscope)





Brochure

separator

Moveable Stage (MS)



MOVEABLE STAGE
(MS)

Brochure

separator

Microscope Adapter 0.5x (C-Mount)



MICROSCOPE ADAPTER 0.5X
(C-MOUNT)

Brochure

separator

Graticules Eyepiece: 10/100 XYY, 24 mm, crosslines and 10mm/100



GRATICULES EYEPIECE
10/100 XYY, 24 MM, crosslines and 10mm/100 eyepiece

Brochure

separator

Temperature Controlling Stage for Microscopes (Contact us to see if your microscope applies.)



Power: 30W
Temperature Range: Room Temperature: ~ 50° C
Temperature Setting Scale: 1.0° C
Temperature Display Scale: 0.1° C
Accuracy: <+-1.0° C






TEMPERATURE CONTROLLING STAGE FOR MICROSCOPES

Brochure

separator

Microscope PVC Carrying Case

It is suitable for middle size microscopes, please inform the model you want to include in advance, we will produce with the proper size for you.



MICROSCOPE PVC CARRYING CASE

Brochure

separator

Microscope Wooden Carrying Case

It is suitable for middle size microscopes, please inform the model you want to include in advance, we will produce with the proper size for you.



Brochure

separator

Microscope Aluminum Carrying Case

It is suitable for middle size microscopes, please inform the model you want to include in advance, we will produce with the proper size for you.



Brochure







hits counter


click here to fill out the Information Request Form



Spectrophotometers from Labomed
Labomed, Inc. Mailing Address: 2728 S La Cienega Blvd.
Los Angeles, CA 90034 U.S.A TEL (310) 202-0814  FAX (310) 202-7286


Copyright © 2020 Originally created in 2001
