Labomed Inc.

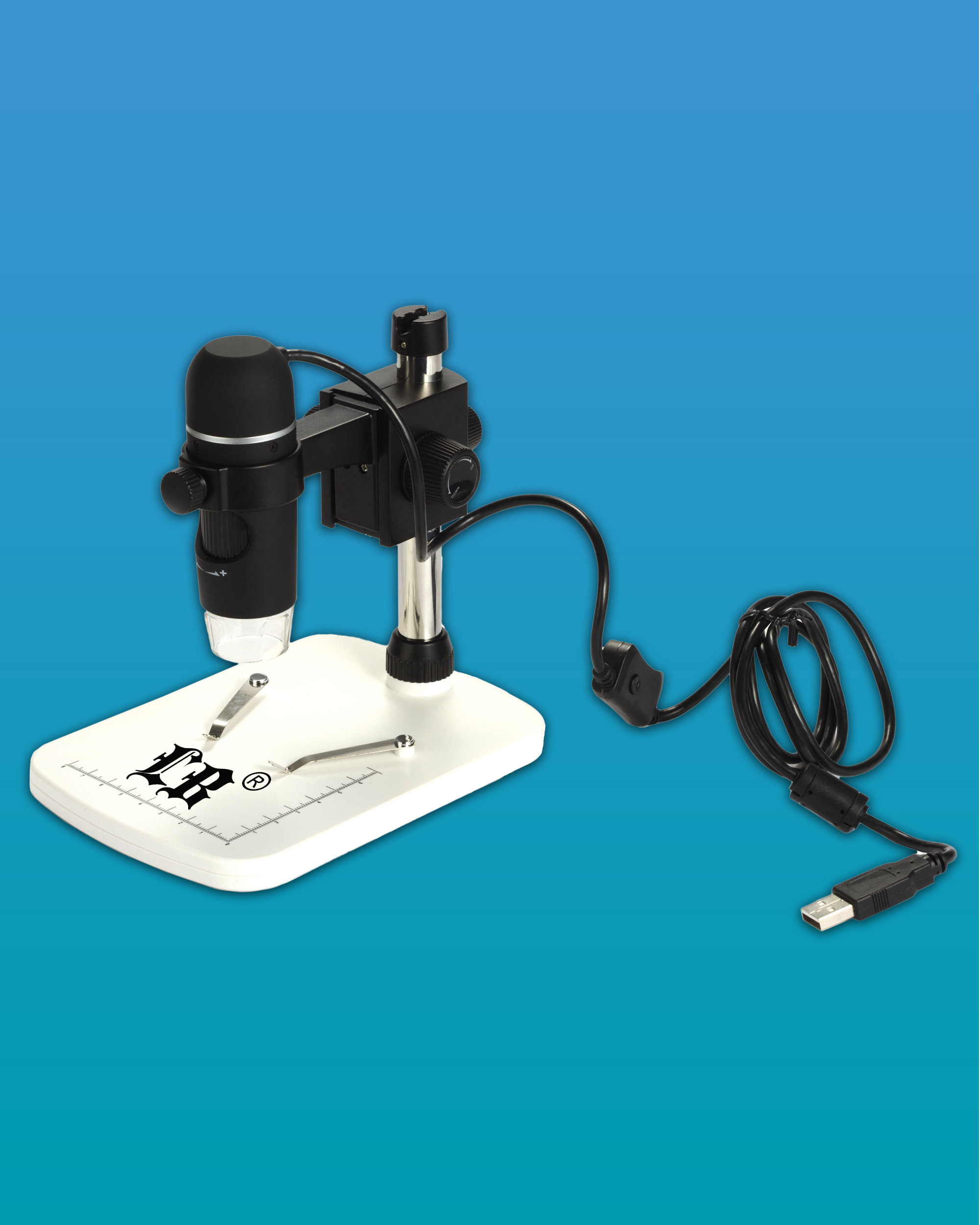

LB-123 USB Digital Microscope

LB-123 USB DIgital Microscope provides powers from 20× and 300× with 5.0MP Image sensor. It is ideally suited for Medical, Industrial Inspection, Engineering, Educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects. With the included software, you can observe the magnified images, capture video, take snapshots and do measurement with Windows Win7, Win 8, Win 10 32bit&64 bit, Mac OS X 10.5 or above Operating system.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


  • Easy to use portable digital microscope with USB output interface.
  • 20× and 300× Magnification.
  • 5.0 Mega Pixels CMOS sensor.
  • Manual Focus from 10mm to 500mm.
  • LED illumination with 8pcs LED lamps, brightness adjustable.
  • Photo management software, Auto White Balance and Exposure.
  • Powered by USB 2.0 cable, 5V DC.
  • Metal stand to hold the microscope steady.
  • Multi-language support: English, Germany, Spanish, French, Russian.
  • Operating System: Windows Win7, Win 8, Win 10 32 bit & 64 bit, Mac OS X 10.5 or above.

Top of the Page

Technical Specifications


LB-123 USB Digital Microscope can be used for: Hobbyists, Educators, Medical Labs, Industrial Inspection, Engineering Applications, Teachers, Students, Science Applications, Doctor’s Offices, Police Agencies, Government Testing, and general use by consumers. It is ideally suited for examining solid objects such as coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials, and many other objects.

Image Sensor

5.0 Mega Pixels CMOS sensor (true resolution)

Capture Resolution

5M, 3M, 1.3M, VGA, QVGA

Focus Range

Manual Focus From 10mm to 500mm

Frame Rate

Max30f/s under 600 Lus Brightness

Magnification Ratio

20× to 300×

Video Format

AVI format

Still Image Format


Light Source

8 LED adjustable by control wheel

PC Interface

USB 2.0

Power Supply

5V DC from USB port

Operation System

Windows Win7, Win 8, Win 10 32bit&64 bit, Mac OS X 10.5 or above

OSD Language

English, German, Spanish, French, Russian

Bundled Software

MicroCapture with measurement & calibration function


110mm(L) x33mm(R)



Package Content

Digital microscope with USB cable, Professional stand, User Manual, CD with Software

Packing Info

Gift box, 12pcs/carton, 11.8kgs/carton, carton size: 45×36×43cm
