Labomed Inc.

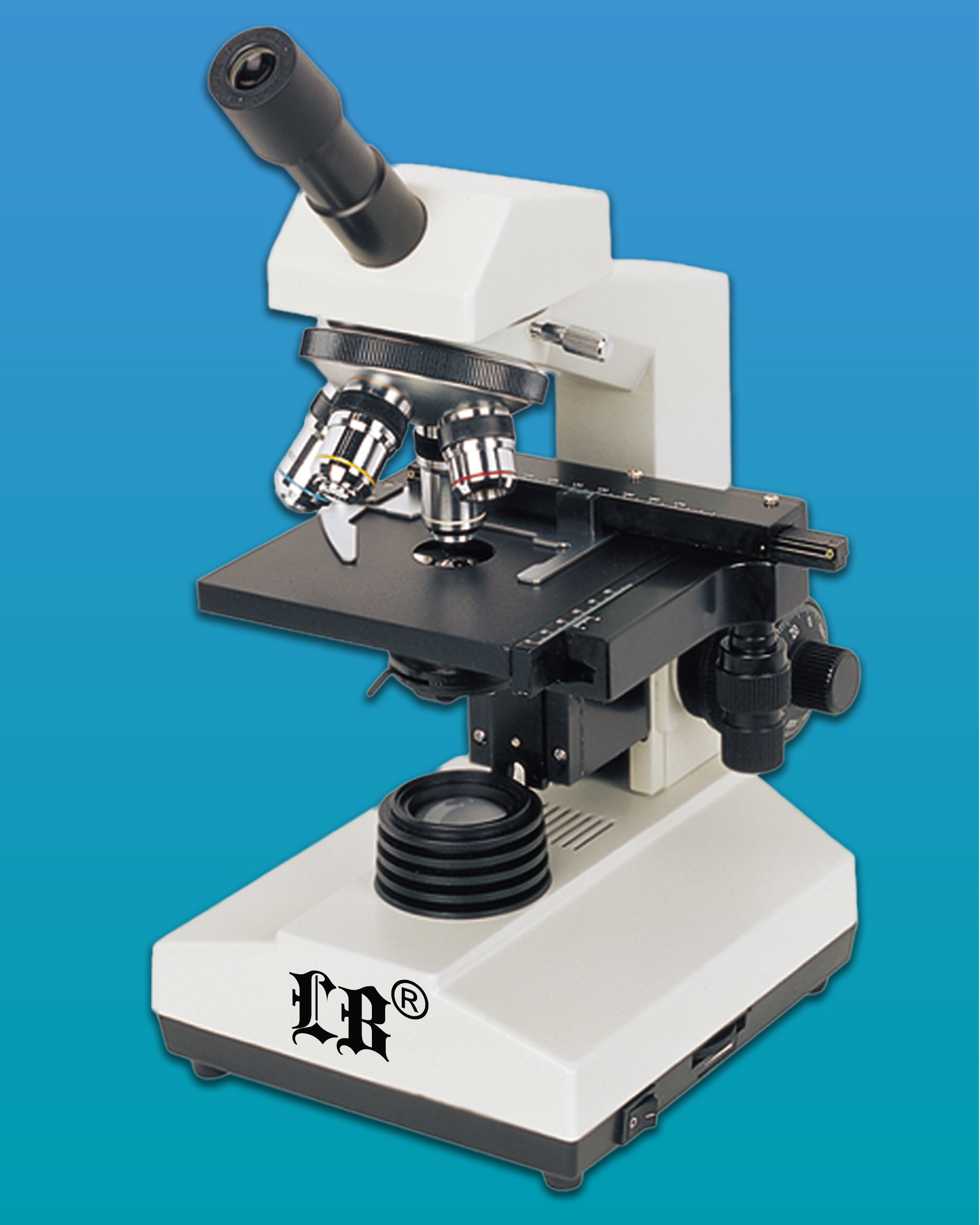

LB-124 Monocular Biological Microscope

With precision machining equipment and advanced alignment technology, LB-124 Monocular Biological Microscope are classical biological microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • New machining facility and advanced alignment technology.
  • With complete functions and outfit of binocular microscope.
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable.
  • Interpupillary distance can be adjusted to fit for observation.

Top of the Page

Technical Specifications

Applications

This binocular microscope is an ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head

Monocular Head Inclined at 45°, 360° Rotatable

Eyepiece

Wide Field Eyepiece WF10×/ 18

Nosepiece

Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm.

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

Built-in Illumination, 6V 20W Halogen light, intensity adjustable

Plan-concave Mirror

Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

dust cover, blue + green filter, immersion oil and halogen light source parts and operating manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
