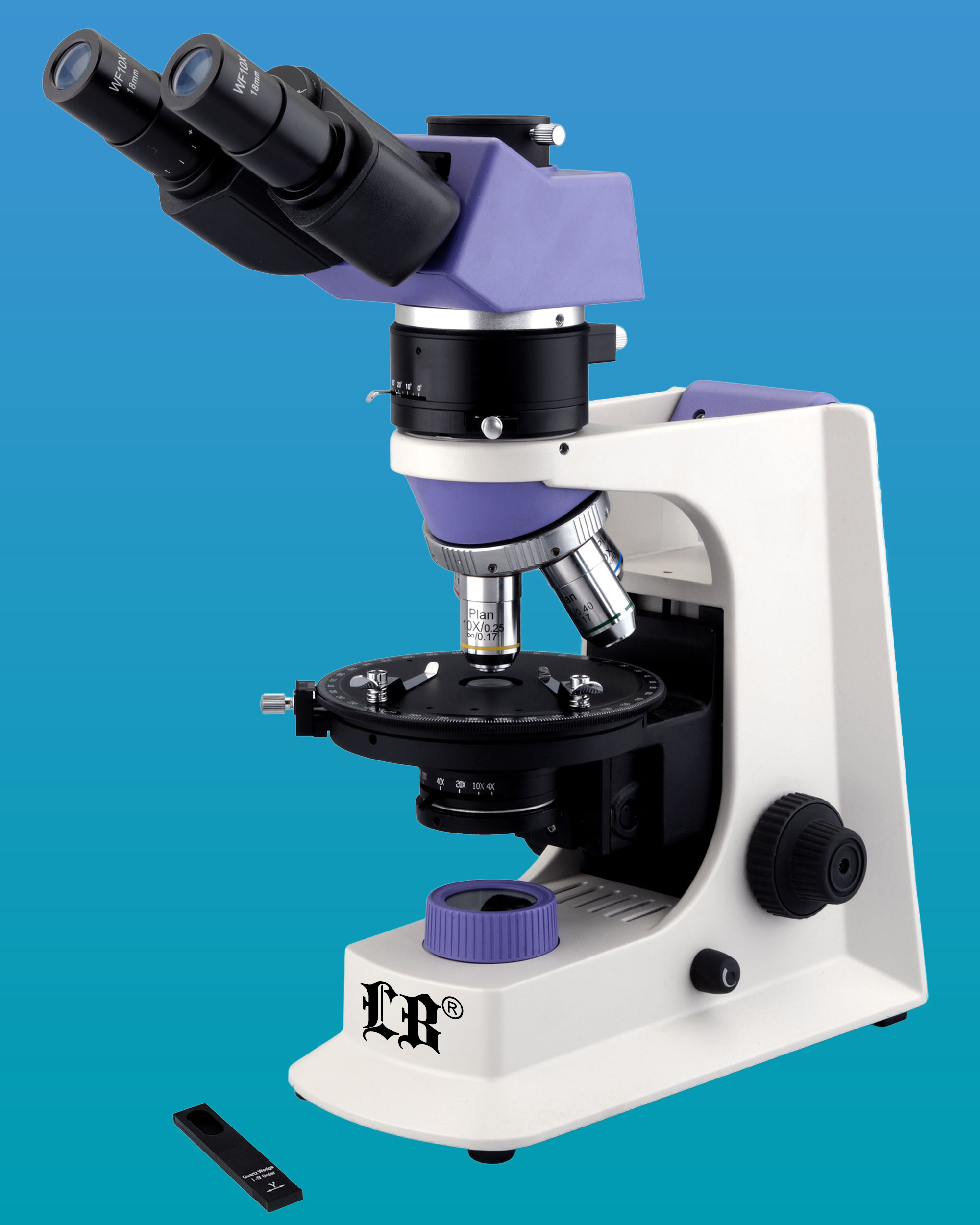

LB-541 Trinocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System
LB-541 Trinocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System is equipped with a smooth, rotating, graduated stage and a set of polarizers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates. It is equipped with an infinite optical system, a comfortable viewing head and a set of Strain-free Infinity Plan Objectives which give a magnification range of 40X – 400X.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- Color corrected infinity optical system.
- Infinity strain free plan objectives, ensuring excellent resolution and clarity.
- Center adjustable nosepiece and center adjustable rotating platform make the operation more accurate and reliable.
|
Top
of the Page
LB-541 Trinocular Transmitted Polarizing Microscope With Halogen Illumination And Infinity Color Corrected Optical System is an ideal instrument in the biological, histological, and pathological fields and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Technical Specifications
Optical system: |
Infinity color corrected optical system |
Viewing Head: |
Seidentopf Trinocular head, inclined 30 degree, rotatable 360 degree, Interpupillary distance 50-75mm. Light Distribution: 20:80 |
Eyepiece: |
WF 10X/18mm
WF 10X/18mm (graticule 0.1mm) |
Objective: |
Strain free plan objectives 4x, 10x, 20x, 40x(s) |
Nosepiece: |
Center adjustable Quadruple nosepiece |
Analyzing Unit: |
Rotatable 360 degree (Module type, can be locked) |
Bertrand Lens: |
Inbuilt, Center adjustable |
Optical components: |
λ slip first class red
¼ λ slip
(I-IV class) Quartz wedge |
Stage: |
Revolving round stage, rotatable 360 degree, center adjustable, division 1 degree, Vernier division 6 degree |
Condenser: |
Abbe N.A. 1.25 Non-stress |
Polarizing unit: |
With scale rotatable 360 degree, can be locked |
Illumination: |
6V/20W Halogen Lamp OR can be supplied with LED Illumination |
Filter: |
Blue (built-in) |
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
