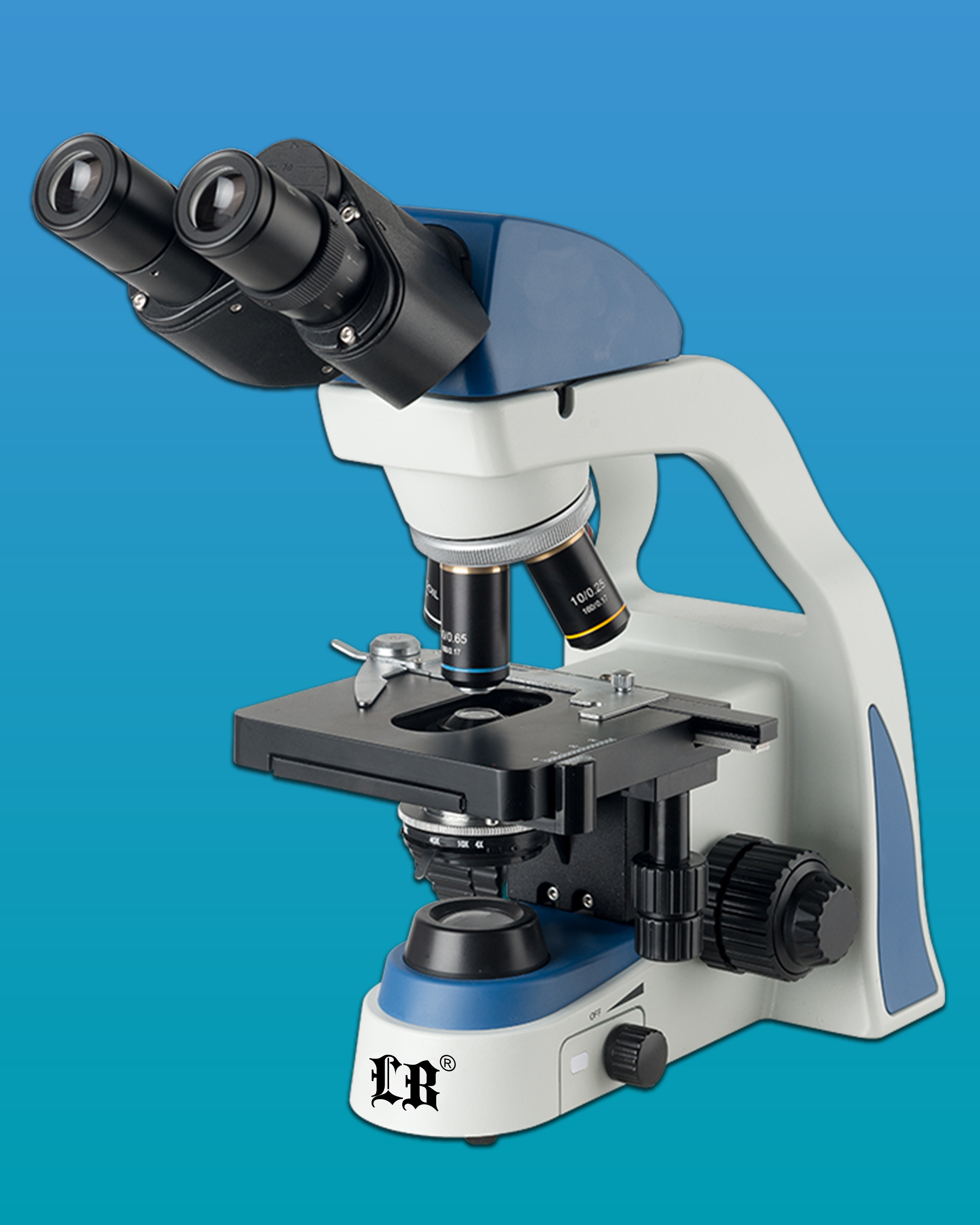

LB-207 Biological Microscope w/ Backward Quadruple Nosepiece, Achromatic Objective & Finite Optical System
LB-207 Biological Microscope w/ Backward Quadruple Nosepiece, Achromatic Objective & Finite Optical System are economic and easy to operate with clear image. These microscopes adopt LED illumination and ergonomics design, comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. Rechargeable battery compartment is standard for outdoors operation or places that power supply is not stable.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- Comfortable operation with ergonomic design.
- Rechargeable LED illumination system.
- Cord rest on back of the microscope.
- Compact and flexible, ideally suited for desktop, laboratory worktable.
|
Top
of the Page
Technical Specifications
Applications
LB-207 Biological Microscope w/ Backward Quadruple Nosepiece, Achromatic Objective & Finite Optical System are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in schools, clinics, hospitals, academic labs and scientific research department.
Item |
Specification |
Optical System |
Finite Optical System |
Viewing Head |
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, right diopter adjustment:±5, Interpupillary Distance 50-75mm |
Eyepiece |
PL10×/18mm |
Objective |
Achromatic Objective |
4×/0.10, WD=21.50mm |
10×/0.25, WD=6.26mm |
40×(S)/0.65, WD=0.48mm |
100×(S,Oil)/1.25, WD=0.15mm |
Nosepiece |
Backward Quadruple Nosepiece |
Stage |
Double Layers Mechanical Stage 115×125mm/ 70×30mm |
Focusing |
Low-position coarse and fine adjustment with stop and tighten structure, moving range: 13mm (combine with single layer stage), 7mm (combine with double layers mechanical stage); fine precision 0.002mm |
Condenser |
NA 1.25 Abbe condenser with iris diaphragm and filter holder |
Illumination |
0.2W LED illumination (color temperature 5700-6500K), intensity adjustable; external power adapter (input 100V-240V, output 5V/1A), with rechargeable battery compartment(for 3pcs Ni-MH AA battery, battery not included) |
Packaging |
1pc/carton, 44cm*47cm*24cm, GW:6kgs, NW: 5kgs |
Sample Images
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
