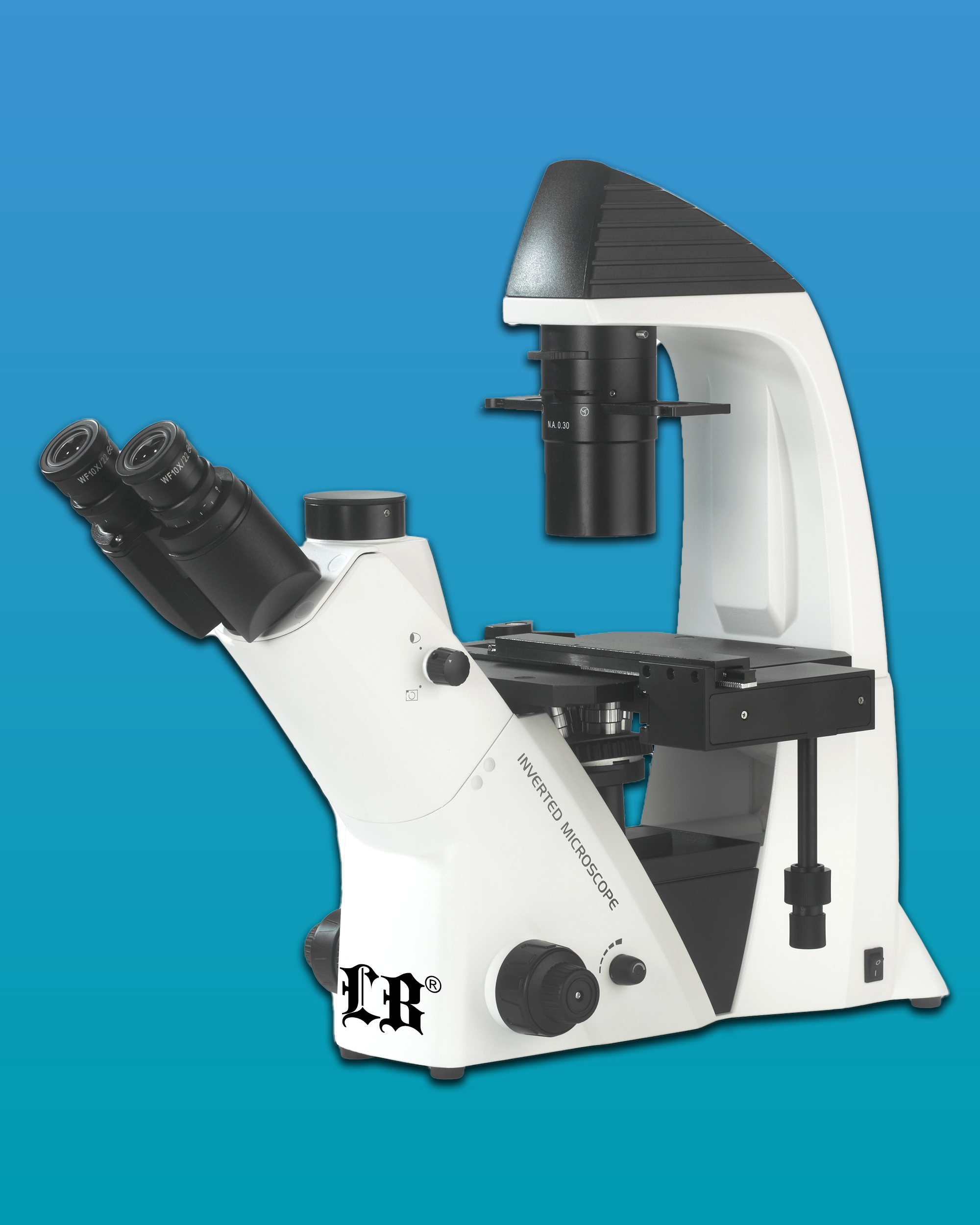

LB-293 Inverted Trinocular Biological Microscope w/ Infinite Optical System, Wide Field Eyepiece & Backward Quintuple Nosepiece

LB-293 Inverted Trinocular Biological Microscope w/ Infinite Optical System, Wide Field Eyepiece & Backward Quintuple Nosepiece is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.
  • More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.
  • Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece).
  • Long working distance condenser N.A. 0.30, Working distance: 72mm(with condenser), Working distance: 195mm (without condenser), available for extra high culture dishes.
  • Large size stage, convenient for research. Size: 210mm(X) × 240 (Y)mm, Moving range: 128mm (X) × 80 (Y)mm.
  • Mechanical stage available for 96 holes plate.
  • Culture Dish Holder
  • Knob of X-Y mechanical stage can be changed by left or right.
  • Infinite plan 4X phase contrast objective is available.

Top of the Page

Technical Specifications

Applications

LB-293 Inverted Trinocular Biological Microscope w/ Infinite Optical System, Wide Field Eyepiece & Backward Quintuple Nosepiece is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Item Specification
Optical System Infinite Optical System
Viewing Head  Seidentopf Trinocular Head, Inclined at 45°, Interpupillary Distance 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece), Eyepiece Tube Diameter 30mm
Eyepiece  Wide Field Eyepiece WF10×/ 22mm
Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 4×/0.11, W.D.=12.1mm
Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 10×/0.25, W.D.=8.3mm
Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 20×/0.40, W.D.=7.2mm
Objective  Long Working Distance Infinite Plan Achromatic Objective (L Plan FL) 40×/0.60, W.D.=3.4mm
Nosepiece  Backward Quintuple Nosepiece
Condenser  Long Working Distance Condenser, N.A. 0.3, Working Distance 72mm (with condenser), 195mm (without condenser)
Phase Annulus  10×, 20×, 40× Phase Annulus Plate
Stage  Plain Stage 210(X)×240mm(Y), round slide plate: Φ110mm
Stage  Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range: 128mm×80mm
Stage  Petri Dish Holder Φ65mm
Stage  Petri Dish Holder Φ54mm
Stage  Petri Dish Holder Φ35mm
Focusing  Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 10mm
Koehler Illumination  6V/30W Halogen Lamp, Brightness Adjustable, input voltage: 100V-240V
Filter  Blue Filter, Diameter 32mm
Filter  Green Filter, Diameter 32mm
C-mount 0.5× C-mount Adapter (focus adjustable)
Packing 1carton/set, Packing Size: 66×59×33cm, Gross Weight: 18kgs, NW: 13.5kgs


ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
