Labomed Inc.

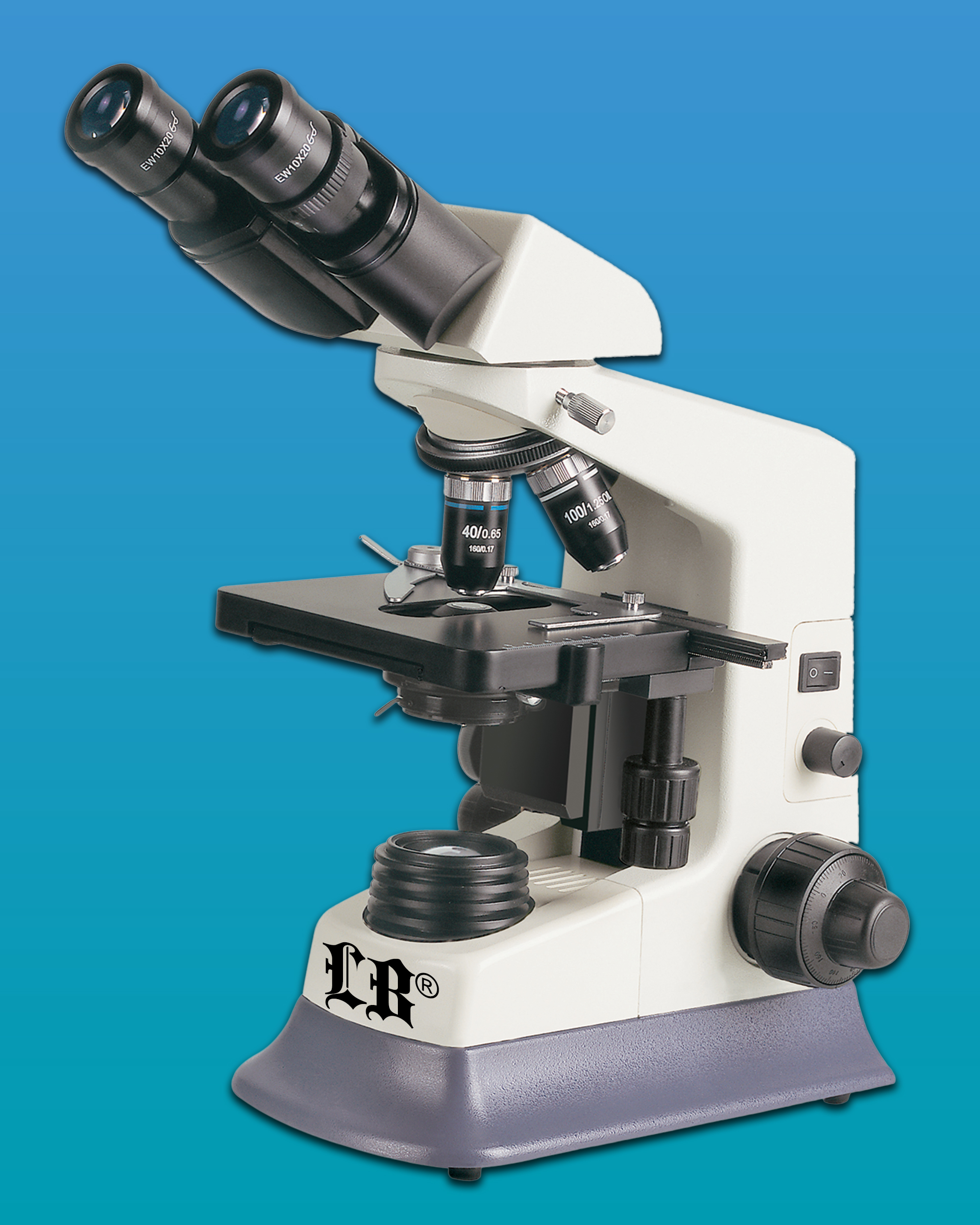

LB-258 Biological Binocular Microscope
with Six
Infinite Achromatic Objectives

LB-258 Binocular Biological Microscope with Wide Field, LED Illumination and Six Infinite Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) (Infinity Color Corrected System) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece, and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plug in to the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supply with 100V-240V Multi-input Rating.

Top of the Page

Technical Specifications

Applications

It is an ideal instrument for the biology, bacteriology, immunology, pharmacology, and related fields. It is widely used in the academic, medical and clinical areas.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20

Objective

Infinite Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable
Kohler illumination (optional)

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
