Labomed Inc.

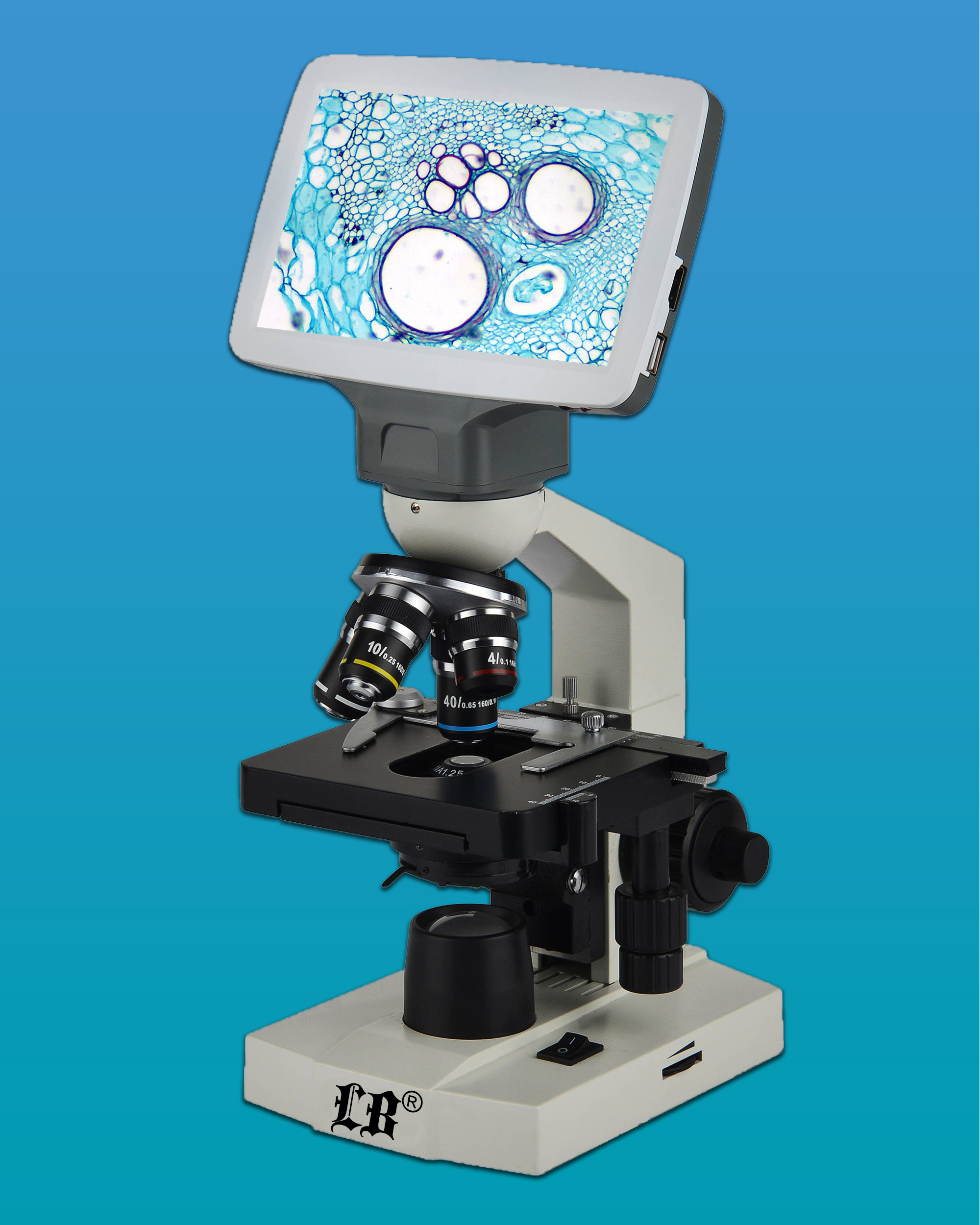

LB-1210 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective

LB-1210 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective has integrated an optical microscope, 7-inch LCD screen and 5.0MP digital camera for image and video capture and data transmission. With high quality optics, the microscope can ensure you get high definition images. It is perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • 7-inch IPS LCD screen with wide visual angle, resolution 1024×600.
  • Built-in 5.0MP CMOS camera, output 1920×1080 HD Video.
  • 1* USB2.0 interface for mouse, no shaking. 1* HDMI interface is convenient for sharing videos to TV or projector for speech. 1* SD card slot, images and videos could be saved in SD card.

Top of the Page

Technical Specifications

Application

LB-1210 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.

Item Specification
Viewing Head 7-inch IPS LCD screen with wide visual angle, resolution 1024×600, Built-in 5.0MP CMOS camera, output 1920×1080 HD Video. 1*USB2.0 interface for mouse, 1* HDMI interface, 1* SD card slot.
Built-in Camera Resolution: 5.0MP, 2592×1944
Image resolution: 2592×1944
Video resolution: 1920×1080
Pixel Size: 2.75×2.75μm
Nosepiece Quadruple Nosepiece
Objective Achromatic Objective 4×(195), 10×(195), 40×(195), 100×(195)
Stage Double Layers Mechanical Stage 110×120mm/ 60×30mm
Focusing Coaxial Coarse and Fine Adjustment, Moving Range 10mm, with stage height limiting screw
Condenser Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser
Illumination Transmitted LED Illumination, Brightness Adjustable
Spare Parts Dust Cover
Power Supply AC100-220V power adapter, microscope input voltage DC5V
Package Styrofoam & Carton, Dimension 35×28×45 cm, 6kg



Sample Images



click here to fill out the Information Request Form
