Labomed Inc.

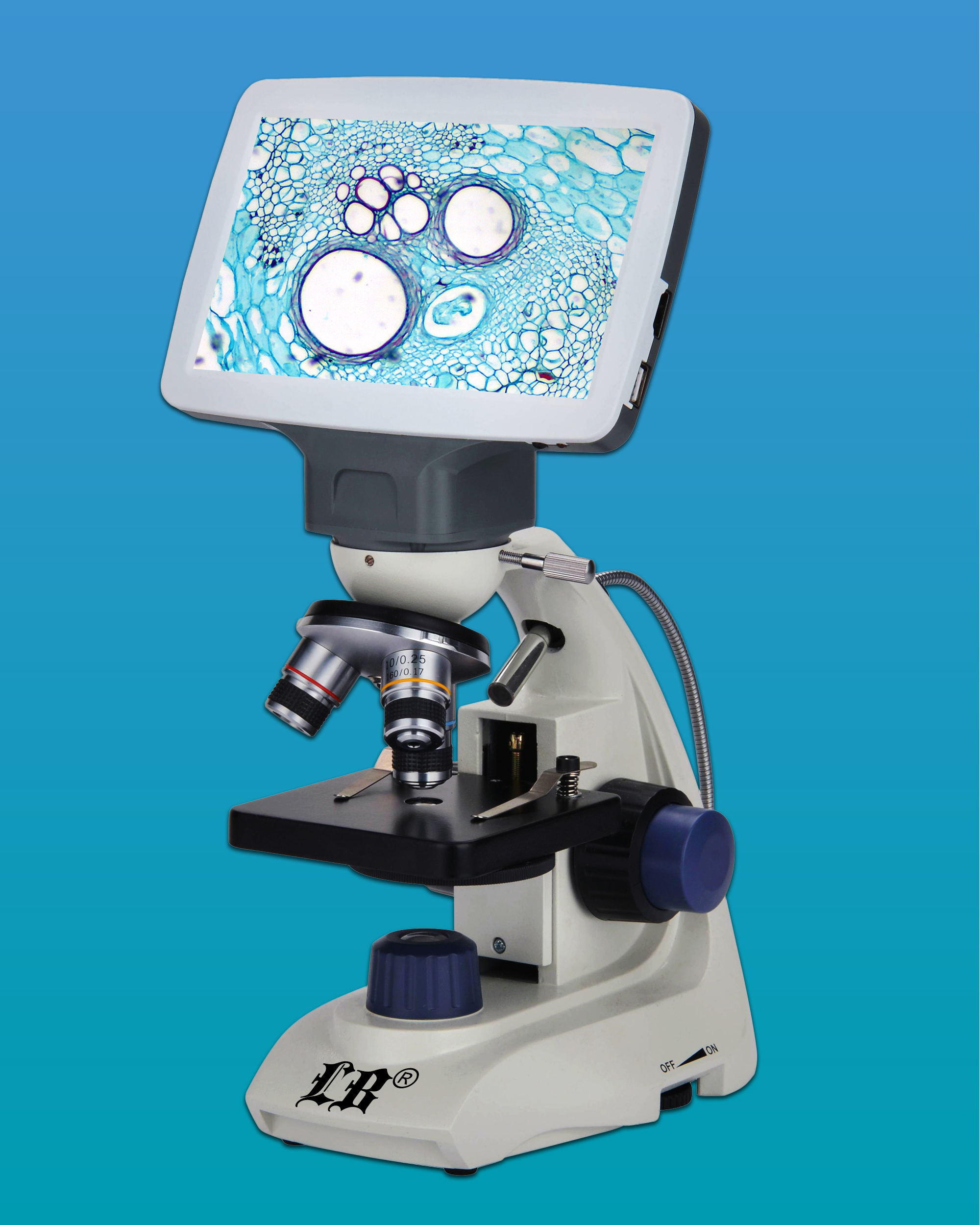

LB-1205 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective

LB-1205 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective has integrated an optical microscope, 7-inch LCD screen and 5.0MP digital camera for image and video capture and data transmission. With high quality optics, the microscope can ensure you get high definition images. It is perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • 7-inch IPS LCD screen with wide visual angle, resolution 1024×600.
  • Built-in 5.0MP CMOS camera, output 1920×1080 HD Video.
  • 1*USB2.0 interface for mouse, no shaking. 1* HDMI interface is convenient for sharing videos to TV or projector for speech. 1* SD card slot, images and videos could be saved in SD card.
  • Battery compartment comes with the microscope, 3pcs AA battery can be used as the power supply, easy for out door work.

Top of the Page

Technical Specifications

Application

LB-1205 LCD Digital Biological Optical Microscope with High Quality Optics and Achromatic Objective can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.

Item Specification
Viewing Head 7-inch IPS LCD screen with wide visual angle, resolution 1024×600, Built-in 5.0MP CMOS camera, output 1920×1080 HD Video. 1*USB2.0 interface for mouse, 1* HDMI interface, 1* SD card slot.
Built-in Camera Resolution: 5.0MP, 2592×1944
Image resolution: 2592×1944
Video resolution: 1920×1080
Pixel Size: 2.75×2.75μm
Nosepiece Triple Nosepiece
Objective Achromatic Objective 4×(185)
Achromatic Objective 10×(185)
Achromatic Objective 40×(185)
Stage Plain Stage with Slide Clips 95×95mm
Focusing Coaxial Coarse and Fine Adjustment
Condenser Single Lens NA 0.65 with Disc Diaphragm
Illumination Transmitted LED Illumination, Brightness Adjustable; Top LED light
Spare Parts Dust Cover
Power Supply AC100-220V power adapter, microscope input voltage DC5V
Battery compartment (can use 3pcs AA batteries as the power supply)
Package Styrofoam & Carton, Dimension 28×25×40 cm, 3kg



Sample Images



click here to fill out the Information Request Form
