Labomed Inc.

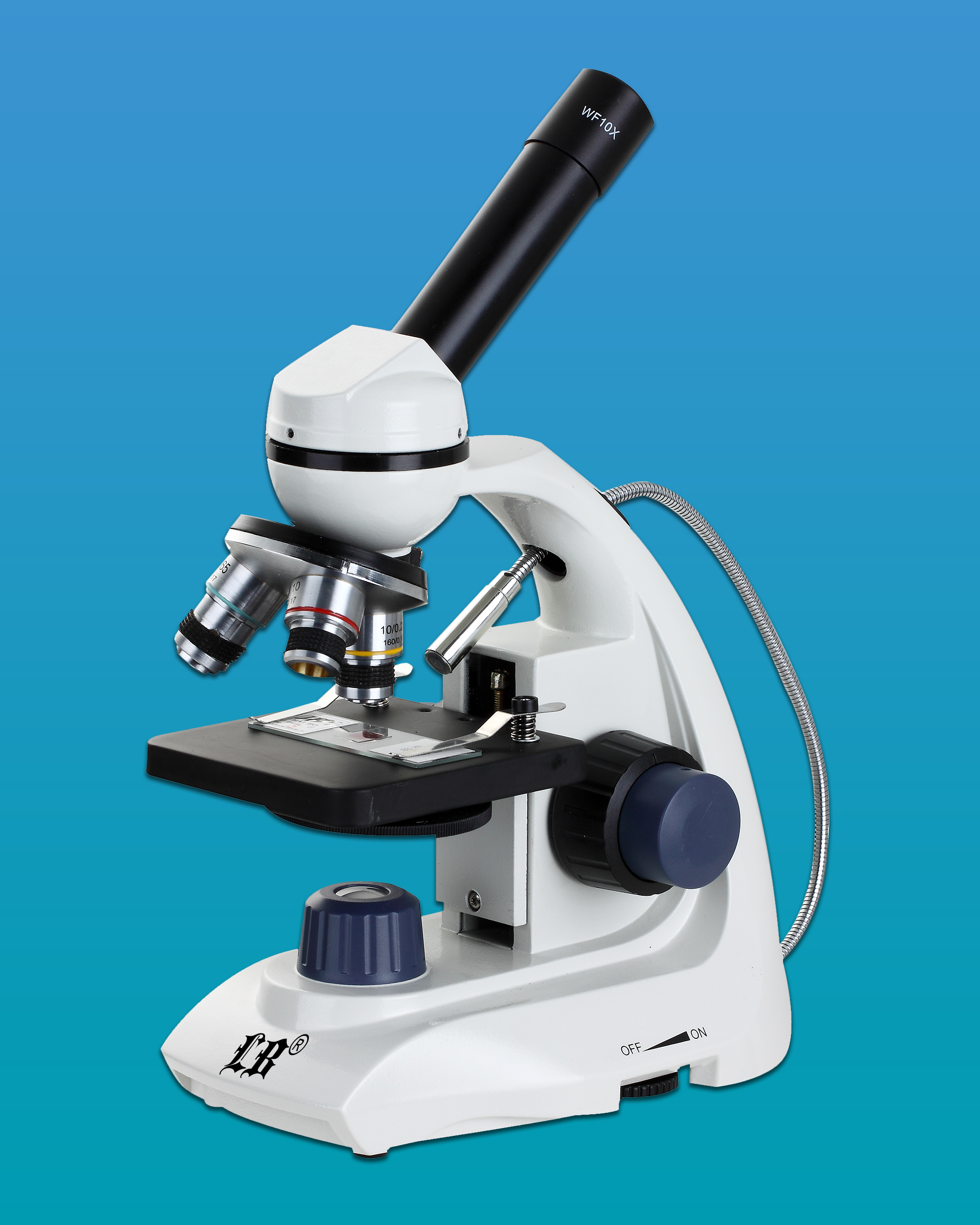

LB-127 Monocular Biological Microscope with Wide Field Eyepiece and Achromatic Objectives

LB-127 Monocular Biological Microscope with Wide Field Eyepiece and Achromatic Objectives are economical microscopes with basic features for educational applications in elementary and middle school. With the high quality material and optics, the microscopes can ensure you get high definition images. They are perfect for individual or classroom application. An incident illumination is available for non-transparent specimens.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Monocular head, 360° Rotatable, users can view from any angles.
  • Maximum magnification can be up to 2500× with optional eyepiece and objectives.
  • Battery compartment comes with the microscope, 3pcs AA battery can be used as the power supply, easy for outdoor work.

Top of the Page

Technical Specifications

Applications

LB-127 Monocular Biological Microscope with Wide Field Eyepiece and Achromatic Objectives can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.

Item Specification
Viewing Head Monocular viewing head, Inclined at 45°, 360° Rotatable
Eyepiece WF10×/16mm
WF25×/6.5mm
Nosepiece Triple Nosepiece
Objective Achromatic Objective 4×(185)
Achromatic Objective 10×(185)
Achromatic Objective 40×(185)
Stage Plain Stage with Slide Clips 95×95mm
Focusing Coaxial Coarse and Fine Adjustment
Condenser Single Lens NA 0.65 with Disc Diaphragm
Illumination 0.1W LED Illumination, Brightness Adjustable
Spare Parts Dust Cover
Power Supply AC100-220V power adapter, microscope input voltage DC5V
Battery compartment (can use 3pcs AA batteries as the power supply)
Package Styrofoam & Carton, Dimension 28×19×40 cm, 3kg



Sample Images




Top of the Page

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY


click here to fill out the Information Request Form
