Labomed Inc.

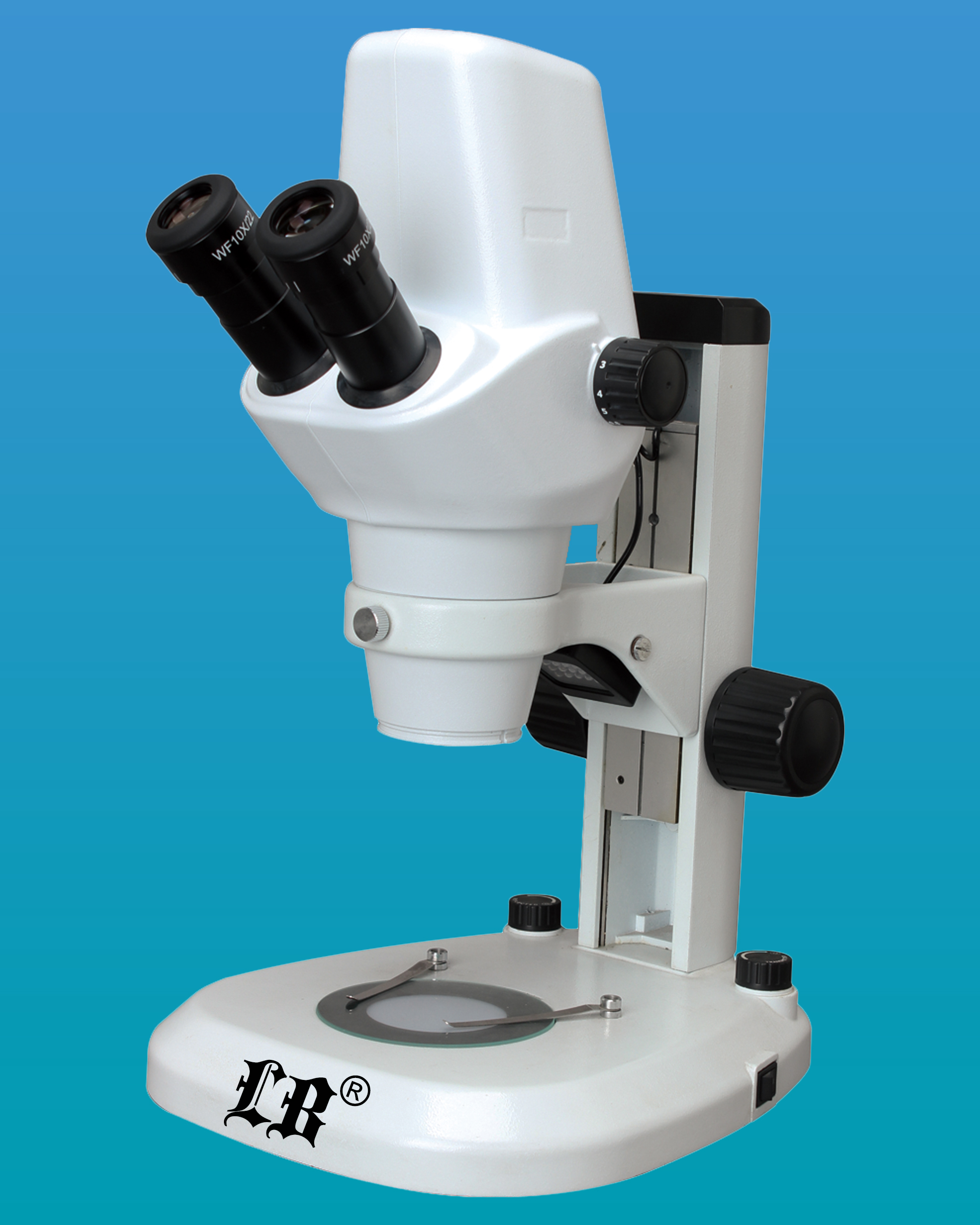

LB-344 Zoom Stereo Digital Microscope with Extra Wide Field, LED Illumination and 3.2 MP Digital Camera

Stereo microscopes are also known as low magnification and dissecting microscopes. LB-344 Zoom Stereo Digital Microscope with Extra Wide Field, LED Illumination and 3.2 MP Digital Camera on a post stand offers upright, un-reversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

LB-344 Zoom Stereo Digital Microscope with Extra Wide Field, LED Illumination and 3.2 MP Digital Camera is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose a trinocular head to add a digital camera with the appropriate camera adapter. In summary, LB-344 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field. Ease the tiredness with ergonomic design.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.

Top of the Page

Accessories

see LB-150A accessories for the Stereo Microscope

Technical Specifications

Applications

LB-344 Zoom Stereo Digital Microscope with Extra Wide Field, LED Illumination and 3.2 MP Digital Camera is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Viewing Head

Digital Viewing Head, Inclined at 45°, 3.2MP(2048×1536)

Eyepiece

Extra wide field eyepiece EW10×/22

Zoom Objective

0.8×-5×

Zoom Ratio

6.3:1

Working Distance

115mm

Interpupillary Distance

57-75mm

Stage Plate

Glass Insert Plate, Diameter 100mm

White & Black round plate

Illumination

Incident Illumination 100V-240V/ LED

Transmitted Illumination 100V-240V/ LED

Package & Dimension 36.5cm*31cm*52cm, 1pc/carton, 8.5kg

Digital Camera Specification

Image Sensor

1/2 inch 3.2MP CMOS Image Sensor (4:3)

Active pixels

2048×1536

Pixel size

3.2µm × 3.2µm

Shutter type

Global reset release (GRR), electronic rolling shutter (ERS)

Image Format Frame rate

9 fps @ 2048×1536

Sensitivity

>1.0 V/lux-sec (550nm)

Dynamic range

61dB

SNR

43dB

Operating temperature

0°C ~ 60°C

Image Output

USB2.0, Directshow and Twain

Operating System

Windows 2000/XP/Vista

Software

ScopeImage 9.0



Top of the Page

Optional Accessories
(must be ordered separately)

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
