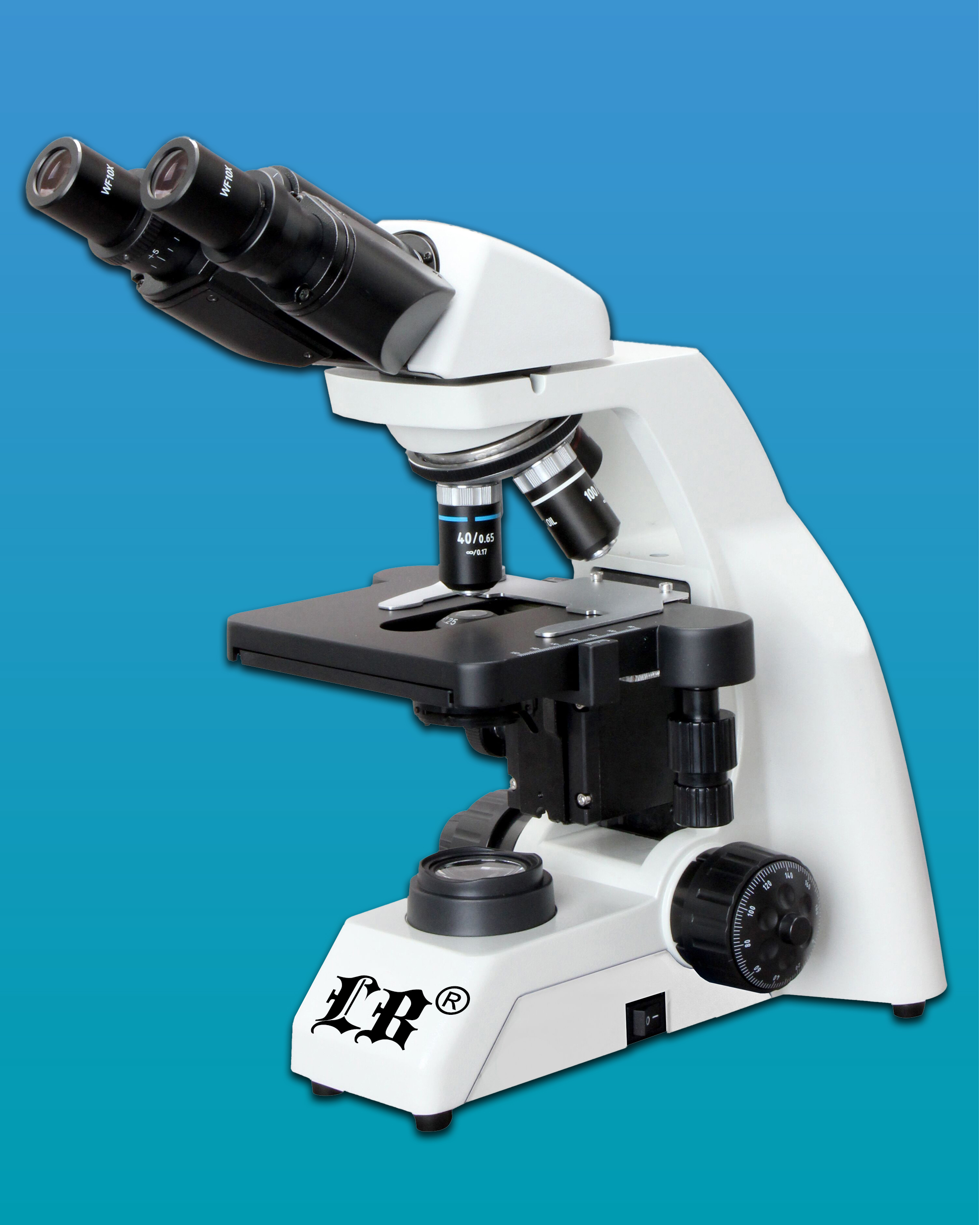

LB-241 Biological Digital Microscope
with 5.0MP Built-in Camera and Software

LB-241 Biological Digital Microscope with 5.0MP Built-in Camera and Software are classical biological microscopes with ingenious stand, high definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • High contrast and sharp image with high quality optical system.
  • Low environment requirement with Anti-mold technology.
  • Comfortable operation with low position coarse and fine adjustment knobs.
  • ECO function is optional, automatically turn off after 15 mins of no use.
  • With cord rest on the back, making the working table clean and tidy.

Top of the Page

Technical Specifications

Applications

LB-241 Biological Digital Microscope with 5.0MP Built-in Camera and Software is an ideal instrument for the biological, histological, and pathological fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Optical System

Infinite Optical System

Eyepiece

WF10×/20mm

Viewing Head

Digital Binocular Head with built-in camera, Inclined at 30°, Interpupillary Distance 47-78mm, 5.0MP, Support Wifi

Objective

Infinite Plan Achromatic Objectives 4×, 10×, 40×, 100×

Nosepiece

Backward Quadruple Nosepiece

Backward Quintuple Nosepiece (optional)

Stage

Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm

Condenser

Abbe Condenser NA1.25

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm

Illumination

6V/20W Halogen Lamp, Brightness Adjustable

Package

1pc/carton, 36*26*46mm, gross weight: 8kg



Sample Images

Back View



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
